1.2L ENG MODIFIED A/C COMPRESSOR BRACKET INSTRUCTION CAT. 15, NO. 124/83

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, August 27, 2001  06:35AM

PARTS INFORMATION

   Plain washers are not included in the 1983 RX7 kits but will be in
1984. However, these washers will be available under the following
part numbers:
          9995 11 022 (3.2mm, 6 pcs.) for Front Cover Stud.
          9995 21 200 (2.3mm, 2 pcs.) for Front Housing Stud.

END OF ARTICLE

A/C LITE DIM/NOT ON - WIRE HARNESS CONNECTOR CAT. 16, NO. 008/85

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, August 27, 2001  06:35AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

AIR CONDITIONER INDICATOR LIGHT

Models          RX-7
Bulletin No.    008/85
Category        16
Date            7/16/85
Symptom         No A/C Light

DESCRIPTION

   Some air conditioner kits manufactured by Lone Star Manufacturing
Company may contain incorrectly assembled harness connectors. If the
indicator light on the air conditioner switch does not illuminate. or
illuminates dimly after installation, the problem may be due to
incorrectly assembled G-03 or G-16 connectors. See Fig. 1.

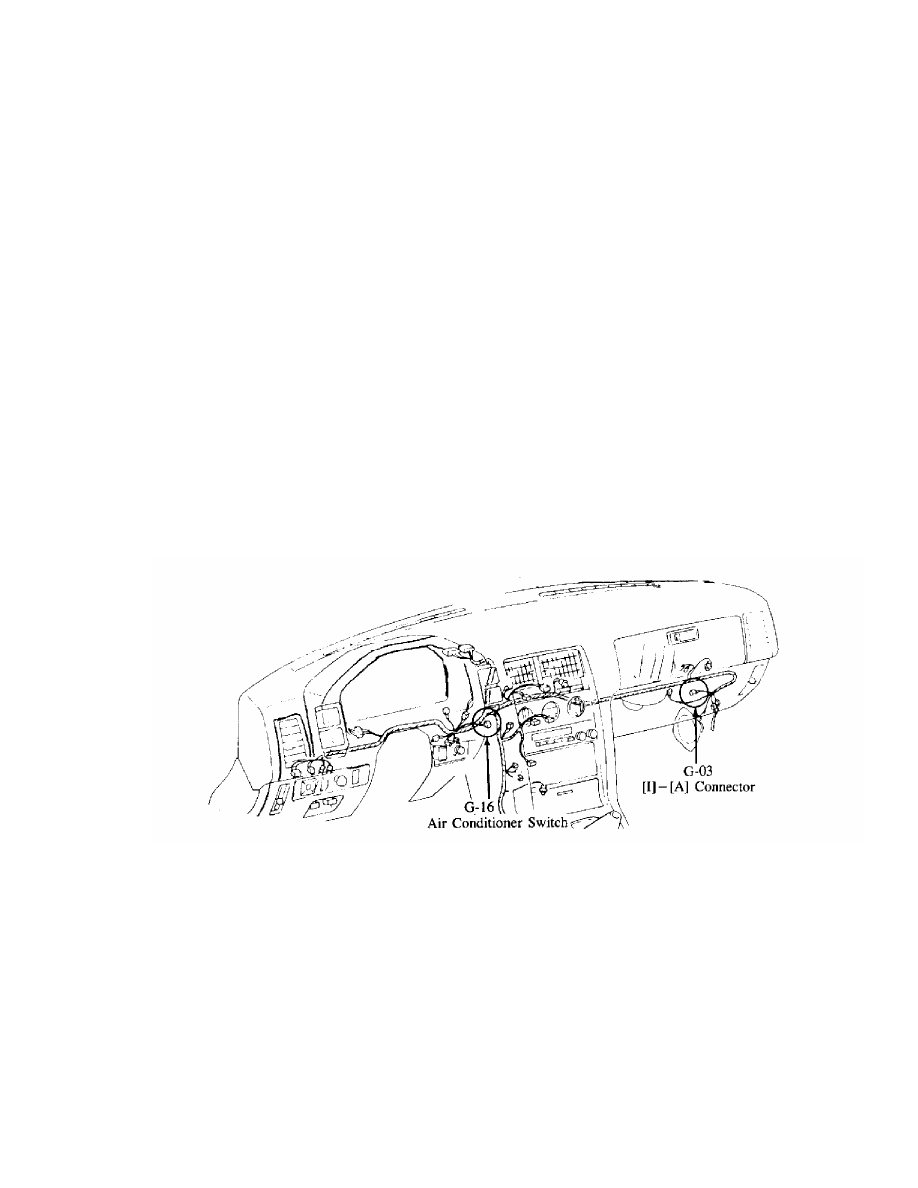

Fig. 1:  A/C Indicator Light Harness Routing

REPAIR PROCEDURE

   1. Check that the G-03 accessory connector (A) is assembled
      correctly as viewed from the harness side of the connector.
      If not, remove the incorrect terminals and reassemble according
      to the connector diagram.
   2. Check that the G-16 accessory connector (A) is assembled
      correctly as viewed from the harness side of the connector.
      If not, remove the incorrect terminals and reassemble according
      to the connector diagram. See Fig. 2.

A/C LITE DIM/NOT ON - WIRE HARNESS CONNECTOR CAT. 16, NO. 008/85

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, August 27, 2001  06:35AM

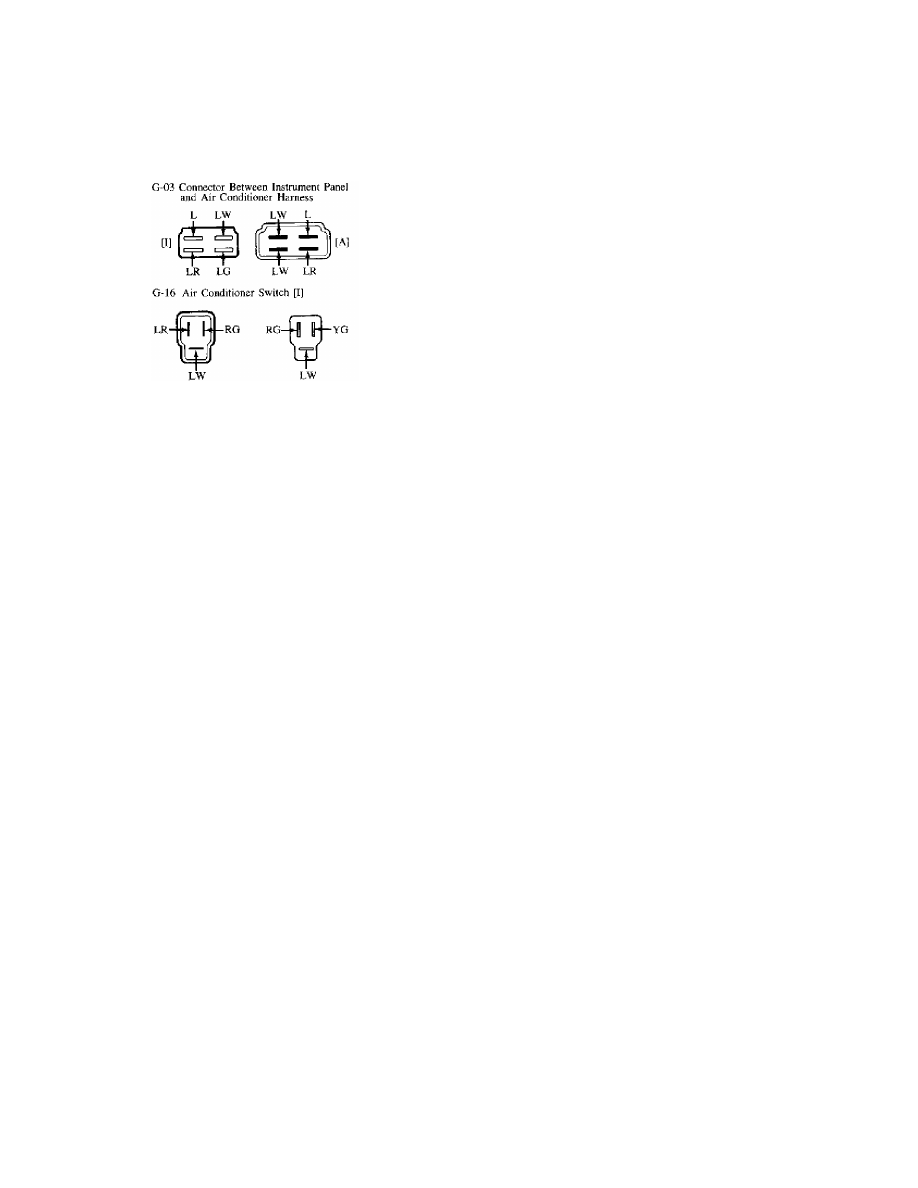

Fig. 2:  RX7 A/C Accessory Connectors

END OF ARTICLE

CORRECT FREON CHARGE WARNING SPECS CAT. 16, NO. 034/88

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, August 27, 2001  06:36AM

ARTICLE BEGINNING

TECHNICAL SERVICE BULLETIN

REFRIGERANT CHARGE SERVICE

Model:  ALL MODELS WITH A/C
Bulletin No.:  034/88
Date:  6/30/88
Category:  16

DESCRIPTION

To insure proper and efficient operation of the Air Conditioning
System, it is of extreme importance to verify that the Air
Conditioning System is properly charged.  Also, please note that over-
charging the Air Conditioning system can cause higher than normal
system pressures which could result in Air Conditioning System
component damage.

The recommended refrigerant charge for 1988 Mazda vehicles is as
follows:

323, RX-7, B-Series Truck...............................28 ounces
626, MX-6...............................................35 ounces
929.....................................................39 ounces

QUICK VISUAL CHECK

It is possible to make a quick visual check of the Air Conditioning
System to verify the correct refrigerant charge.

1)  Run the engine as fast idle.
2)  Operate the Air Conditioning System at maximum cooling for
    approximately 5 minutes.
3)  Observe the sight glass and compare to the possible results as
    shown in Fig. 1.

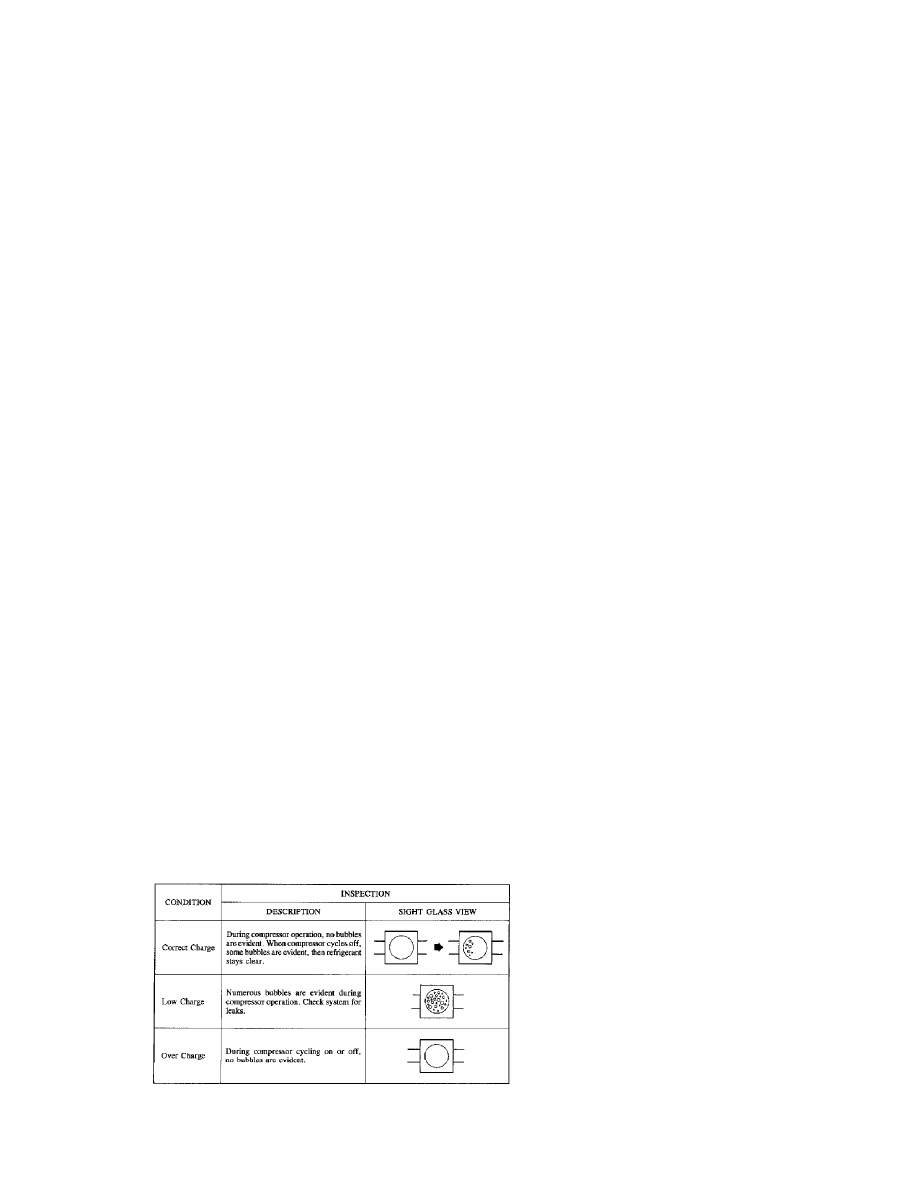

Fig. 1:  A/C Charging Sight Glass Symptoms
