BRAKE SYSTEM

Article Text (p. 10)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:54PM

         3) Attach suitable tool to rear shell mounting studs. Press
down on tool while rotating it clockwise to unlock rear shell.
         4) Lift rear shell assembly from power unit, remove air
silencer retainer, and separate diaphragm from power piston assembly.
Remove valve rod with plunger assembly from rear shell.
         5) Remove lock plate and press the valve rod in to remove
the valve retainer key. Remove valve rod and plunger assembly. Remove
air silencer and filter.

NOTE:    Service the valve rod plungers as an assembly.

         6) Remove retainer, bearing, and rear seal.

NOTE:    Never remove the rear seal from the rear shell unless seal
         is defective and a new one is available.

         7) Remove the push rod, front seal, and the support plate.

         Cleaning & Inspection
         1) Clean all parts and blow dry with compressed air. Inspect
all rubber parts for cuts, nicks, deterioration or other damage.
         2) Check power piston for cracks, distortion, chipping, and
damaged seats. Inspect front and rear shells for scratches, scores,
pits, dents or other damage. Replace any defective parts.

         Reassembly
         1) Reverse disassembly procedure. Apply silicone grease to
parts before reassembly. When assembling rear shell to front shell,
make sure index marks are aligned.
         2) Before installing master cylinder to power unit, measure
clearance between primary piston and power unit push rod. Clearance
on RX7 & GLC Wagon should be .004-.012" (.1-.3 mm).
         3) On all other models, clearance should be .004-.020"
(.1-.5 mm). If clearance is not to specifications, correct by
adjusting push rod length.

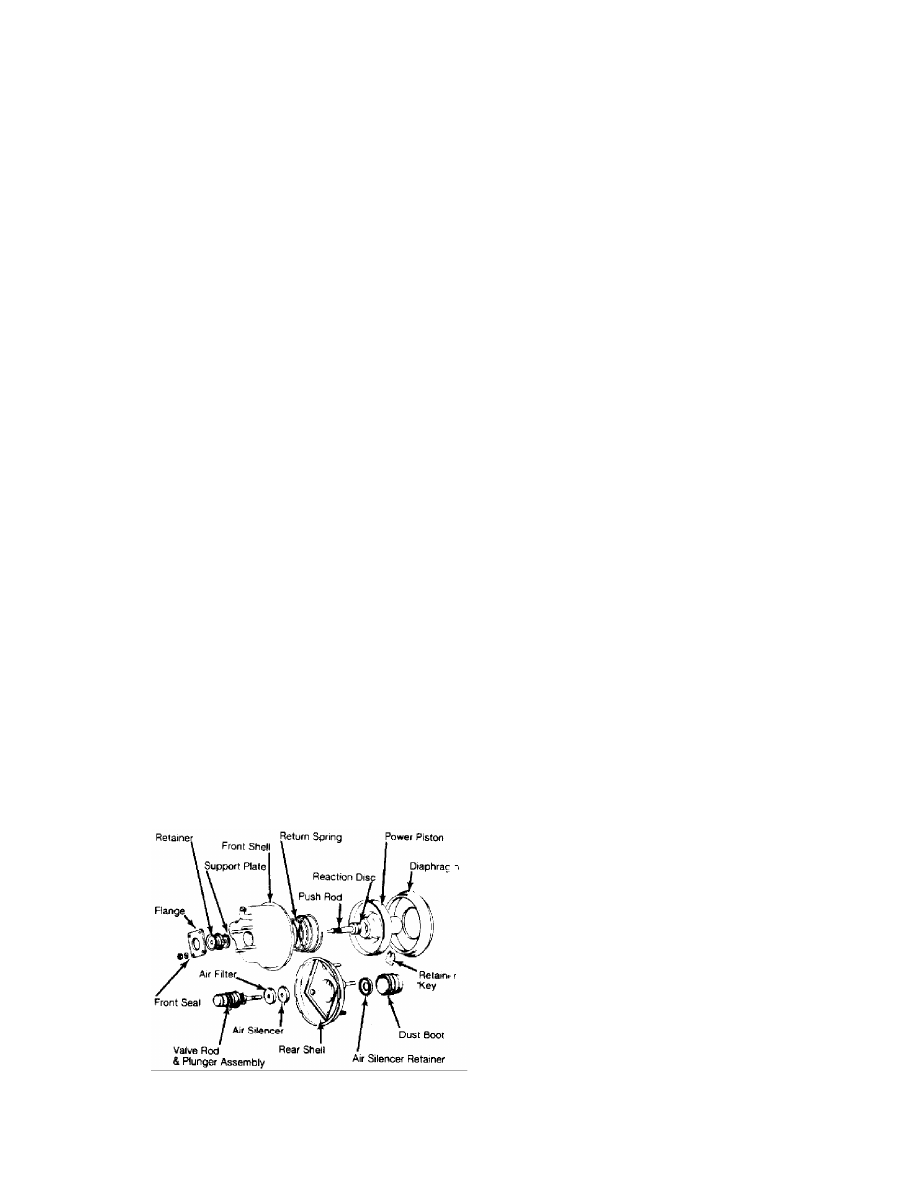

Fig. 8:  Exploded View of Typical Power Brake Unit
Some models may vary slightly.

BRAKE SYSTEM

Article Text (p. 11)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:54PM

         TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                             Ft. Lbs. (N.m)

Caliper Mounting Bracket
  Pickups  ............................................  40-47 (55-65)
  GLC Wagon  ..........................................  33-40 (45-55)
Caliper Guide Pin  ....................................  33-40 (45-55)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         DISC SPECIFICATIONS

DISC BRAKE ROTOR SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                                 In. (mm)

GLC Wagon
 Disc. Diameter  .........................................  9.02 (229)
 Lateral Runout  .........................................  .002 (.06)
 Parallelism  ........................................................
 Original Thickness  ......................................  .512 (13)
 Min. Refinish Thickness  ............................................
 Discard Thickness  .......................................  .472 (12)

RX7
 Disc. Diameter
   Front / Rear  ....................................................
 Lateral Runout
   Front / Rear  .........................................  .004 (.10)
 Parallelism  ........................................................
 Original Thickness
   Front  .................................................  .709 (18)
   Rear  ..................................................  .394 (10)
 Min. Refinish Thickness  ............................................
 Discard Thickness
   Front  .................................................  .669 (17)
   Rear  ...................................................  .354 (9)

B2000
 Disc. Diameter  ........................................  10.08 (256)
 Lateral Runout  .........................................  .004 (.10)
 Parallelism  ........................................................
 Original Thickness  ......................................  .472 (12)
 Min. Refinish Thickness  ............................................
 Discard Thickness  .......................................  .433 (11)

B2200
 Disc. Diameter  ........................................  10.08 (256)
 Lateral Runout  .........................................  .004 (.10)
 Parallelism  ........................................................

BRAKE SYSTEM

Article Text (p. 12)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:54PM

 Original Thickness  ......................................  .787 (20)
 Min. Refinish Thickness  ............................................
 Discard Thickness  .......................................  .748 (19)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         DRUM SPECIFICATIONS

DRUM BRAKE SPECIFICATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                                 In. (mm)

Mazda
  GLC Wagon
    Drum Diameter  .......................................  7.87 (200)
    Drum Width  ......................................................
    Max. Drum Refinish Diam.  ............................  7.91 (201)
    Wheel Cyl. Diameter  ................................  .750 (19.0)
    Master Cyl. Diameter  ..............................  .8125 (20.6)

  RX7
    Drum Diameter  .......................................  7.87 (200)
    Drum Width  ......................................................
    Max. Drum Refinish Diam.  ............................  7.91 (201)
    Wheel Cyl. Diameter  ................................  .750 (19.0)
    Master Cyl. Diameter  ..............................  .8125 (22.2)

  B2000 & B2200
    Drum Diameter  ......................................  10.23 (260)
    Drum Width  ......................................................
    Max. Drum Refinish Diam.  ...........................  10.27 (261)
    Wheel Cyl. Diameter  ................................  .875 (22.2)
    Master Cyl. Diameter  ...............................  .875 (22.2)

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

END OF ARTICLE

1.1L ROTARY

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:57PM

ARTICLE BEGINNING

         1983 ENGINES
         Mazda 1.1L Rotary

         RX7

         ENGINE CODING

         ENGINE IDENTIFICATION

         Engine identification number is stamped on front engine
housing behind the distributor.

ENGINE IDENTIFICATION CODES TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Application                                Engine Code

RX7
 1.1L Rotary Engine .............................. 12A

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         ENGINE

         REMOVAL & INSTALLATION

         Removal
         1) Remove hood and disconnect battery ground cable. Drain
engine oil and coolant. Remove engine under cover.
         2) Disconnect following electrical wires: Primary and
secondary ignition wires at coils, pick-up coil wiring connections,
condenser lead, oil level sensor lead, temperature sensor and oil
thermo sensor (except California vehicles).
