A/C SYSTEM GENERAL DIAGNOSTIC PROCEDURES

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:42PM

ARTICLE BEGINNING

         1983-90 AIR CONDITIONING & HEAT
         General Servicing Diagnostic Procedures

         All Import Makes & Models

         Diagnosis is an important first step in A/C system servicing.
To save time and effort, systems should be carefully checked to
identify the causes of poor performance. By using the following
diagnostic charts, defective components or system damage can be
quickly located. To identify problems that are specific to one system,
refer to the repair section of this manual. The charts in this section
apply to all systems.

         ALTITUDE PRESSURE VARIATIONS

ALTITUDE PRESSURE VARIATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Altitude                       Absolute                 Gauge Altitude
(Ft. Above                    Pressure of                   Correction
Sea Level)                 Atmosphere (psi)                 (1)  (psi)

0  ...........................  14.7  .............................  0
1000  ........................  14.2  ..........................  -0.5
2000  ........................  13.7  ..........................  -1.0
3000  ........................  13.2  ..........................  -1.5
4000  ........................  12.7  ..........................  -2.0
5000  ........................  12.2  ..........................  -2.5
6000  ........................  11.7  ..........................  -3.0
7000  ........................  11.3  ..........................  -3.4
8000  ........................  10.9  ..........................  -3.8
9000  ........................  10.5  ..........................  -4.2
10,000  ......................  10.1  ..........................  -4.6

(1) - Subtract correction shown from gauge readings.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         ALTITUDE VACUUM VARIATIONS

ALTITUDE VACUUM VARIATIONS TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Altitude                       Absolute                 Gauge Altitude
(Ft. Above                    Pressure of                   Correction
Sea Level)                 Atmosphere (psi)                 (1)  (psi)

0  ...........................  29.92  ............................  0
1000  ........................  28.92  .........................  +1.0
2000  ........................  27.82  .........................  +2.1
3000  ........................  26.82  .........................  +3.1
4000  ........................  25.82  .........................  +4.1

A/C SYSTEM GENERAL DIAGNOSTIC PROCEDURES

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:42PM

5000  ........................  24.92  .........................  +5.0
6000  ........................  23.92  .........................  +6.0
7000  ........................  23.02  .........................  +6.9
8000  ........................  22.22  .........................  +7.7
9000  ........................  21.32  .........................  +8.6
10,000  ......................  20.52  .........................  +9.4

(1) - Add correction shown to gauge readings.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

         PREPARATION FOR TESTING

         1) Attach Low and High pressure gauges.
         2) Start engine and allow to warm up.
         3) Set system to "COOL" and blower to "HIGH".
         4) Open car doors and hood.
         5) Run engine at fast idle for 2-3 minutes.

AIR CONDITIONING SYSTEM PERFORMANCE CHECK TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

PERFORM TESTS:                  SHOULD BE:    IF:

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Temperature Check                             Temperature Check Is

*  Switch to "LOW" blower.
*  Close doors.
*  Check outlet temperature.     35-45

ø

 F     Too warm - Check control

                                              lever operation, heater
                                              water valve, cooling
                                              system and gauge
                                              readings.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Visual Check                                  Visual Check Shows:

*  Compressor          Quiet, No Leaks      Noisy - Check belts, oil
                                              level, seals, gaskets,
                                              reed valves.
*  Condenser          Free of Obstructions    Blocked - Clean off.
                                              Plugged - Flush or
                                              replace.
*  Receiver-Drier      Dry & warm to touch    Frosty - Check for
                                              restriction, replace
                                              desiccant.
*  Sight Glass        Clear or few bubbles    Bubbly, foamy or streaks
                                              - Check gauge readings.
*  High Side Lines     Dry & warm to touch    Frosty or very hot -
                                              Check for restriction or
                                              overcharge.
*  Low Side Lines      Dry & cool to touch    Frosty or warm - Check
                                              for restriction, low
                                              charge or bad valve.
*  Expansion Valve            Dry             Frosty - Check for

A/C SYSTEM GENERAL DIAGNOSTIC PROCEDURES

Article Text (p. 3)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:42PM

                                              moisture or restriction.
                                              Check sensing bulb.
*  STV                 Dry & cool to touch    Frosty or warm - Check
                                              gauge readings for valve
                                              malfunction.
*  Evaporator          Dry & cold to touch    Freezing or warm - Check
                                              expansion valve, STV or
                                              thermo switch.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Gauge Readings                                Gauge Readings are:

*  High Side Gauge     See Pressure Chart     Above or below normal -
                                              See A/C Diagnosis.
*  Low Side Gauge      See Pressure Chart     Above or below normal -
                                              See A/C Diagnosis.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

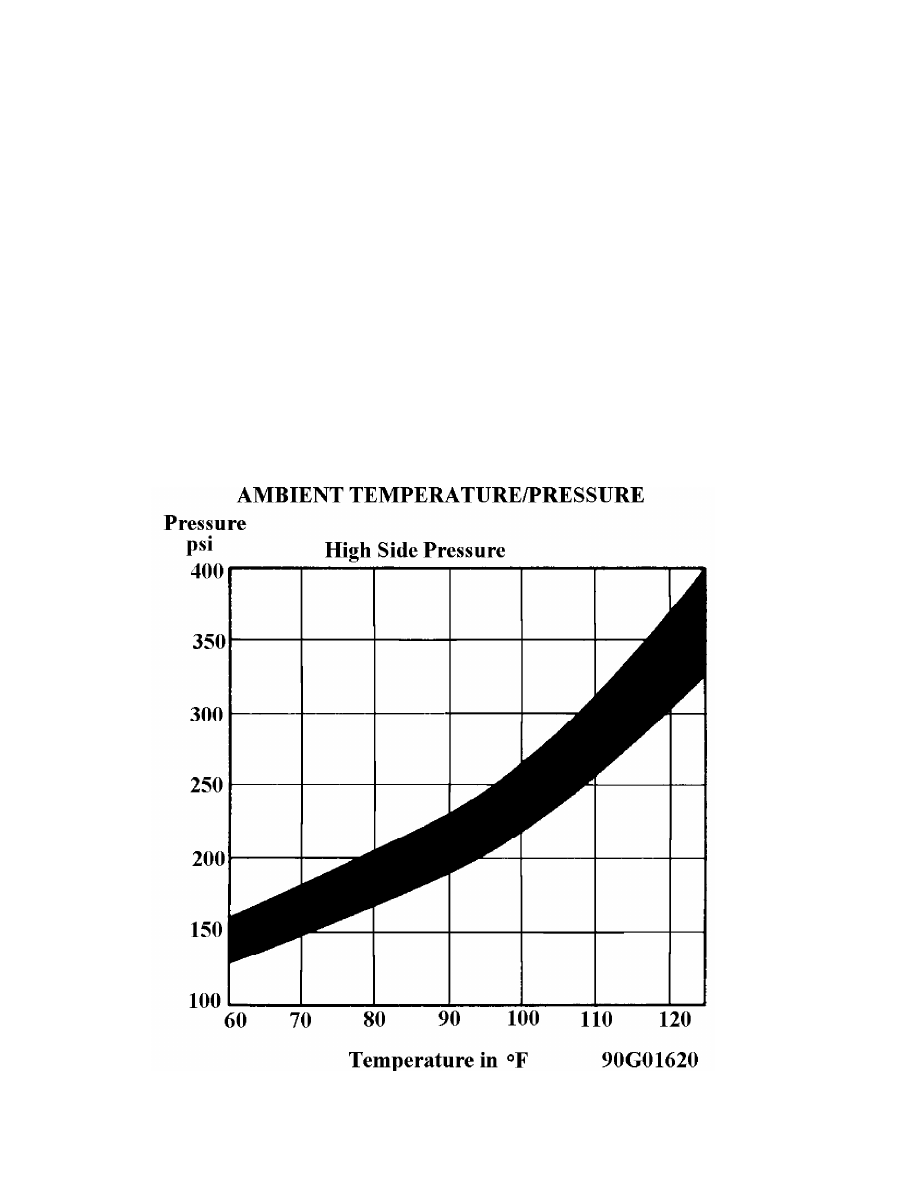

Fig. 1:  Ambient Temperature/Pressure A/C Chart

A/C SYSTEM GENERAL DIAGNOSTIC PROCEDURES

Article Text (p. 4)

1983 Mazda RX7

For www.iluvmyrx7.com

Copyright © 1998 Mitchell Repair Information Company, LLC

Sunday, August 26, 2001  04:42PM

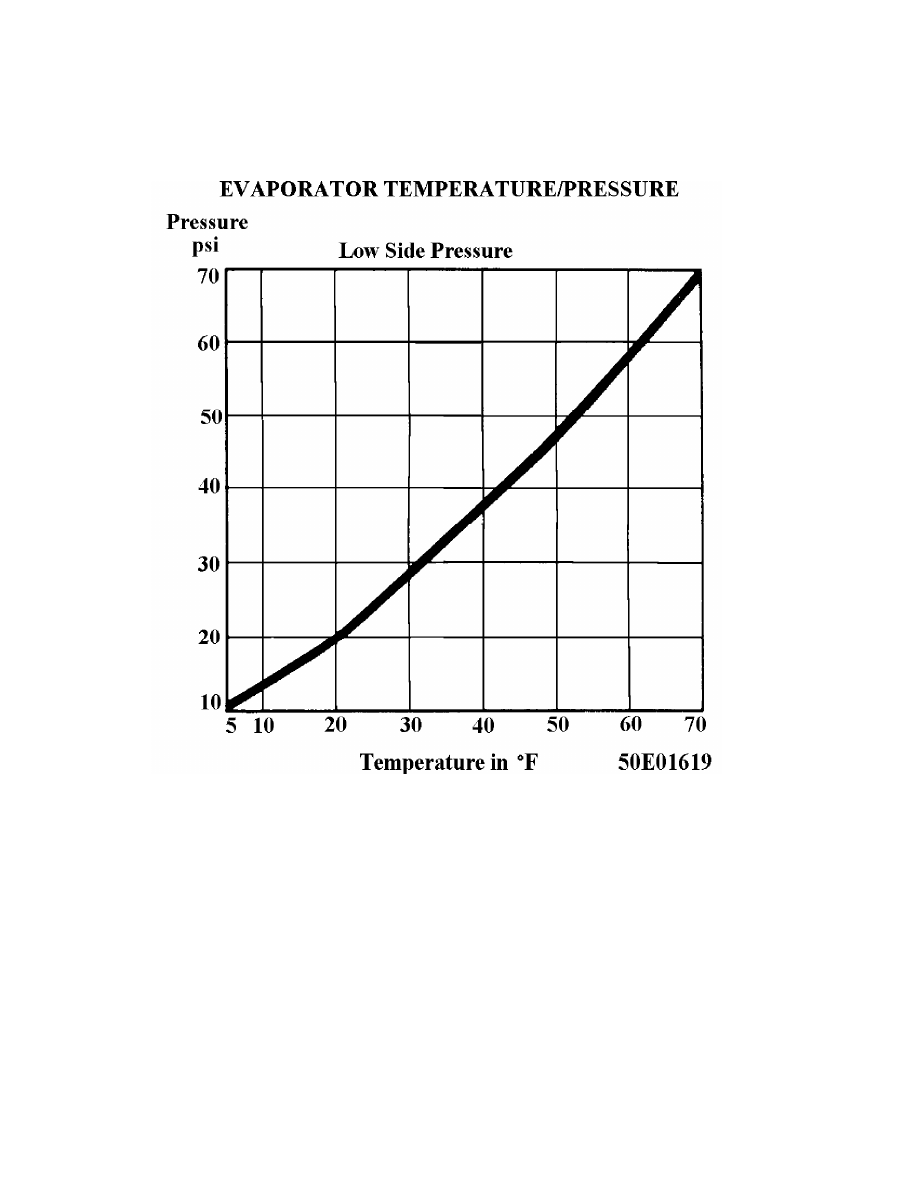

Fig. 2:  Evaporator Temperature/Pressure A/C Chart

AIR CONDITIONING DIAGNOSIS WITH GAUGES FOR SYSTEMS WITH
INSUFFICIENT OR NO COOLING TABLE

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Low Side  High Side     Other Symptoms (1)               Diagnosis
 Gauge      Gauge

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

NORMAL     NORMAL       No or few bubbles in sight      Some Air and
                        glass. High side gauge may      Moisture in
                        go high. Low side gauge         System
                        does not fluctuate with
                        compressor on/off cycle.
NORMAL     NORMAL       Cools okay in morning but       Excessive
                        not during hot part of day.     Moisture in
                        Bubbles in sight glass.         System
                        Discharge air warm when low
                        side gauge drops into vacuum.
NORMAL     NORMAL       Thermostatic switch system      Defective
                        only - compressor cycles off    Thermostatic
