Mazda RX7. Manual - part 9

ELECTRICAL COMPONENT LOCATOR

Article Text (p. 20)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 03:30PM

Brake/Stop Light Switch On top of brake pedal bracket.

Clutch Switch On top of clutch pedal
bracket.

ELECTRICAL COMPONENT LOCATOR

Article Text (p. 21)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 03:30PM

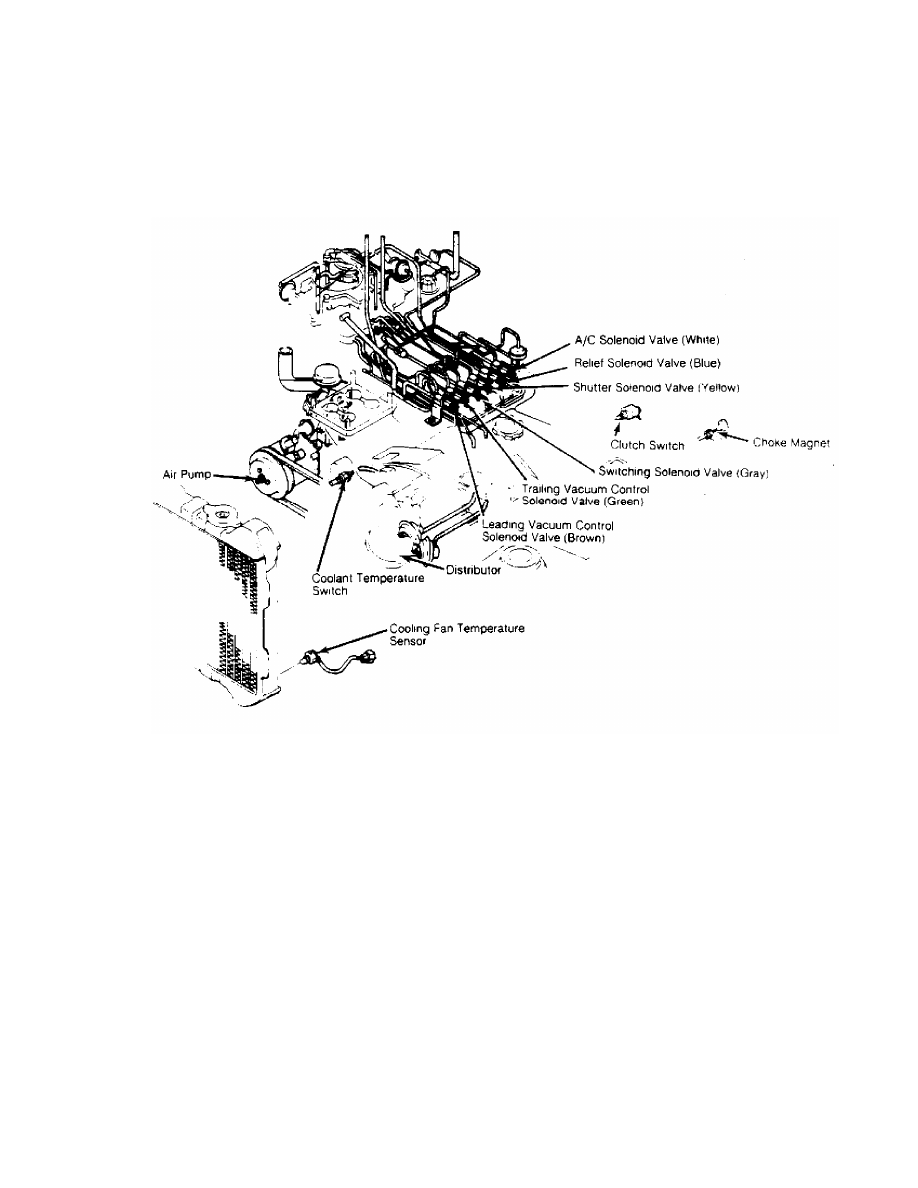

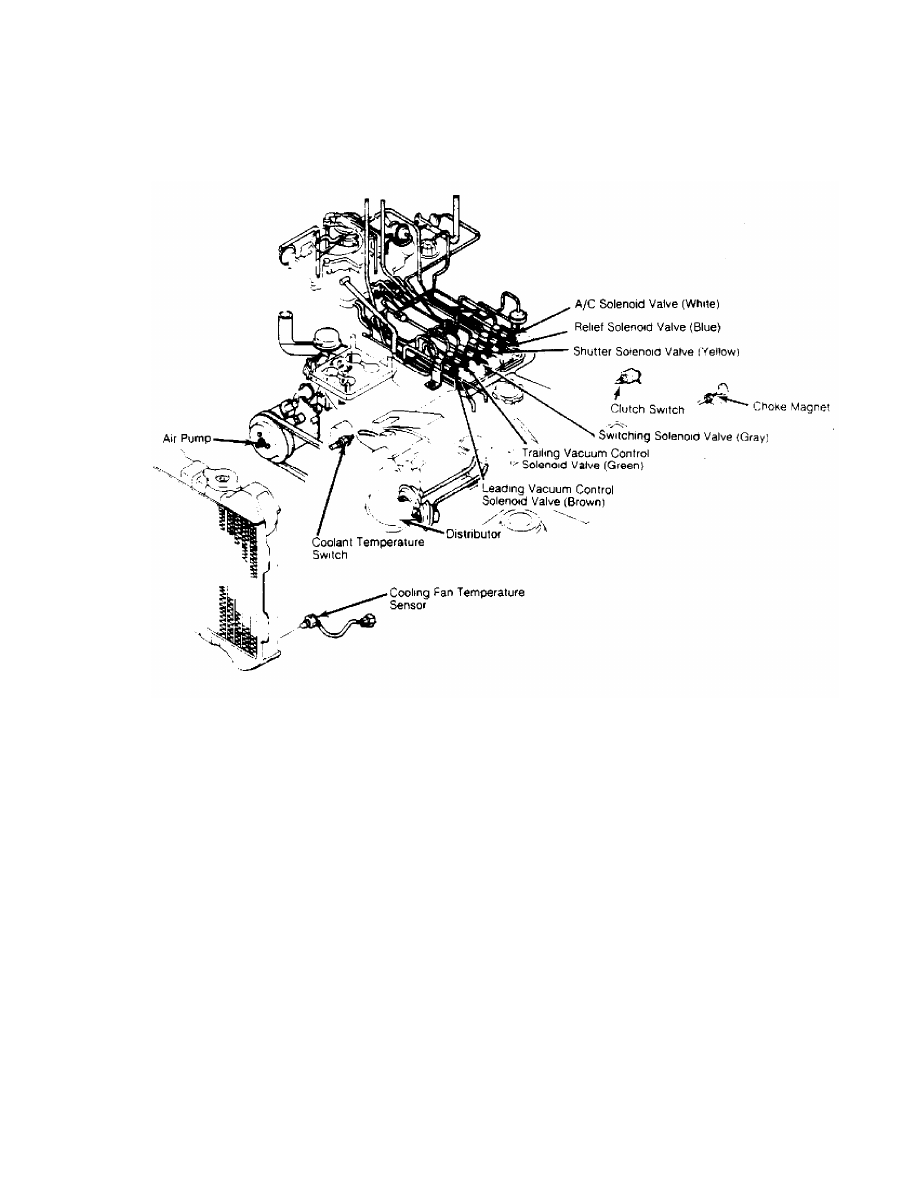

Coolant Temperature Switch At water pump.

Inhibitor Switch (A/T) On left side of transmission
case.

Kickdown Switch On accelerator pedal bracket.

Parking Brake Switch On bottom of parking brake
lever.

END OF ARTICLE

ALTERNATOR & REGULATOR

Article Text

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 03:30PM

ARTICLE BEGINNING

1983 Alternators & Regulators
MITSUBISHI ALTERNATORS WITH INTEGRAL REGULATORS

Mazda

DESCRIPTION

Mitsubishi alternators are conventional 3-phase, self-
rectifying type units containing 6 diodes (3 positive and 3
negative) which are used to rectify current. A case-mounted
Integrated Circuit (IC) regulator is used on all models.

APPLICATION

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

Model Volt/Amps Part No.

Mazda
B2000 .................... 13.5/50 .................. A00IT23370
B2200 .................... 13.5/40 .................. A00IT23479
GLC
FWD ...................... 12/50 ............... (1) E56318300A
RWD ...................... 14/30 ............... (1) D50116300R
RX7 ....................... 12/50 ................ (1) N22118300
626 ....................... 12/60 ............... (1) FE0118300R

(1) - Vehicle manufacturer's part number.

ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

TESTING

ON-VEHICLE TEST

CAUTION: DO NOT short across any alternator terminals or run vehicle
with any wires disconnected. Battery must be fully charged
for tests to be accurate.

Output Test
1) With ignition switch off, check voltage at "R" terminal
and "L" terminal. Reading at both terminals should be 0 volts. If not
0 volts, alternator is defective.
2) Turn ignition switch on but do not start engine. Voltage
at "L" should be 1-3 volts. If voltage is 0, alternator and regulator
are defective.
3) If voltage at "L" is close to battery voltage with
ignition on, short circuit the "F" terminal to rear alternator
housing. See Fig. 1.

ALTERNATOR & REGULATOR

Article Text (p. 2)

1983 Mazda RX7

For www.iluvmyrx7.com

Sunday, August 26, 2001 03:30PM

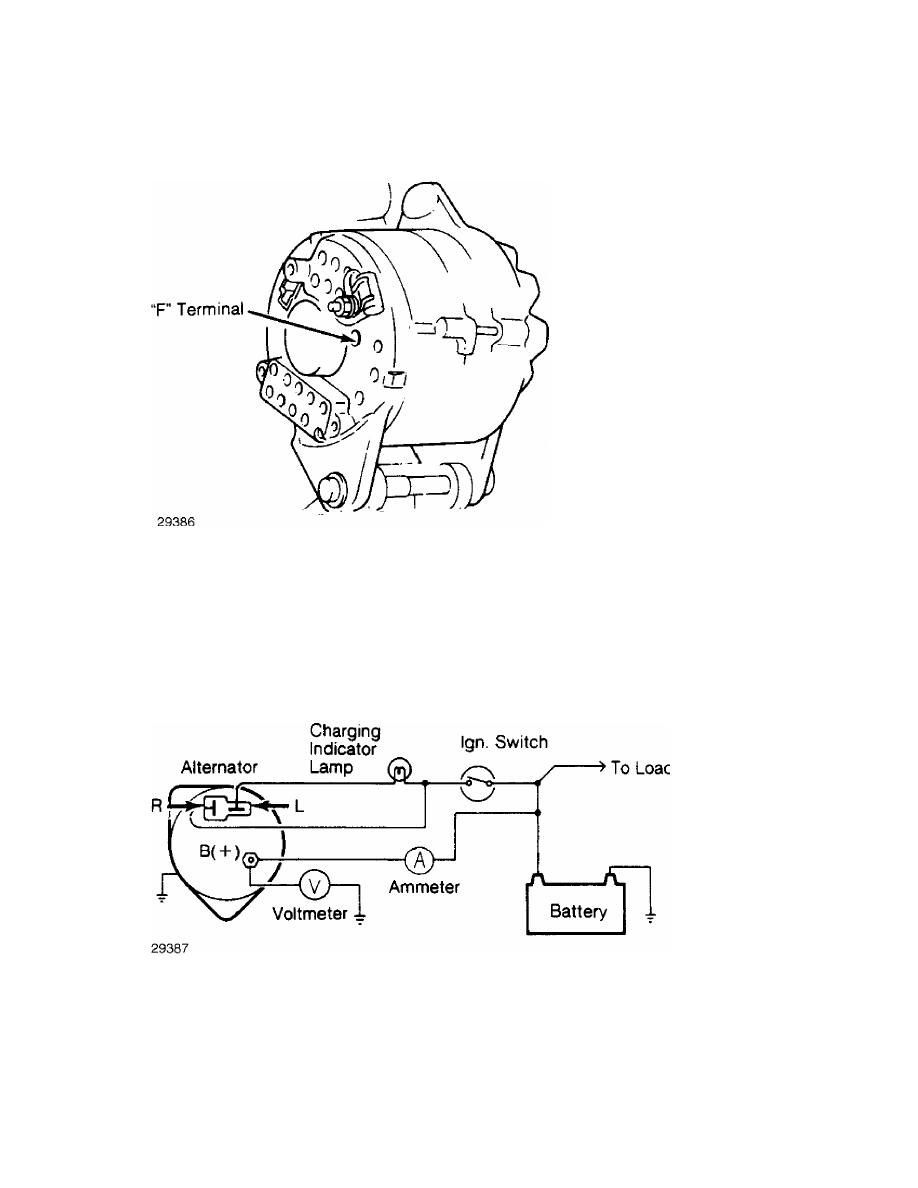

Fig. 1: Alternator "F" Terminal Location
Terminal is located .8" (20 mm) below the hole.

4) Read the voltage at "L" with "F" terminal shorted. If
voltage is lower than battery voltage, regulator is defective. If
voltage is close to battery voltage, alternator is defective.
5) With ignition switch off and battery ground cable
disconnected, connect ammeter between alternator terminal "B" and
cable. Connect voltmeter between "B" (+) terminal and ground. See
Fig. 2.

Fig. 2: Alternator Output Test Arrangement

6) Start engine and accelerate to 2000-3000 RPM. Turn on all
lights and check ammeter for output.

OVERHAUL

DISASSEMBLY
