WIPER/WASHER SYSTEM
Article Text (p. 2)
1983 Mazda RX7
For www.iluvmyrx7.com
Copyright © 1998 Mitchell Repair Information Company, LLC
Sunday, August 26, 2001 03:29PM

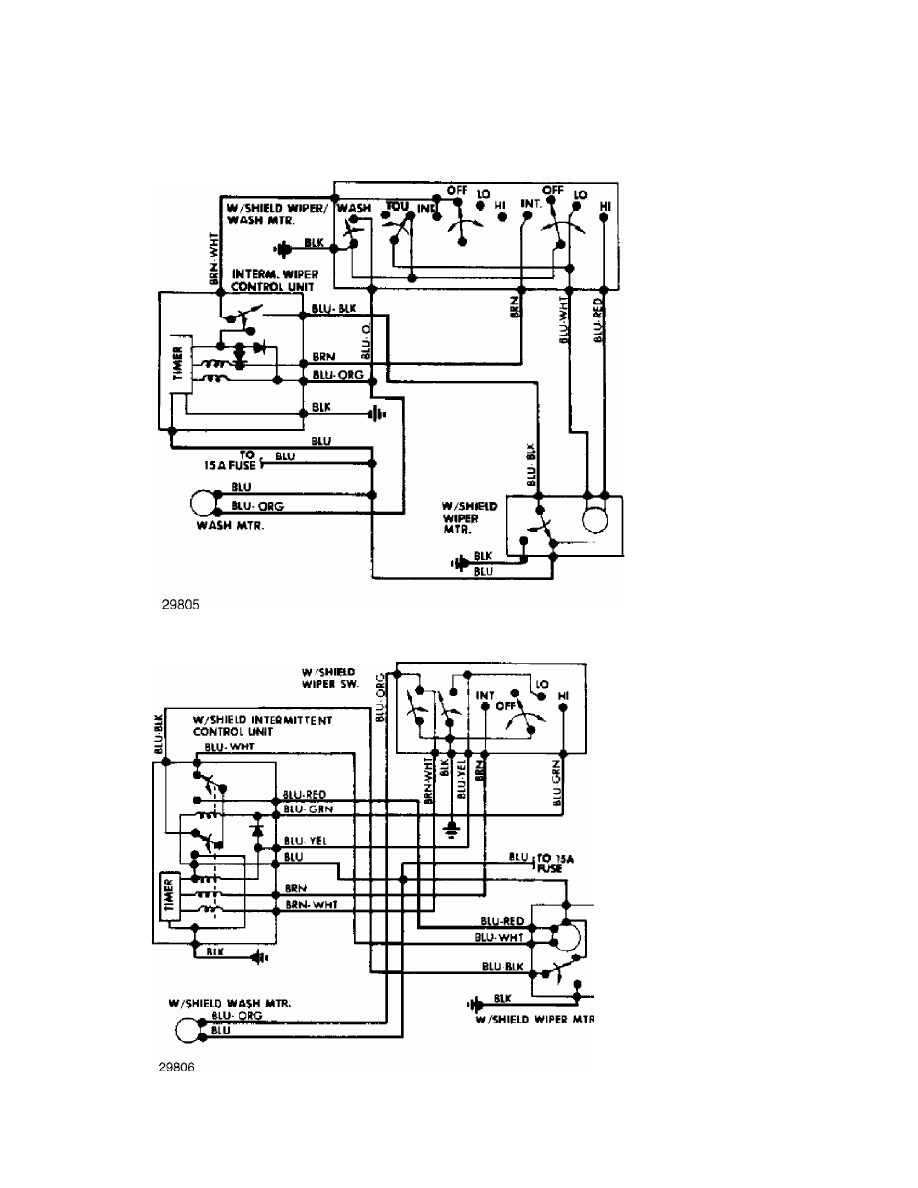

Model Connector Location
GLC
Hatchback ................. 6-pin ... Left of instrument cluster
Wagon ..................... 6-pin ... Left of instrument cluster
B2000 &
B2200 ..................... 4-pin ... Left of instrument cluster

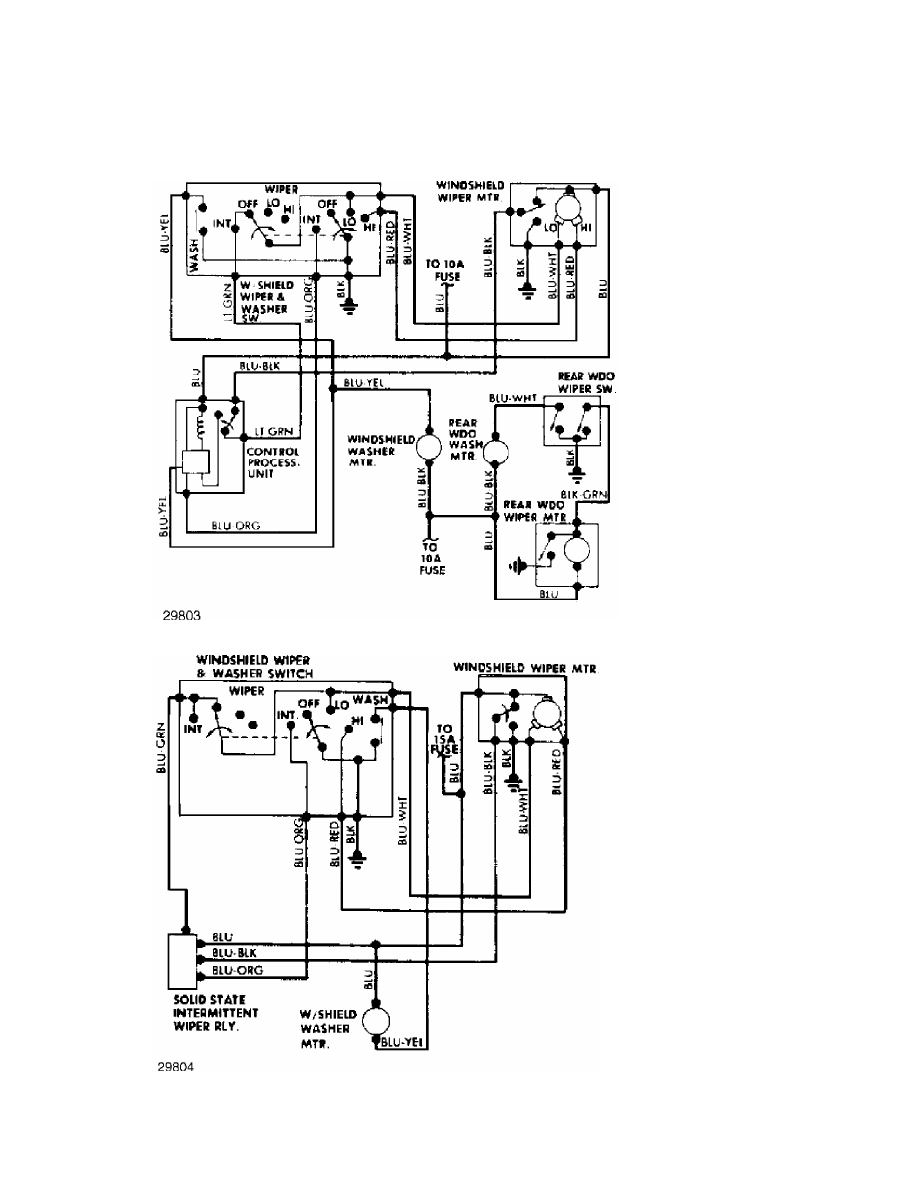

RX7 (1) ................... 17-pin .............. Left kick panel
626 ....................... 6-pin (2) . Left of instrument cluster
(1) - Time delay is controlled by "Control Processing Unit".
(2) - For 4-door models. On 2-door and 5-door models, relay has
9-pins.
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ

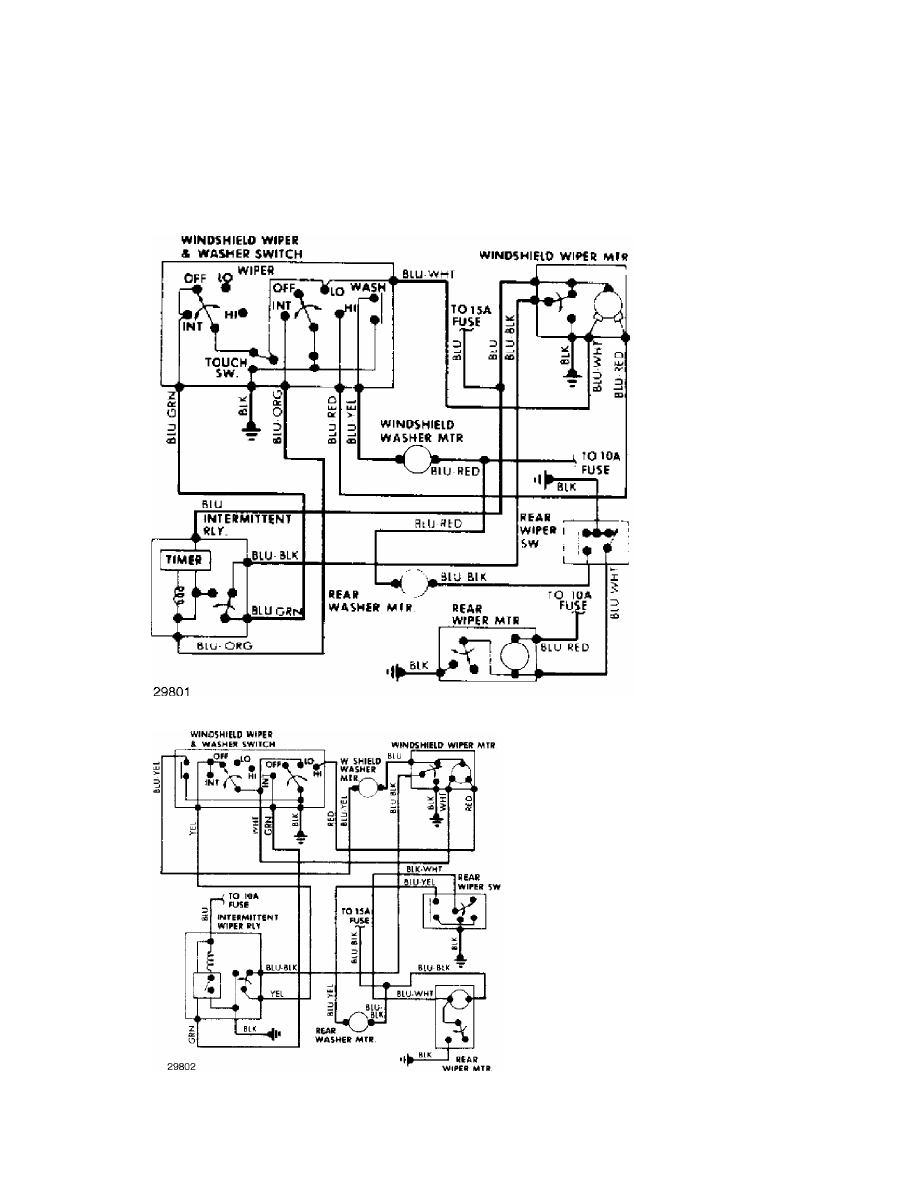

3) To check rear wiper motor, apply battery voltage to
Blue/Red wire and ground the Blue/White wire. Motor should run
steadily.
REMOVAL & INSTALLATION
FRONT WIPER MOTOR ASSEMBLY
Removal
1) Run wipers until they are in vertical position, then turn
ignition off or disconnect battery cable. Remove wiper arms and shaft
nuts.
2) Remove cowl grille or access panel. Unplug at motor.
Remove mounting bolts and wiper motor.
Installation
To install, reverse removal procedure.
REAR WIPER MOTOR ASSEMBLY
Removal
Disconnect battery ground. Remove wiper arm and shaft nuts.
Remove trim on rear hatch. Remove fasteners and remove wiper hole
cover. Disconnect wiring, remove attaching bolts and remove rear
wiper motor.
Installation
To install, reverse removal procedure.
WIPER SWITCH
Removal
Disconnect battery ground. Remove steering wheel. Remove
column covers and snap ring at top of column (if equipped). Unplug
wiring connectors. Loosen combination switch screw. Remove
combination switch.
