LIGHTING SYSTEMS

09-18–23

09-18

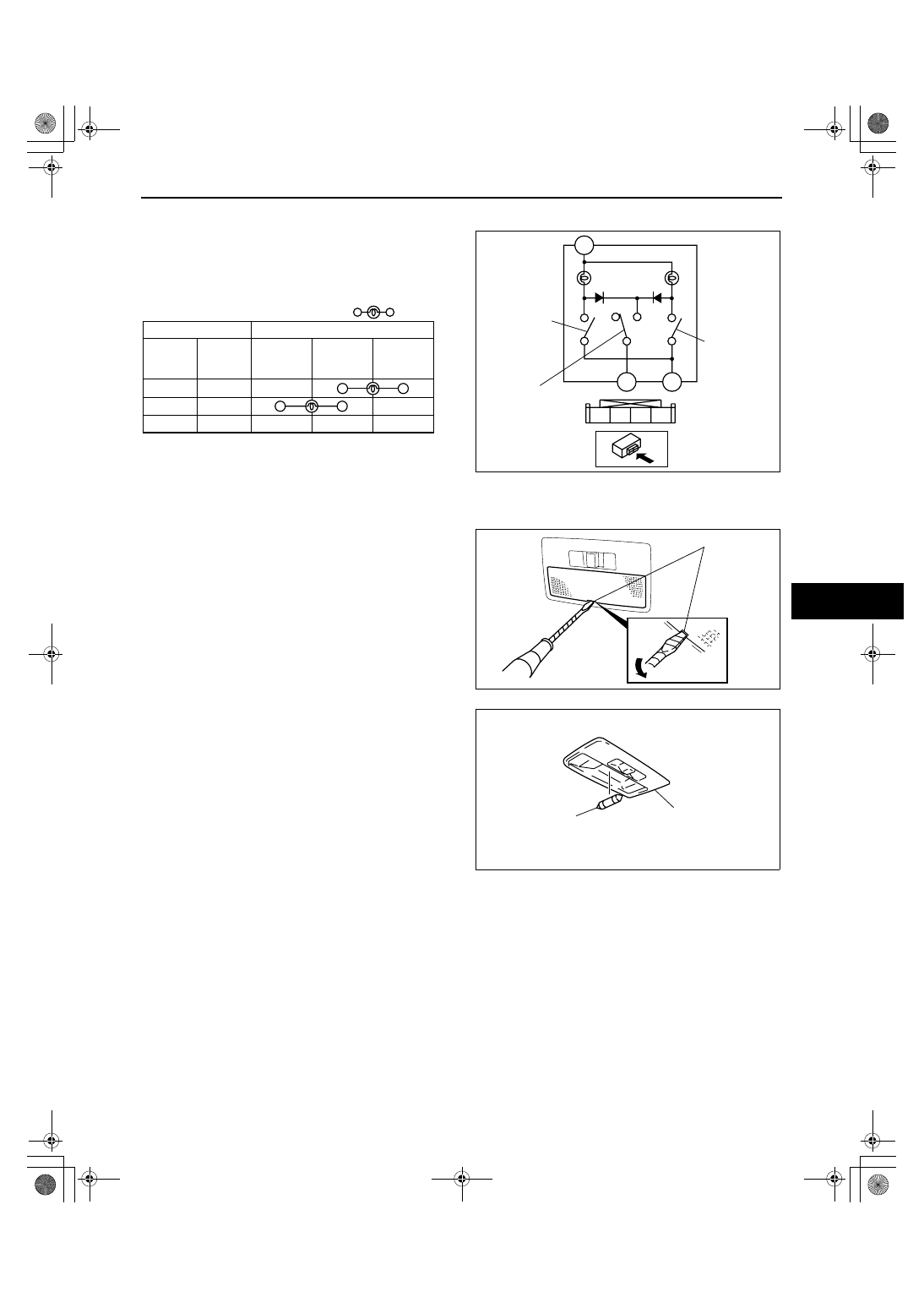

MAP LIGHT INSPECTION

id091800801300

1. Verify that the continuity between the map light

terminals is as indicated in the table.

• If not as indicated in the table, replace the

map light.

End Of Sie

INTERIOR LIGHT BULB REMOVAL/INSTALLATION

id091800801400

1. Disconnect the negative battery cable.
2. Insert a tape-wrapped flathead screwdriver into

the service hole and pry with the screwdriver in
the direction shown by the arrow to remove the
lens.

3. Remove the interior light bulb.
4. Install in the reverse order of removal.

End Of Sie

INTERIOR LIGHT REMOVAL/INSTALLATION

id091800801500

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) A-pillar lower trim (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(2) A-pillar trim (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Rear scuff plate inner (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5) B-pillar lower trim (See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6) Front seat belt upper anchor installation bolt (See 08-11-2 FRONT SEAT BELT REMOVAL/

INSTALLATION.)

(7) B-pillar upper trim (See 09-17-16 B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8) Rear seat (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
(9) Sub trunk box (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
(10)Trunk end trim (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)Trunk side trim (See 09-17-24 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

C

B

A

B

C

DOOR

OFF

MAP LIGHT
SWITCH (LH)

INTERIOR LIGHT
SWITCH

MAP LIGHT
SWITCH (RH)

*

A

EPU918ZW3017

-

B

C

A

-

:

Bulb

Terminal

Switch position

INTERIOR
LIGHT
SWITCH

MAP
LIGHT
SWITCH

ON

OFF

DOOR

OFF

EPU918ZW3018

SERVICE HOLE

acxuuw00001761

INTERIOR LIGHT

INTERIOR LIGHT
BULB

acxuuw00001762

LIGHTING SYSTEMS

09-18–24

(12)C-pillar trim (See 09-17-17 C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)D-pillar trim (See 09-17-18 D-PILLAR TRIM REMOVAL/INSTALLATION.)
(14)Map light (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)
(15)Sunvisor (See 09-17-26 SUNVISOR REMOVAL/INSTALLATION.)
(16)Assist handle (See 09-17-27 ASSIST HANDLE REMOVAL/INSTALLATION.)
(17)Headliner (See09-17-27 HEADLINER REMOVAL/INSTALLATION.)

3. Detach the tab and remove the interior light.
4. Install in the reverse order of removal.

End Of Sie

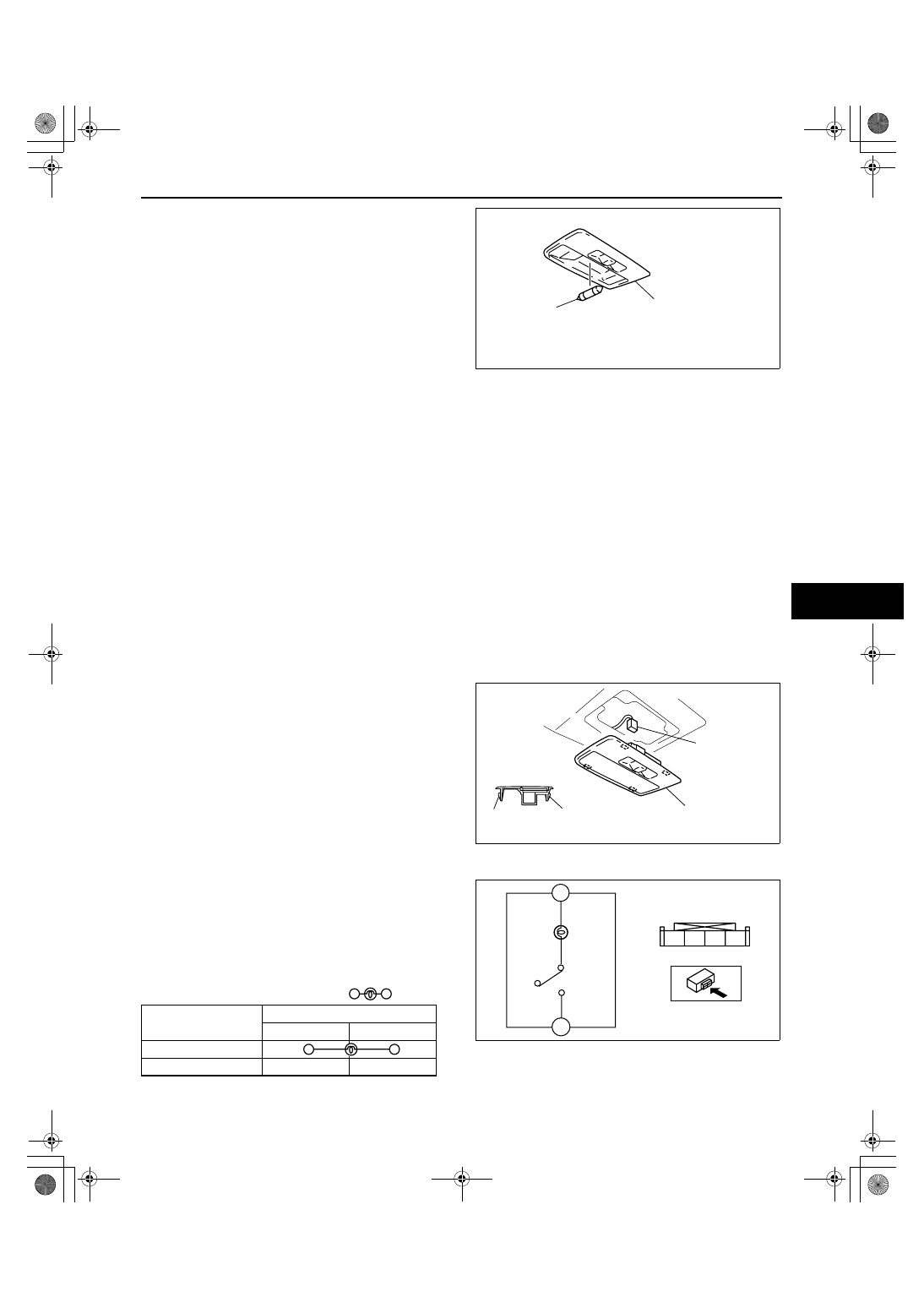

INTERIOR LIGHT INSPECTION

id091800801600

1. Verify that the continuity between the interior light

terminals is as indicated in the table.

• If not as indicated in the table, replace the

interior light.

End Of Sie

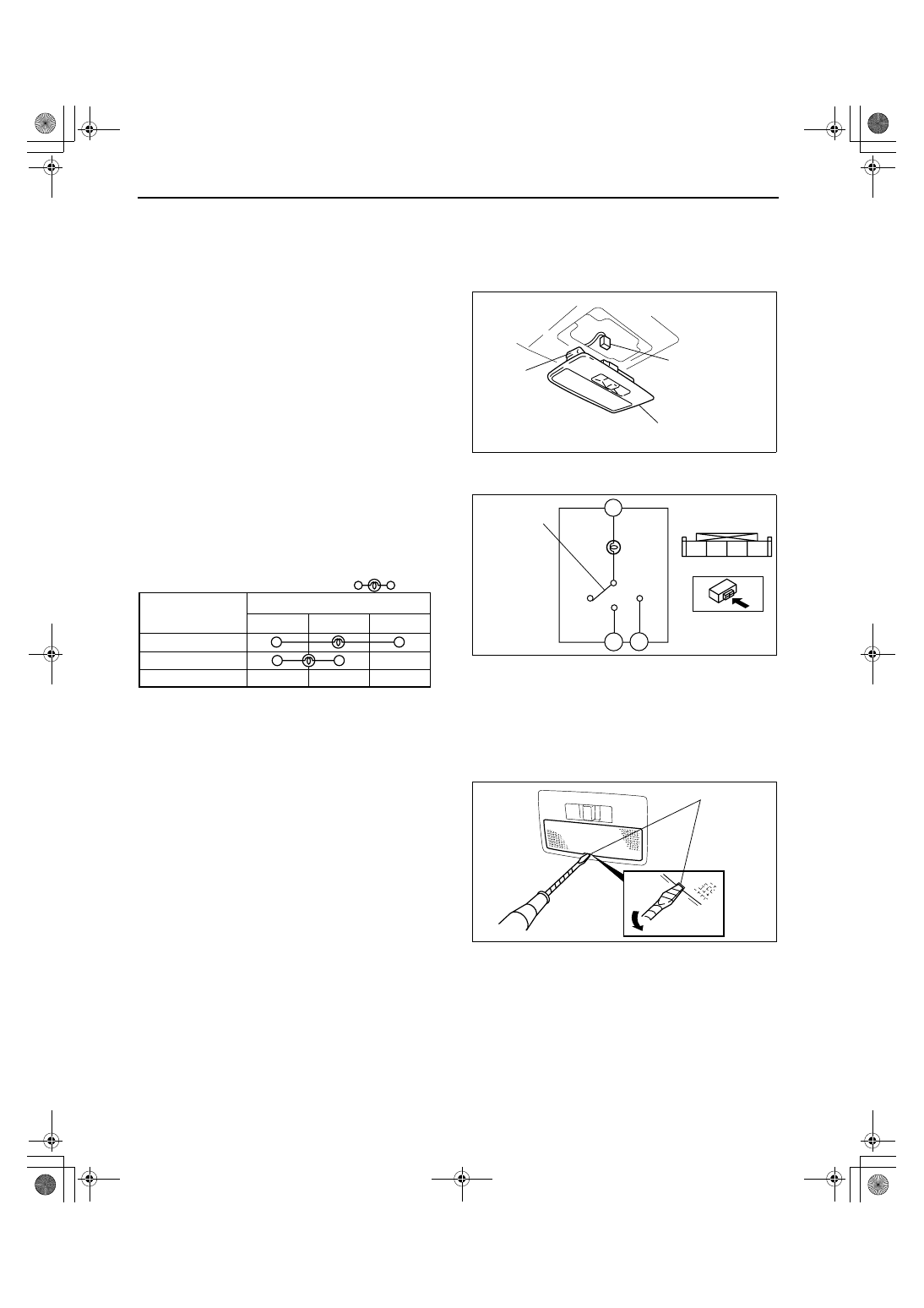

WM: CARGO COMPARTMENT LIGHT

CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

id091800807800

1. Disconnect the negative battery cable.
2. Insert a tape-wrapped flathead screwdriver into

the service hole and pry with the screwdriver in
the direction shown by the arrow to remove the
lens.

INTERIOR LIGHT

CONNECTOR

TAB

acxuuw00002409

OFF

DOOR

ON

D

B

C

B

C

D

INTERIOR LIGHT
SWITCH

*

acxuuw00001766

D

C

B

ON

DOOR

OFF

:

Bulb

Switch position

Terminal

acxuuw00001767

SERVICE HOLE

acxuuw00002412

LIGHTING SYSTEMS

09-18–25

09-18

3. Remove the cargo compartment light bulb.
4. Install in the reverse order of removal.

End Of Sie

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

id091800801700

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) A-pillar lower trim (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(2) A-pillar trim (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Rear scuff plate inner (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5) B-pillar lower trim (See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6) Front seat belt upper anchor installation bolt (See 08-11-2 FRONT SEAT BELT REMOVAL/

INSTALLATION.)

(7) B-pillar upper trim (See 09-17-16 B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8) Rear seat (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
(9) Sub trunk box (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
(10)Trunk end trim (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)Trunk side trim (See 09-17-24 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(12)C-pillar trim (See 09-17-17 C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)D-pillar trim (See 09-17-18 D-PILLAR TRIM REMOVAL/INSTALLATION.)
(14)Map light (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)
(15)Sunvisor (See 09-17-26 SUNVISOR REMOVAL/INSTALLATION.)
(16)Assist handle (See 09-17-27 ASSIST HANDLE REMOVAL/INSTALLATION.)
(17)Headliner (See09-17-27 HEADLINER REMOVAL/INSTALLATION.)

3. Detach the tab and remove the interior light..
4. Install in the reverse order of removal.

End Of Sie

CARGO COMPARTMENT LIGHT INSPECTION

id091800801800

1. Verify that the continuity between the cargo

compartment light terminals is as indicated in the
table.

• If not as indicated in the table, replace the

cargo compartment light.

End Of Sie

WM: IGNITION KEY ILLUMINATION

CARGO
COMPARTMENT
LIGHT

CARGO
COMPARTMENT
LIGHT BULB

acxuuw00002413

CARGO
COMPARTMENT
LIGHT

CONNECTOR

TAB A

A

TAB A

A

A

A

acxuuw00002410

D

C

OFF

ON

D

C

*

*

acxuuw00001771

: Bulb

Switch position

ON

OFF

Terminal

D

C

acxuuw00002414

LIGHTING SYSTEMS

09-18–26

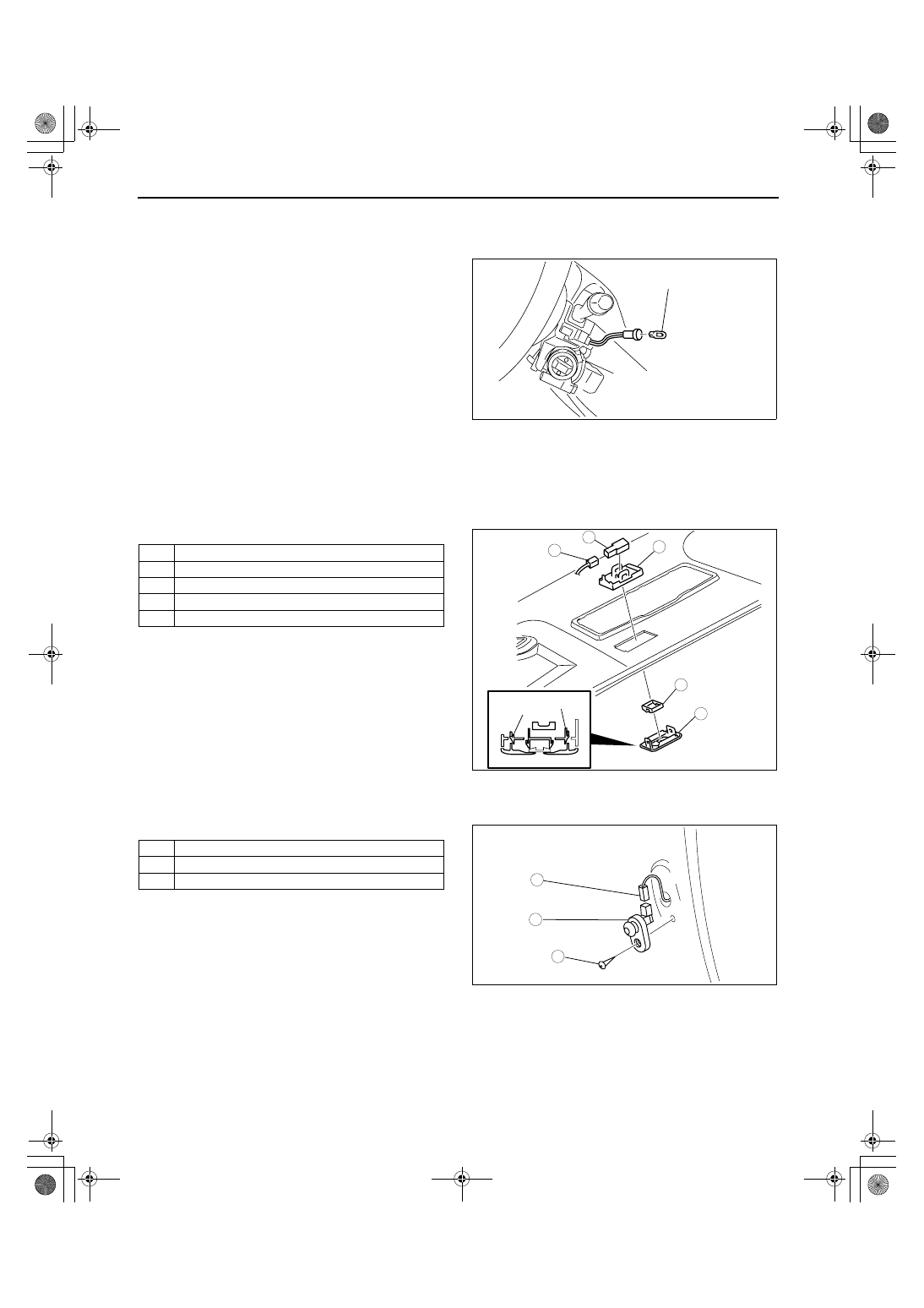

IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION

id091800802400

1. Disconnect the negative battery cable.
2. Remove the lower column cover. (See 09-17-8 COLUMN COVER REMOVAL/INSTALLATION.)
3. Remove the ignition key illumination bulb.
4. Install in the reverse order of removal.

End Of Sie

WM: ENTERTAINMENT ILLUMINATION

SPOT LIGHT REMOVAL/INSTALLATION

id091800807500

1. Disconnect the negative battery cable.
2. Remove the A-pillar trim. (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
3. Remove the sunvisor. (See 09-17-26 SUNVISOR REMOVAL/INSTALLATION.)
4. Remove the map light. (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)
5. Set the headliner out of the way.
6. Remove in the order indicated in the table.

.

7.  Install in the reverse order of removal.

End Of Sie

WM: DOOR SWITCH

DOOR SWITCH REMOVAL/INSTALLATION

id091800803400

1. Disconnect the negative battery cable.
2. Disassemble in the order indicated in the table.

.

3. Install in the reverse order of removal.

End Of Sie

IGNITION KEY
ILLUMINATION BULB

acxuuw00001773

1

Connector

2

Spot light

3

Cover  A

4

Cover  B

5

Lens

3

5

4

1

2

TAB

TAB

acxuuw00002277

1

Screw

2

Door switch

3

Connector

3

1

2

acxuuw00001774
