CONSOLE PANEL REMOVAL/INSTALLATION

id091700804100

1. Detach clips A from the console using a tape-

wrapped flathead screwdriver.

2. Remove the pin B and tab C.
3. Remove the pin D.
4. Remove the console panel.
5. Install in the reverse order of removal.

End Of Sie

WM: PILLAR TRIM

A-PILLAR TRIM REMOVAL/INSTALLATION

id091700801900

1. Partially peel back the seaming welt.

2. Pull the A-pillar trim shown in the figure in the

direction of the arrow, raise clip B from its
grommet together with the A-pillar trim, and
remove clips A at the same time.

3. Slide the A-pillar trim in the direction of the arrow

shown in the figure and remove the A-pillar trim
from clip B.

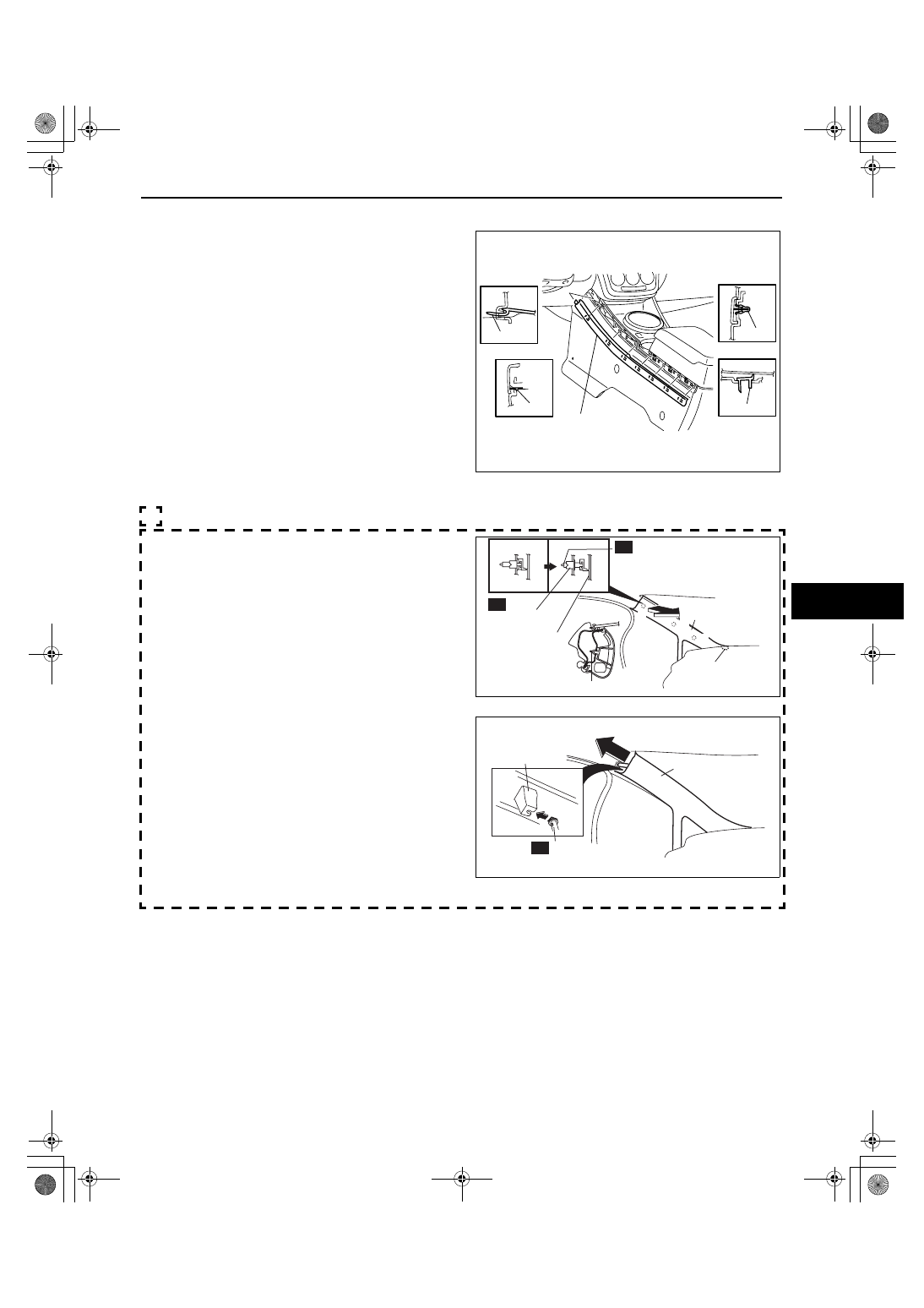

CONSOLE PANEL

CLIP A

PIN B

PIN D

TAB C

A

A

A

A

A

C

D

B

acxuuw00000865

CLIP A

CLIP B

GROMMET

A-PILLAR TRIM
(INSIDE VIEW)

R

R

TAB

A-PILLAR TRIM

A

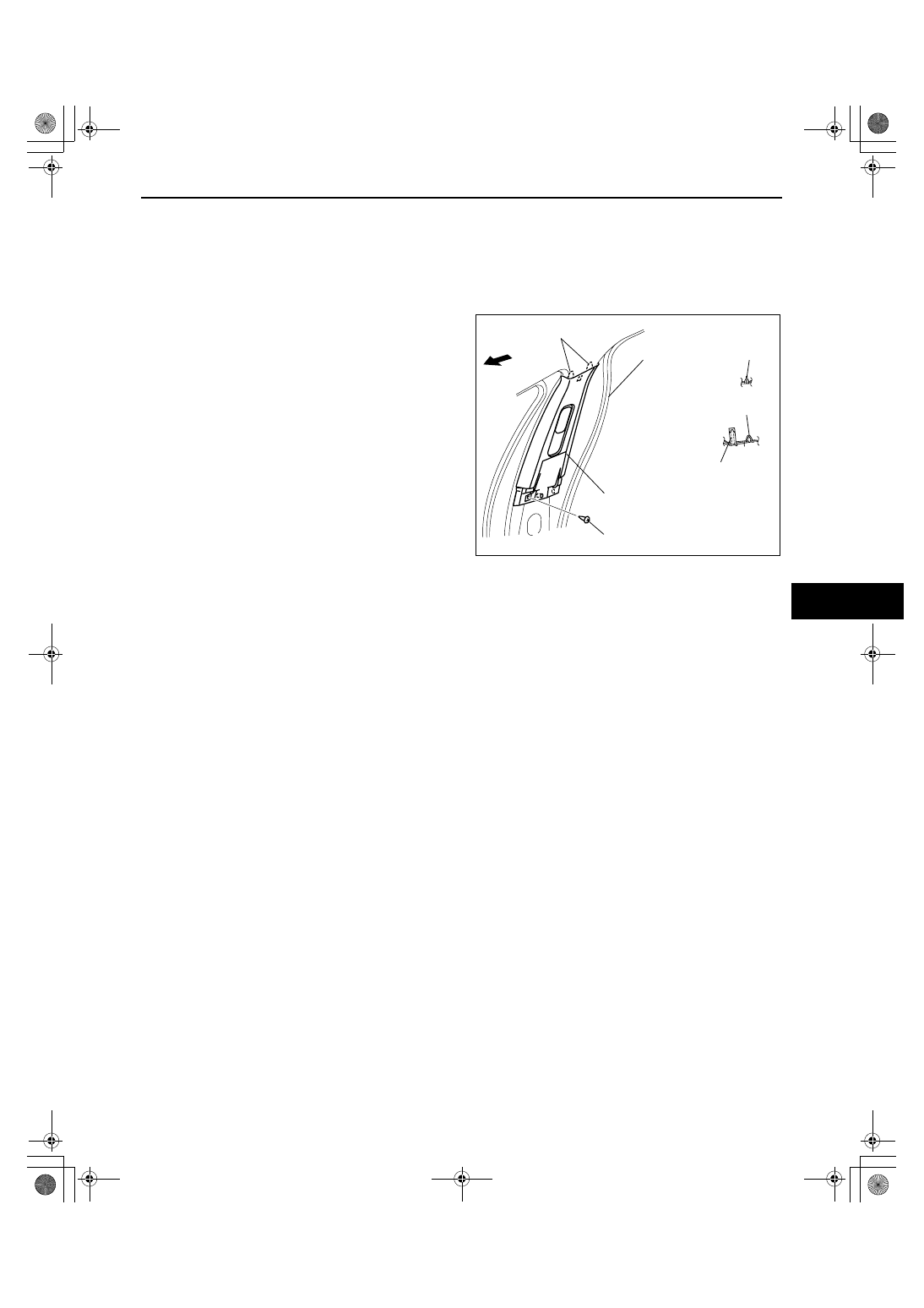

B

A

acxuuw00002600

A-PILLAR TRIM

A-PILLAR TRIM
(INSIDE VIEW)

CLIP B

R

acxuuw00002601

INTERIOR TRIM

09-17–16

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

Revised 3/2007 (Ref. No. R038/07)

4. Rotate and pull clip B in the direction of the arrow

shown in the figure until it is no longer loose, and
feels tight.

5. Pull clip B and remove it from the grommet.

6. Insert a tape-wrapped flathead screwdriver

between the body and the grommet.

7. Press the tabs and remove the grommet.
8. Install the new grommet to the body.
9. Install the new clip B to the A-pillar trim.

10. Install the A-pillar trim.

End Of Sie

A-PILLAR LOWER TRIM REMOVAL/INSTALLATION

id091700804400

1. Pull the A-pillar lower trim upward and detach

clips A from the dashboard.

2. Pull the A-pillar lower trim outward and detach

clips B and tab C.

3. Remove the A-pillar lower trim.
4. Install in the reverse order of removal.

End Of Sie

B-PILLAR LOWER TRIM REMOVAL/INSTALLATION

id091700802000

1. Remove the front scuff plate inner. (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
2. Remove the rear scuff plate inner. (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
3. Partially peel back the seaming welt.
4. Pull the B-pillar lower trim outward and detach

clips A, C and locator pins B.

5. Remove the B-pillar lower trim.
6. Install in the reverse order of removal.

End Of Sie

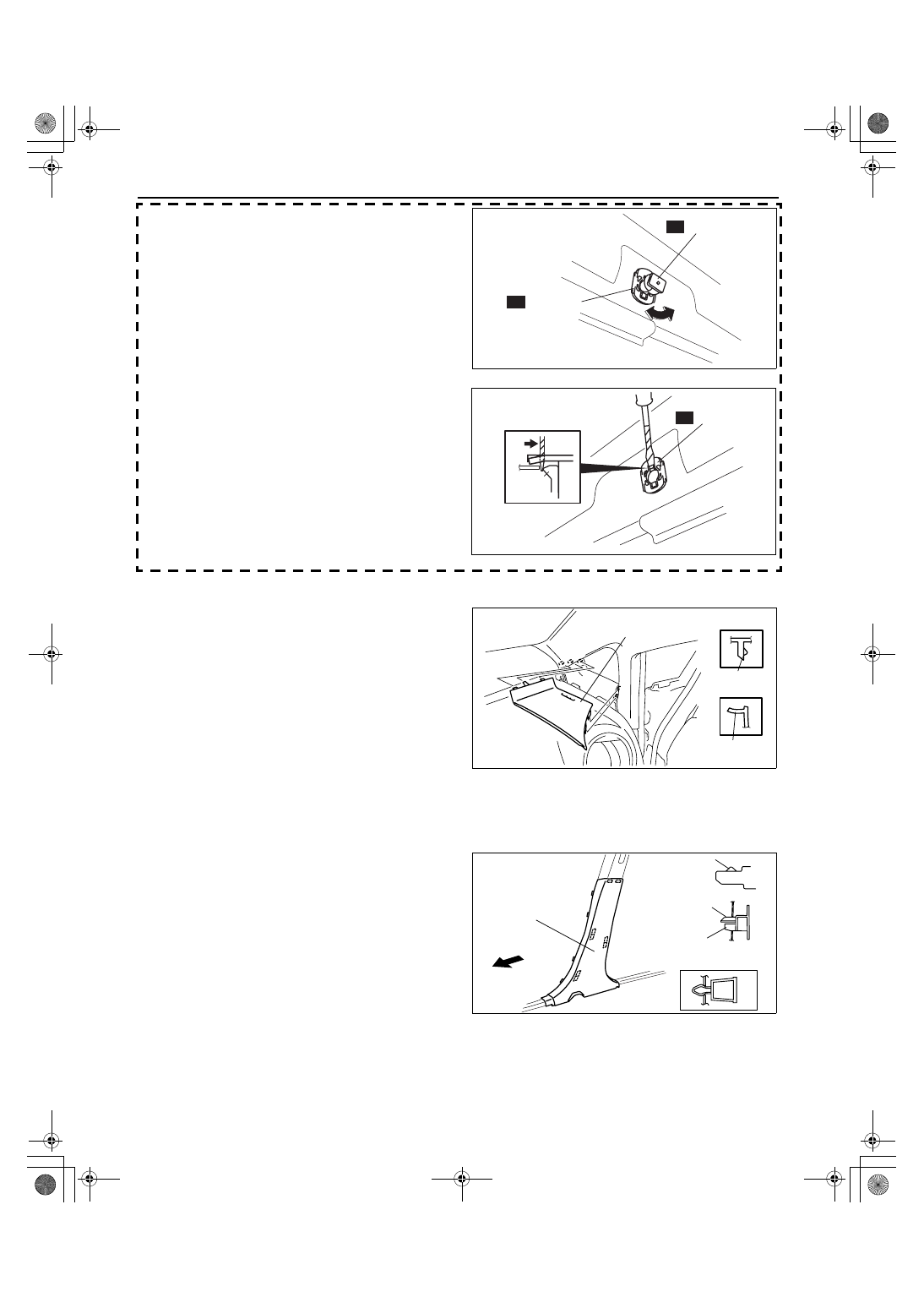

R

CLIP B

R

GROMMET

ac9uuw00002635

GROMMENT

R

TAB

acxuuw00002591

CLIP A.B

A

A

B

B

C

TAB C

A-PILLAR LOWER TRIM

acxuuw00000924

A

A

FRONT

CLIP C

CLIP A

CLIP C DETAIL

LOCATOR PIN B

B

B

B

C

C

C

B-PILLAR LOWER
TRIM

acxuuw00000679

INTERIOR TRIM

09-17-16–1

09-17

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

09-17-16

INTERIOR TRIM

B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

id091700802100

1. Remove the following parts:

(1) Front seat belt upper anchor installation bolt (See 08-11-2 FRONT SEAT BELT REMOVAL/

INSTALLATION.)

(2) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3) Rear scuff plate inner (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(4) B-pillar lower trim (See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

2. Partially peel back the seaming welt.
3. Remove the screw.
4. Pull the B-pillar upper trim outward and detach

clip A and locator pin B.

5. Pull the B-pillar upper trim downward and detach

the tabs and clip C.

6. Remove the B-pillar upper trim.

End Of Sie

B
