INTERIOR TRIM

09-17–3

09-17

.

9

8

7

5

4

3

10

15

14

13

11

12

6

1

2

16

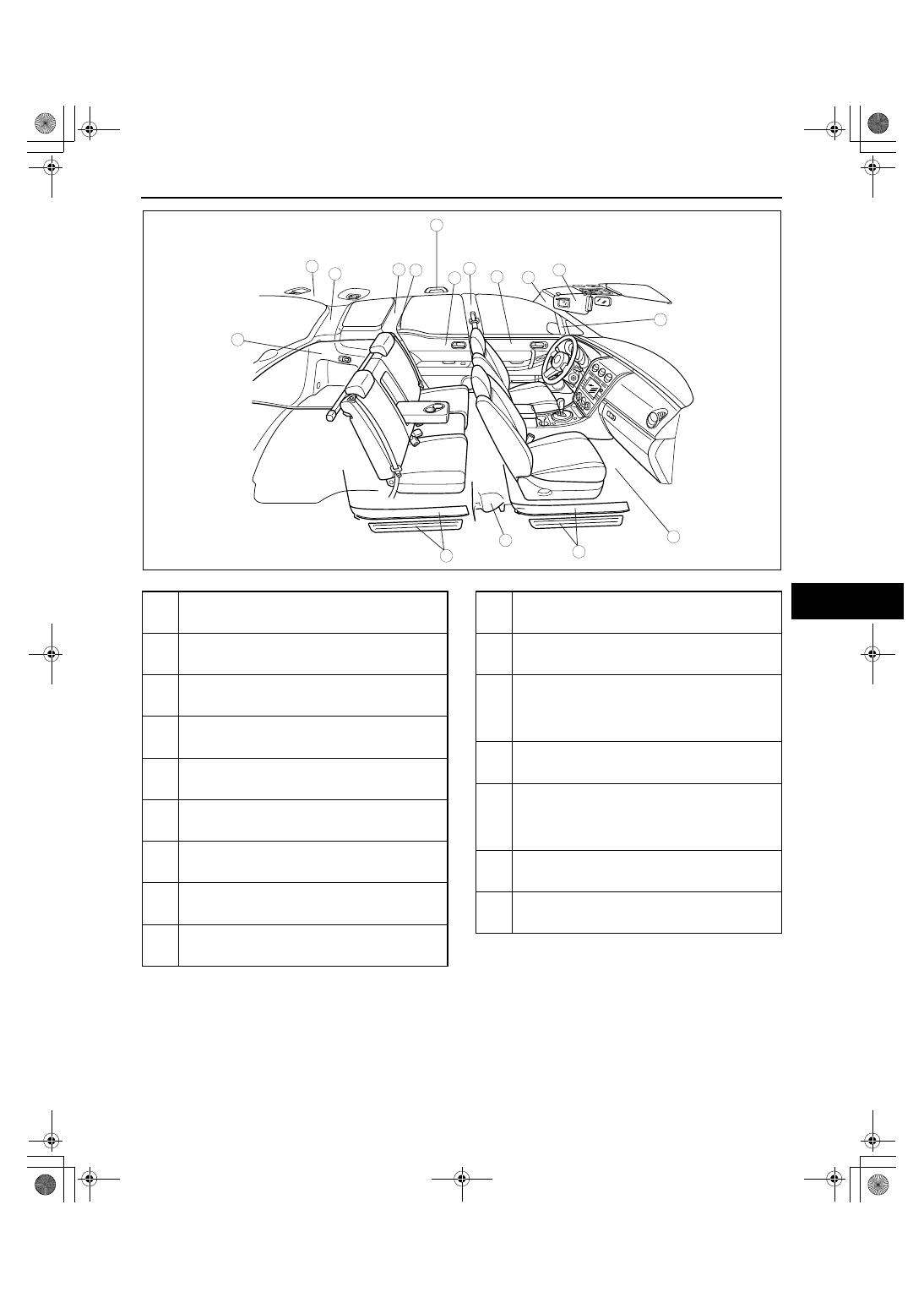

acxuuw00001464

1

Sunvisor
(See 09-17-26 SUNVISOR REMOVAL/
INSTALLATION.)

2

Floor  covering
(See 09-17-28 FLOOR COVERING REMOVAL/
INSTALLATION.)

3

Front scuff plate
(See 09-17-19 FRONT SCUFF PLATE REMOVAL/
INSTALLATION.)

4

B-pillar lower trim
(See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/
INSTALLATION.)

5

Rear scuff plate
(See 09-17-19 REAR SCUFF PLATE REMOVAL/
INSTALLATION.)

6

Trunk side trim
(See 09-17-24 TRUNK SIDE TRIM REMOVAL/
INSTALLATION.)

7

Headliner
(See 09-17-27 HEADLINER REMOVAL/
INSTALLATION.)

8

D-pillar trim
(See 09-17-18 D-PILLAR TRIM REMOVAL/
INSTALLATION.)

9

C-pillar trim
(See 09-17-17 C-PILLAR TRIM REMOVAL/
INSTALLATION.)

10

Sail garnish
(See 09-17-12 SAIL GARNISH REMOVAL/
INSTALLATION.)

11

Assist handle
(See 09-17-27 ASSIST HANDLE REMOVAL/
INSTALLATION.)

12

Rear door trim
(See 09-17-23 REAR DOOR TRIM REMOVAL/
INSTALLATION.)
(See 09-17-23 REAR DOOR TRIM DISASSEMBLY/
ASSEMBLY.)

13

B-pillar upper trim
(See 09-17-16 B-PILLAR UPPER TRIM REMOVAL/
INSTALLATION.)

14

Front door trim
(See 09-17-20 FRONT DOOR TRIM REMOVAL/
INSTALLATION.)
(See 09-17-22 FRONT DOOR TRIM
DISASSEMBLY/ASSEMBLY.)

15

A-pillar trim
(See 09-17-15 A-PILLAR TRIM REMOVAL/
INSTALLATION.)

16

Inner garnish
(See 09-17-20 INNER GARNISH REMOVAL/
INSTALLATION.)

INTERIOR TRIM

09-17–4

.

End Of Sie

DASHBOARD REMOVAL/INSTALLATION

id091700800300

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Console panel (See 09-17-15 CONSOLE PANEL REMOVAL/INSTALLATION.)
(2) Console (See 09-17-13 CONSOLE REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Front side trim (See 09-17-18 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(5) Dashboard under cover
(6) Glove compartment (See 09-17-8 GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(7) Hood release lever (See 09-14-25 HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(8) Lower panel (See 09-17-9 LOWER PANEL REMOVAL/INSTALLATION.)
(9) Center panel (See 09-17-8 CENTER PANEL REMOVAL/INSTALLATION.)
(10)Audio unit (See 09-20-4 AUDIO UNIT REMOVAL/INSTALLATION.)
(11)Climate control unit (See 07-40-25 CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO

AIR CONDITIONER].) (See 07-40-25 CLIMATE CONTROL UNIT REMOVAL [MANUAL AIR
CONDITIONER].) (See 07-40-26 CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR
CONDITIONER].)

(12)Knee bolster (See 09-17-12 KNEE BOLSTER REMOVAL/INSTALLATION.)
(13)Meter hood (See 09-17-10 METER HOOD REMOVAL/INSTALLATION.)
(14)Column cover (See 09-17-8 COLUMN COVER REMOVAL/INSTALLATION.)
(15)Instrument cluster (See 09-22-2 INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
(16)Driver-side air bag module (See 08-10-6 DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
(17)Steering wheel (See 06-14-6 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
(18)Combination switch (See 09-18-13 COMBINATION SWITCH REMOVAL/INSTALLATION.)
(19)Steering shaft (See 06-14-6 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
(20)A-pillar lower trim (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(21)A-pillar trim (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)

3. Disconnect the dashboard harness connectors.

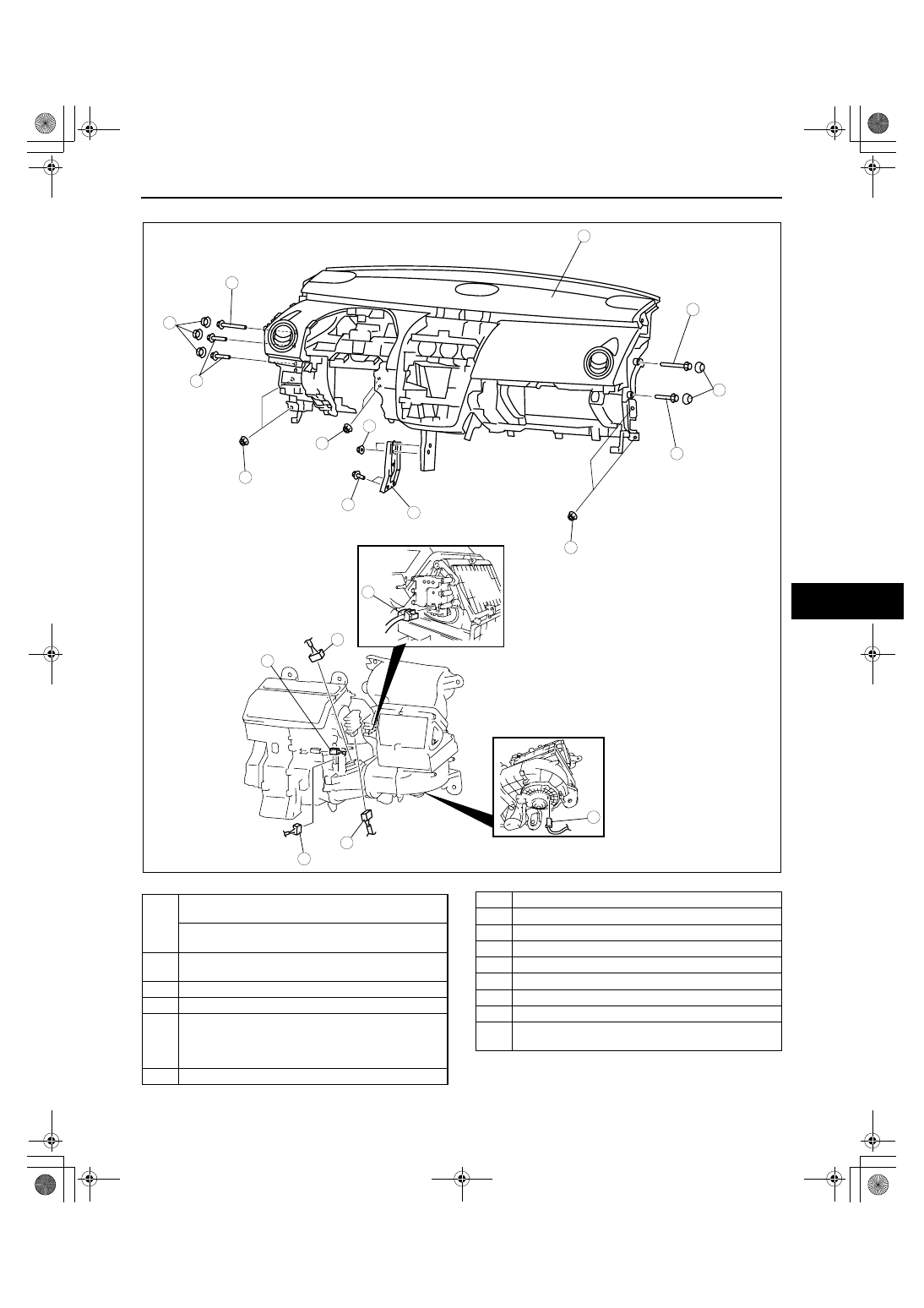

4. Remove in the order indicated in the figure.

5

4

3

1

2

acxuuw00001594

1

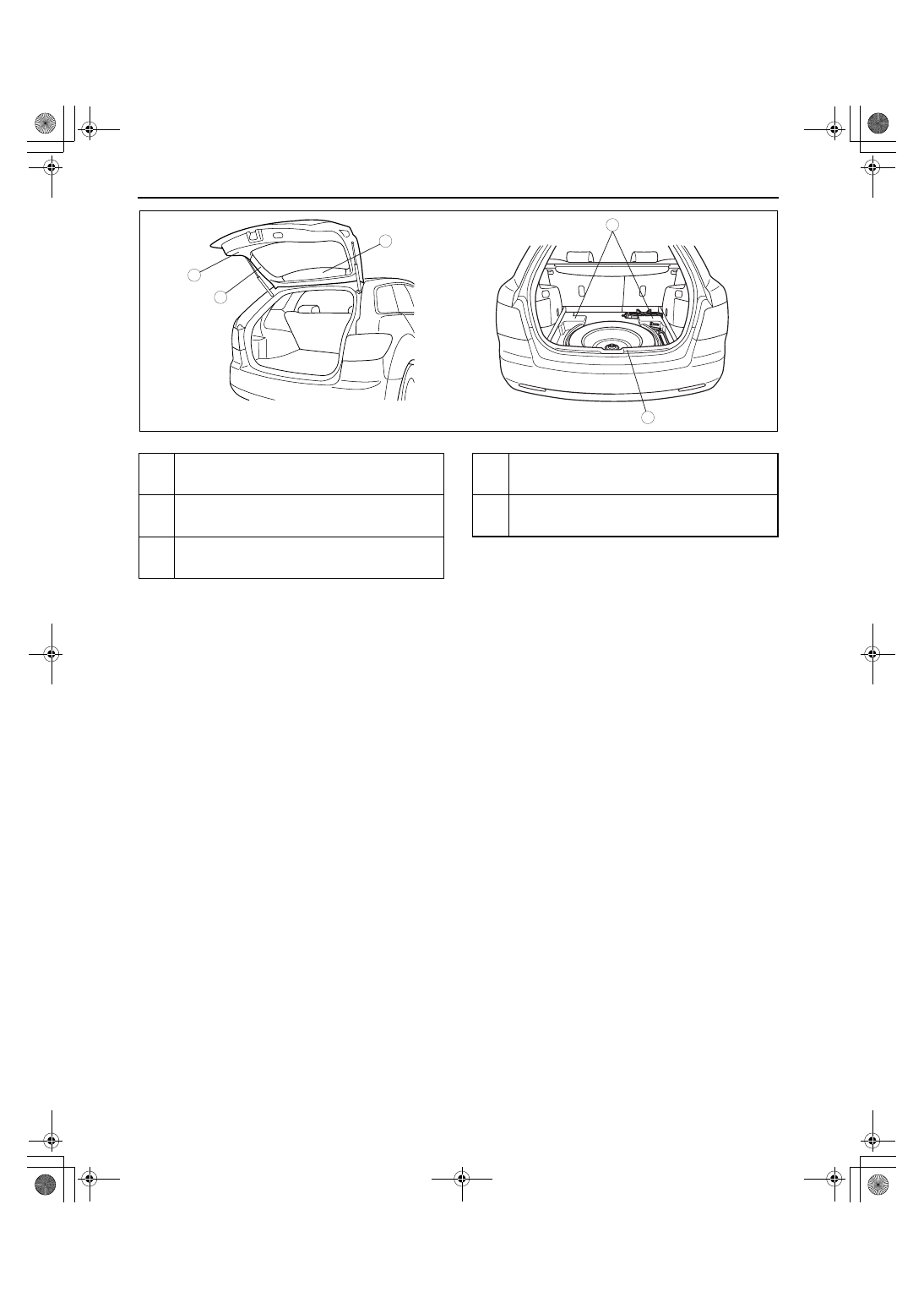

Liftgate upper trim
(See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/
INSTALLATION.)

2

Liftgate lower trim
(See 09-17-26 LIFTGATE LOWER TRIM
REMOVAL/INSTALLATION.)

3

Liftgate side trim
(See 09-17-25 LIFTGATE SIDE TRIM REMOVAL/
INSTALLATION.)

4

Sub trunk box
(See 09-17-25 SUB TRUNK BOX REMOVAL/
INSTALLATION.)

5

Trunk end trim
(See 09-17-24 TRUNK END TRIM REMOVAL/
INSTALLATION.)

INTERIOR TRIM

09-17–5

09-17

5. Install in the reverse order of removal.

9

9

8

8

7

7

10

11

10

12

15.7—22.5 N·m
{1.61—2.29 kgf·m,
11.6—16.5 ft·lbf}

15.7—22.5 N·m
{1.61—2.29 kgf·m,
11.6—16.5 ft·lbf}

15.7—22.5 N·m
{1.61—2.29 kgf·m,
11.6—16.5 ft·lbf}

15.7—22.5 N·m
{1.61—2.29 kgf·m,
11.6—16.5 ft·lbf}

15.7—22.5 N·m
{1.61—2.29 kgf·m,
11.6—16.5 ft·lbf}

15.7—22.5 N·m
{1.61—2.29 kgf·m,
11.6—16.5 ft·lbf}

13

14

15

1

3

2

5

6

4

acxuuw00000649

1

Resistor connector (with manual air conditioner
system)

Power MOS FET connector (with full-auto air
conditioner system)

2

Air mix actuator connector (with full-auto air
conditioner system)

3

Evaporator temperature sensor connector

4

Air intake actuator connector

5

Airflow mode actuator connector (with full-auto air
conditioner system)
(See 09-17-6 Airflow mode actuator connector
Disassembly Note.)

6

Blower motor connector

7

Cap

8

Bolt  A

9

Bolt  B

10

Nut A

11

Nut B

12

Bolt C

13

Nut C

14

Dashboard bracket

15

Dashboard
(See 09-17-6 Dashboard Removal Note.)

INTERIOR TRIM

09-17–6

Dashboard Removal Note

Warning

• Removing the dashboard without supporting it can be dangerous. the dashboard may fall and

injure you. Always perform the following procedure with at least another person.

1. Take the dashboard out through the opened front driver-side door.

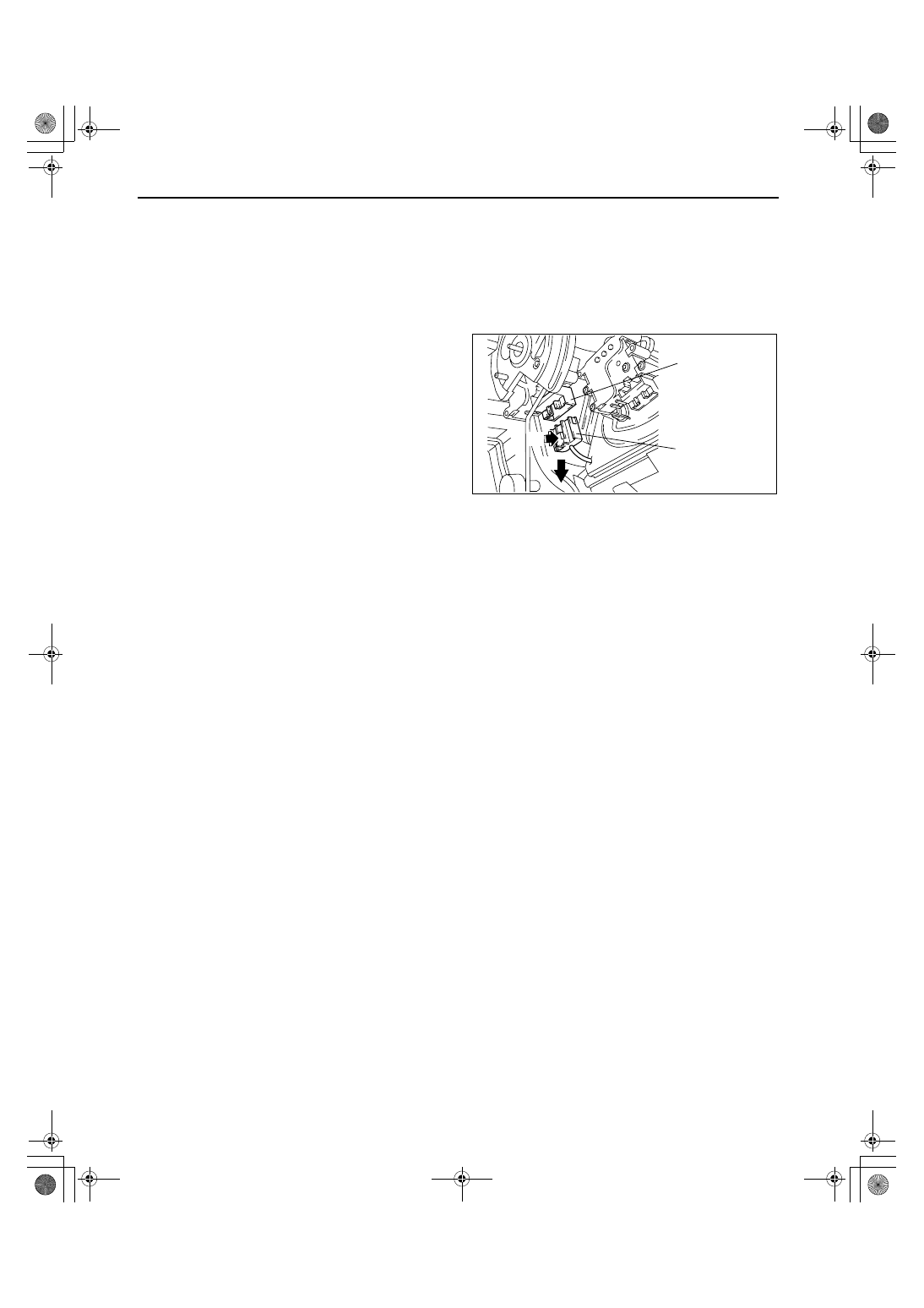

Airflow mode actuator connector Disassembly Note

1. Disconnect the connector by pulling it in direction

(2) while pressing the tab in direction (1).

End Of Sie

DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

1. Remove the following parts:

(1) Passenger-side air bag module (See 08-10-7 PASSENGER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION.)

(2) Information display (See 09-22-15 INFORMATION DISPLAY REMOVAL/INSTALLATION.)
(3) Front speaker (See 09-20-8 FRONT SPEAKER REMOVAL/INSTALLATION.)
(4) Center speaker (See 09-20-9 CENTER SPEAKER REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.

AIRFLOW MODE
ACTUATOR

AIRFLOW MODE
ACTUATOR
CONNECTOR

(1)

(2)

acxuuw00000651
