Mazda CX 7. Manual - part 407





EXTERIOR TRIM

09-16–11

09-16

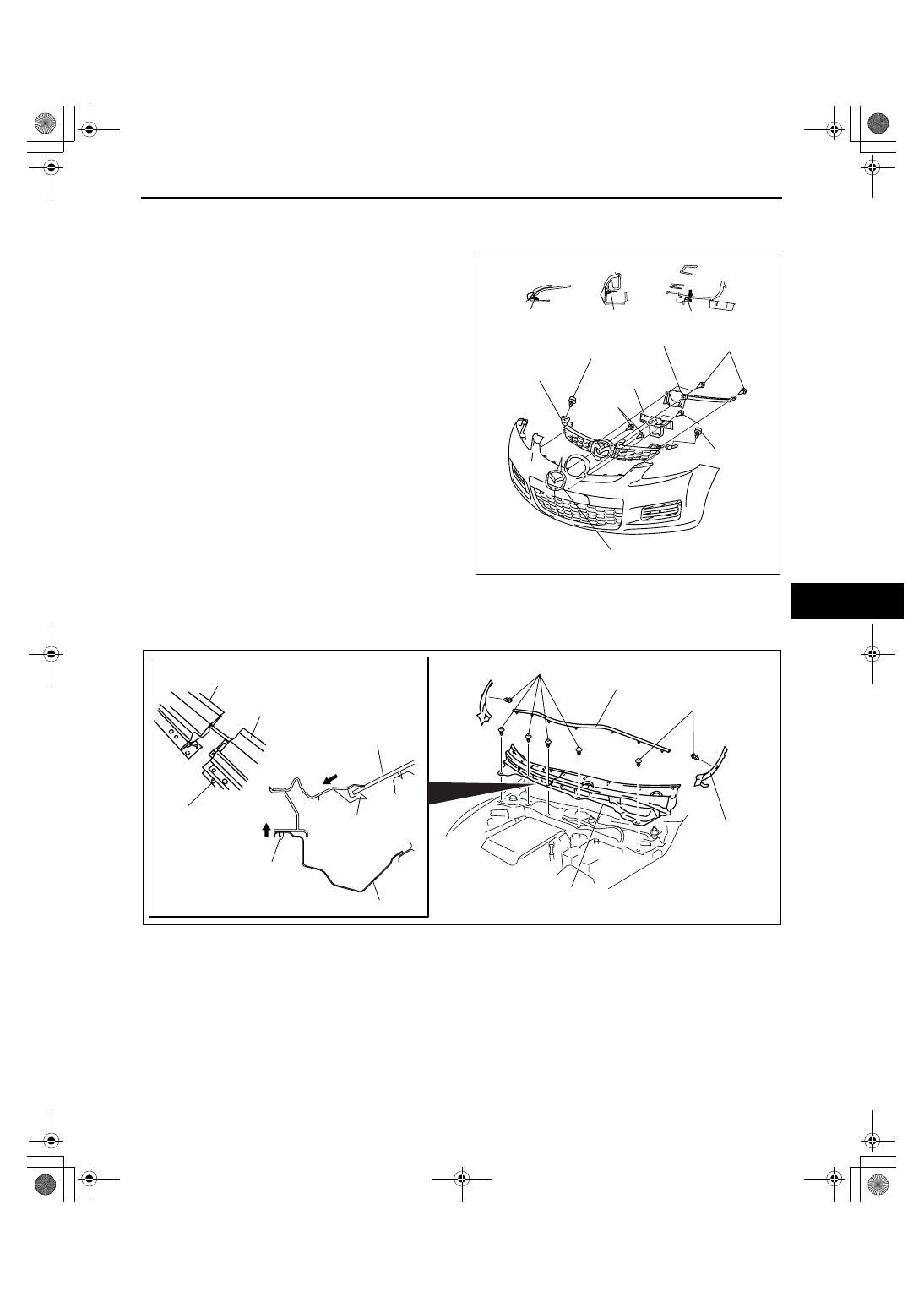

RADIATOR GRILLE REMOVAL/INSTALLATION

id091600800900

1. Remove the front bumper. (See 09-10-2 FRONT BUMPER REMOVAL/INSTALLATION.)
2. Remove the intercooler duct.
3. Remove the fasteners.
4. Remove the screws A.
5. Remove the grill bracket.
6. Remove the screws B
7. Remove the front bumper retainer.
8. Remove the tabs A and B.
9. Remove the ornament.

10. Remove the screws C.
11. Remove the tabs C
12. Remove the radiator grill.
13. Press tabs C in the direction of the arrow, pull the

radiator grille inward, and remove it from the front
bumper.

14. Install in the reverse order of removal.

End Of Sie

COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1. Remove the windshield wiper arm and blade. (See 09-19-3 WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION.)

2. Remove the front fender molding.

3. Remove the weatherstrip.
4. Remove the fastener.
5. Pull the cowl grille in the direction of arrow (1) so that it is free from the pins, pull tabs A in the direction of arrow

(2), and then remove the front window glass.

A

A

A

B

B

C

C

C C

C

C

ORNAMENT

RADIATOR
GRILL

FASTENER

FASTENER

SCREW A

SCREW B

SCREW C

GRILL BRACKET

TAB A

TAB B

TAB C

FRONT BUMPER
RETAINER

acxuuw00001633

A

A

A

A

A

A

A

A

A

A

FRONT FENDER
MOLDING

(2)

(1)

COWL GRILLE

WEATHERSTRIP

FASTENER

FASTENER

TAB A

PIN

PIN

COWL GRILLE
(LH)

COWL PANEL

COWL GRILLE
(RH)

WINDSHIELD

acxuuw00000912

EXTERIOR TRIM

09-16–12

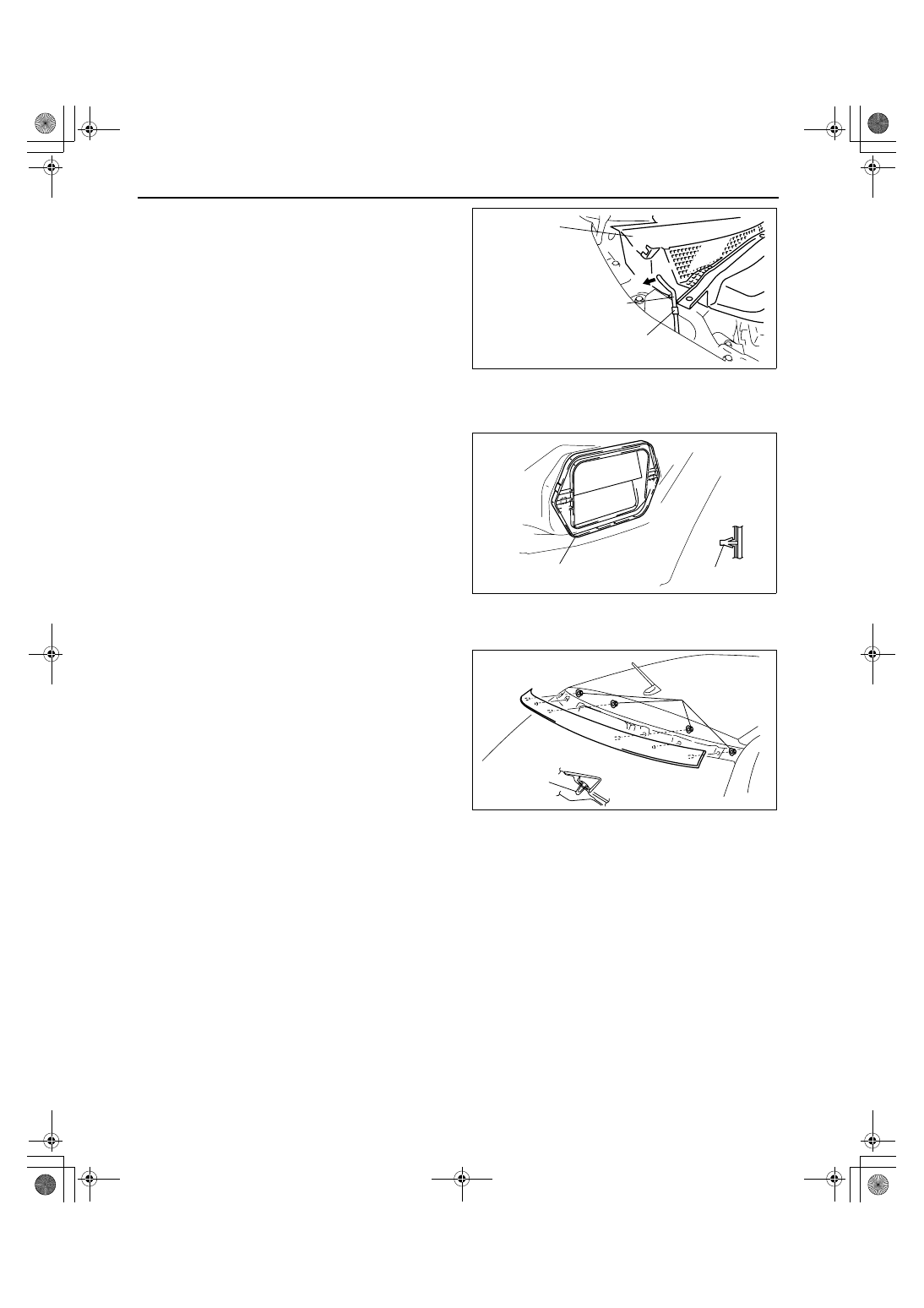

6. Remove the windshield washer hose.
7. Remove the cowl grille.
8. Install in the reverse order of removal.

End Of Sie

EXTRACTOR CHAMBER REMOVAL/INSTALLATION

id091600801500

1. Remove the rear combination light. (See 09-18-11 REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)
2. Remove the rear bumper. (See 09-10-4 REAR BUMPER REMOVAL/INSTALLATION.)
3. Remove clip A using a fastener remover and then

remove the extractor chamber from the vehicle.

4. Install in the reverse order of removal.

End Of Sie

REAR SPOILER REMOVAL/INSTALLATION

id091600801600

1. Remove the liftgate upper trim. (See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
2. Remove the nuts.
3. Detach the clips and remove the rear spoiler.
4. Install in the reverse order of removal.

End Of Sie

ROOF CARRIER BRACKET REMOVAL/INSTALLATION

id091600801700

1. Disconnect the negative battery cable.
2. Partially peel back the seaming welt.
3. Remove the following parts:

(1) A-pillar lower trim (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(2) A-pillar trim (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Rear scuff plate inner (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5) B-pillar lower trim (See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6) Front seat belt upper anchor installation bolt (See 08-11-2 FRONT SEAT BELT REMOVAL/

INSTALLATION.)

(7) B-pillar upper trim (See 09-17-16 B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8) Rear seat (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
(9) Sub trunk box (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
(10)Trunk end trim (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)Trunk side trim (See 09-17-24 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(12)C-pillar trim (See 09-17-17 C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)D-pillar trim (See 09-17-18 D-PILLAR TRIM REMOVAL/INSTALLATION.)
(14)Map light (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)

WINDSHIELD WASHER HOSE

COWL GRILLE
(RH)

JOINT PIPE A

acxuuw00000913

A

A

CLIP A

EXTRACTOR CHAMBER

acxuuw00000920

CLIP A

NUT

A

A

3.0—5.0 N·m
{30.6—50.9 kgf·cm,
26.6—44.2 in·lbf}

acxuuw00000902

EXTERIOR TRIM

09-16–13

09-16

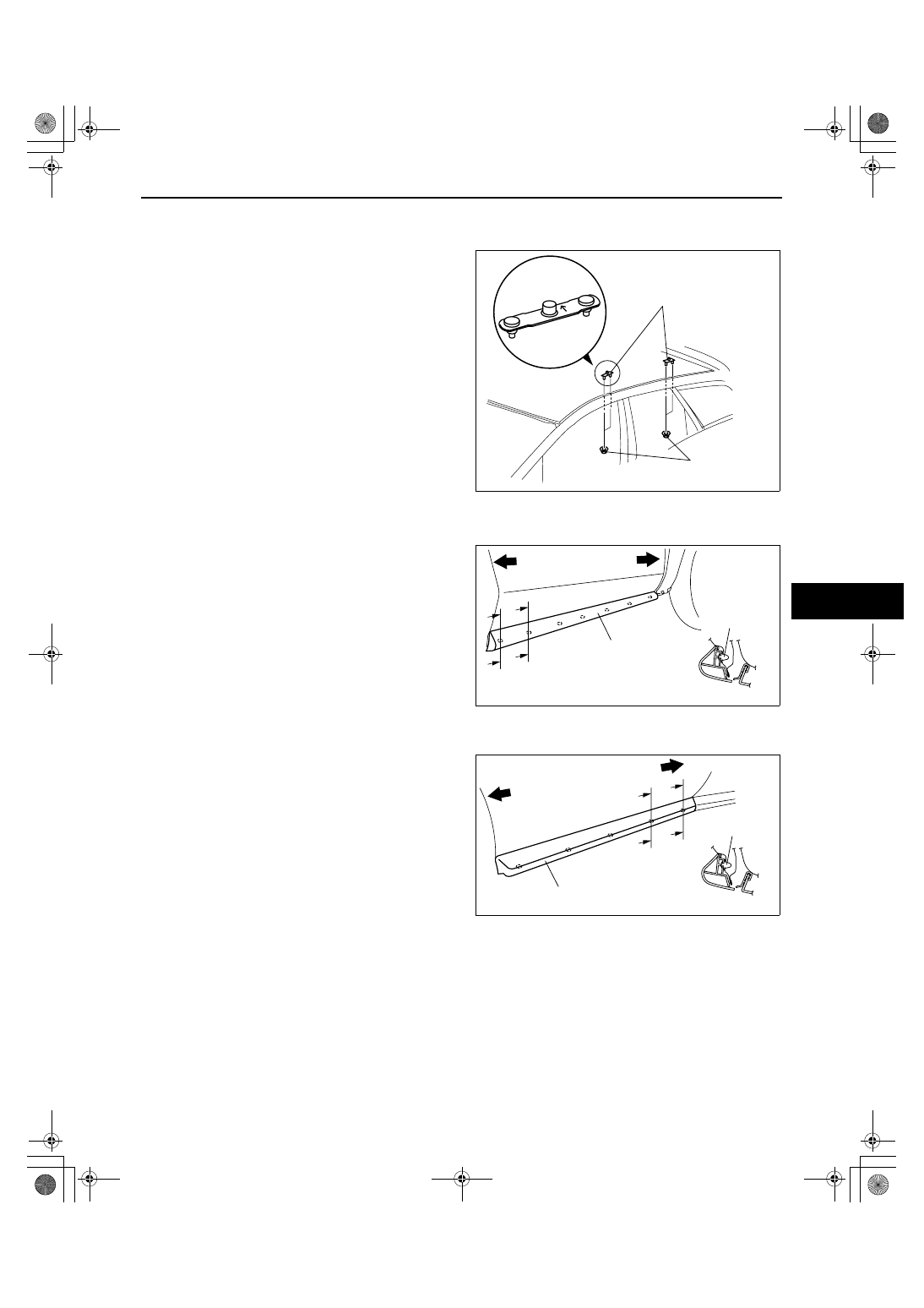

(15)Sunvisor (See 09-17-26 SUNVISOR REMOVAL/INSTALLATION.)
(16)Assist handle (See 09-17-27 ASSIST HANDLE REMOVAL/INSTALLATION.)
(17)Headliner (See 09-17-27 HEADLINER REMOVAL/INSTALLATION.)

4. Remove the nuts.
5. Remove the roof carrier bracket.
6. Install in the reverse order of removal.

Note

• Install the roof carrier bracket so that the

arrow on it faces inward.

End Of Sie

WM: AERO PART

SIDE GARNISH REMOVAL

id091600804600

Front

1. Pull the side garnish and remove clips A from the

vehicle body.

2. Slide the side garnish to the vehicle rear and

remove clips B from the side garnish.

3. Remove the side garnish.
4. Remove clips B from the body, then install it to the

side garnish.

Rear

1. Pull the side garnish and remove clips A from the

vehicle body

2. Slide the side garnish to the vehicle front and

remove clips B from the side garnish.

3. Remove the side garnish.
4. Remove clips B from the body, then install it to the

side garnish.

End Of Sie

ROOF CARRIER
BRACKET

7.8—10.7 N·m
{80—109 kgf·cm,
70—94 in·lbf}

NUT

acxuuw00000928

A

A

A

B

B

B

B

B

B

B

B

CLIP A, B

REAR

FRONT

 SIDE GARNISH

SEC. A—A, B—B

acxuuw00000893

A

A

A

B

B

B

B

B

B

CLIP A, B

REAR

FRONT

SIDE GARNISH

SEC. A—A, B—B

acxuuw00000894

EXTERIOR TRIM

09-16–14

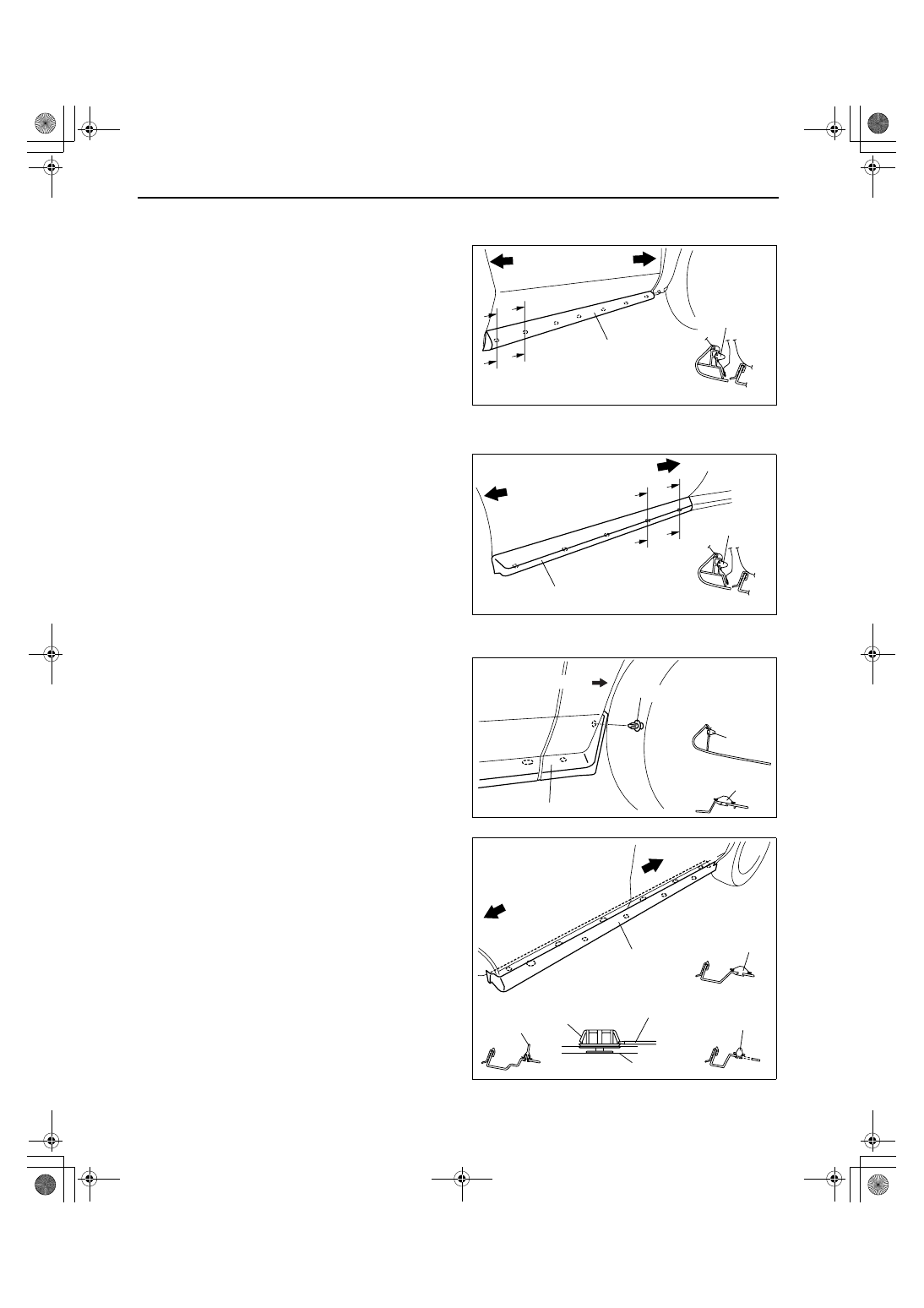

SIDE GARNISH INSTALLATION

id091600804500

Front

1. Install clips A and then B to the vehicle from the

front side.

Rear

1. Install clips A and then B to the vehicle from the

rear side.

End Of Sie

SIDE STEP MOLDING REMOVAL

id091600804400

1. Remove the fastener.
2. Pull the side step molding front and remove clip A

from the vehicle body.

3. Slide the side step molding front to the vehicle

front and remove clip B from the side step
molding front.

4. Remove the side step molding front.
5. Remove clips B from the body, then install it to the

side step molding front.

6. Pull the side step molding front and remove clip C

and F from the vehicle body.

7. Detach clip D using a tape-wrapped flathead

screwdriver as shown in the figure.

8. Slide the side step molding to the vehicle rear and

remove clips E from the side step molding.

9. Remove the side step molding.

10. Remove clips E from the body, then install it to the

side step molding.

End Of Sie

A

A

A

B

B

B

B

B

B

B

B

CLIP A, B

REAR

FRONT

SIDE GARNISH

SEC. A—A, B—B

acxuuw00000895

A

A

A

B

B

B

B

B

B

CLIP A, B

REAR

FRONT

SIDE GARNISH

SEC. A—A, B—B

acxuuw00000896

FRONT SIDE STEP MOLDING

CLIP A

CLIP B

A

B

FRONT

FASTENER

acxuuw00002411

E

C

E

E

E

E

E

E

E

E

D

F

FLATHEAD
SCREWDRIVER

STONE GUARD

SIDE STEP MOLDING

CLIP F

CLIP E

CLIP C

CLIP D

REAR

FRONT

acxuuw00000901
