Mazda CX 7. Manual - part 406





EXTERIOR TRIM

09-16–7

09-16

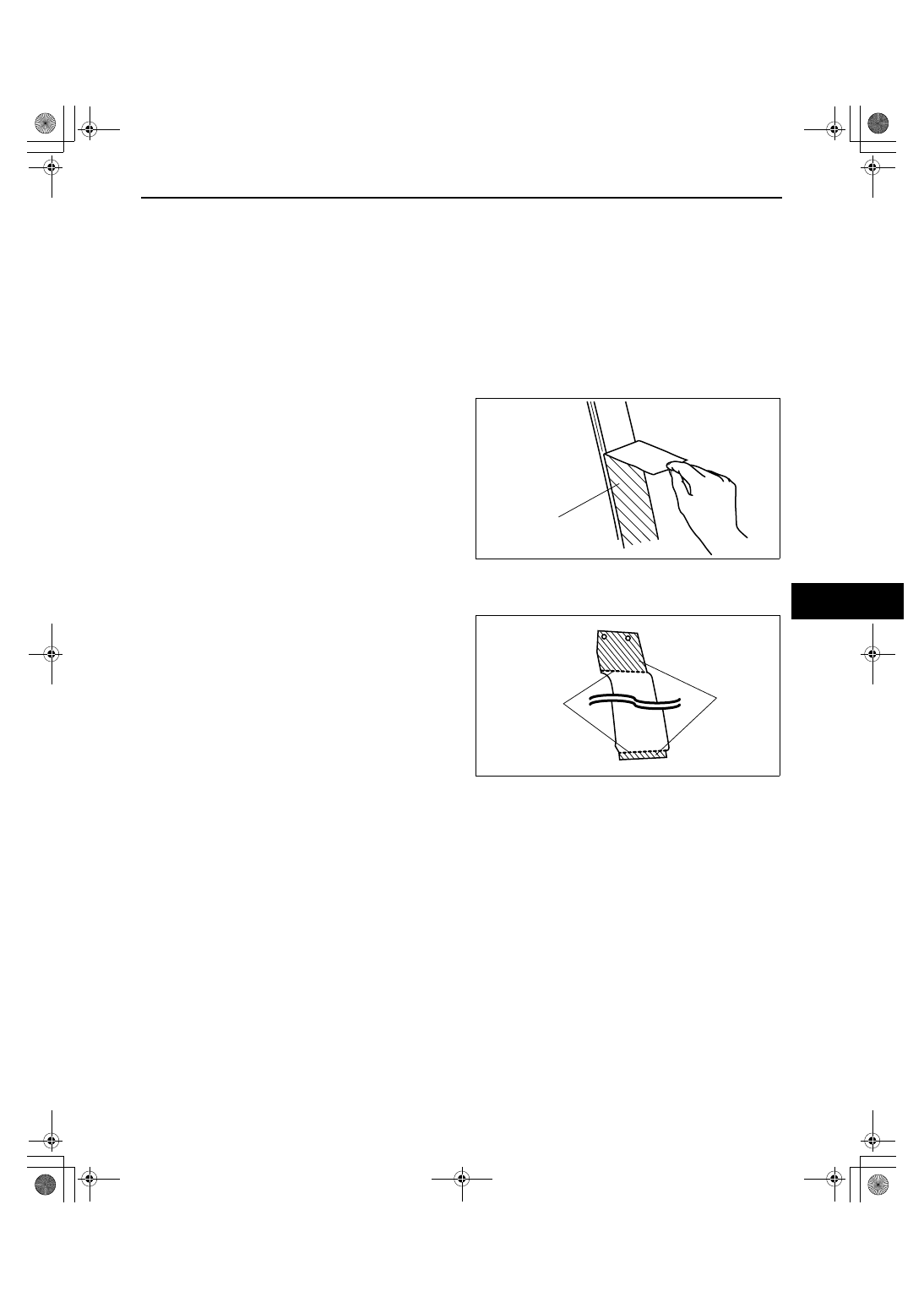

DOOR SASH FILM REMOVAL

id091600805200

1. Partially peel back the glass run channel.
2. Partially peel back the door weatherstrip.
3. Remove the following parts:

(1) Inner garnish (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
(2) Front door trim (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(3) Rear door trim (See 09-17-23 REAR DOOR TRIM REMOVAL/INSTALLATION.)
(4) Front beltline molding (See 09-16-9 FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
(5) Rear beltline molding (See 09-16-9 REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
(6) Front sash molding (See 09-16-4 FRONT SASH MOLDING REMOVAL.)
(7) Rear sash molding (See 09-16-5 REAR SASH MOLDING REMOVAL.)
(8) Sail garnish (See 09-17-12 SAIL GARNISH REMOVAL/INSTALLATION.)
(9) Rear door garnish (See 09-16-3 REAR DOOR GARNISH REMOVAL/INSTALLATION.)

4. Peel off the rear sash film by pulling it outward

from one end.

Note

• Slowly remove the door sash film since it

may tear easily.

End Of Sie

DOOR SASH FILM INSTALLATION

id091600805300

1. Remove any grease or dirt from the affixing surface of the door.
2. Cut away the unused portion along the dotted

lines.

DOOR SASH FILM

acxuuw00000914

PERFORATION

UNUSED
PORTION

acxuuw00000915

EXTERIOR TRIM

09-16–8

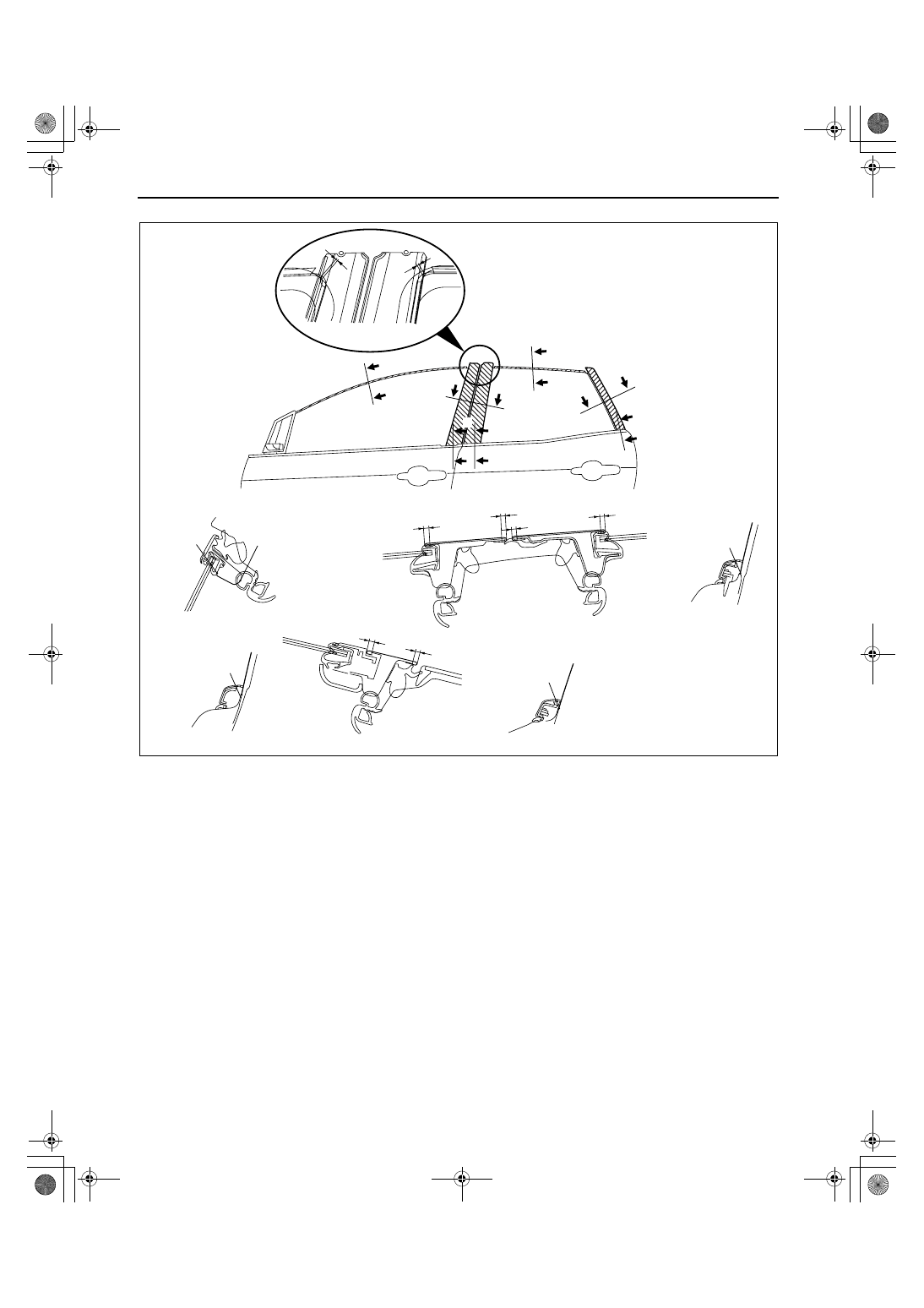

3. Peel off the backing paper and attach the door sash film onto the door as shown in the figure.

Standard clearance

a: 3.0 mm or more {0.12 in or more}
b: 3.0— 5.0 mm {0.12— 0.19 in}
c: 2.5 mm or more {0.10 in or more}

4. Peel off the transparent protective film on the door sash film.
5. Install the following parts:

(1) Rear door garnish (See 09-16-3 REAR DOOR GARNISH REMOVAL/INSTALLATION.)
(2) Sail garnish (See 09-17-12 SAIL GARNISH REMOVAL/INSTALLATION.)
(3) Rear sash molding (See 09-16-6 REAR SASH MOLDING INSTALLATION.)
(4) Front sash molding (See 09-16-4 FRONT SASH MOLDING INSTALLATION.)
(5) Rear beltline molding (See 09-16-9 REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
(6) Front beltline molding (See 09-16-9 FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
(7) Rear door trim (See 09-17-23 REAR DOOR TRIM REMOVAL/INSTALLATION.)
(8) Front door trim (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(9) Inner garnish (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)

End Of Sie

WM: EXTERIOR MOLDING

B

B

C

D

D

E

E

F

F

A

A

A

A

a

a

SEC. A—A

FILM END

OVER END
OF RADIUS

OVER END
OF RADIUS

SEC. D—D

SEC. E—E

SEC. F—F

SEC. B—B

SEC. C—C

c

c

b

a

b

b

FILM END

FILM END

C

acxuuw00000916

EXTERIOR TRIM

09-16–9

09-16

FRONT BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804800

1. Fully open the front door glass.
2. Disconnect the negative battery cable.
3. Remove the inner garnish. (See 09-17-20 INNER GARNISH REMOVAL/INSTALLATION.)
4. Remove the flont door trim. (See 09-17-20 FRONT DOOR TRIM REMOVAL/INSTALLATION.)
5. Remove the power outer mirror. (See 09-12-34 POWER OUTER MIRROR SWITCH REMOVAL/

INSTALLATION.)

6. Remove clip A using a protective tape-wrapped

flathead screwdriver.

7. Lift (partially peeling back) the front beltline

molding in the direction of the arrow and then
remove tabs B.

8. Remove the tab C.
9. Install in the reverse order of removal.

End Of Sie

REAR BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804700

1. Fully lower the rear door glass.
2. Remove clip A using a protective tape-wrapped

flathead screwdriver.

3. Lift (partially peeling back) the rear beltline

molding in the direction of the arrow and then
remove tabs B.

4. Install in the reverse order of removal.

End Of Sie

A

B

B

B

B

B

C

FRONT BELTLINE MOLDING

FRONT

TAB B

TAB C

CLIP A

acxuuw00000888

CLIP A

TAB B

A

A

B

B

B

B

B

REAR BELTLINE MOLDING

FRONT

acxuuw00000889

EXTERIOR TRIM

09-16–10

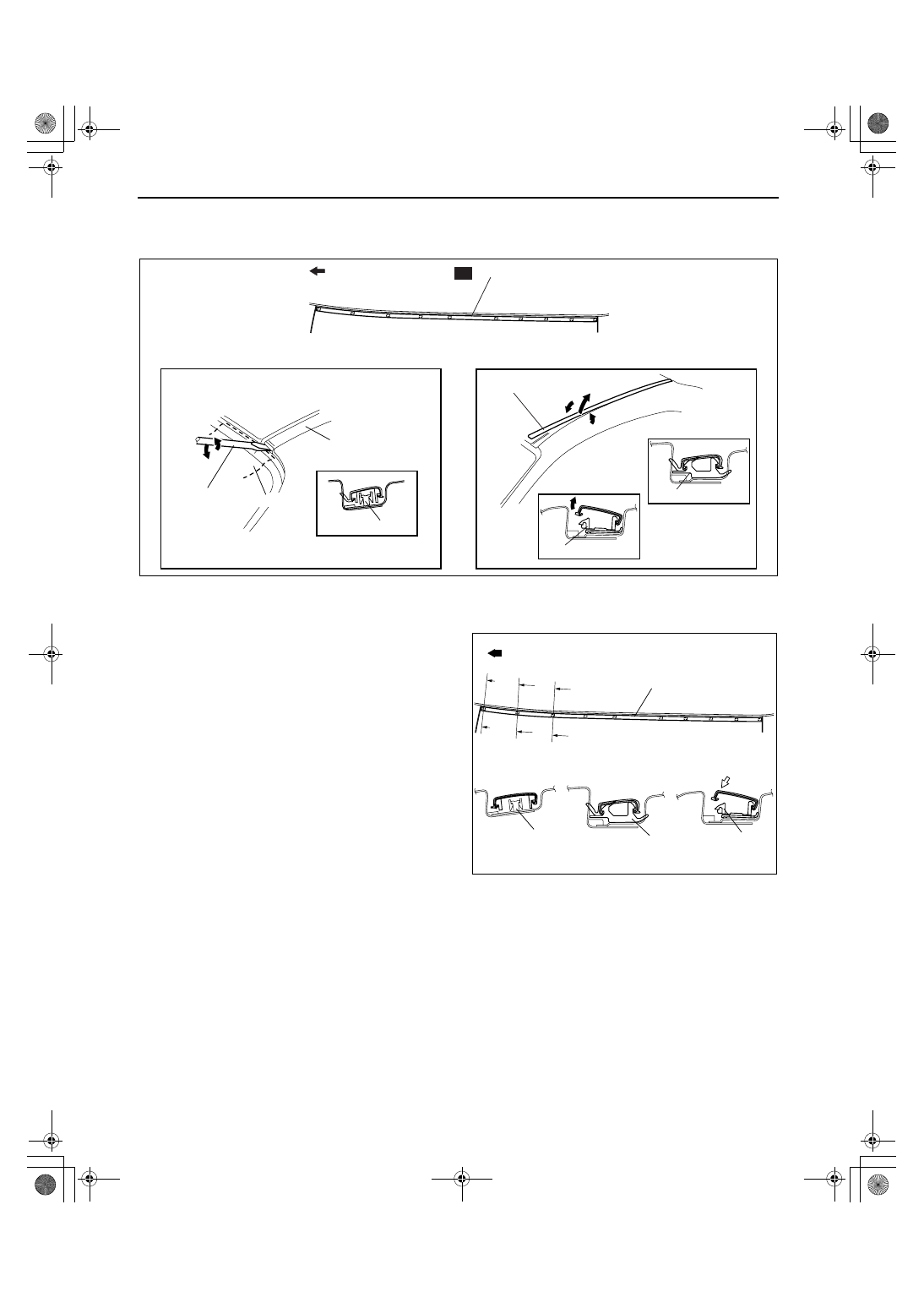

ROOF MOLDING REMOVAL

id091600800700

1. Detach the T-stud which secure sections A of roof molding, using a screwdriver or equivalent tool.
2. While pulling the roof molding up, detach it from the clips at section B, C, and then remove the roof molding.

End Of Sie

ROOF MOLDING INSTALLATION

id091600800800

1. Attach the roof molding to the T-stud at the front

portion of section A.

2. Hook the roof molding to clips B, C and press it in

to attach.

3. Attach the roof molding to the T-stud at the rear

portion of section A.

End Of Sie

WM: EXTERIOR PART

B

C

R

A

A

B

B

C

C

B

B

C

B

ROOF MOLDING

ROOF MOLDING

CLIP

CLIP

FRONT

TOP VIEW

A

ROOF MOLDING

T STUD

RAG

FLAT HEAD
SCREW
DRIVER

acxuuw00000890

a

a

b

b

SEC. a—a

SEC. b—b

SEC. c—c

A

A

B

B

C

C

B

B

C

B

ROOF MOLDING

T-STUD

CLIP B

CLIP C

FRONT

TOP VIEW

c

c

acxuuw00000891
