EXTERIOR TRIM

09-16–3

09-16

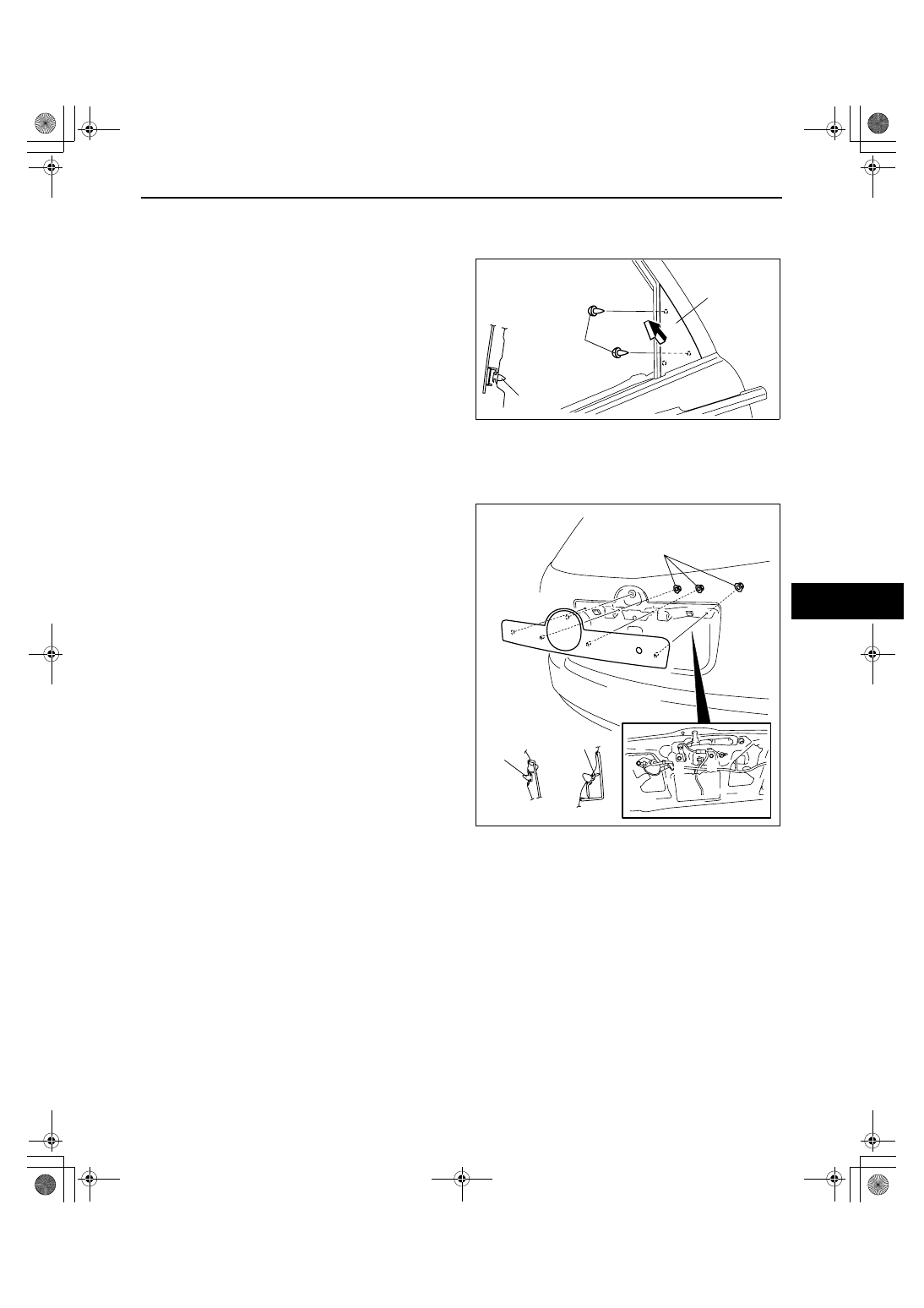

REAR DOOR GARNISH REMOVAL/INSTALLATION

id091600804200

1. Remove the sail garnish. (See 09-17-12 SAIL GARNISH REMOVAL/INSTALLATION.)
2. Remove the rear beltline molding. (See 09-16-9 REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
3. Remove the screws.
4. Pull the rear door garnish in the direction shown

by the arrow and remove clip A from the rear door
garnish.

5. Remove the rear door garnish.
6. Remove clips A from the body, then install it to the

rear door garnish.

7. Install in the reverse order of removal.

End Of Sie

REAR FINISHER REMOVAL/INSTALLATION

id091600800200

1. Remove the liftgate upper trim. (See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)
2. Remove the liftgate side trim. (See 09-17-25 LIFTGATE SIDE TRIM REMOVAL/INSTALLATION)
3. Remove the liftgate lower trim (See 09-17-26 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
4. Remove the nuts at section C indicated in the

figure.

5. Pull the rear finisher outward, then disengage clip

A, B from the body.

6. Install in the reverse order of removal.

End Of Sie

SCREW

REAR DOOR
GARNISH

CLIP A

A

acxuuw00000903

NUT

CLIP B

CLIP A

B

A

3.9—5.8 N·m
{39.8—59.1 kgf·cm,
34.6—51.3 in·lbf}

C

C

C

acxuuw00000887

EXTERIOR TRIM

09-16–4

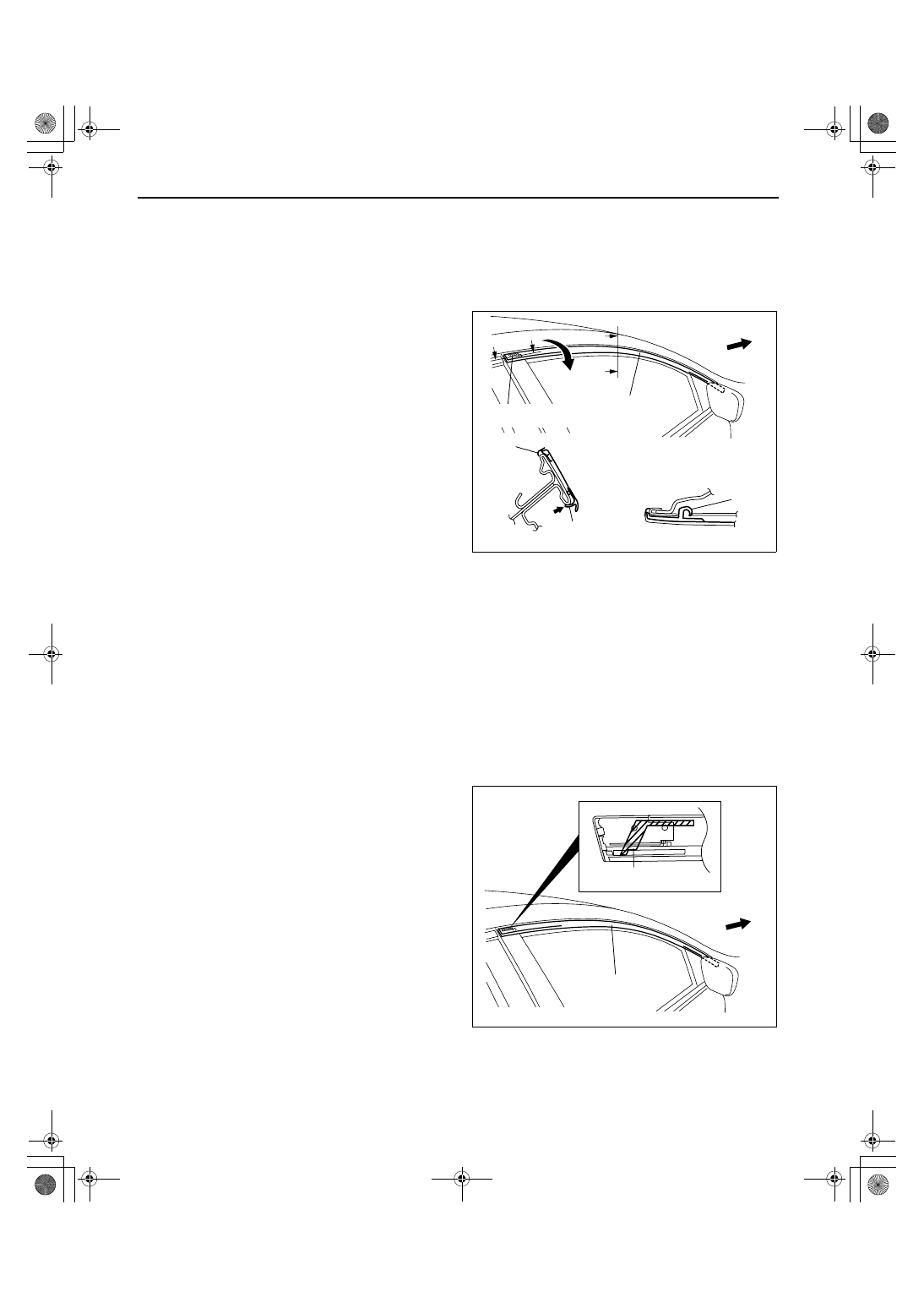

FRONT SASH MOLDING REMOVAL

id091600805000

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

1. Fully open the front door glass.
2. Partially peel back the glass run channel.
3. Press tab A in the direction of the arrow and

remove it.

4. While cutting the double-sided adhesive tape

using a screwdriver or a razor, separate the front
sash molding from the body.

5. Rotate the front sash molding at the pivot of tab B

in the direction of arrow D and remove it.

6. Remove the tab C.
7. Remove the front sash molding.

End Of Sie

FRONT SASH MOLDING INSTALLATION

id091600807000

Note

• Double-sided adhesive tape has already been attached to the new front sash molding.

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

1. When installing a new front sash molding, follow the procedure below:

(1) Remove the adhesive remaining on the body using razor.
(2) Remove any grease or dirt from the adhesion surface of the body.

2. When reusing the front sash molding, follow the procedure below:

(1) Remove the adhesive remaining on the front sash molding and the body using a razor.
(2) Remove any grease or dirt from the adhesion surface of the front sash molding and the body.
(3) Apply primer to the bonding area of the front sash molding.
(4) Attach double-sided adhesive tape to the front

sash molding as shown.

Note

• As for the double-sided adhesive tape, use

beta tape 5078 (1 mm {0.04 in} thickness) or
equivalent.

3. Peel off the backing of the double-sided adhesive

tape.

TAB C

TAB B

TAB A

FRONT SASH MOLDING

FRONT

a

SEC. a—a

a

DOUBLE-SIDED
ADHESIVE TAPE

b

b

SEC. b—b

B

D

acxuuw00000922

FRONT SASH MOLDING

FRONT

DOUBLE-SIDED
ADHESIVE TAPE

acxuuw00002323

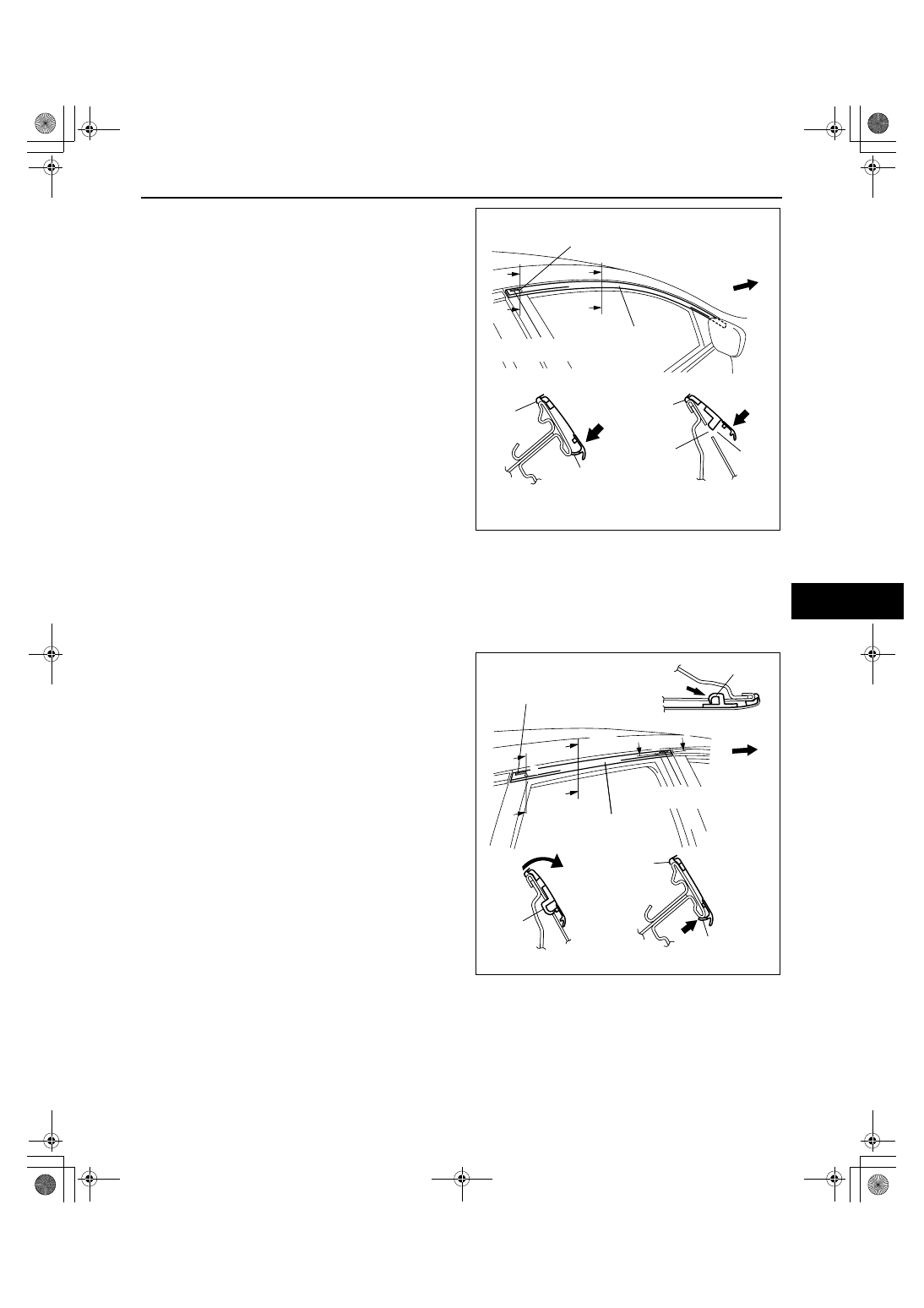

EXTERIOR TRIM

09-16–5

09-16

4. Hook tab A to the body in the position where tabs

B align with the sash holes.

5. Press the front sash molding in the direction of

the arrow and install tabs B to the body.

Caution

• Do not press the front sash molding in

any place other than the rubber areas.

6. Press the front sash molding from the vehicle rear

in the direction shown in the arrow and install tab
C.

Note

• After installing the front sash molding, verify

that tabs A and B are connected properly to
the body.

End Of Sie

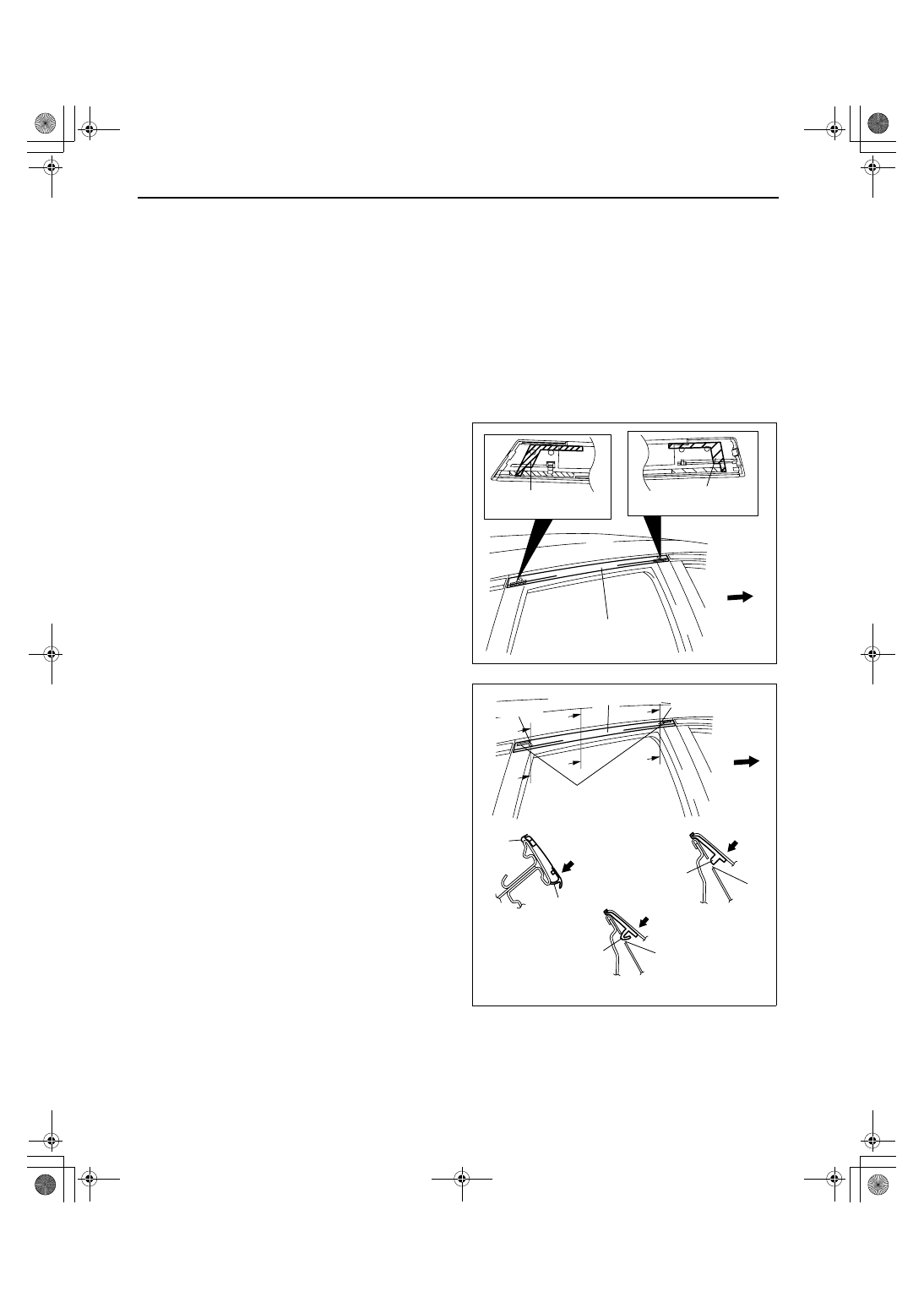

REAR SASH MOLDING REMOVAL

id091600805100

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

1. Fully open the front door glass.
2. Partially peel back the glass run channel.
3. Press tab A in the direction of the arrow and

remove it.

4. While cutting the double-sided adhesive tape

using a screwdriver or a razor, separate the rear
sash molding from the body.

5. Press tab B in the direction of the arrow and

remove it.

6. Remove the tab C.
7. Rotate the rear sash molding in the direction of

the arrow and remove tab C.

8. Remove the rear sash molding.

End Of Sie

TAB C

TAB A

TAB B

FRONT SASH MOLDING

FRONT

a

SEC. a—a

a

TAB A

SASH HOLE

SASH HOLE

DOUBLE-SIDED
ADHESIVE TAPE

SEC. b—b

b

b

acxuuw00001485

REAR SASH MOLDING

a

a

TAB D

TAB A

REAR SASH MOLDING

FRONT

a

C

B

a

SEC. a—a

b

b

c

c

TAB B

SEC. b—b

TAB C

SEC. c—c

DOUBLE-SIDED
ADHESIVE TAPE

DOUBLE-SIDED
ADHESIVE TAPE

acxuuw00000923

EXTERIOR TRIM

09-16–6

REAR SASH MOLDING INSTALLATION

id091600807100

Note

• Double-sided adhesive tape has already been attached to the new rear sash molding.

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

1. When installing a new rear sash molding, follow the procedure below:

(1) Remove the adhesive remaining on the body using razor.
(2) Remove any grease or dirt from the adhesion surface of the body.

2. When reusing the rear sash molding, follow the procedure below:

(1) Remove the adhesive remaining on the rear sash molding and the body using a razor.
(2) Remove any grease or dirt from the adhesion surface of the rear sash molding and the body.
(3) Apply primer to the bonding area of the rear sash molding.
(4) Attach double-sided adhesive tape to the rear

sash molding as shown.

Note

• As for the double-sided adhesive tape, use

beta tape 5078 (1 mm {0.04 in} thickness) or
equivalent.

3. Peel off the backing of the double-sided adhesive

tape.

4. Hook tab C to the body in the position where tabs

A and B align with the sash holes.

5. Press the rear sash molding in the direction of the

arrow and install tabs A and B to the body.

Caution

• Do not press the rear sash molding in

any place other than the rubber areas.

6. Press the rear sash molding from the vehicle front

in the direction of the arrow and install tab D.

Note

• After installing the front sash molding, verify

that tabs C and D are connected properly to
the body.

End Of Sie

REAR SASH MOLDING

FRONT

DOUBLE-SIDED
ADHESIVE TAPE

DOUBLE-SIDED
ADHESIVE TAPE

acxuuw00002324

TAB D

REAR SASH MOLDING

FRONT

a

a

SEC. a—a

SASH HOLE

SASH HOLE

SASH
HOLE

TAB C

TAB B

DOUBLE-SIDED
ADHESIVE TAPE

SEC. c—c

SEC. b—b

b

b

c

c

SASH
HOLE

TAB A

acxuuw00001493
