SUNROOF
09-15–11
09-15
REAR DRAIN HOSE REMOVAL
id091500801500
1. Disconnect the negative battery cable.
2. Partially peel back the seaming welt.
3. Remove the following parts:
(1) A-pillar lower trim (See 09-17-16 A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(2) A-pillar trim (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
(3) Front scuff plate inner (See 09-17-19 FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(4) Rear scuff plate inner (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(5) B-pillar lower trim (See 09-17-16 B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(6) Front seat belt upper anchor installation bolt (See 08-11-2 FRONT SEAT BELT REMOVAL/
INSTALLATION.)
(7) B-pillar upper trim (See 09-17-16 B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
(8) Rear seat (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
(9) Sub trunk box (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
(10)Trunk end trim (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)
(11)Trunk side trim (See 09-17-24 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(12)C-pillar trim (See 09-17-17 C-PILLAR TRIM REMOVAL/INSTALLATION.)
(13)D-pillar trim (See 09-17-18 D-PILLAR TRIM REMOVAL/INSTALLATION.)
(14)Map light (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)
(15)Sunvisor (See 09-17-26 SUNVISOR REMOVAL/INSTALLATION.)
(16)Assist handle (See 09-17-27 ASSIST HANDLE REMOVAL/INSTALLATION.)
(17)Headliner (See 09-17-27 HEADLINER REMOVAL/INSTALLATION.)

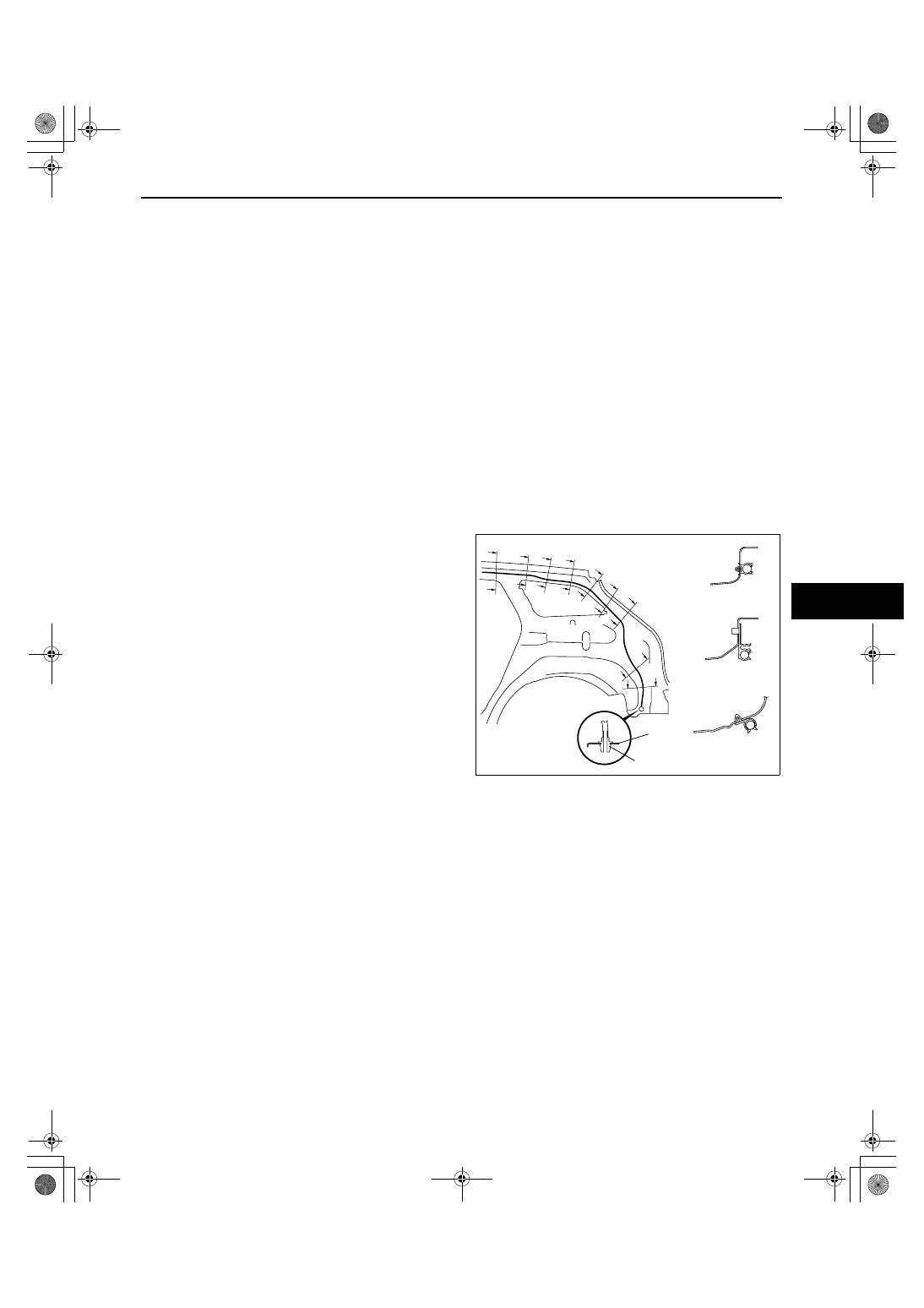

4. Disconnect the rear drain hose from the sunroof frame.
5. Remove the rear drain hose from the clips.
6. Pull the rear drain hose into the room side.
7. Remove the rear drain hose.
End Of Sie
BODY
GROMMET
B
B
C
C
C
C
A
A
A
A
A
A
A
A
A
A
A
A
Sec. A
—
A
Sec. B
—
B
Sec. C
—
C
acxuuw00001239
