SECURITY AND LOCKS

09-14–23

09-14

No.3 Key Replacement Procedure (Clearing Previously Registered Key ID Numbers, Key Re-registration)
Procedure

1. Have two or more keys (key 1, key 2) ready for registration after the clearing the key ID numbers.
2. Using key 1, turn the ignition switch to the ON position.

Note

• Although the security light flashes and DTC 15 is displayed, this does not indicate an improper procedure.

Continue to perform the procedure as indicated.

3. Connect the M-MDS to the DLC-2.
4. Select “Body/Security/PATS function” from the M-MDS screen menu.
5. Perform security access as indicated on the M-MDS screen. (See 09-14-24 No.6 Security Access Procedure.)
6. Select “Ignition key ID number Erase” from the M-MDS screen menu and perform the tasks according to the M-

MDS screen.

No.4 Changing the Method for Registering Additional Keys

Note

• This procedure is for changing the enable/disable setting of the “No.1 Additional Key Registration

Procedure (Using Two Valid Keys)”.

• The default setting for new vehicles and new instrument cluster replacement is “Enabled”.

• By disabling the “No.1 Additional Key Registration Procedure (Using Two Valid Keys)”, only the M-MDS

can be used to register additional keys, thereby preventing two valid keys from being used to create an
unauthorized spare key. This function is for use by rental car or other companies with vehicle fleets.

Procedure

1. Using any key, turn the ignition switch to the ON position. (Either a valid or an unregistered key can be used.)

Note

• When using an unregistered key, although the security light flashes and DTC 15 is displayed, this does not

indicate an improper procedure. Continue to perform the procedure as indicated.

2. Connect the M-MDS to the DLC-2.
3. Select “Body/Security/PATS function” from the M-MDS screen menu.
4. Perform security access as indicated on the M-MDS screen. (See 09-14-24 No.6 Security Access Procedure.)
5. Select either “Customer Spare Key Programming Enable” or “Customer Spare Key Programming Disable” from

the M-MDS screen menu. Depending on the selected menu, the additional key registration method is as shown
below:

x

: Procedure is possible

-

: Procedure is not possible

6. After verifying that the PATS function menu is displayed again on the M-MDS screen, select “Exit” to complete

the M-MDS function.

7. After Step 6, wait 10 s or more and then turn the ignition switch to the LOCK position.

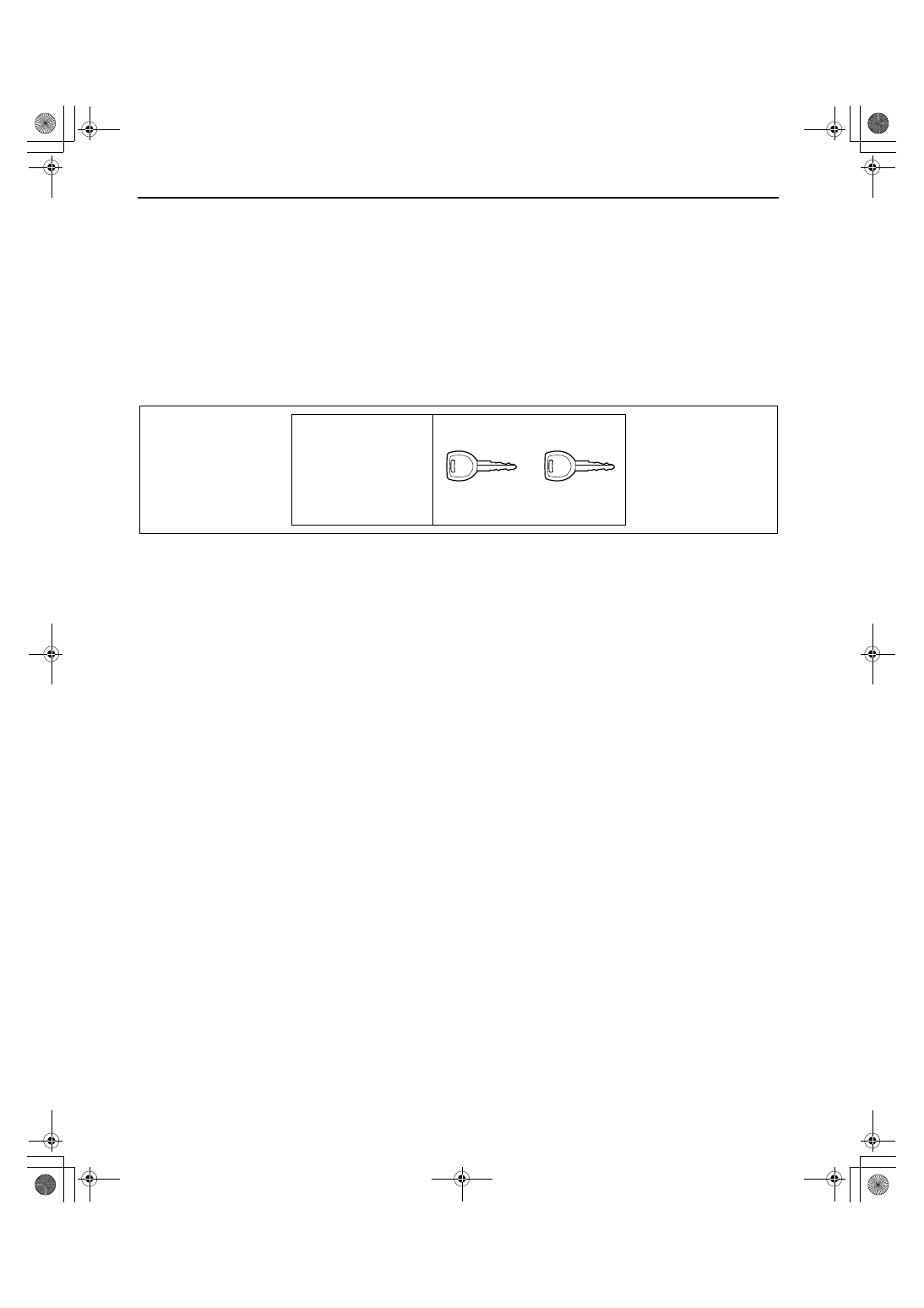

KEY FOR REGISTRATION

KEY 1

KEY 2

acxuuw00002526

Setting

Additional key registration method

Procedure using two valid

keys

Procedure using the M-

MDS

Customer spare key programming enable

x

x

Customer spare key programming disable

-

x

SECURITY AND LOCKS

09-14–24

No.5 Resetting Procedure for the Immobilizer System when Replacing the PCM or Instrument Cluster
 Conditions

• When replacing only the PCM: No conditions.

• When replacing only the instrument cluster: Customer has two or more valid keys after replacement tasks.

• When replacing the PCM and the instrument cluster: Customer has two or more valid keys after replacement.

Caution

• When replacing the PCM and the instrument cluster at the same time, follow the same instructions

described in the procedure for “when replacing the instrument cluster”.

• When replacing only the PCM, start from Step 2. Also, when key 1 is indicated within the

procedure, any valid key can be used.

• Before starting Step 1, complete the procedure for PCM and instrument cluster replacement.

Procedure

1. Have two or more keys (key 1, key 2) ready for registration.
2. Using key 1, turn the ignition switch to the ON position.

Note

• When replacing only the PCM: The security light illuminates for 3 s and then goes out.

• When replacing the instrument cluster:  Although the security light flashes and DTC 15 is displayed, this

does not indicate an improper procedure. Continue to perform the procedure as indicated.

3. Connect the M-MDS to the DLC-2.
4. Select “Body/Security/PATS function” from the M-MDS screen menu.
5. Perform security access as indicated on the M-MDS screen. (See 09-14-24 No.6 Security Access Procedure.)
6. Select “Parameter Reset” from the M-MDS screen menu.
7. Perform security access again as indicated on the M-MDS screen. (See 09-14-24 No.6 Security Access

Procedure.)

8. Select the replaced part as indicated on the M-MDS screen.

• When replacing only the PCM: Select “PCM”.

• When replacing only the instrument cluster: Select “HEC”.

Note

• At this time, do not select any other parts from the M-MDS screen menu.

9. Perform the tasks according to the M-MDS screen.

No.6 Security Access Procedure

Note

• Security access must be performed when performing the following functions: “Program Additional Ignition

Key”, “Ignition Key ID Number Erase”, “Customer Spare Key Programming Enable/Disable” and
“Parameter Reset”.

Procedure

1. Connect the M-MDS to the DLC-2.
2. Select “Body/Security/PATS function” from the M-MDS screen menu.
3. Security access is started and the M-MDS displays “Outcode”.

Caution

• After reading out the outcode, do not turn ignition switch from LOCK to ON position 5 times,

otherwise the outcode value will be changed.

KEY FOR REGISTRATION

KEY 1

KEY 2

acxuuw00002526

SECURITY AND LOCKS

09-14–25

09-14

4. Input the corresponding “Incode” for the “Outcode” displayed on the M-MDS screen.
5. After successfully performing security access, “Program Additional Ignition Key”, “Ignition key ID number

Erase” or “Customer Spare Key Programming Enable/Disable” is displayed on the M-MDS screen. When
performing “Parameter Reset”, security access is requested two times and after successfully performing it the
second time, “Replacement Module” is displayed.

End Of Sie

WM: HOOD LOCK AND OPENER

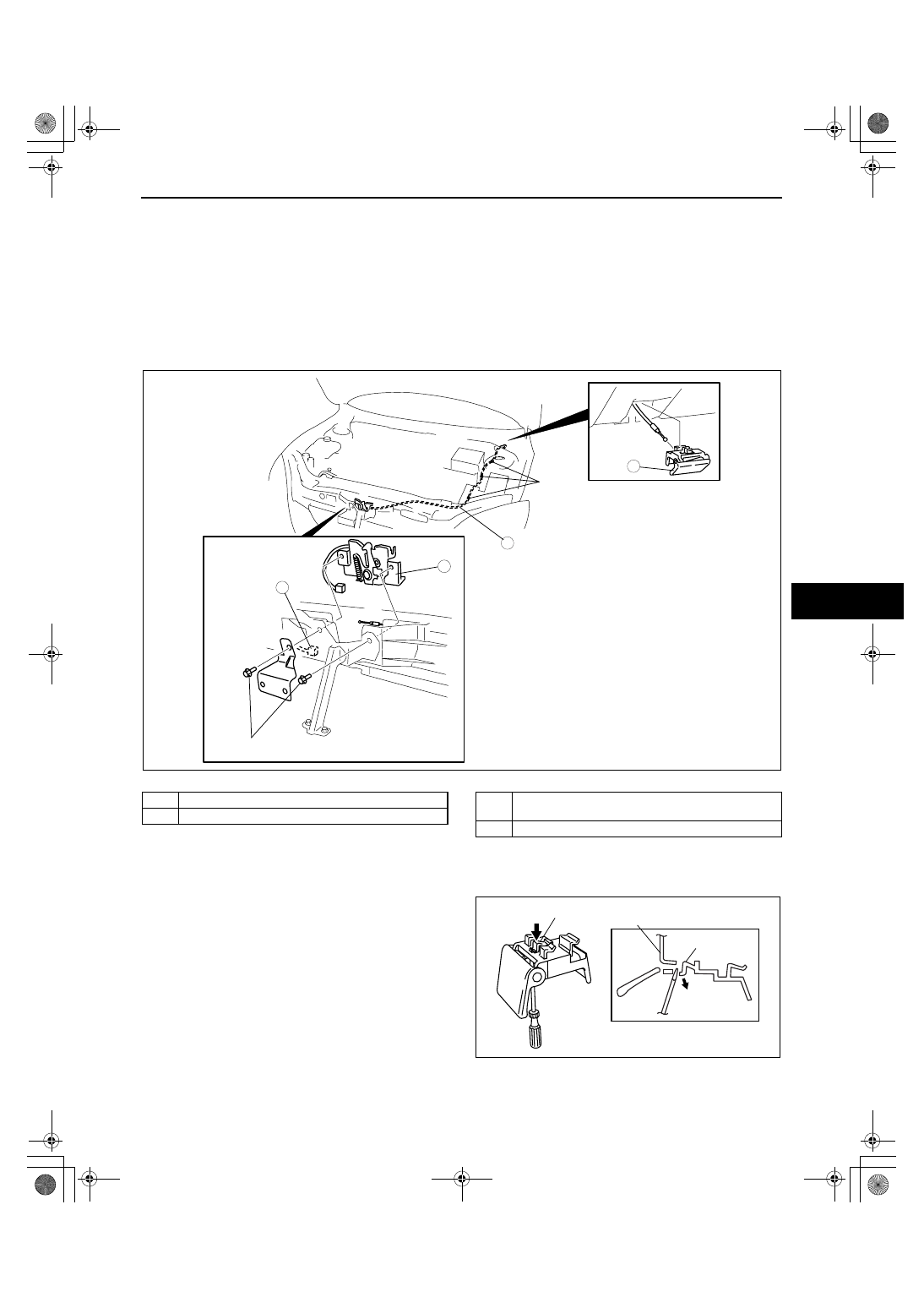

HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION

id091400805300

1. To remove the acxuuw00002490od release cable, remove the following parts:
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Adjust the acxuuw00002490od. (See 09-10-10 HOOD ADJUSTMENT.)

.

Hood Release Lever Removal Note

1. Pull the lever.
2. While pushing the tab in the direction of the arrow

using a tape-wrapped, small flathead screwdriver,
detach it from the lower panel.

Caution

• Be careful not to damage the

acxuuw00002490od release cable when
removing the acxuuw00002490od release
lever with the flathead screwdriver.

3. Under the condition in Step 2, pull the

acxuuw00002490od release lever outward, then
remove it from the lower panel.

End Of Sie

4

1

2

8.0—11.0

N·m

{82—112 kgf·cm, 71—97 in·lbf}

CLIP

3

acxuuw00002490

1

Hood latch

2

Hood latch switch connector

3

Hood release lever
 (See 09-14-25 Hood Release Lever Removal Note.)

4

Hood release cable

CROSS-SECTIONAL VIEW

LOWER PANEL

TAB

TAB

acxuuw00002491

SECURITY AND LOCKS

09-14–26

HOOD LATCH SWITCH INSPECTION

id091400805400

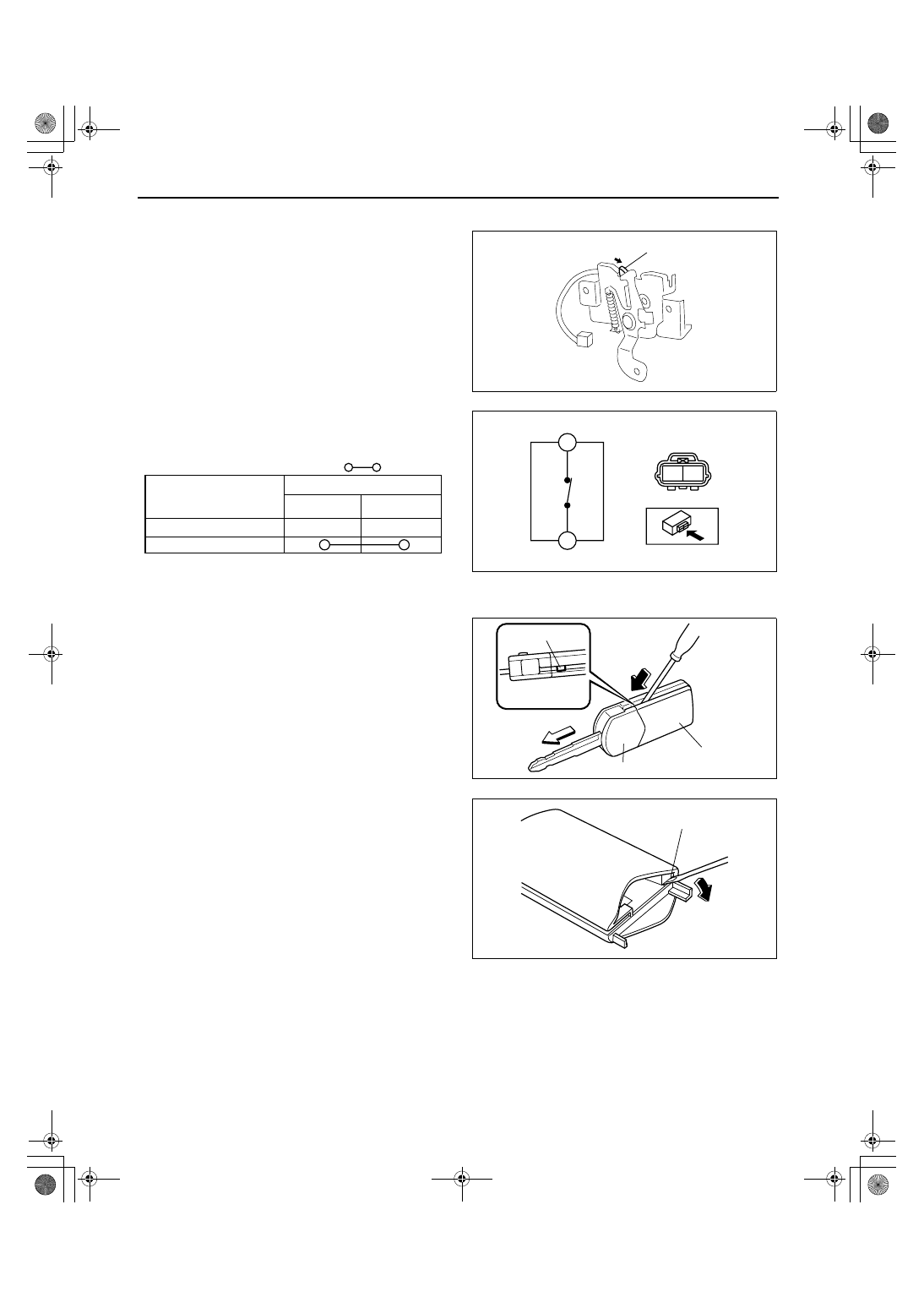

1. When inspecting the latch, press the latch lever

using a flathead screwdriver or a similar tool.

2. Inspect for continuity between the hood latch

switch terminals.

• If not as specified, replace the hood latch.

End Of Sie

WM: TRANSMITTER

TRANSMITTER BATTERY REPLACEMENT[KEYLESS ENTRY SYSTEM]

id0914008057b3

1. Insert a small flathead screwdriver into the

transmitter notch and remove the key from the
transmitter by pressing the tab.

2. Insert a small flathead screwdriver into the

transmitter notch and the transmitter.

LATCH LEVER

acxuuw00002492

A

B

A

B

acxuuw00002493

: Continuity

Latch condition

Terminal

B

A

Latch (hood is closed)

Unlatch (hood is open)

acxuuw00002494

TRANSMITTER

KEY

TAB

acxuuw00002495

NOTCH

acxuuw00002496
