Mazda CX 7. Manual - part 390

SEATS

09-13–9

09-13

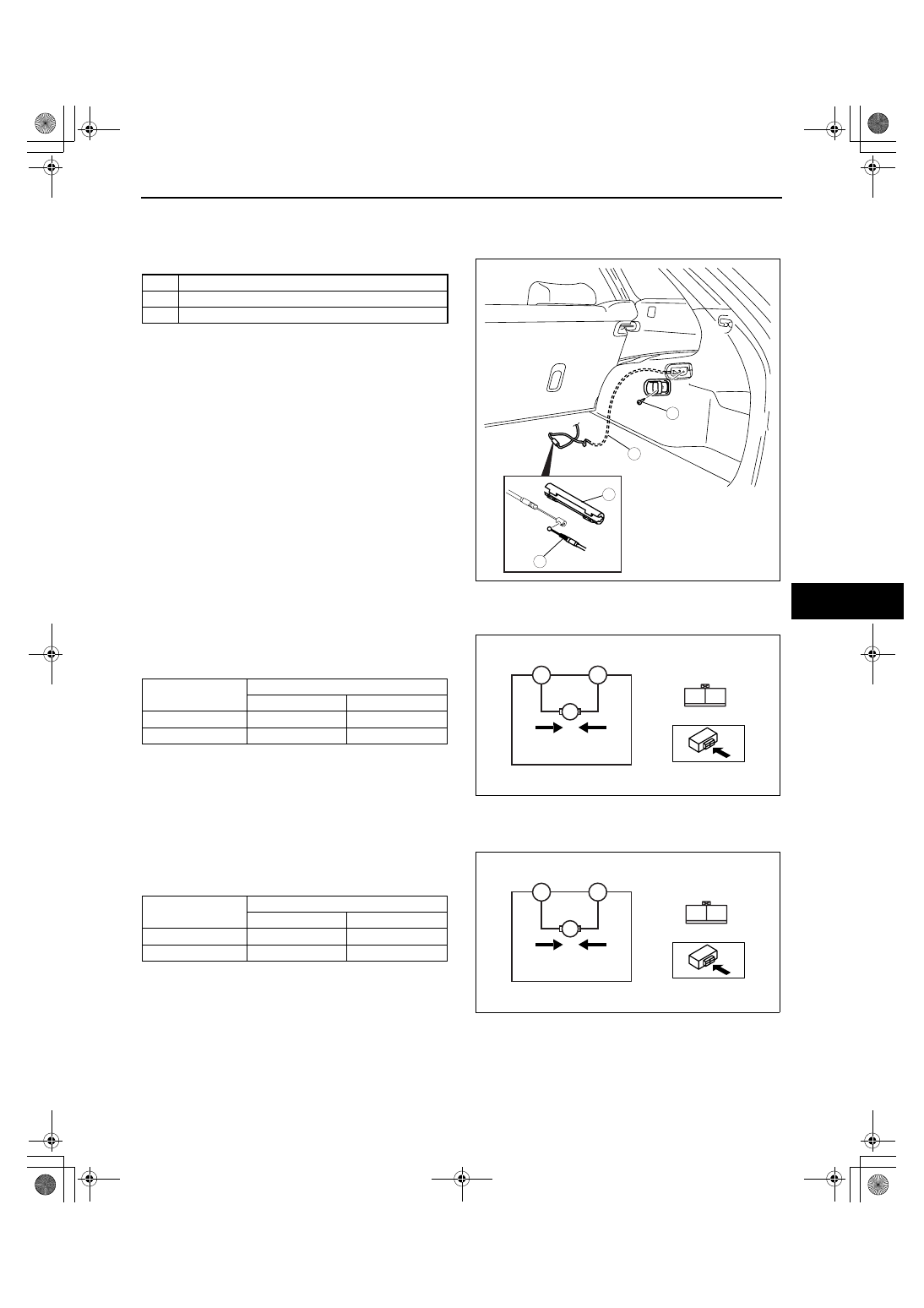

REMOTE HANDLE LEVER REMOVAL/INSTALLATION

id091300800600

1. To remove the remote wire, remove the trunk side trim. (See 09-17-24 TRUNK SIDE TRIM REMOVAL/

INSTALLATION.)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

WM: POWER SEAT

FRONT TILT MOTOR INSPECTION

id091300800700

1. Disconnect the front tilt motor connector.
2. Apply battery positive voltage to the front tilt motor

terminals and inspect the front tilt motor operation

• If not as specified, replace the slide adjuster.

End Of Sie

REAR TILT MOTOR INSPECTION

id091300800800

1. Disconnect the rear tilt motor connector.
2. Apply battery positive voltage to the rear tilt motor

terminals and inspect the rear tilt motor operation

• If not as specified, replace the slide adjuster.

End Of Sie

1

Screw

2

Cover

3

Remote wire

1

3

3

2

acxuuw00000940

Motor operation

Connection

B+

GND

Up

A

B

Down

B

A

B

A

UP

DOWN

M

B

A

acxuuw00000791

Motor operation

Connection

B+

GND

Up

B

A

Down

A

B

B

A

UP

DOWN

M

B

A

acxuuw00000904

SEATS

09-13–10

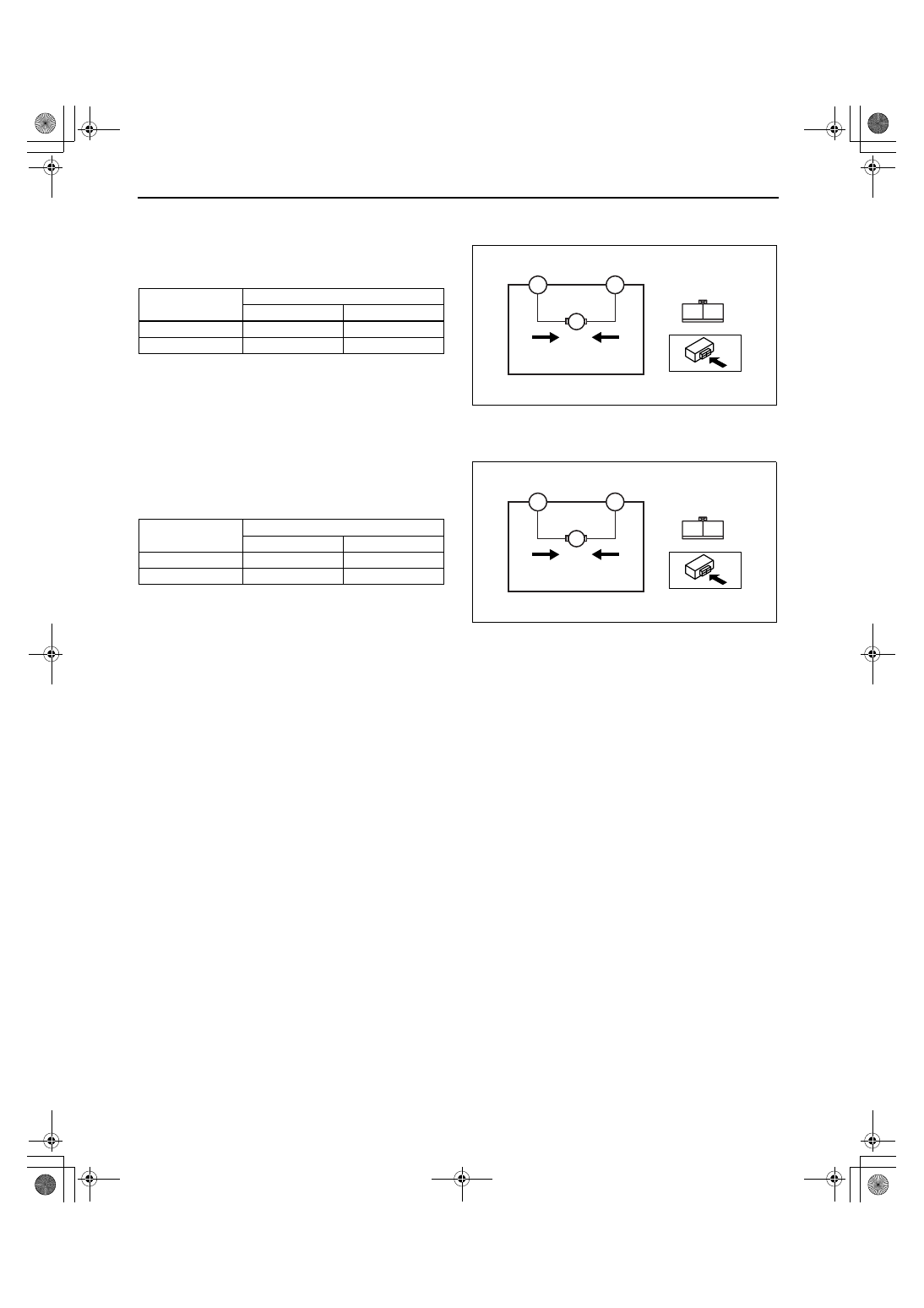

SLIDE MOTOR INSPECTION

id091300800900

1. Disconnect the slide motor connector.
2. Apply battery positive voltage to the slide motor

terminals and inspect the slide motor operation

• If not as specified, replace the slide adjuster.

End Of Sie

RECLINER MOTOR INSPECTION

id091300801000

1. Disconnect the recliner motor connector.
2. Apply battery positive voltage to the recliner

motor terminals and inspect the recliner motor
operation.

• If not as specified, replace the slide adjuster.

End Of Sie

Motor operation

Connection

B+

GND

Forward

A

B

Backward

B

A

B

A

FORWARD

BACKWARD

M

B

A

acxuuw00000776

Motor operation

Connection

B+

GND

Forward

B

A

Backward

A

B

B

A

FORWARD

BACKWARD

M

B

A

acxuuw00000905

SEATS

09-13–11

09-13

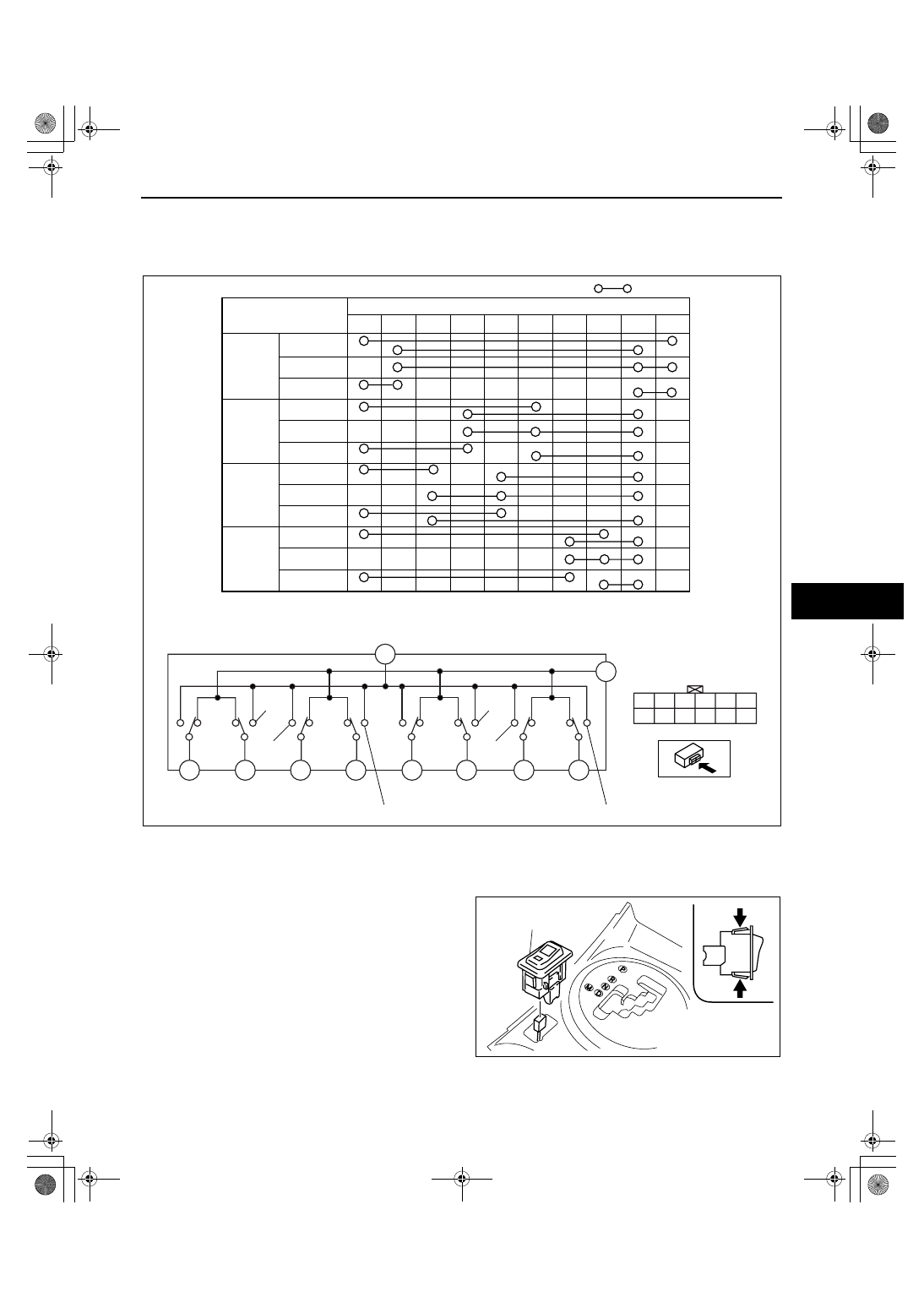

POWER SEAT SWITCH INSPECTION

id091300801100

1. Disconnect the power seat switch connector.
2. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

• If not as specified, replace the power seat switch.

End Of Sie

WM: SEAT WARMER

SEAT WARMER SWITCH REMOVAL/INSTALLATION

id091300801200

1. Disconnect the negative battery cable.
2. Remove the panel. (See 09-17-13 CONSOLE

REMOVAL/INSTALLATION.)

3. Install in the reverse order of removal.

J

H

K

L

: Continuity

Switch position

Recliner

Slide

Front tilt

Rear tilt

RECLINER

SLIDE

FRONT TILT

REAR TILT

Off

Off

Off

Off

Forward

Forward

Up

Up

Terminal

B

A

B

C

D

E

G

Backward

Backward

Down

Down

J

H

K

L

A

B

C

D

E

G

UP

DOWN

FORWARD

BACKWARD

DOWN

FORWARD

BACKWARD

UP

A

B

C

D

E

*

G

H

*

J

K

L

acxuuw00000757

TAB

TAB

SEAT WARMER SWITCH

acxuuw00000754

SEATS

09-13–12

Seat Warmer Switch Removal Note

1. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

End Of Sie

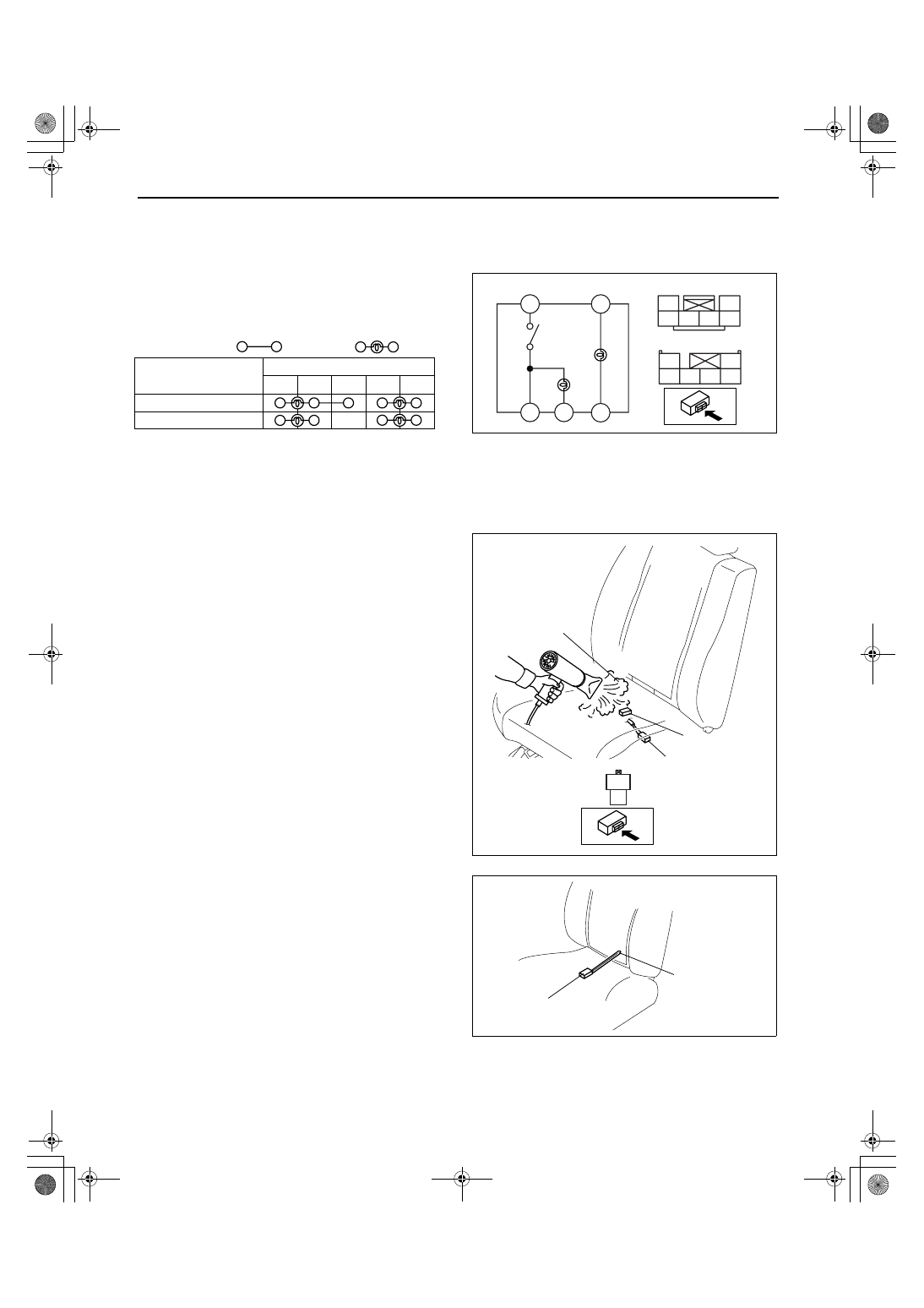

SEAT WARMER SWITCH INSPECTION

id091300801300

1. Inspect for continuity between the seat warmer

switch terminals using an ohmmeter.

• If not as specified, replace the seat warmer

switch.

End Of Sie

SEAT WARMER UNIT INSPECTION

id091300801400

Seat Cushion

1. Remove the front seat. (See 09-13-2 FRONT SEAT REMOVAL/INSTALLATION.)
2. Remove the seat cushion trim. (See 09-13-2 FRONT SEAT DISASSEMBLY/ASSEMBLY.)
3. While inspecting for continuity between the

connector terminals A and B, use a dryer to warm
the thermostat of the seat warmer unit on seat
cushion.

4. When the ohmmeter indicates that there is no

continuity, turn off the dryer, then use a
thermometer to measure the temperature of the
thermostat.

5. Verify that the temperature is approx. 37

°C {99

°F}.

B

A

G

H

F

B

*

A

G

H

F

B

*

A

G

H

F

DRIVER'S SIDE

PASSENGER'S SIDE

B6U0913W017

: Bulb

Switch position

ON

OFF

Terminal

A

H

F

G

B

: Continuity

A6E7752W024

HOT AIR

THERMOSTAT

CONNECTOR

A

B

acxuuw00000906

THERMOMETER

THERMOSTAT

acxuuw00000907
