Mazda CX 7. Manual - part 388





SEATS

09-13–1

09-13

09-13

SEATS

LOCATION INDEX. . . . . . . . . . . . . . . . . .  09-13–1
FRONT SEAT

REMOVAL/INSTALLATION. . . . . . . . . .  09-13–2

FRONT SEAT

DISASSEMBLY/ASSEMBLY . . . . . . . . .  09-13–2

Driver's Seat (Manual Seat) . . . . . . . . .  09-13–3
Driver's Seat (Power Seat) . . . . . . . . . .  09-13–4
Passenger's Seat . . . . . . . . . . . . . . . . .  09-13–6

REAR SEAT

REMOVAL/INSTALLATION. . . . . . . . . .  09-13–7

REAR SEAT

DISASSEMBLY/ASSEMBLY . . . . . . . . .  09-13–8

Child seat anchor cover

disassembly note . . . . . . . . . . . . . . . .  09-13–8

REMOTE HANDLE LEVER REMOVAL/

INSTALLATION. . . . . . . . . . . . . . . . . . . . 09-13–9

FRONT TILT MOTOR INSPECTION. . . . . 09-13–9
REAR TILT MOTOR INSPECTION. . . . . . 09-13–9
SLIDE MOTOR INSPECTION. . . . . . . . . . 09-13–10
RECLINER MOTOR INSPECTION. . . . . . 09-13–10
POWER SEAT SWITCH

INSPECTION  . . . . . . . . . . . . . . . . . . . . . 09-13–11

SEAT WARMER SWITCH REMOVAL/

INSTALLATION. . . . . . . . . . . . . . . . . . . . 09-13–11

Seat Warmer Switch Removal Note  . . . 09-13–12

SEAT WARMER SWITCH

INSPECTION  . . . . . . . . . . . . . . . . . . . . . 09-13–12

SEAT WARMER UNIT INSPECTION . . . . 09-13–12

Seat Cushion. . . . . . . . . . . . . . . . . . . . . 09-13–12
Seat Back  . . . . . . . . . . . . . . . . . . . . . . . 09-13–13

End of Toc

WM: SEATS

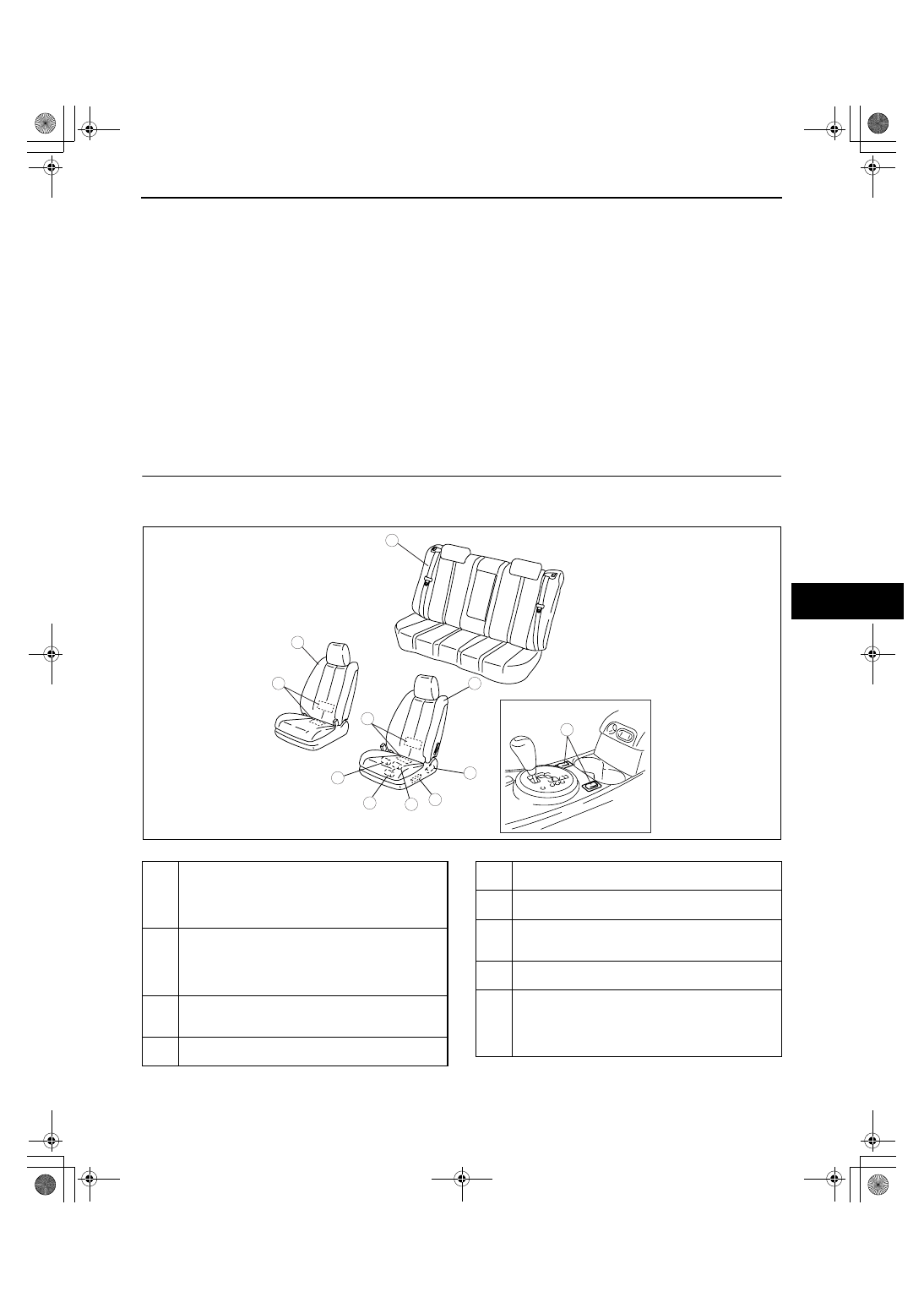

LOCATION INDEX

id091300800100

.

End Of Sie

8

7

5

4

3

3

6

1

2

2

9

acxuuw00000660

1

Rear seat
(See 09-13-7 REAR SEAT REMOVAL/
INSTALLATION.)
(See 09-13-8 REAR SEAT DISASSEMBLY/
ASSEMBLY.)

2

Front seat
(See 09-13-2 FRONT SEAT REMOVAL/
INSTALLATION.)
(See 09-13-2 FRONT SEAT DISASSEMBLY/
ASSEMBLY.)

3

Seat warmer unit
(See 09-13-12 SEAT WARMER UNIT
INSPECTION.)

4

Rear tilt motor
(See 09-13-9 REAR TILT MOTOR INSPECTION.)

5

Slide motor
(See 09-13-10 SLIDE MOTOR INSPECTION.)

6

Front tilt motor
(See 09-13-9 FRONT TILT MOTOR INSPECTION.)

7

Power seat switch
(See 09-13-11 POWER SEAT SWITCH
INSPECTION.)

8

Recliner motor
(See 09-13-10 RECLINER MOTOR INSPECTION.)

9

Seat warmer switch
(See 09-13-11 SEAT WARMER SWITCH
REMOVAL/INSTALLATION.)
(See 09-13-12 SEAT WARMER SWITCH
INSPECTION.)

SEATS

09-13–2

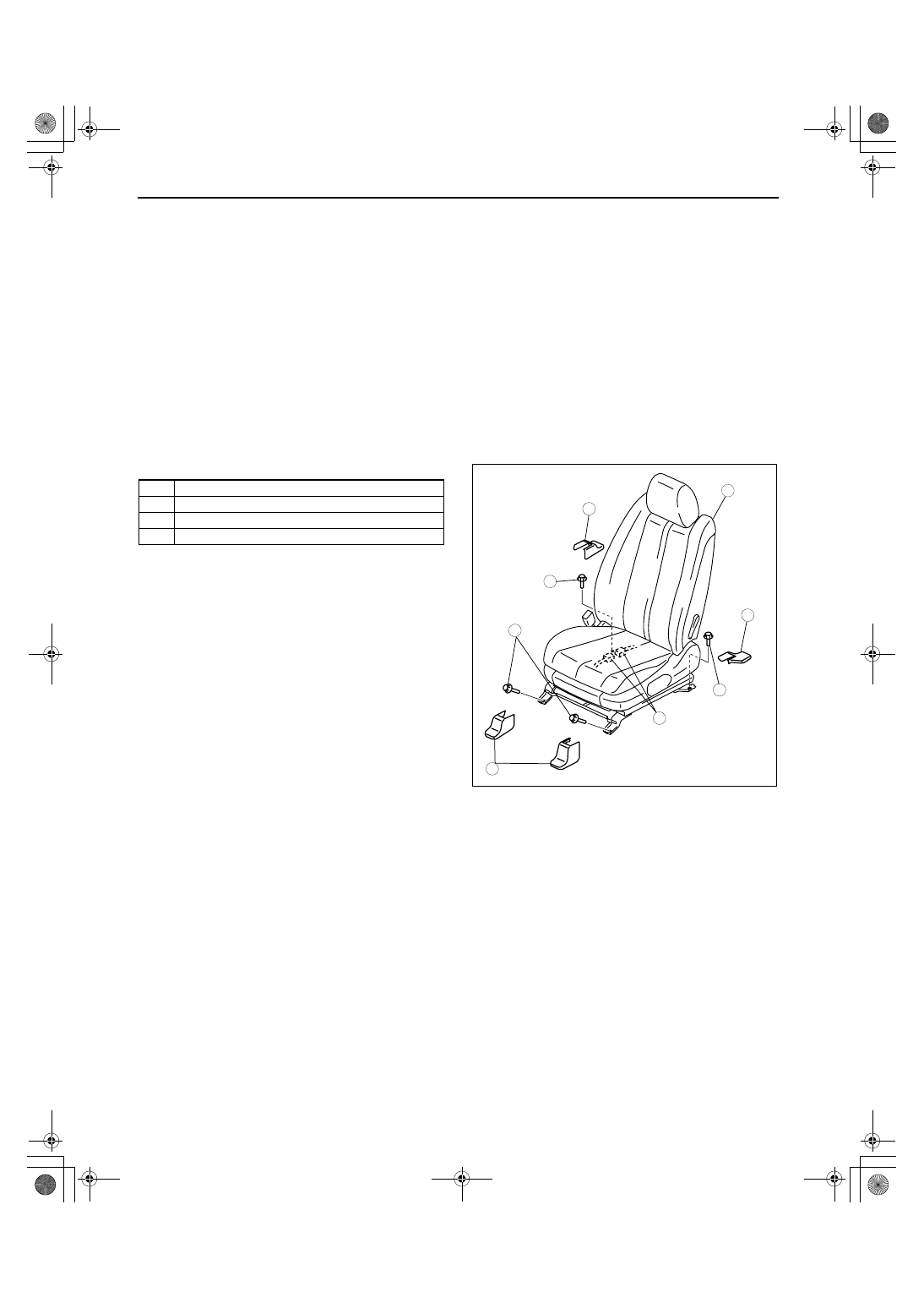

FRONT SEAT REMOVAL/INSTALLATION

id091300800200

Warning

• Handling the front seats improperly can accidentally deploy the side air bag, which may seriously

injure you. Read air bag system service warnings and cautions before handling the front seats.
(See 08-10-3 AIR BAG SYSTEM SERVICE WARNINGS.) (See 08-10-5 AIR BAG SYSTEM SERVICE
CAUTIONS.)

Caution

• When the passenger's seat is removed, perform the seat weight sensor inspection using the M-

MDS after installing the passenger's seat. (See 08-10-12 SEAT WEIGHT SENSOR INSPECTION.)

• When the passenger's seat is replaced with a new one, perform the seat weight sensor calibration

using the M-MDS. (See 08-10-12 SEAT WEIGHT SENSOR CALIBRATION.)

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the seat belt anchor (passenger’s side). (See 08-11-2 FRONT SEAT BELT REMOVAL/

INSTALLATION.)

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

End Of Sie

FRONT SEAT DISASSEMBLY/ASSEMBLY

id091300800300

Warning

• Handling the front seats improperly can accidentally deploy the side air bag, which may seriously

injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seats. (See 08-
10-3 AIR BAG SYSTEM SERVICE WARNINGS.) (See 08-10-5 AIR BAG SYSTEM SERVICE
CAUTIONS.)

Caution

• If any of the following work is performed, perform the seat weight sensor calibration using the M-

MDS. (See 08-10-12 SEAT WEIGHT SENSOR CALIBRATION.)

— Replacement with a new seat weight sensor

— Replacement with a new seat weight sensor control module

— Replacement with new passenger’s side parts

— Disassembly of the passenger’s side

• If any of the following work is performed, perform the seat weight sensor inspection using the M-

MDS. (See 08-10-12 SEAT WEIGHT SENSOR INSPECTION.)

— Removal of the passenger’s side

— Loosening and retightening of passenger’s seat fixing bolts

1. Disconnect the negative battery cable and wait for more than 1 minute.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

1

Cover

2

Bolt

3

Connector

4

Front seat

2

2

2

1

1

3

1

36.3—54.0 N·m
{3.71—5.51kgf·m,
26.8—39.8 ft·lbf}

36.3—54.0 N·m
{3.71—5.51kgf·m,
26.8—39.8 ft·lbf}

4

acxuuw00000925

SEATS

09-13–3

09-13

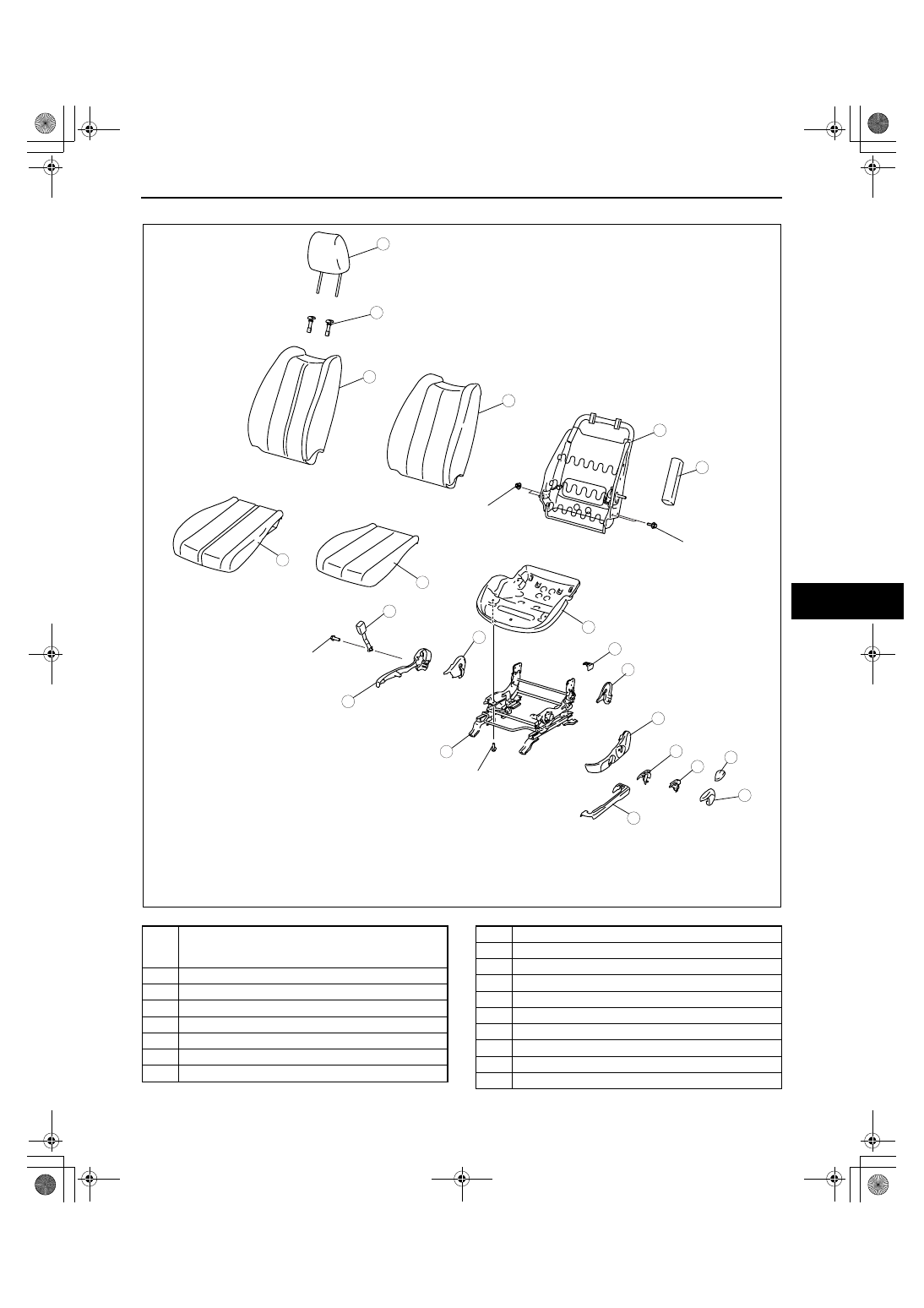

Driver's Seat (Manual Seat)

.

N·m {kgf·m, ft·lbf}

1

2

4

3

14

10

11

12

13

15

16

6

5

7

7

8

8

9

17

17

18

40.0—50.0
{4.08—5.09,
29.5—36.8}

36.0—54.0
{3.68—5.50,
26.6—39.8}

21.0—26.0
{2.15—2.65,
15.5—19.7}

36.0—54.0
{3.68—5.50,
26.6—39.8}

acxuuw00000709

1

Side air bag module
(See 08-10-8 SIDE AIR BAG MODULE REMOVAL/
INSTALLATION.)

2

Recliner lever

3

Outer lift cover

4

Lift lever

5

Inner lift cover

6

Front  buckle

7

Side cover

8

Rail cover

9

Headrest

10

Pole guide

11

Seat back trim

12

Seat back pad

13

Seat back frame

14

Seat cushion frame

15

Seat cushion trim

16

Seat cushion pad

17

Reverse cover

18

Slide adjuster

SEATS

09-13–4

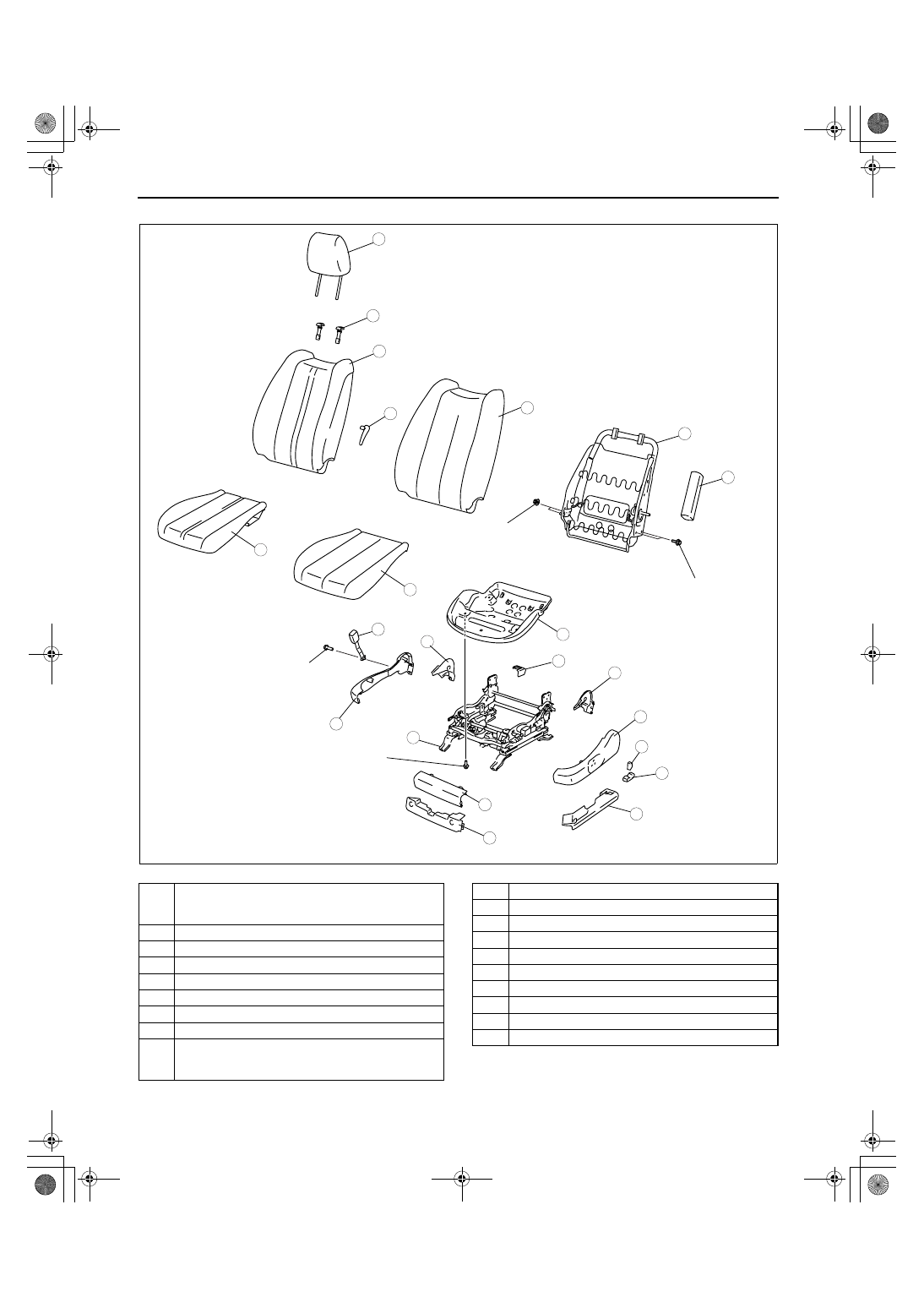

Driver's Seat (Power Seat)

.

N·m {kgf·m, ft·lbf}

1

2

4

3

14

10

11

12

13

15

16

6

6

5

5

7

8

9

17

18

18

19

40.0—50.0
{4.08—5.09,
29.5—36.8}

21.0—26.0
{2.15—2.65,
15.5—19.7}

36.0—54.0
{3.68—5.50,
26.6—39.8}

36.0—54.0
{3.68—5.50,
26.6—39.8}

acxuuw00000710

1

Side air bag module
(See 08-10-8 SIDE AIR BAG MODULE REMOVAL/
INSTALLATION.)

2

Recliner switch knob

3

Slide and lifter switch knob

4

Front buckle

5

Side  cover

6

Rail cover

7

Front cover No.1

8

Front cover No.2

9

Lumber support lever
(See 09-13-5 Lumber support lever disassembly
note)

10

Headrest

11

Pole guide

12

Seat back trim

13

Seat back pad

14

Seat back frame

15

Seat cushion frame

16

Seat cushion trim

17

Seat cushion pad

18

Reverse cover

19

Slide adjuster
