Mazda CX 7. Manual - part 383





GLASS/WINDOWS/MIRRORS

09-12–19

09-12

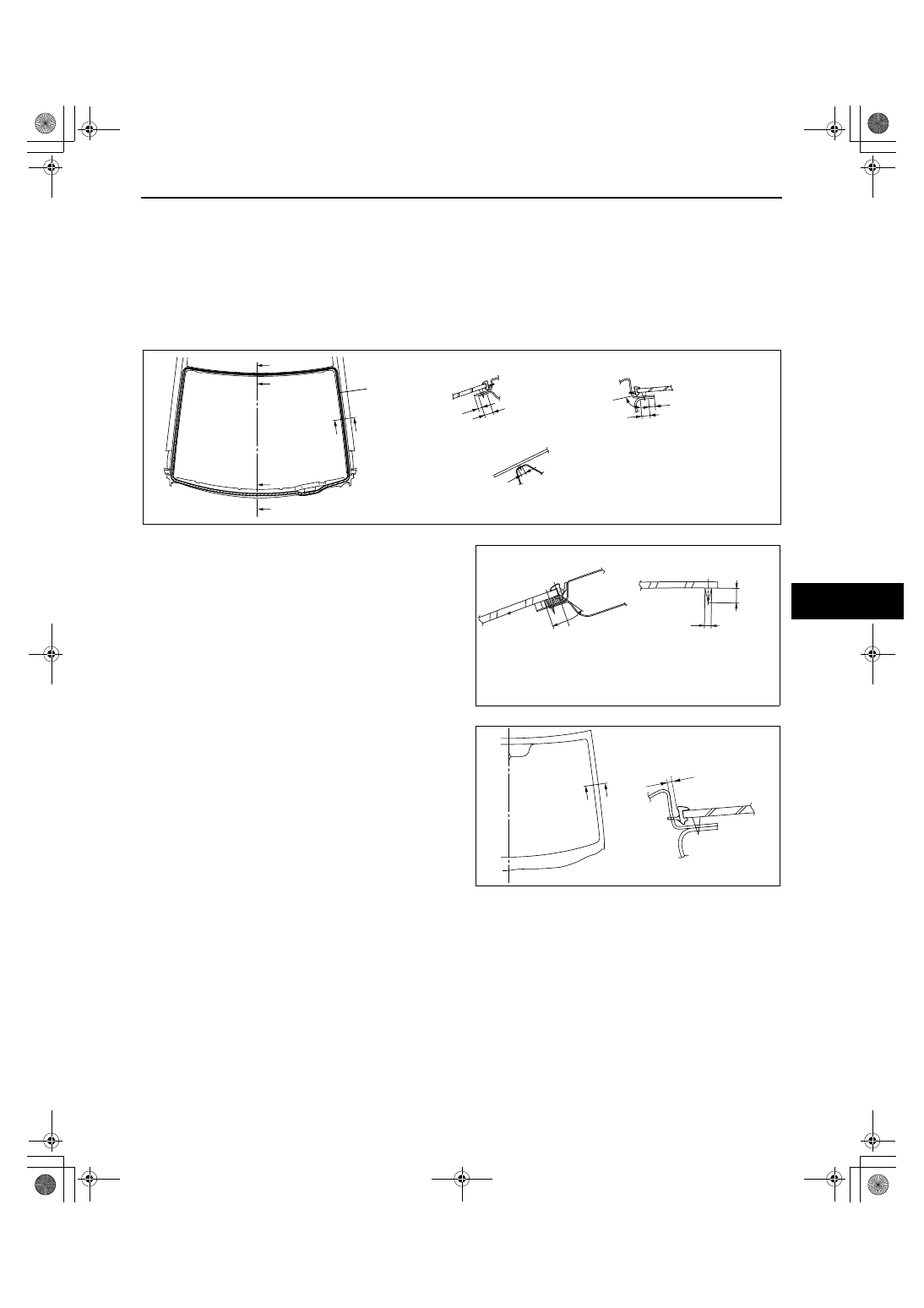

9. Clean and degrease along the perimeter of the bonding area on the body.

10. Apply body primer on the body as shown in the figure, then allow it to dry for  approx. 30 min.

Caution

• To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and

grease. Do not touch the surface with your hand.

Note

• Apply primer to the hollowed marks in the ceramic coating.

11. Apply sealant to the area of the glass surface as

shown in the figure.

12. Insert the windshield locator pins to the body and

install the windshield.

13. Verify that the clearance of the A-pillar is within

the range shown in the figure, and press along the
perimeter of the glass.

14. Install the headliner.
15. Install the following parts:

(1) Assist handle (See 09-17-27 ASSIST

HANDLE REMOVAL/INSTALLATION.)

(2) A-pillar trim (See 09-17-15 A-PILLAR TRIM

REMOVAL/INSTALLATION.)

(3) Map light (See 09-18-22 MAP LIGHT

REMOVAL/INSTALLATION.)

(4) Sunvisor (See 09-17-26 SUNVISOR

REMOVAL/INSTALLATION.)

(5) Rearview mirror (See 09-12-36 REARVIEW

MIRROR INSTALLATION.)

(6) Cowl grille (See 09-16-11 COWL GRILLE REMOVAL/INSTALLATION.)
(7) Windshield wiper arm and blade (See 09-19-3 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

16. Allow the sealant to harden completely.

Sealant hardening time: 24 h

End Of Sie

A

C

C

B

B

A

PRIMER

SEC. A—A

SEC. C—C

SEC. B—B

10 {0.39 }

10 {0.39 }

10 {0.39 }

5.6* {0.22 }

7.3* {0.29 }

mm {in}

*: POSSIBLE PRIMER APPLICATION AREA

acxuuw00001544

mm {in}

5 {0.2}

11 {0.43}

APPLY SEALANT TO THIS AREA.

acxuuw00001545

A

A

SEC. A—A

1.7—5.7 mm
{0.067—0.22  in}

acxuuw00001546

GLASS/WINDOWS/MIRRORS

09-12–20

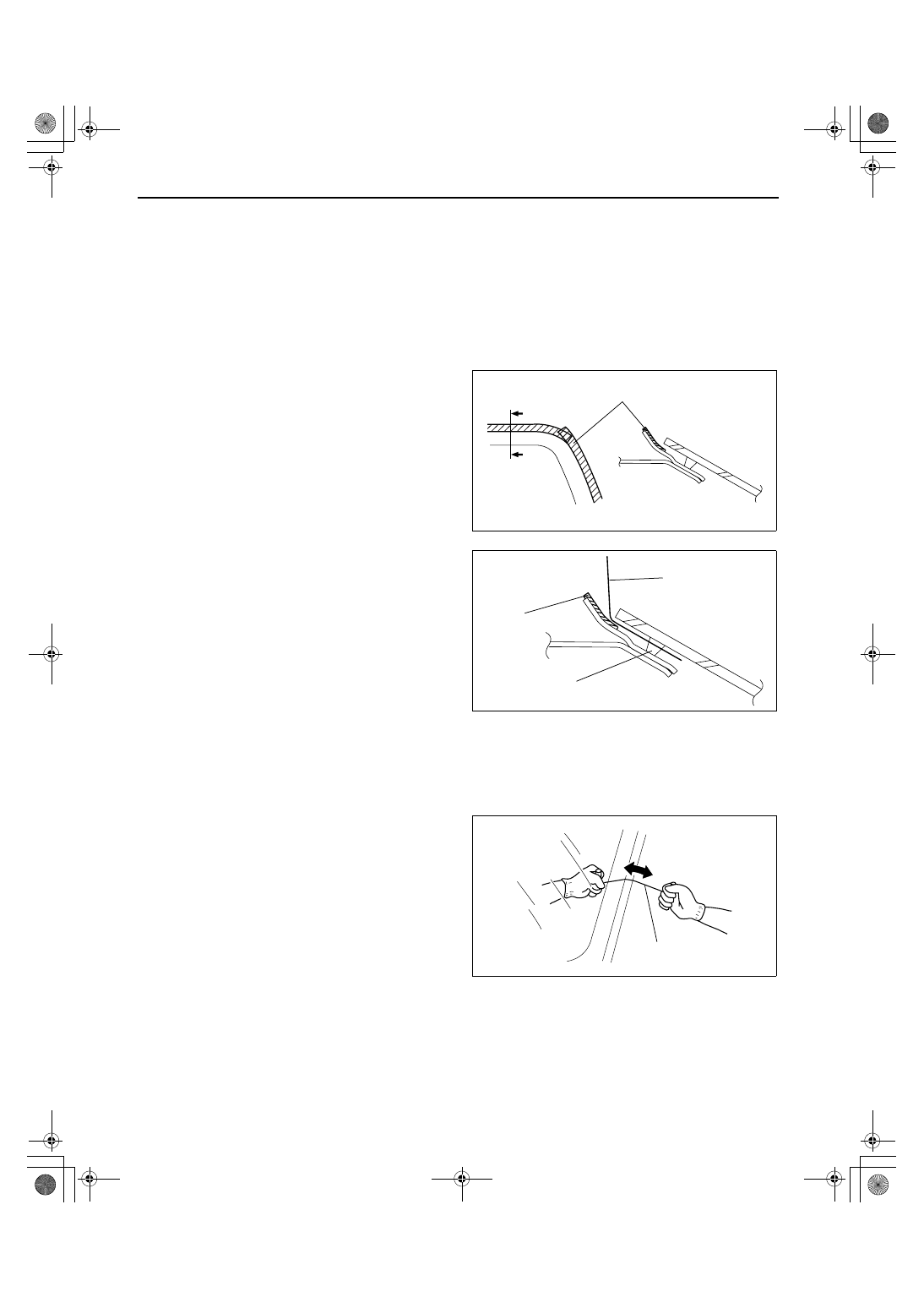

REAR WINDOW GLASS REMOVAL

id091200801500

1. Disconnect the negative battery cable.
2. Remove the rear wiper arm and blade. (See 09-19-9 REAR WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

3. Remove the liftgate upper trim. (See 09-17-25 LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)
4. Remove the liftgate side trim. (See 09-17-25 LIFTGATE SIDE TRIM REMOVAL/INSTALLATION)
5. Remove the liftgate lower trim. (See 09-17-26 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)
6. Remove the rear wiper motor. (See 09-19-10 REAR WIPER MOTOR REMOVAL/INSTALLATION.)
7. Remove the rear spoiler. (See 09-16-12 REAR SPOILER REMOVAL/INSTALLATION.)
8. Remove the high-mount brake light. (See 09-18-12 HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
9. Disconnect the filament connector.

10. Apply protective tape along the edge of the body.

Note

• Overlap and adhere the protective tape to

the corners to prevent damage.

11. Insert the piano wire, which has been cut to

sufficient length from inside the vehicle.

Warning

• Using the piano wire with bare hands can

cause injury. Always wear gloves when
using the piano wire.

Note

• Before removing the rear window glass from

the body, mark the position of the glass by
affixing tape to the glass and body panel.

12. Wind each end of the piano wire around a bar.

Note

• Use a long sawing action to spread the work over the whole length of the piano wire to prevent it from

breaking due to localized heating.

13. Secure one end of the piano wire, and while

pulling the other end, cut the sealant around the
rear window glass.

14. Remove the rear window glass.
15. Remove the fasteners from the rear window

glass.

Note

• Place alignment marks on the rear window

glass before removing the fasteners from the
rear window glass.

End Of Sie

PROTECTIVE TAPE

A

A

GLASS SIDE

BODY SIDE

SEC. A—A

acxuuw00001547

SEALANT

PROTECTIVE TAPE

PIANO WIRE

acxuuw00001551

PIANO WIRE

acxuuw00001549

GLASS/WINDOWS/MIRRORS

09-12–21

09-12

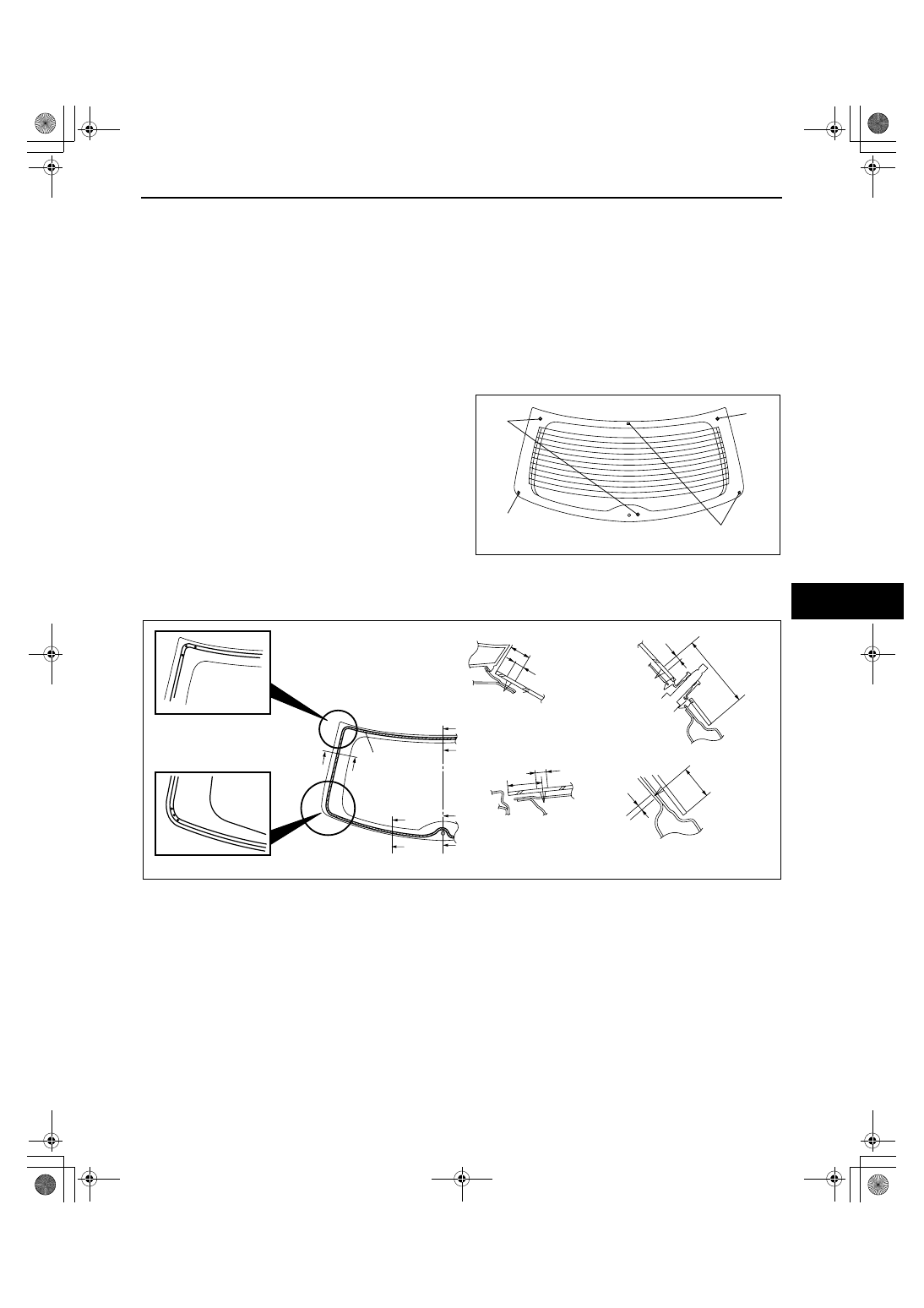

REAR WINDOW GLASS INSTALLATION

id091200801600

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

Caution

• If a door is opened or closed when all the window glass is closed, the resulting change in air

pressure could cause the sealant to crack preventing the proper installation of the glass. Keep the
door glass open until the rear window glass installation is completed.

1. Remove the sealant along the perimeter of the glass using a razor or scraper. (when reusing the glass)
2. Clean and degrease an approx. 50 mm {1.97 in} wide strip along the perimeter of the glass.
3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
4. Install the spacers and pin to the glass as shown

in the figure.
When reusing the glass, align with the alignment
mark marked before removing.

5. Apply glass primer on the glass as shown in the

figure then allow it to dry for approx. 30 min.

Caution

• To prevent weakening of the primer

adhesion, keep the bonding surface free
of dirt, moisture, and grease. Do not
touch the surface with your hand.

Note

• Apply primer to the hollowed marks in the ceramic coating.

6. Cut away the old sealant using a razor or scraper so that 1— 2 mm {0.04— 0.07 in} thickness of sealant

remains along the perimeter of the frame.

7. Clean and degrease the bonding area along the perimeter of the body.
8. When reusing the liftgate, apply primer to the area where the sealant has come off completely and allow it to

dry for approx. 30 min.

Caution

• To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and

grease. Do not touch the surface with your hand.

PIN

PIN

SPACER

SPACER

acxuuw00001554

B

B

A

C

C

A

SEC. B—B

SEC. A—A

SEC. C—C

9.5 {0.37 }*

9.5 {0.37 }*

9.5 {0.37 }*

mm {in}

PRIMER

HOLLOWED MARK IN THE CERAMIC
COATING

MAKE SURE TO APPLY PRIMER
OVER ALL MARKS.

D

D

SEC. D—D

*: PRIMER APPLICATION AREA

15 {0.59}

31.3 {1.23 }

65.8 {2.59 }

9.5 {0.37 }*

14.8 {0.583 }

acxuuw00002415

GLASS/WINDOWS/MIRRORS

09-12–22

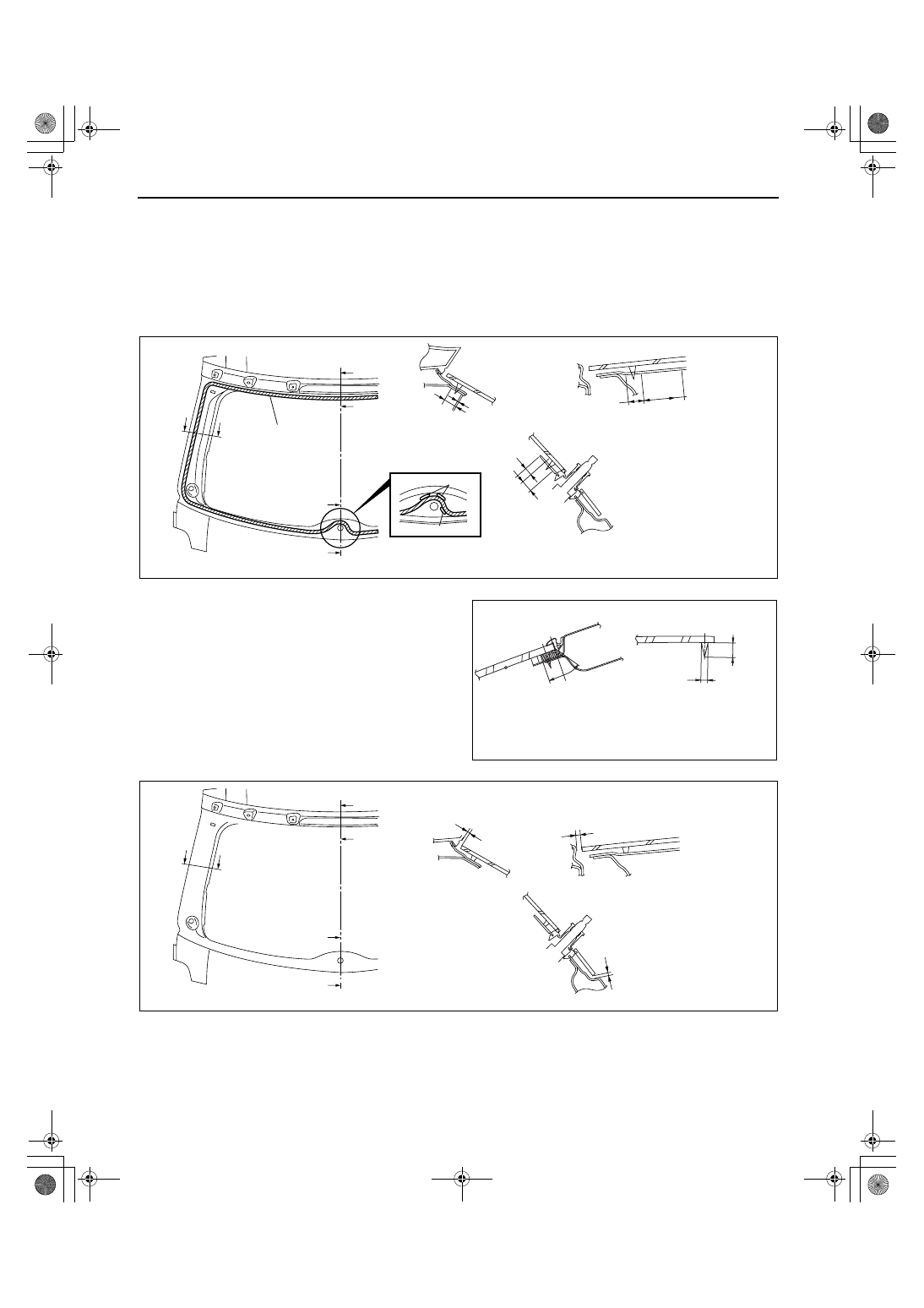

9. Apply body primer on the body as shown in the figure, then allow it to dry for  30 min.

Caution

• To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and

grease. Do not touch the surface with your hand.

Note

• Apply primer to the hollowed marks in the ceramic coating.

10. Apply sealant to the area of the glass surface as

shown in the figure.

11. Install the rear window glass.
12. Verify that the gap at the upper and lower parts of

the glass is within the standard value shown in the
figure, then press along the perimeter of the
glass.

13. Connect the filament connector.
14. Install the high-mount brake light. (See 09-18-12 HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION.)
15. Install the rear spoiler. (See 09-16-12 REAR SPOILER REMOVAL/INSTALLATION.)
16. Install the rear wiper motor. (See 09-19-10 REAR WIPER MOTOR REMOVAL/INSTALLATION .)
17. Install the liftgate lower trim. (See 09-17-26 LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

B

B

A

A

C

C

SEC. A—A

SEC. C—C

SEC. B—B

1.5 {0.059 }*

21.6 {0.85 }*

8.5 {0.33 }*

11 {0.43 }

11 {0.43 }

11 {0.43 }

mm {in}

PRIMER

BEAD

BEAD

*: POSSIBLE PRIMER APPLICATION AREA

acxuuw00001556

mm {in}

5 {0.2}

11 {0.43}

APPLY SEALANT TO THIS AREA.

acxuuw00001557

B

B

A

A

C

C

SEC. A—A

SEC. C—C

mm {in}

1.6—5.2
{0.063—0.20}

1.6—5.6
{0.063—0.22}

SEC. B—B

1.8—6.8
{0.071—0.27}

acxuuw00001558
