Mazda CX 7. Manual - part 382





GLASS/WINDOWS/MIRRORS

09-12–15

09-12

DOOR GLASS POSITION CHANGE PROCEDURE

id091200803600

Note

• After performing the following procedure, verify that the two-step down function operates normally and the

door glass position has changed. If the two-step down function does not operate or the door glass position
has not changed, the procedure was not performed properly. Repeat the procedure from the beginning.

End Of Sie

WM: WINDOW GLASS

Start

1.



Turn the ignition switch to ON position.

2.



Perform auto close once.

3.



Perform auto open two times.

4.



Perform auto close three times.

Note

The door glass is fully closed when the above
procedure is completed.

Start the following procedure within 43 s.

Door glass position change completed.

1.   Turn the ignition switch to ON position.

2.   Perform auto close once.
3.



Perform auto open two times.

4.



Perform auto close three times.

Start the following procedure within 43 s.

Perform within 5 s.

Turn the ignition switch to OFF position.

1. Turn the ignition switch to ON position.

2. Adjust the door glass position from the fully closed position by

moving the power window main switch up or down.
(Approximately 20

100 mm {0.79

3.40 in})

Note

The door glass position from the fully closed position is the
change in distance.

The change in distance is approx. 20 mm {0.79 in} when
the door glass is opened less than 20 mm {0.79 in}, and
approximately 100 mm {3.40 in} when the door glass is
opened more than 100 mm {3.40 in}.

3. Turn the ignition switch to OFF position.

Perform within 5 s.

Note

The two-step down function will not operate during the
following procedure:

acxuuw00001671

GLASS/WINDOWS/MIRRORS

09-12–16

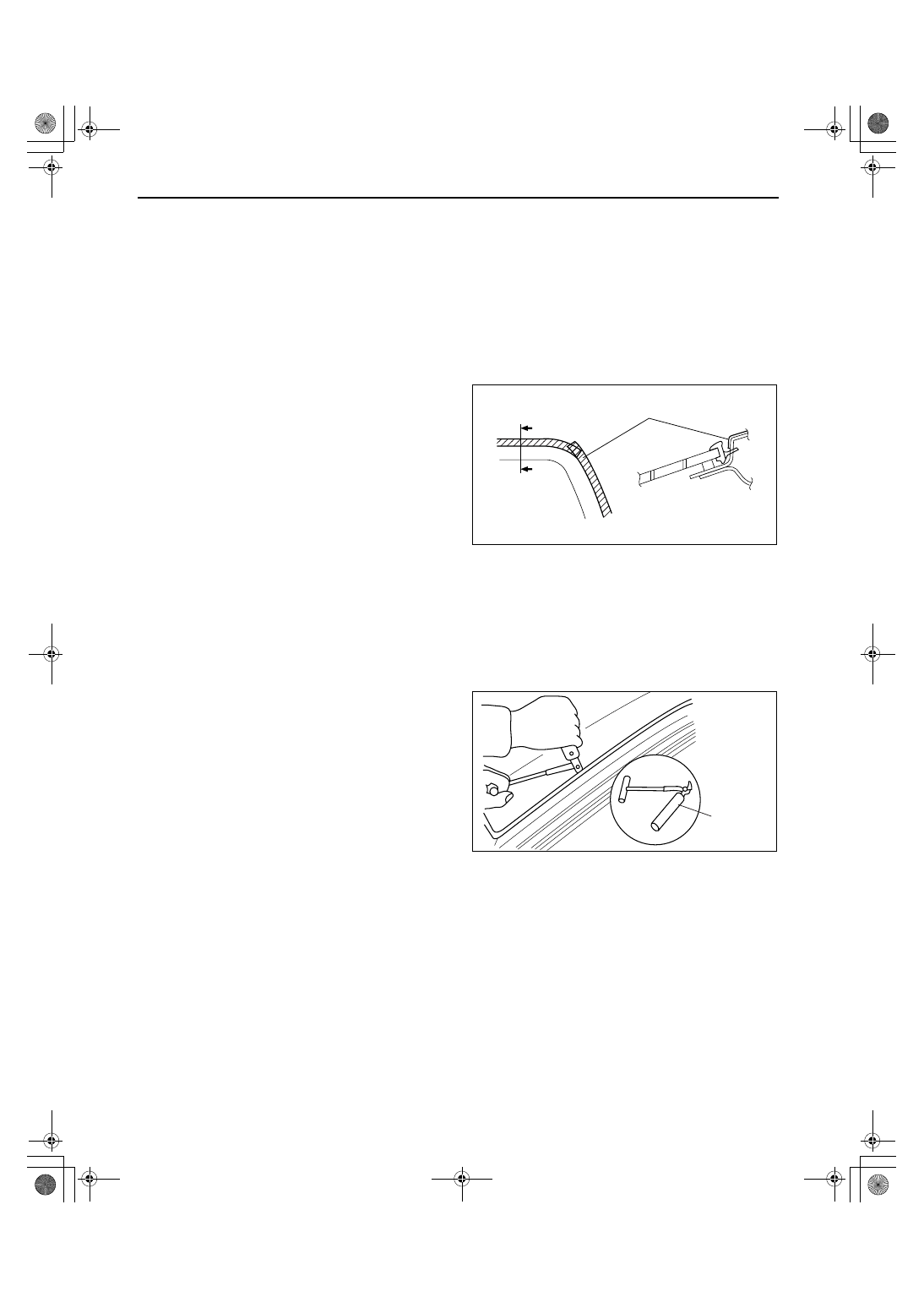

WINDSHIELD REMOVAL

id091200801300

1. Disconnect the negative battery cable.
2. Remove the following parts:

(1) Windshield wiper arm and blade (See 09-19-3 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

(2) Cowl grille (See 09-16-11 COWL GRILLE REMOVAL/INSTALLATION.)
(3) Rearview mirror (See 09-12-35 REARVIEW MIRROR REMOVAL.)
(4) Sunvisor (See 09-17-26 SUNVISOR REMOVAL/INSTALLATION.)
(5) Map light (See 09-18-22 MAP LIGHT REMOVAL/INSTALLATION.)
(6) A-pillar trim (See 09-17-15 A-PILLAR TRIM REMOVAL/INSTALLATION.)
(7) Assist handle (See 09-17-27 ASSIST HANDLE REMOVAL/INSTALLATION.)

3. Set the headliner out of the way.
4. Apply protective tape along the edge of the body.

Note

• Overlap and adhere the protective tape to

the corners to prevent damage.

5. Remove the windshield molding by pulling it

outward.

Note

• If the windshield molding is difficult to

remove, warm the windshield molding using
a hot air blower.

• The windshield molding is a replacement

part.

Not Reusing Windshield

Note

• For the areas of the sealant that are difficult to cut, use the piano wire and follow the procedure under

“Reusing Windshield”.

1. Cut out the sealant all around the glass using a

sealant remover.

2. Remove the windshield.

PROTECTIVE TAPE

A

A

GLASS SIDE

BODY SIDE

SEC. A—A

acxuuw00001530

49 G050 1A0

SEALANT
REMOVER

acxuuw00001522

GLASS/WINDOWS/MIRRORS

09-12–17

09-12

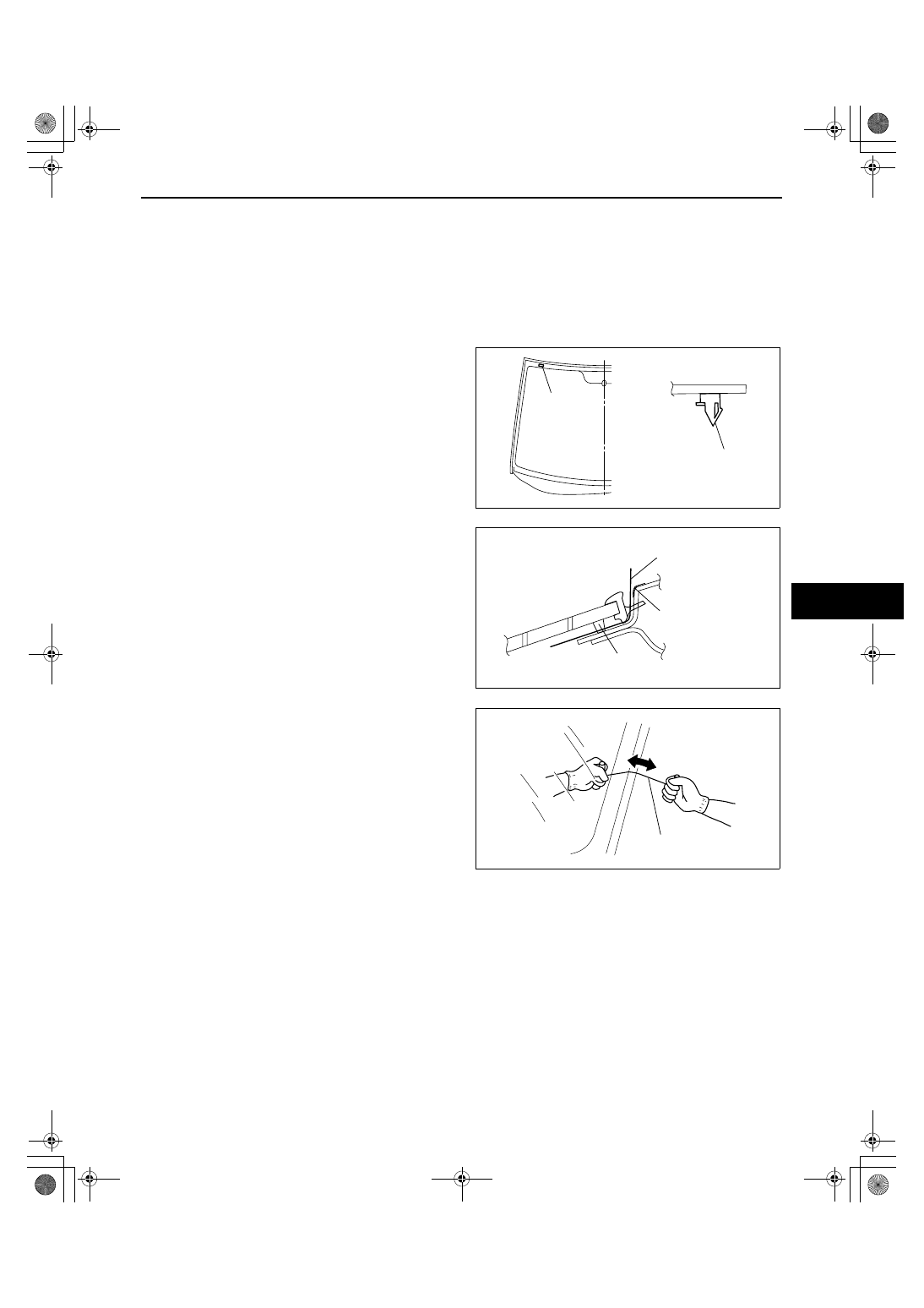

Reusing Windshield

Warning

• Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano

wire.

Note

• Before removing the windshield from the body, mark the position of the windshield by affixing tape to the

windshield and body panel.

1. Avoiding the pin on the inside of the vehicle, insert

the piano wire which has been cut to sufficient
length.

2. Wind each end of the piano wire around a bar.

Note

• Use a long sawing action to spread the work

over the whole length of the piano wire to
prevent it from breaking due to localized
heating.

3. Secure one end of the piano wire, and while

pulling the other end, cut the sealant around the
windshield.

4. Pinch the pin from the inside of the vehicle and

detach it.

5. Remove the windshield.
6. If the pin is damaged, remove the pin.

Note

• Before removing the pin from the windshield

glass, place an alignment mark on the
windshield.

End Of Sie

WINDSHIELD INSTALLATION

id091200801400

Warning

• Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

Caution

• If a door is opened or closed when all the window glass is closed, the resulting change in air

pressure could cause the sealant to crack preventing the proper installation of the glass. Keep the
door glass opened until the windshield installation is completed.

1. Remove the sealant along the perimeter of the glass using a cutting a razor. (When reusing the glass)
2. Clean and degrease an approx. 50 mm {1.97 in} wide strip along the perimeter of the windshield.
3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

PIN

PIN

acxuuw00001531

SEALANT

PROTECTIVE TAPE

PIANO WIRE

acxuuw00001532

PIANO WIRE

acxuuw00001524

GLASS/WINDOWS/MIRRORS

09-12–18

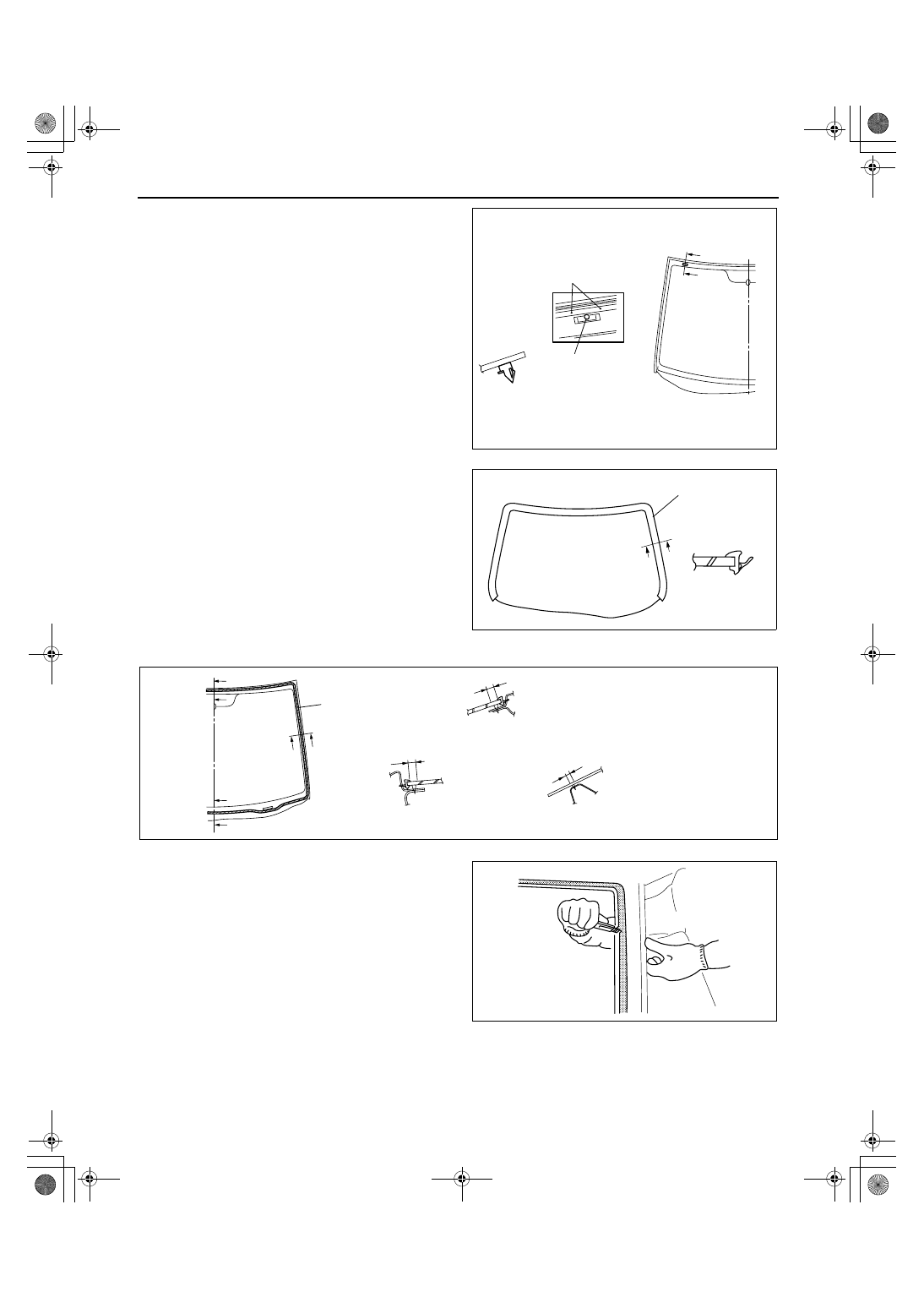

4. Align the marks made before removal and install

the pin to the windshield referring to the figure.
(when reusing the glass, and the pin was
removed)

5. Install the windshield molding.
6. Use glass primer on the glass, then allow it to dry

for approx. 30 min.

Caution

• To prevent weakening of the primer

adhesion, keep the bonding surface free
of dirt, moisture, and grease. Do not
touch the surface with your hand.

Note

• Make sure to apply primer to the hollowed

marks in the ceramic coating.

7. Cut away the old sealant using a razor or scraper

so that 1— 2 mm {0.04— 0.07 in} thickness of
sealant remains along the perimeter of the frame.

8. If the sealant has come off completely in any one

place, apply some primer after degreasing, and
allow it approx. 30 min to dry. Then apply 2 mm
{0.08 in}
thickness of new sealant.

Caution

• To prevent weakening of the primer

adhesion, keep the bonding surface free
of dirt, moisture, and grease. Do not
touch the surface with your hand.

A

A

HOLLOWED MARK IN THE
CERAMIC COATING

PIN

SEC. A—A

mm {in}

acxuuw00001540

A

A

SEC. A—A

WINDSHIELD MOLDING

acxuuw00001541

A

C

C

B

B

A

PRIMER

SEC. A—A

SEC. B—B

SEC. C—C

9.5 {0.37 }

9.5 {0.37 }

9.5 {0.37 }

mm {in}

acxuuw00001542

acxuuw00001543
