Mazda CX 7. Manual - part 350





SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–1

09-03A

09-03A SYMPTOM TROUBLESHOOTING [POWER
WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

FOREWORD[POWER WINDOW

SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]  . . . . . . . . . . . . . . . . . . . . .  09-03A–1

SYMPTOM TROUBLESHOOTING

CHART[POWER WINDOW SYSTEMS
(AUTO-OPEN/CLOSE FUNCTION)] . . .  09-03A–1

POWER WINDOW SYSTEM WIRING

DIAGRAM[POWER WINDOW
SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]  . . . . . . . . . . . . . . . . . . . . .  09-03A–2

Power Window Main Switch . . . . . . . . .  09-03A–2
Power Window Subswitch

(Passenger’side)  . . . . . . . . . . . . . . . .  09-03A–3

INTERMITTENT CONCERN

TROUBLESHOOTING[POWER WINDOW
SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]  . . . . . . . . . . . . . . . . . . . . .  09-03A–3

Vibration Method  . . . . . . . . . . . . . . . . .  09-03A–3
Connector Terminal Check Method . . .  09-03A–4

BASIC POWER WINDOW SYSTEM

INSPECTION[POWER WINDOW
SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]  . . . . . . . . . . . . . . . . . . . . .  09-03A–4

Manual Mode Function Inspection . . . .  09-03A–4
Automatic Mode Function Inspection . .  09-03A–5

Automatic Door Glass Return Function

Inspection . . . . . . . . . . . . . . . . . . . . . . 09-03A–5

IG OFF Timer Function Inspection  . . . . 09-03A–6
Two-step Down Function Inspection . . . 09-03A–7

No.1 DOOR GLASS DOES NOT

MOVE UP AND DOWN IN AUTOMATIC
MODE[POWER WINDOW SYSTEMS
(AUTO-OPEN/CLOSE FUNCTION)]  . . . 09-03A–7

No.2 DOOR GLASS DOES NOT

REVERSE, EVEN WHEN
ENCOUNTERING A FOREIGN
OBJECT IN IT IS PATH[POWER
WINDOW SYSTEMS (AUTO-OPEN/
CLOSE FUNCTION)]  . . . . . . . . . . . . . . . 09-03A–10

No.3 DOOR GLASS REVERSE EVEN

WHEN ENCOUNTERING A FOREIGN
OBJECT WHILE IT IS MOVING UP IN
AUTOMATIC MODE[POWER WINDOW
SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)] . . . . . . . . . . . . . . . . . . . . . . 09-03A–11

No.4 ABNORMAL NOISE WHEN THE

DOOR GLASS IS OPENING OR
CLOSING[POWER WINDOW
SYSTEMS (AUTO-OPEN/
CLOSE FUNCTION)]  . . . . . . . . . . . . . . . 09-03A–13

End of Toc

WM: POWER WINDOW SYSTEM

FOREWORD[POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

id090360805400

• Always perform basic power window system inspection before troubleshooting.

• Troubleshooting procedures provide information unique to malfunctions of the automatic window return

function.

End Of Sie

SYMPTOM TROUBLESHOOTING CHART[POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

id090360805600

End Of Sie

No.

TROUBLESHOOTING ITEM

PAGE

1

Door glass does not move up and down in automatic
mode

 (See 09-03A-7 No.1 DOOR GLASS DOES NOT MOVE UP
AND DOWN IN AUTOMATIC MODE[POWER WINDOW
SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)].)

2

Door glass does not reverse, even when encountering a
foreign object in its path.

 (See 09-03A-10 No.2 DOOR GLASS DOES NOT
REVERSE, EVEN WHEN ENCOUNTERING A FOREIGN
OBJECT IN IT IS PATH[POWER WINDOW SYSTEMS
(AUTO-OPEN/CLOSE FUNCTION)].)

3

Door glass does not reverse, even when encountering a
foreign object in its path.

 (See 09-03A-11 No.3 DOOR GLASS REVERSE EVEN
WHEN ENCOUNTERING A FOREIGN OBJECT WHILE IT IS
MOVING UP IN AUTOMATIC MODE[POWER WINDOW
SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)].)

4

Abnormal noise during the power window operation

(See 09-03A-13 No.4 ABNORMAL NOISE WHEN THE
DOOR GLASS IS OPENING OR CLOSING[POWER
WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)].)

1871-1U-06B(09-03A).fm  1 ページ  2006年3月15日 水曜日 午前11時42分

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–2

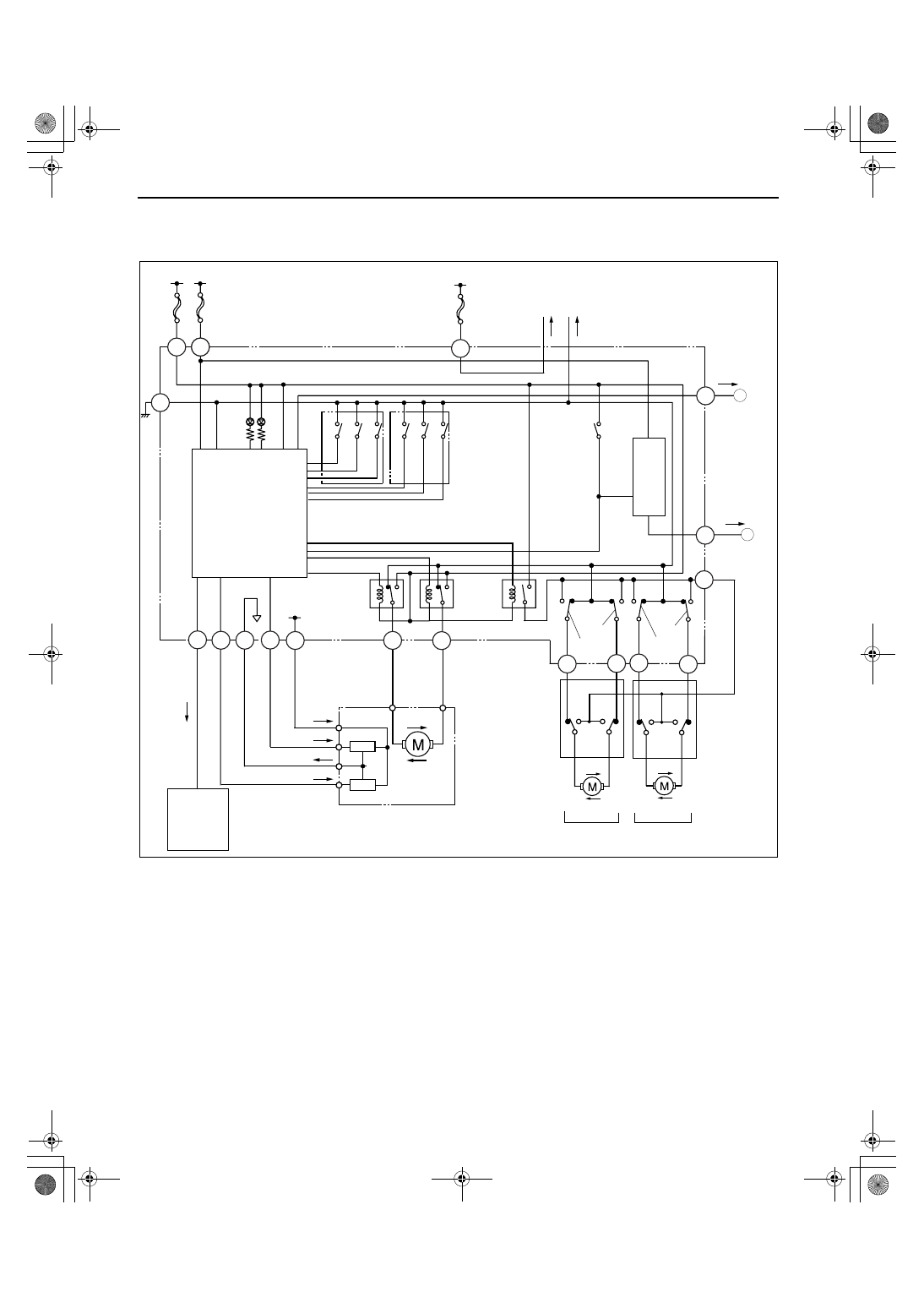

POWER WINDOW SYSTEM WIRING DIAGRAM[POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]

id090360805200

Power Window Main Switch

BCM

b

a

ACC

TO POWER OUTER
MIRROR SWITCH

CLOSE

OPEN

POWER WINDOW MOTOR
(DRIVER'S SIDE)

B+

IG1

CLOSE

OPEN

CLOSE

OPEN

TO POWER
WINDOW
SUBSWITCH
(PASSENGER'S
SIDE)

TO POWER
WINDOW
SUBSWITCH
(PASSENGER'S
SIDE)

REAR RIGHT

REAR LEFT

P/W CM

CLOSE

OPEN

AU

T

O

CLOSE

OPEN

AU

T

O

PO

WER-CUT

 SWITCH

CONJUNCTION

CIRCUIT

CLOSE
RELAY

OPEN
RELAY

CLOSE

OPEN

CLOSE

OPEN

1A

2B

2D

1M

1N

1E

1H

1D

1J

1K

1L

1I

2C

2A

1C

1B

1F

1G

acxuuw00000932

1871-1U-06B(09-03A).fm  2 ページ  2006年3月15日 水曜日 午前11時42分

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–3

09-03A

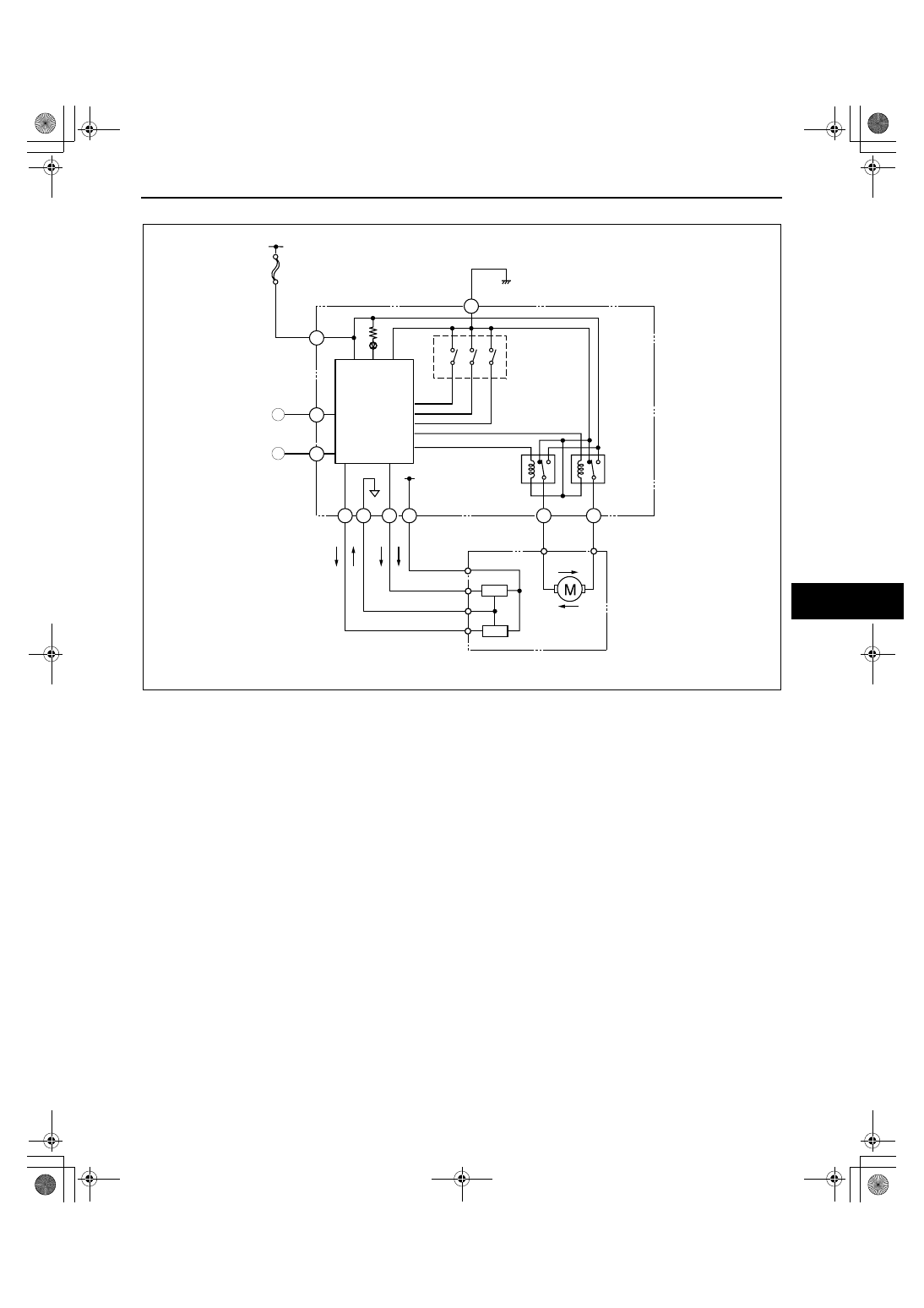

Power Window Subswitch (Passenger’side)

End Of Sie

INTERMITTENT CONCERN TROUBLESHOOTING[POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]

id090360805300

Vibration Method

• If a malfunction occurs or becomes worse while driving on a rough road or when the engine is vibrating,

perform following the steps:

Note

• There are several reasons why vehicle or engine vibration could cause an electrical malfunction. Some of

the things to inspect for:

— Connectors not fully seated.

— Wiring harnesses not having full play.

— Wires laying across brackets or moving parts.

— Wires routed too close to hot parts.

• An improperly routed, improperly clamped, or loose wiring harness can cause wiring to become pinched

between parts.

• The connector joints, points of vibration, and places where wiring harnesses pass through the firewall,

body panels are the major areas to be inspected.

P/W CM

B+

b

a

D

L

A

F

I

C

K

J

B

H

POWER WINDOW
MOTOR

POWER WINDOW
SUBSWITCH

C

O

A

C: CLOSE
O: OPEN
A: AUTO

CLOSE

OPEN

CLOSE
RELAY

OPEN
RELAY

acxuuw00000933

1871-1U-06B(09-03A).fm  3 ページ  2006年3月15日 水曜日 午前11時42分

SYMPTOM TROUBLESHOOTING [POWER WINDOW SYSTEMS (AUTO-OPEN/

CLOSE FUNCTION)]

09-03A–4

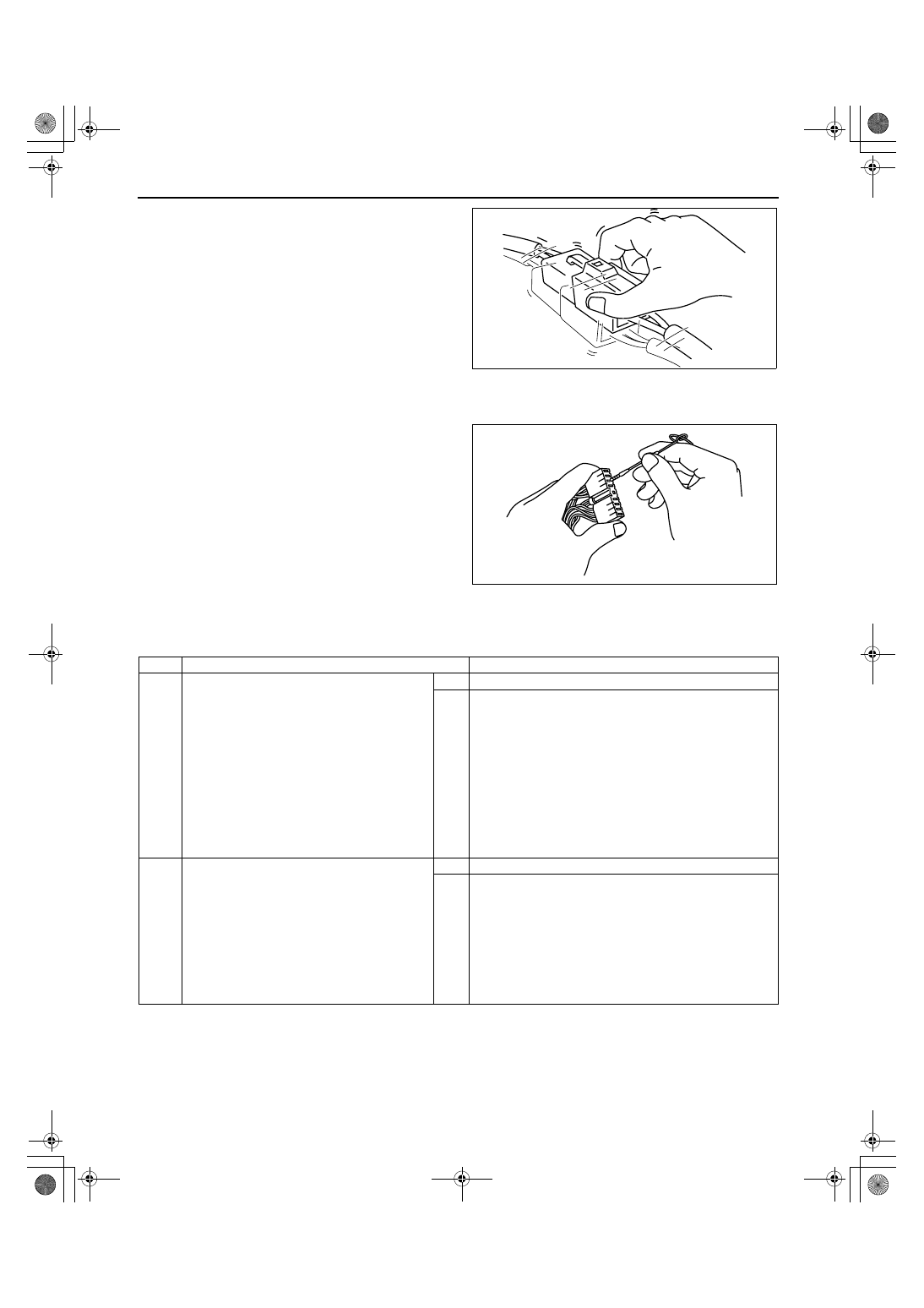

• Inspect for DTCs or malfunctions by slightly

shaking wiring harnesses and connectors
that are suspected of causing the
malfunction.

Connector Terminal Check Method

1. Inspect the connection condition of each female terminal.
2. Insert the male terminal into the female terminal

to inspect for looseness.

End Of Sie

BASIC POWER WINDOW SYSTEM INSPECTION[POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE
FUNCTION)]

id090360805500

Manual Mode Function Inspection

acxuuw00000934

acxuuw00000935

STEP

INSPECTION

ACTION

1

• Turn the ignition switch to the ON position.

• Turn the power-cut switch to UNLOCK.

• Does each door glass move up and down in

manual mode using the power window
subswitch?

Yes

Go to the next step.

No

• Inspect the following items:

— Power window main switch (power-cut switch system

malfunction)

— Power window subswitch power supply fuses

— Power window subswitch ground wiring harness

— Power window subswitch power supply wiring

harnesses

— Wiring harness between power window subswitch

and power window motor

— Power window subswitch

— Power window motor

• Repair or replace the malfunctioning part, then go to the

next step.

2

• Does the driver-side door glass move up and

down in manual mode using the power
window main switch?

Yes

Go to the next step.

No

• Inspect the following items:

— Power window main switch power supply fuses

— Power window main switch ground wiring harness

— Power window main switch power supply wiring

harnesses

— Wiring harness between power window main switch

and power window motor

— Power window main switch

• Repair or replace the malfunctioning part, then go to the

next step.

1871-1U-06B(09-03A).fm  4 ページ  2006年3月15日 水曜日 午前11時42分
