AIR BAG SYSTEM

08-10–29

08-10

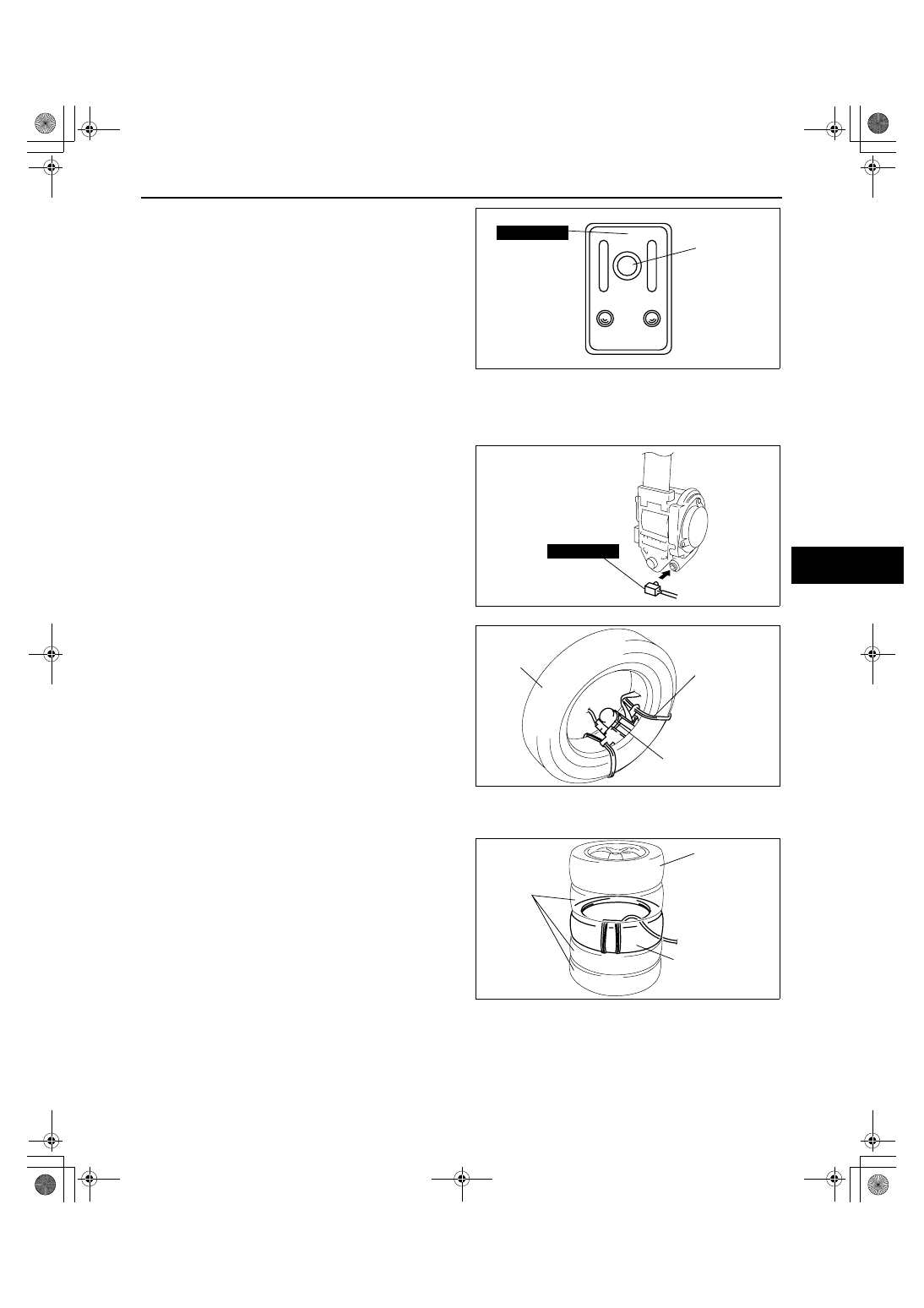

11. Press the activation switch on the SST

(Deployment tool) to operate (deploy) the curtain
air bag module.

12. Disconnect the SSTs (Deployment tool) from the

SSTs (Adapter harness).

Pre-tensioner Seat Belt

1. Remove the pre-tensioner seat belt.

 (See 08-11-2 FRONT SEAT BELT REMOVAL/INSTALLATION.)

2. Connect the SST (Adapter harness) to the pre-

tensioner seat belt as shown in the figure.

3. Put the pre-tensioner seat belt inside the tire and

secure it to the tire by wrapping a wire (cross
section of 1.25mm

2

 {0.002in

2

} or more) through

the tire and the bolt installation holes at least 4
times.

Warning

• If the pre-tensioner seat belt is not

properly installed to the tire, serious
injury may occur when the pre-tensioner
part is operated (deployed). When
installing the pre-tensioner seat belt to
the tire, make sure the pre-tensioner part
is inside the tire.

4. Stack the tire with the pre-tensioner seat belt on

to of two tires without wheels. Stack a tire without
a wheel on top of the tire with the pre-tensioner
seat belt, and then stack another tire with a wheel
on the very top.

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

49 L066 002

acxuuw00001273

WIRE

TIRE

PRE-TENSIONER
SEAT BELT

acxuuw00001291

TIRE WITH
WHEEL

TIRE
WITHOUT
WHEEL

TIRE WITH
PRE-TENSIONER
SEAT BELT

acxuuw00001292

1871-1U-06B(08-10).fm  29 ページ  ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–30

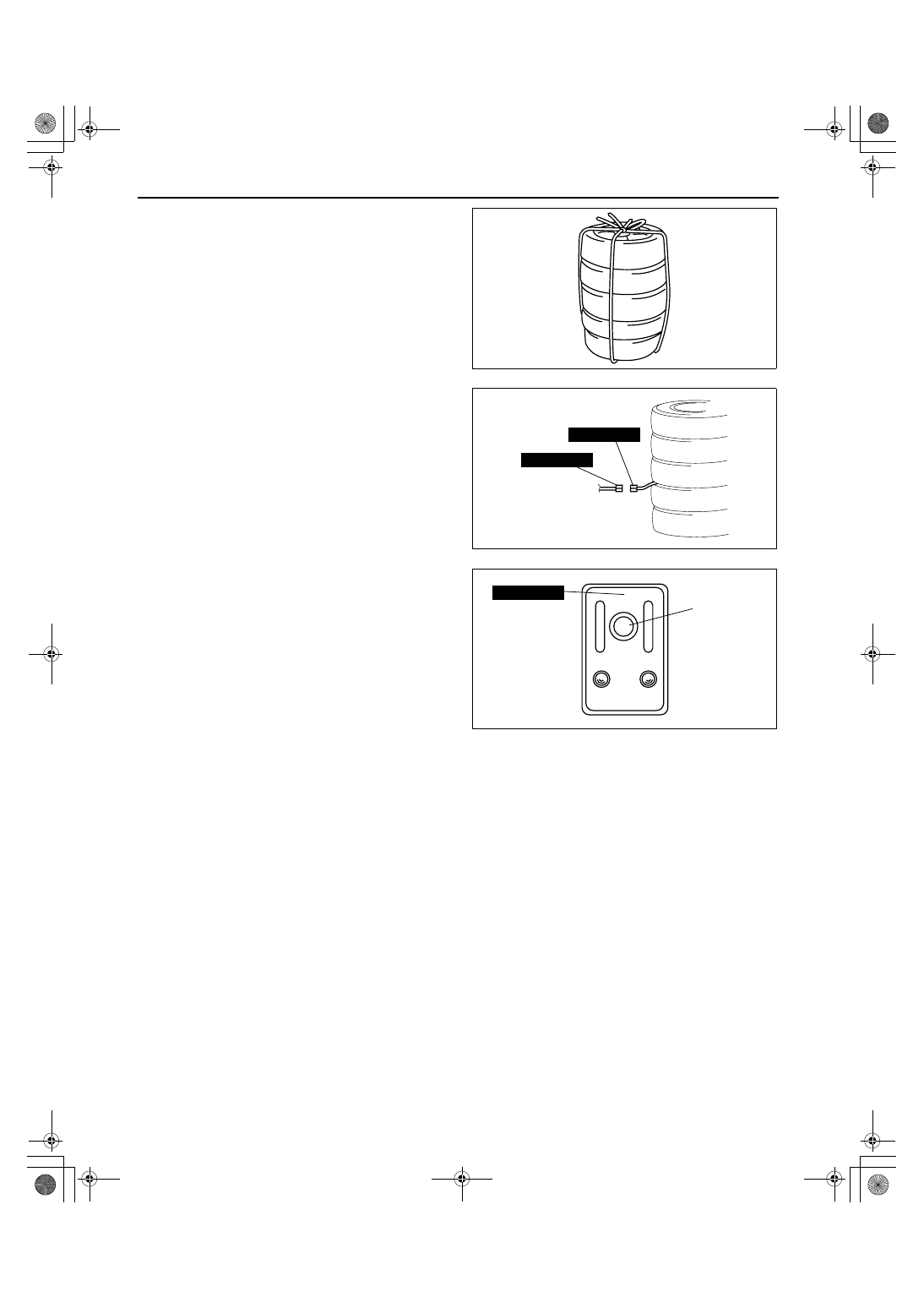

5. Secure the tires with wire.

6. Connect the SST (Deployment tool) to the SST

(Adapter harness).

7. Connect the SST (Deployment tool) to the

battery. Connect the power supply red clip to the
positive battery terminal, and the black clip to the
negative battery terminal.

8. Verify that the red lamp on the SST (Deployment

tool) is illuminated.

9. Verify that all persons are standing at least 6 m

{20 ft} away from the vehicle.

10. Press the activation switch on the SST

(Deployment tool) to operate (deploy) the pre-
tensioner seat belt.

11. Disconnect the SSTs (Deployment tool) from the

SSTs (Adapter harness).

End Of Sie

AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DISPOSAL PROCEDURES

id081000801200

Warning

• A live (undeployed) air bag module or pre-tensioner seat belt may accidentally operate (deploy)

when it is disposed of and cause serious injury. Always refer to the “AIR BAG MODULE AND PRE-
TENSIONER SEAT BELT DEPLOYMENT PROCEDURES” and dispose of air bag modules and pre-
tensioner seat belts in a deployed condition.

• The air bag modules and the pre-tensioner seat belts are very hot immediately after they are

deployed. You can be burned. Do not touch an air bag module and pre-tensioner seat belt for at
least 15 min after deployment.

• Pouring water on the deployed air bag module and pre-tensioner seat belt is dangerous. The water

will mix with the residual gases to form a gas that can make breathing difficult. Do not pour water
on the deployed air bag module and pre-tensioner seat belt.

• The deployed air bag module or pre-tensioner seat belt may contain deposits of sodium

hydroxide, a caustic byproduct of the gas-generated combustion. If this substance gets into your
eyes or on your hands, it can cause irritation and itching. When handling the deployed air bag
module and pre-tensioner seat belt, wear gloves and safety glasses.

• Due to the adoption of 2-step deployment control in both the driver and passenger-side air bag

modules, depending on the impact force, it is possible that inflator No.2 might not operate
(deploy). Before disposing of the air bag module, always follow the inflator deployment
procedures and verify the complete operation (deployment) of inflators No.1 and 2.

acxuuw00001276

49 H066 002

49 L066 002

acxuuw00001293

49 H066 002

ACTIVATION
SWITCH

acxuuw00001267

1871-1U-06B(08-10).fm  30 ページ  ２００６年３月１５日　水曜日　午前１１時３６分

AIR BAG SYSTEM

08-10–31

08-10

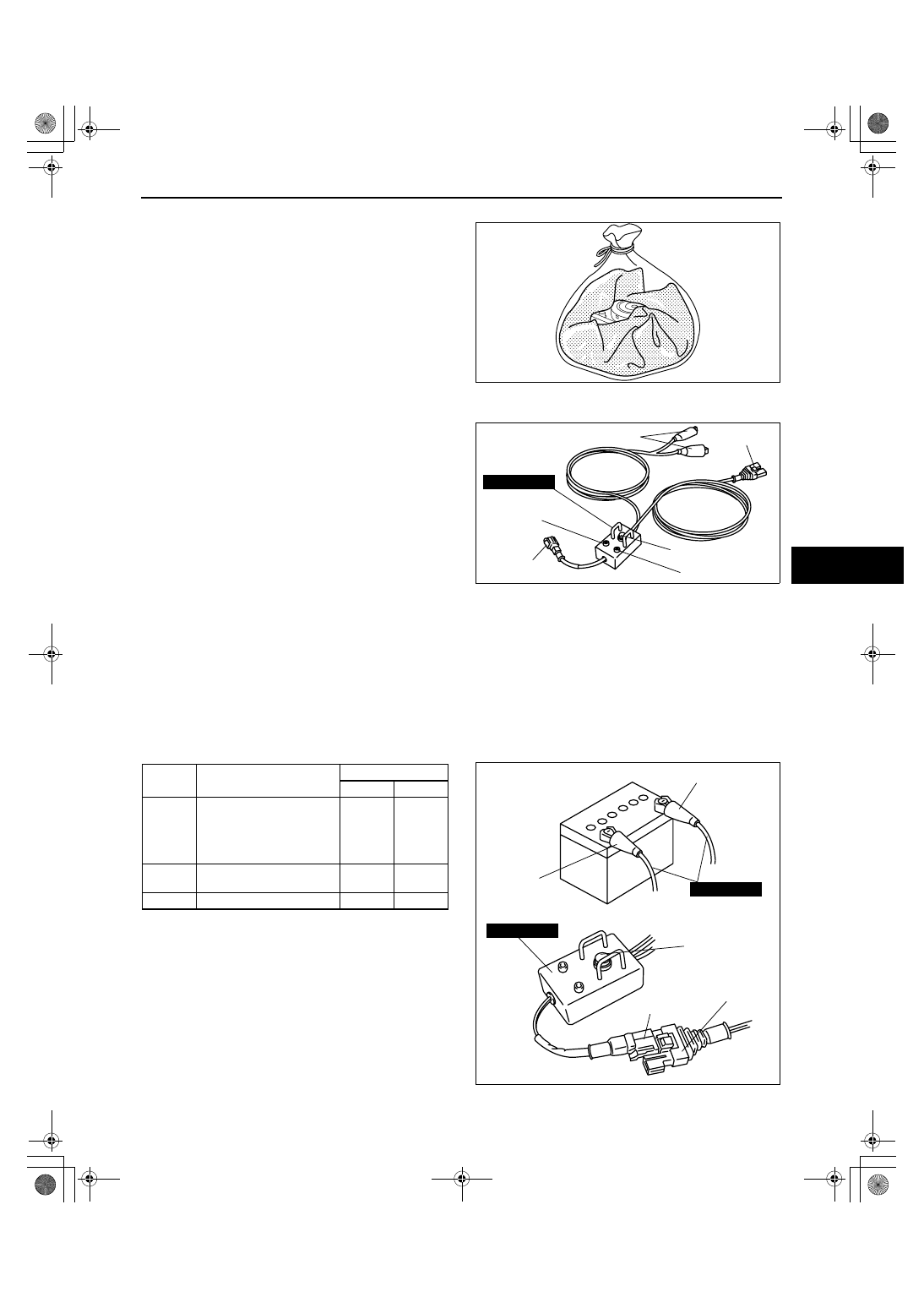

1. Remove the deployed air bag module or pre-tensioner seat belt.
2. Put the air bag module or pre-tensioner seat belt

in a plastic bag, seal the bag, and then dispose of
it.

End Of Sie

WM: DEPLOYMENT TOOL

INSPECTION OF SST (DEPLOYMENT TOOL)

id081000801000

1. Before using the SST (49 H066 002), inspect its

operation.

Inspection Procedure

1. Follow the steps below to inspect the SST (49 H066 002).

• If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.

Warning

• Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or

pre-tensioner seat belt to accidentally operate (deploy).

Caution

• Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power

source because it will damage the SST. Always connect only a 12 V power source.

End Of Sie

acxuuw00002421

49 H066 002

GREEN
LIGHT

CONNECTOR A

RED LIGHT

ACTIVATION SWITCH

CONNECTOR B

POWER SUPPLY CLIP

acxuuw00002419

Step

Inspection procedure

Light condition

Green

Red

1

Connect the power supply
red clip to the positive
battery terminal, and the
black clip to the negative
battery terminal.

On

Off

2

Connect connectors A and
B.

Off

On

3

Press the activation switch.

On

Off

49 H066 002

49 H066 002

RED CLIP

BLACK CLIP

ACTIVATION
SWITCH

CONNECTOR B

CONNECTOR A

acxuuw00002420
