ON-BOARD DIAGNOSTIC

08-02–31

08-02

Diagnostic procedure

End Of Sie

STEP

INSPECTION

ACTION

1

INSPECT passenger-side side AIR BAG
MODULE

• Using the M-MDS, verify the following PID/

DATA monitor.
(See 08-02-8 PID/DATA MONITOR TABLE.)
— RES_SAB_P

• Is the resistance of the passenger-side side

air bag module normal?
— Resistance: 1.4— 3.9 ohms

Yes

Replace the SAS control module.
(See 08-10-10 SAS CONTROL MODULE REMOVAL/
INSTALLATION.)

No

Go to the next step.

2

INSPECT DRIVER-SIDE SIDE AIR BAG
MODULE CONNECTOR

Warning
• Handling the air bag system

components improperly can
accidentally deploy the air bag
modules and pre-tensioner seat belts,
which may seriously injure you. Read
the service warnings and cautions
before handling the air bag system
components.
(See 08-10-3 AIR BAG SYSTEM
SERVICE WARNINGS.)
(See 08-10-5 AIR BAG SYSTEM
SERVICE CAUTIONS.)

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and

wait for 1 min or more.

• Disconnect the passenger-side side air bag

module connector.

• Is there any malfunction of the passenger-

side side air bag module connector?

Yes

Replace the air bag wiring harness.

No

Go to the next step.

3

VERIFY WHETHER MALFUNCTION IS IN
DRIVER-SIDE SIDE AIR BAG MODULE OR
RELATED WIRING HARNESS

• Connect the leads of the SST (Fuel and

thermometer checker) or apply 2-ohm
resistance to passenger-side side air bag
module connector terminals A and B.

• Set the resistance of the SST (Fuel and

thermometer checker) to the 2-ohm
position.

• Connect the negative battery cable.

• Turn the ignition switch to the ON position.

• Are DTCs B1996, B1997, B1998, and/or

B1999 indicated?

Yes

Replace the air bag wiring harness, then go to the next
step.

No

Replace the passenger-side side air bag module.
(See 08-10-8 SIDE AIR BAG MODULE REMOVAL/
INSTALLATION.)

4

INSPECT SAS CONTROL MODULE

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and

wait for 1 min or more.

• Connect the passenger-side side air bag

module connector.

• Turn the ignition switch to the ON position.

• Are DTCs B1996, B1997, B1998, and/or

B1999 indicated?

Yes

Replace the SAS control module.
(See 08-10-10 SAS CONTROL MODULE REMOVAL/
INSTALLATION.)

No

DTC troubleshooting completed.

1871-1U-06B(08-02).fm  31 ページ  ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–32

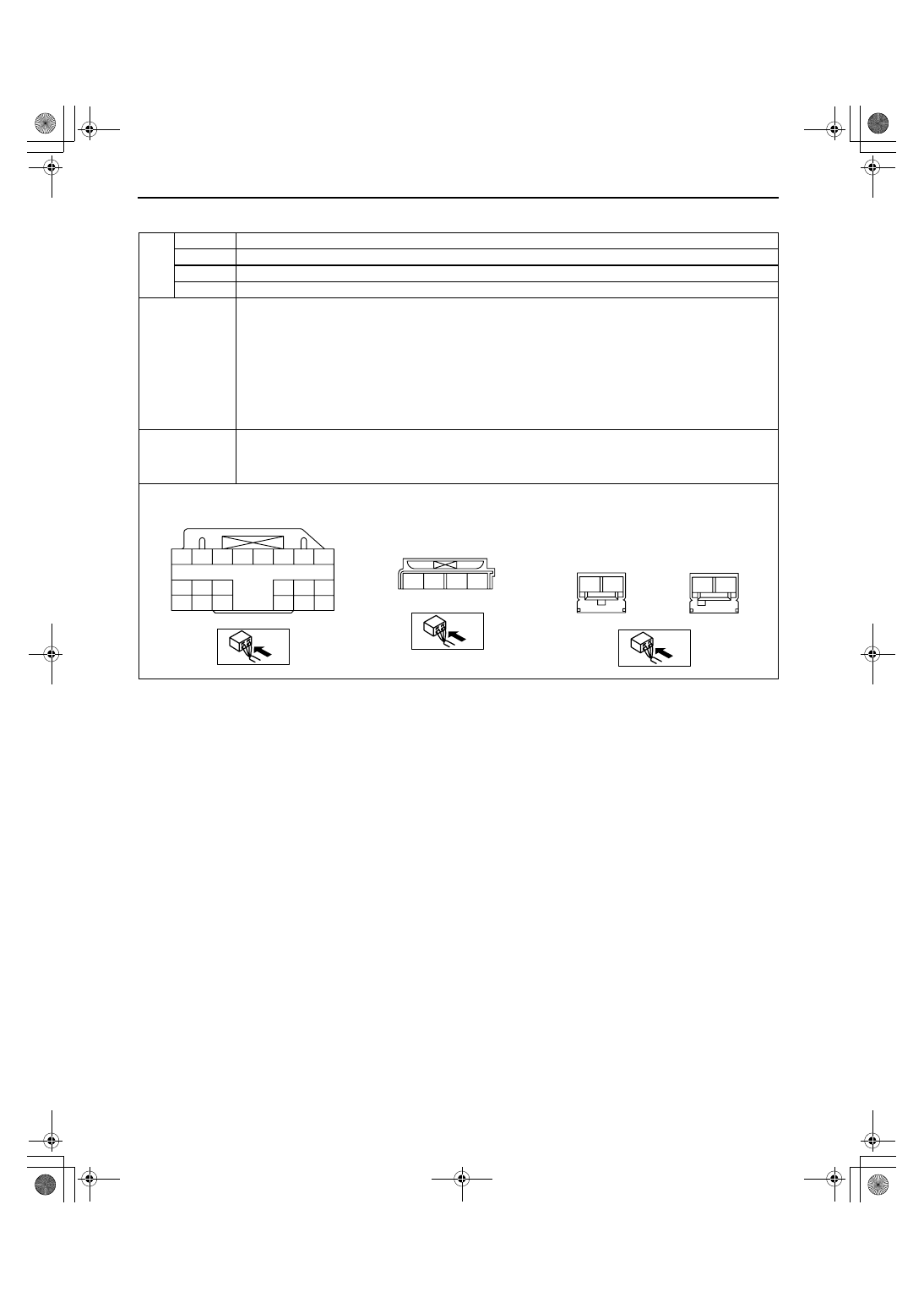

DTC B2228, B2230, B2232, B2234

id080200802100

DTC

B2228

Driver-side air bag module (inflator No.2) circuit short to body ground

B2230

Driver-side air bag module (inflator No.2) circuit short to power supply

B2232

Driver-side air bag module (inflator No.2) circuit resistance high

B2234

Driver-side air bag module (inflator No.2) circuit resistance low

DETECTION

CONDITION

Warning
• Detection conditions are for understanding the DTC outline before performing an inspection.

Performing an inspection according to only the detection conditions may cause injury due to
an operating error, or damage the system. When performing an inspection, always follow the
inspection procedure.

• Abnormal resistance (other than 1.5— 4.4 ohms) detected in the driver-side air bag module (inflator

No.2) circuit

• Malfunction in the wiring harness between the driver-side air bag module (inflator No.2) and SAS

control module

POSSIBLE

CAUSE

• Open or short circuit in the wiring harness between the clock spring and SAS control module

• Clock spring malfunction

• Driver-side air bag module (inflator No.2) malfunction

• SAS control module malfunction

1V 1S 1P 1M 1J

1G 1D

1D 1C 1B 1A

3A

3B

4A

4B

1A

1B

1E

1H

1C

1F

1I

1Q

1T

1W

1R

1U

1X

SAS CONTROL MODULE WIRING

HARNESS-SIDE CONNECTOR

CLOCK SPRING WIRING

HARNESS-SIDE CONNECTOR

DRIVER-SIDE AIR BAG MODULE

WIRING HARNESS-SIDE CONNECTOR

(CLOCK SPRING )

(INFLATOR NO.1)

(INFLATOR NO.2)

1871-1U-06B(08-02).fm  32 ページ  ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–33

08-02

Diagnostic procedure

STEP

INSPECTION

ACTION

1

INSPECT DRIVER-SIDE AIR BAG MODULE
(INFLATOR NO.1)

• Using the M-MDS, verify the following PID/

DATA monitor. (See 08-02-8 PID/DATA
MONITOR TABLE.)
— RES_AB2_D

• Is the resistance of the driver-side air bag

module normal?
— Resistance: 1.5— 4.4 ohms

Yes

Replace the SAS control module.
(See 08-10-10 SAS CONTROL MODULE REMOVAL/
INSTALLATION.)

No

Go to the next step.

2

INSPECT DRIVER-SIDE AIR BAG MODULE
CONNECTOR (CLOCK SPRING)

Warning
• Handling the air bag system

components improperly can
accidentally deploy the air bag
modules and pre-tensioner seat belts,
which may seriously injure you. Read
the service warnings and cautions
before handling the air bag system
components.
(See 08-10-3 AIR BAG SYSTEM
SERVICE WARNINGS.)
(See 08-10-5 AIR BAG SYSTEM
SERVICE CAUTIONS.)

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and

wait for 1 min or more.

• Remove the driver-side air bag module.

(See 08-10-6 DRIVER-SIDE AIR BAG
MODULE REMOVAL/INSTALLATION.)

• Is there any malfunction of the driver-side air

bag module connector?

Yes

Replace the air bag wiring harness.

No

Go to the next step.

3

VERIFY WHETHER MALFUNCTION IS IN
DRIVER-SIDE AIR BAG MODULE (INFLATOR
NO.1) OR RELATED WIRING HARNESS

• Connect the leads of the SST (Fuel and

thermometer checker) or apply 2-ohm
resistance to driver-side air bag module
(inflator No.1) connector terminals 3A and
3B, and driver-side air bag module (inflator
No.2) connector terminals 4A and 4B.

• Set the resistance of the SST (Fuel and

thermometer checker) to the 2-ohm
position.

• Connect the negative battery cable.

• Turn the ignition switch to the ON position.

• Are DTCs B2228, B2230, B2232 and/or

B2234 indicated?

Yes

Go to the next step.

No

Replace the driver-side air bag module.
(See 08-10-6 DRIVER-SIDE AIR BAG MODULE
REMOVAL/INSTALLATION.)

4

INSPECT CLOCK SPRING

• Inspect the clock spring.

(See 08-10-16 CLOCK SPRING
INSPECTION.)

• Is the clock spring normal?

Yes

Go to the next step.

No

Replace the clock spring.
(See 08-10-15 CLOCK SPRING REMOVAL/
INSTALLATION.)

1871-1U-06B(08-02).fm  33 ページ  ２００６年３月１５日　水曜日　午前１１時３３分

ON-BOARD DIAGNOSTIC

08-02–34

End Of Sie

5

INSPECT WIRING HARNESS BETWEEN
CLOCK SPRING AND SAS CONTROL
MODULE

• Turn the ignition switch to the LOCK position.

• Disconnect the negative battery cable and

wait for 1 min or more.

• Remove the column cover. (See 09-17-8

COLUMN COVER REMOVAL/
INSTALLATION.)

• Disconnect the clock spring connector.

• Remove the glove compartment.(See 09-17-

8 GLOVE COMPARTMENT REMOVAL/
INSTALLATION.)

• Disconnect the passenger-side air bag

module connector.

• Disconnect the driver and passenger-side

seat connectors.

• Remove the C-pillar trim. (See 09-17-17 C-

PILLAR TRIM REMOVAL/INSTALLATION.)

• Remove the D-pillar trim. (See 09-17-18 D-

PILLAR TRIM REMOVAL/INSTALLATION.)

• Disconnect the driver and passenger-side

curtain air bag module connector.

• Remove the B-pillar lower trim. (See 09-17-

16 B-PILLAR LOWER TRIM REMOVAL/
INSTALLATION.)

• Disconnect the driver and passenger-side

pre-tensioner seat belt connectors.

• Remove the console. (See 09-17-13

CONSOLE REMOVAL/INSTALLATION.)

• Disconnect the SAS control module

connector.

• Inspect the wiring harness between SAS

control module terminal 1G and clock spring
terminal 1B, SAS control module terminal 1J
and clock spring terminal 1A for the
following:

— Short to ground

— Short to power supply

— Open circuit

• Is the wiring harness normal?

Yes

Replace the SAS control module.
(See 08-10-10 SAS CONTROL MODULE REMOVAL/
INSTALLATION.)

No

Replace the air bag wiring harness.

STEP

INSPECTION

ACTION
