POWER STEERING

06-14–25

06-14

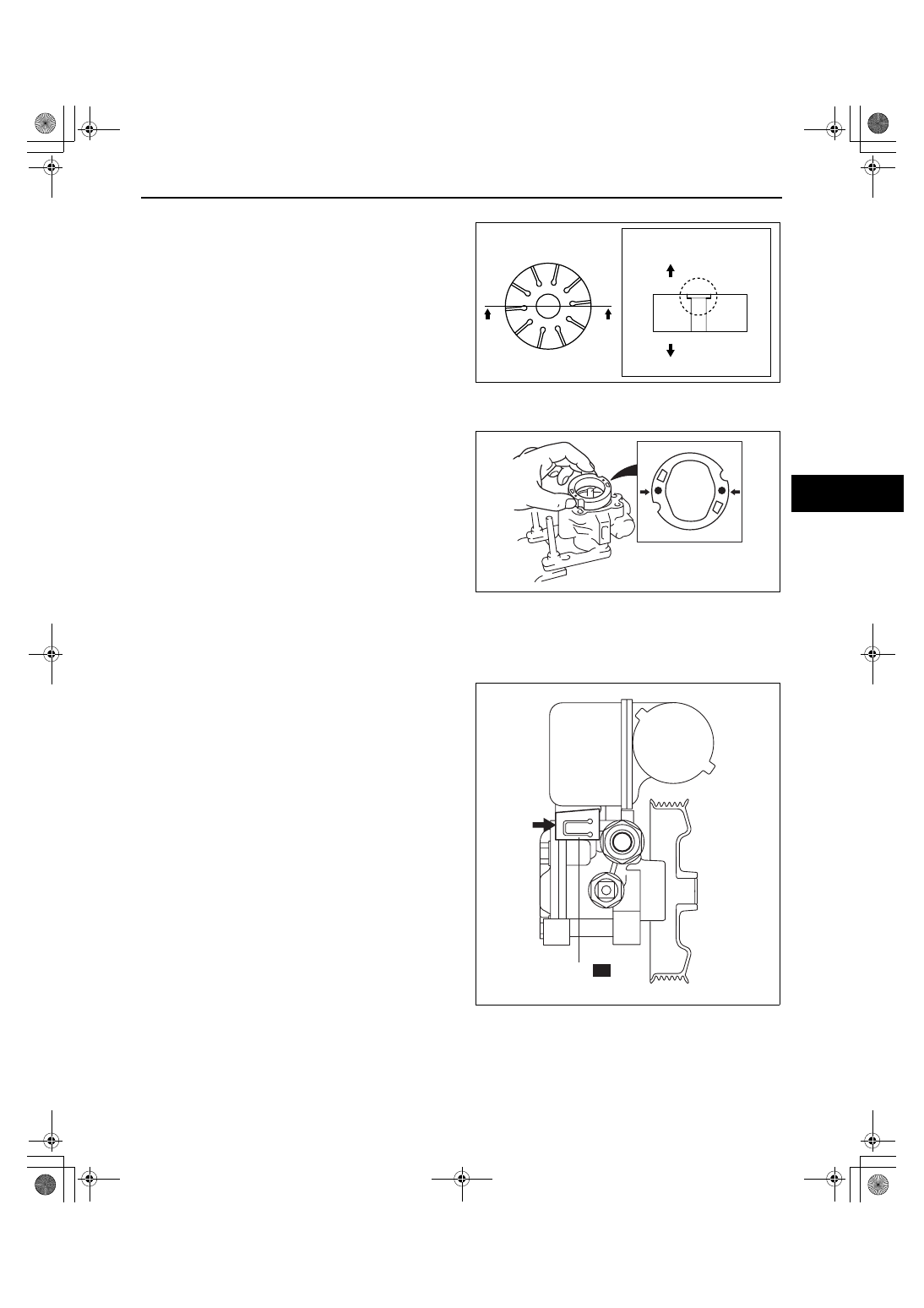

Rotor Assembly Note

1. Install to the front pump body so that area B of the

groove is on the rear pump body side as shown in
the figure.

Cam Ring Assembly Note

1. Install the cam ring in the front pump body with

the mark facing upward.

Rear Pump Body Assembly Note

1. After installing the rear body, manually turn the shaft to verify that it rotates smoothly.

Clip Assembly Note

1. Push the clip slowly in the direction shown in the

figure.

2. Confirm that the clip tab is caught correctly.

End Of Sie

SEC. A-A

REAR PUMP BODY SIDE

FRONT PUMP BODY SIDE

AREA B

acxuuw00002350

acxuuw00001921

CLIP

acxuuw00001918

1871-1U-06B(06-14).fm 25 ページ２００６年３月１５日　水曜日　午前１１時２５分

TECHNICAL DATA

06-50–1

06-50

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

Revised 3/2007 (Ref. No. R051/07)

06-50

TECHNICAL DATA

STEERING TECHNICAL DATA. . . . . . . . 06-50–1

End of Toc

WM: STEERING

STEERING TECHNICAL DATA

id065000800200

End Of Sie

Item

Specification

Power steering fluid type

ATF M-III, M-V or equivalent (e.g. Dexron

II)

Power steering fluid capacity (approx. quantity)

2WD, AWD (except Mexico spec.): 0.89 L {0.94 US qt, 0.78 lmp qt}

AWD (Mexico spec.): 0.98 L {1.0 US qt, 0.86 lmp qt}

Oil pump fluid pressure

10.31—10.80 MPa {105.2—110.1 kgf/cm

, 1,496—1,566 psi}

Gear housing fluid pressure

10.31—10.80 MPa {105.2—110.1 kgf/cm

, 1,496—1,566 psi}

Steering wheel play

0—30 mm {0—1.18 in}

Steering wheel effort (reference value)

7.8 N·m {80 kgf·cm, 69 in·lbf} max.

Steering shaft length

211.6 mm {8.3 in}

Steering rack runout

Large diameter portion (near point A): 0.15 mm {0.006 in} max.
Small diameter portion (near point B): 0.20 mm {0.008 in} max.

Tie-rod end ball joint Rotation torque

0.5—3.0 N·m {0.06—30 kgf·cm, 5—26 in·lbf}

[Pull scale reading 5—30 N {0.6—3.0 kgf, 3.7—22 lbf}]

Tie rod ball joint swing torque

0.4—4.0 N·m {5—40 kgf·cm, 4—35 in·lbf}

[Pull scale reading 4.2—41.6 N {0.43—4.24 kgf, 0.95—9.35 lbf}]
