AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–3

05-18

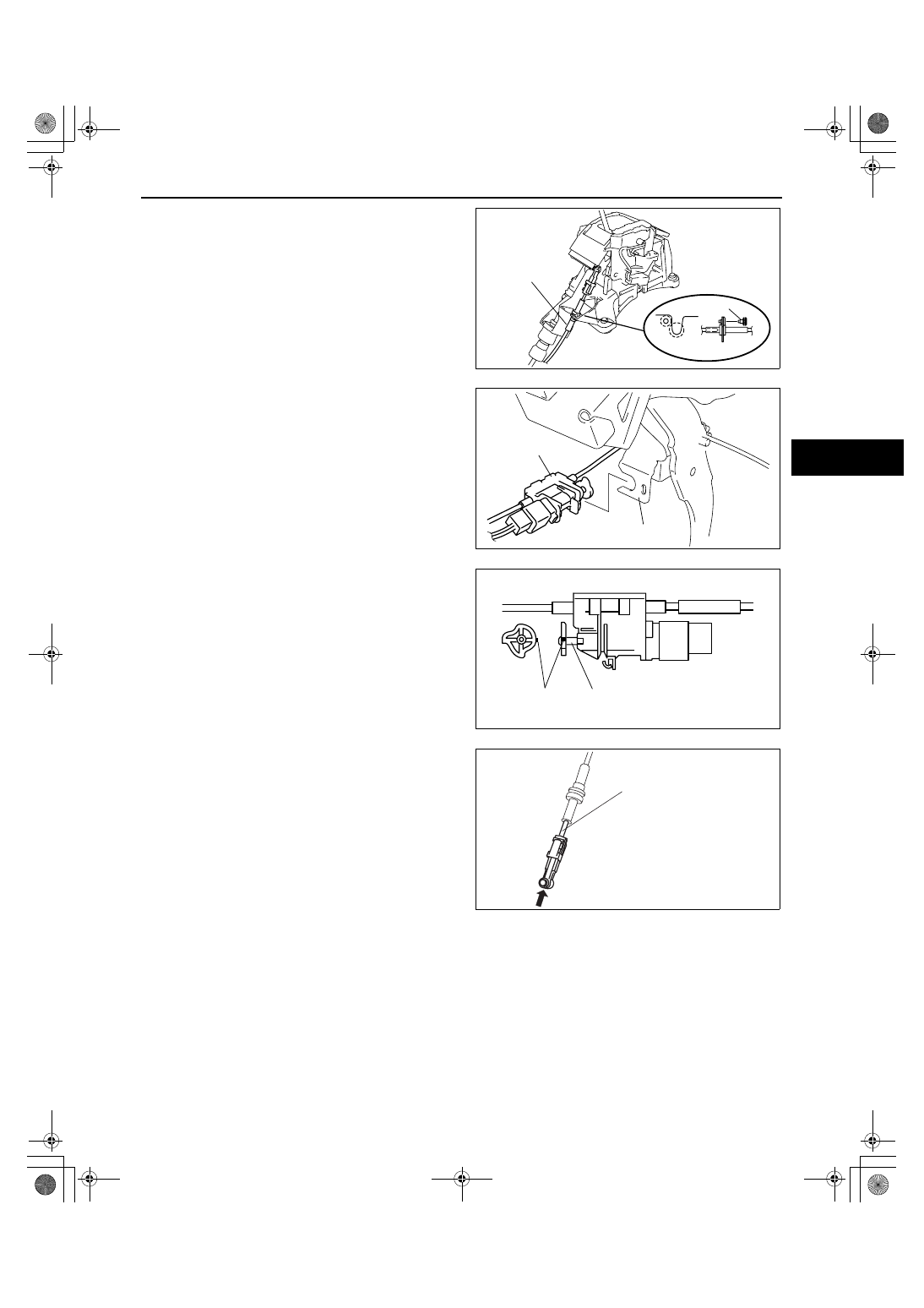

3. Remove the clip of the selector lever base plate,

then remove the interlock cable from the U-
groove.

4. Remove the interlock cable from the selector

lever.

5. Remove the lock unit from the bracket.

6. Verify that the marking on the slider pin is

positioned as shown in the figure.

7. Push the interlock cable.

CLIP

INTERLOCK
CABLE

acxuuw00000403

BRACKET

LOCK UNIT

acxuuw00000404

MARKING

SLIDER PIN

acxuuw00000405

INTERLOCK CABLE

acxuuw00000406

1871-1U-06B(05-18).fm  3 ページ  ２００６年３月１５日　水曜日　午前１１時２３分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–4

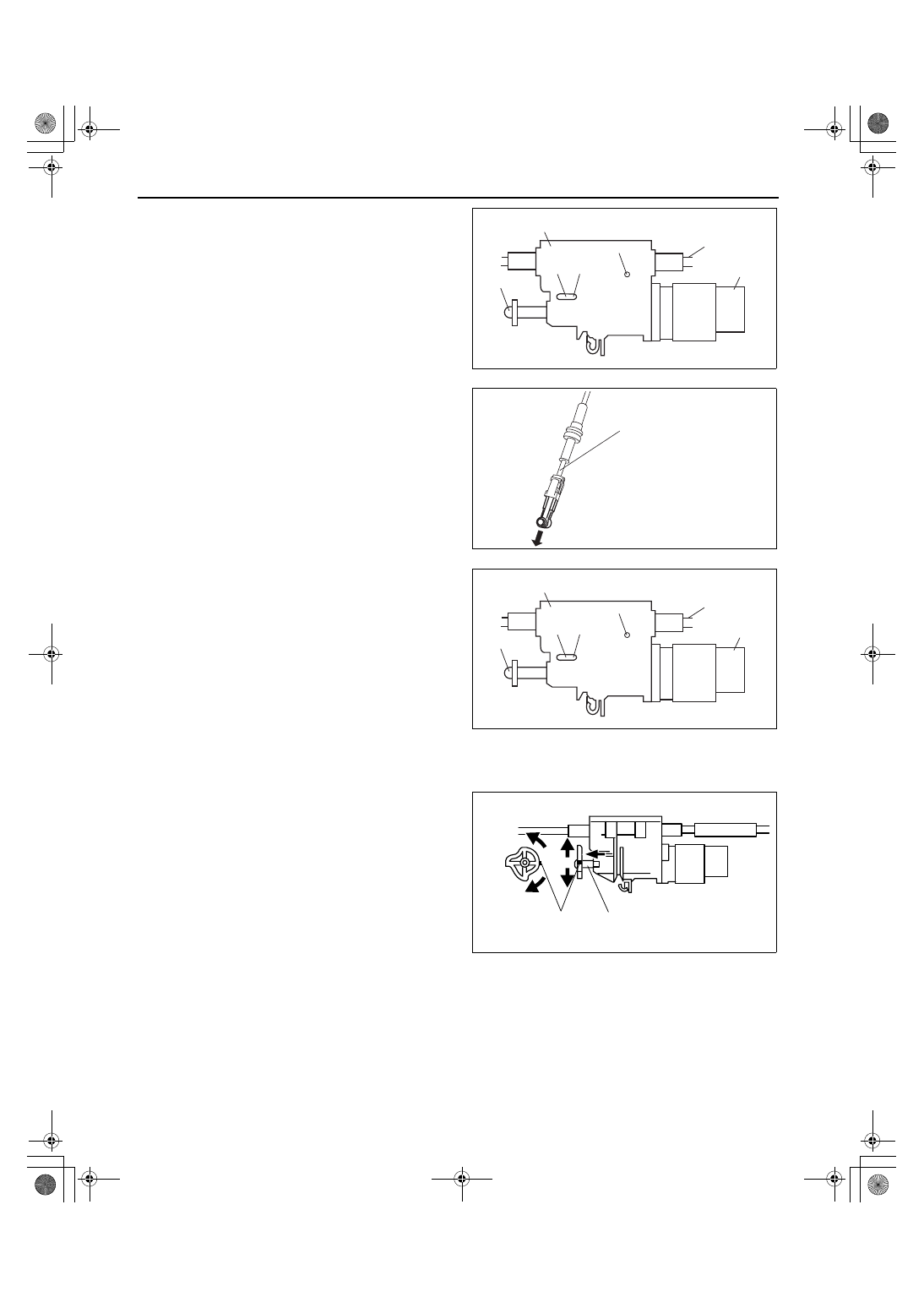

8. Insert the a 1.5mm {0.059 in} round bar or similar

into hole A with the slider pin fully pushed in.

9. Fully pull the end of the interlock cable.

10. Push the a 1.5mm {0.059 in} round bar or similar

into hole B and hole C of the lock unit until it
passes through.

11. Disconnect the brake switch connector.
12. Remove the brake switch. (See04-11-6 BRAKE

PEDAL REMOVAL/INSTALLATION.)

13. Install a new brake switch. (See04-11-6 BRAKE

PEDAL REMOVAL/INSTALLATION.)

Caution

• Do not connect the brake switch

connector until the interlock cable
adjustment is completed.

14. Install the lock unit to the bracket. (See05-18-10 Interlock Cable Installation Note.)
15. Rotate the slider pin to release the lock and verify that it slides freely.
16. Verify that the slider pin contacts the brake pedal

stopper rubber and rotate the slider pin to lock.

SLIDER PIN

INTERLOCK
CABLE

BRAKE SWITCH

A

B

C

LOCK UNIT

acxuuw00000407

INTERLOCK CABLE

acxuuw00000408

SLIDER PIN

INTERLOCK
CABLE

BRAKE SWITCH

A

B

C

LOCK UNIT

acxuuw00000407

MARKING

SLIDER PIN

UNLOCK

LOCK

acxuuw00000409

1871-1U-06B(05-18).fm  4 ページ  ２００６年３月１５日　水曜日　午前１１時２３分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–5

05-18

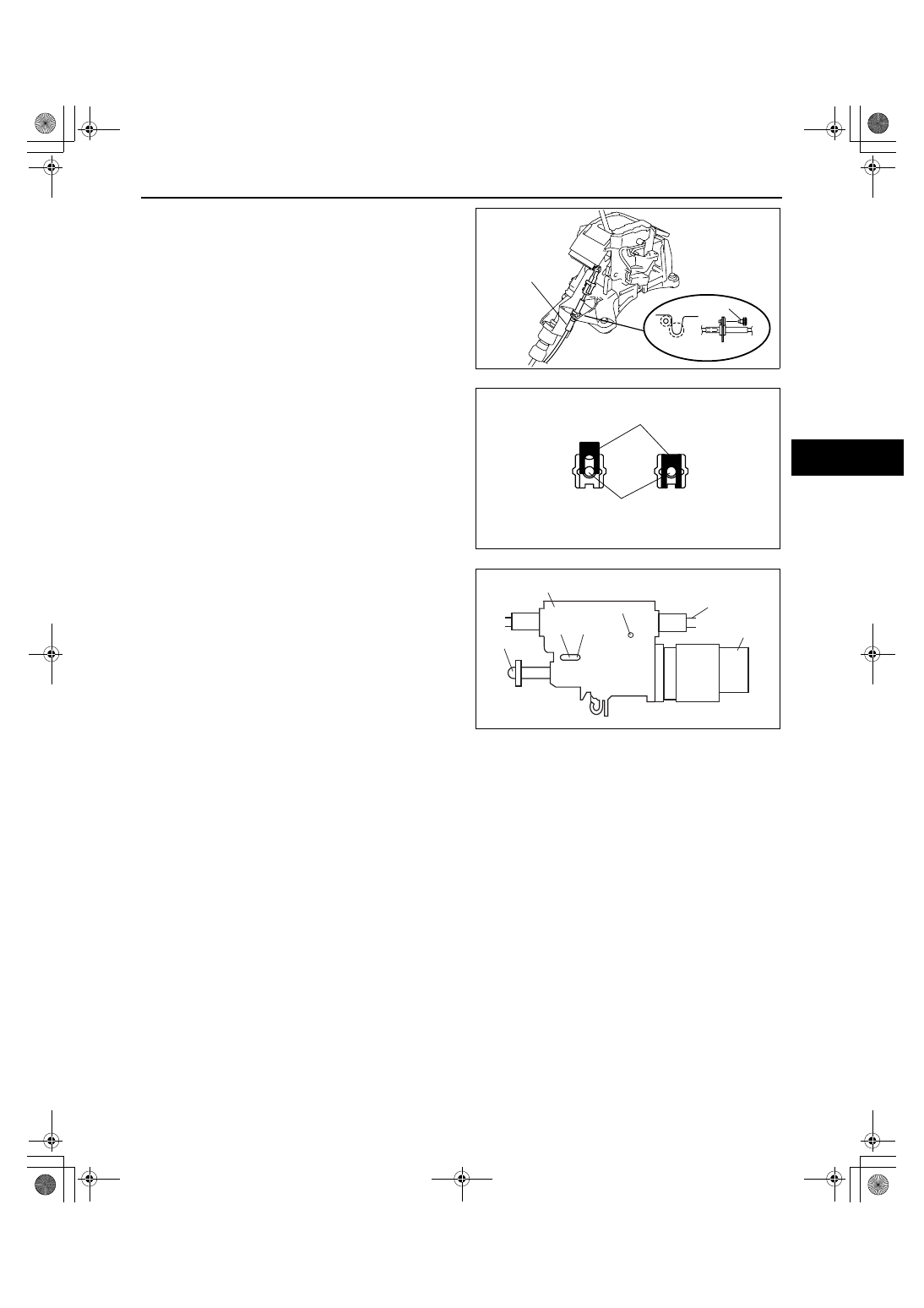

17. Install the interlock cable end to the interlock link

on the selector lever.

18. Fit the interlock cable in the U-groove in the

selector lever base plate and install the clip.

19. Press the interlock cable lock piece in until it is

locked.

Caution

• Applying a load to the interlock cable

while pressing the lock piece in can
affect the lock unit operation.

20. Remove the a 1.5mm {0.059 in} round bar or

similar from the lock unit holes A, B, and C.

21. Connect the brake switch connector with the

brake pedal released.

Caution

• The clearance between the brake switch

and the brake pedal is automatically
adjusted to the correct amount when the
brake switch connector is connected
after the brake switch has been properly
installed. If the brake switch is not
properly installed or the connector is
connected before installation, the
clearance may be incorrect, causing a brake light malfunction. Therefore, always verify that the
brake switch is properly installed before connecting the connector.

• Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again.

Therefore, replace the switch with a new one when replacing the power brake unit or the pedal, or
performing any procedure that changes the pedal stroke.

22. Inspect shift lock operation. (See05-18-2 SHIFT-LOCK INSPECTION.)

End Of Sie

WM: SELECTOR LEVER COMPONENT

CLIP

INTERLOCK
CABLE

acxuuw00000403

LOCK PIECE

INTERLOCK CABLE

UNLOCK

LOCK

acxuuw00000410

SLIDER PIN

INTERLOCK
CABLE

BRAKE SWITCH

A

B

C

LOCK UNIT

acxuuw00000407

1871-1U-06B(05-18).fm  5 ページ  ２００６年３月１５日　水曜日　午前１１時２３分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–6

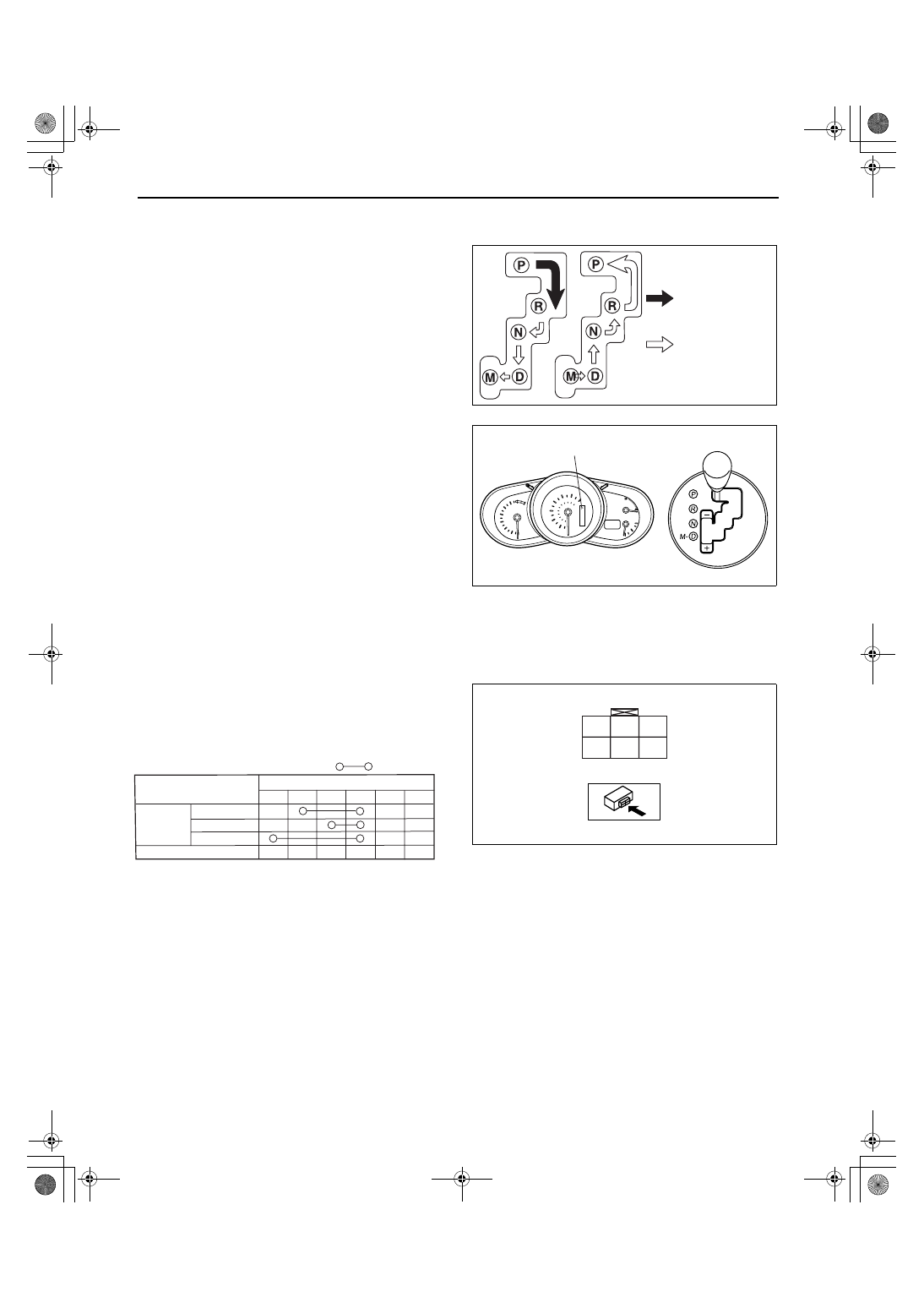

SELECTOR LEVER INSPECTION

id051800800500

1. Turn the ignition switch to the ON position. (engine OFF)
2. With the brake pedal depressed, verify that there

is a “click” at each range when shifted.

3. Verify that the selector lever can be shifted.
4. Verify that there is a “click” at each position when

shifted from P position to M range.

5. Verify that the positions of the selector lever and

the indicator are aligned.

• If there is any malfunction, adjust the TR

switch.  (See05-17-25 TCM REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

6. Verify that the vehicle operates in each selected

range.

End Of Sie

SELECTOR LEVER COMPONENT INSPECTION

id051800800600

1. Disconnect the negative battery cable.
2. Remove the center console.
3. Remove the dashboard completely. (See 09-17-4 DASHBOARD REMOVAL/INSTALLATION.)
4. Disconnect the selector lever component connector.
5. Inspect for continuity at the selector lever

component.

• If there is any malfunction, adjust the selector

cable. (See 05-18-7 SELECTOR CABLE
ADJUSTMENT.)

End Of Sie

OPERATION WHEN
BRAKE PEDAL IS
DEPRESSED

OPERATION WHEN
BRAKE PEDAL IS
RELEASED

acxuuw00000411

SELECTOR INDICATOR LIGHT

acxuuw00000412

E

C

A

F

D

B

acxuuw00002533

Selector lever
position/range

Connector terminal

: Continuity

A

B

C

D

E

F

M range

Other

center M

- M

+ M

D6U518ZW7002
