Mazda CX 7. Manual - part 266





AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–53

05-17

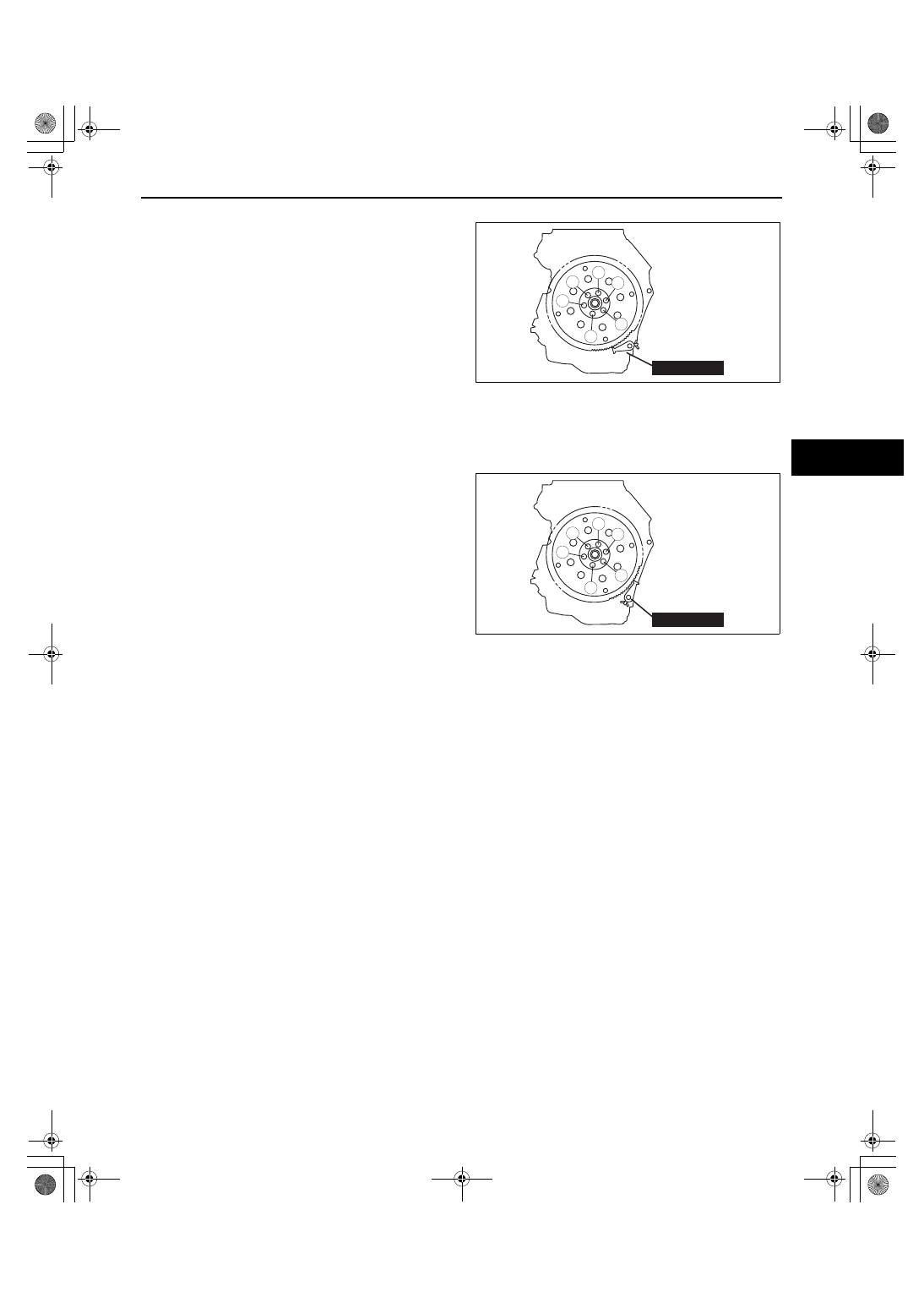

Drive Plate Mounting Bolts Removal Note

1. Set the SST or equivalent against the drive plate.
2. Remove the bolts and the drive plate.

Drive Plate Installation Note

1. Remove the sealant from the bolt holes in the crankshaft and from the drive plate mounting bolts.
2. Install the drive plate.
3. Install the backing plate.
4. Set the SST or equivalent against the drive plate.
5. Tighten the new drive plate mounting bolts in two

or three steps in the order shown.

Tightening torque

108— 116 N·m {11.0— 11.8 kgf·m, 79.7— 85.5

ft·lbf}

6. Install the transaxle. (See05-17-29 AUTOMATIC

TRANSAXLE REMOVAL/INSTALLATION[AW6A-
EL, AW6AX-EL].)

End Of Sie

49 E011 1A0

5

4

3

6

1

2

acxuuw00000612

49 E011 1A0

5

4

3

6

1

2

acxuuw00000613

1871-1U-06B(05-17).fm  53 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–1

05-18

05-18

AUTOMATIC TRANSAXLE SHIFT MECHANISM

AUTOMATIC TRANSAXLE

SHIFT MECHANISM
LOCATION INDEX. . . . . . . . . . . . . . . . .  05-18–1

SHIFT-LOCK INSPECTION. . . . . . . . . . .  05-18–2
KEY INTERLOCK INSPECTION. . . . . . .  05-18–2
INTERLOCK CABLE INSPECTION . . . .  05-18–2
INTERLOCK CABLE ADJUSTMENT . . .  05-18–2
SELECTOR LEVER INSPECTION . . . . .  05-18–6

SELECTOR LEVER COMPONENT

INSPECTION  . . . . . . . . . . . . . . . . . . . . . 05-18–6

SELECTOR CABLE ADJUSTMENT  . . . . 05-18–7
SELECTOR LEVER COMPONENT

REMOVAL/INSTALLATION  . . . . . . . . . . 05-18–7

Selector Cable Removal Note . . . . . . . . 05-18–9
Selector Cable Installation Note  . . . . . . 05-18–9
Interlock Cable Installation Note . . . . . . 05-18–10

End of Toc

WM: AUTOMATIC TRANSAXLE

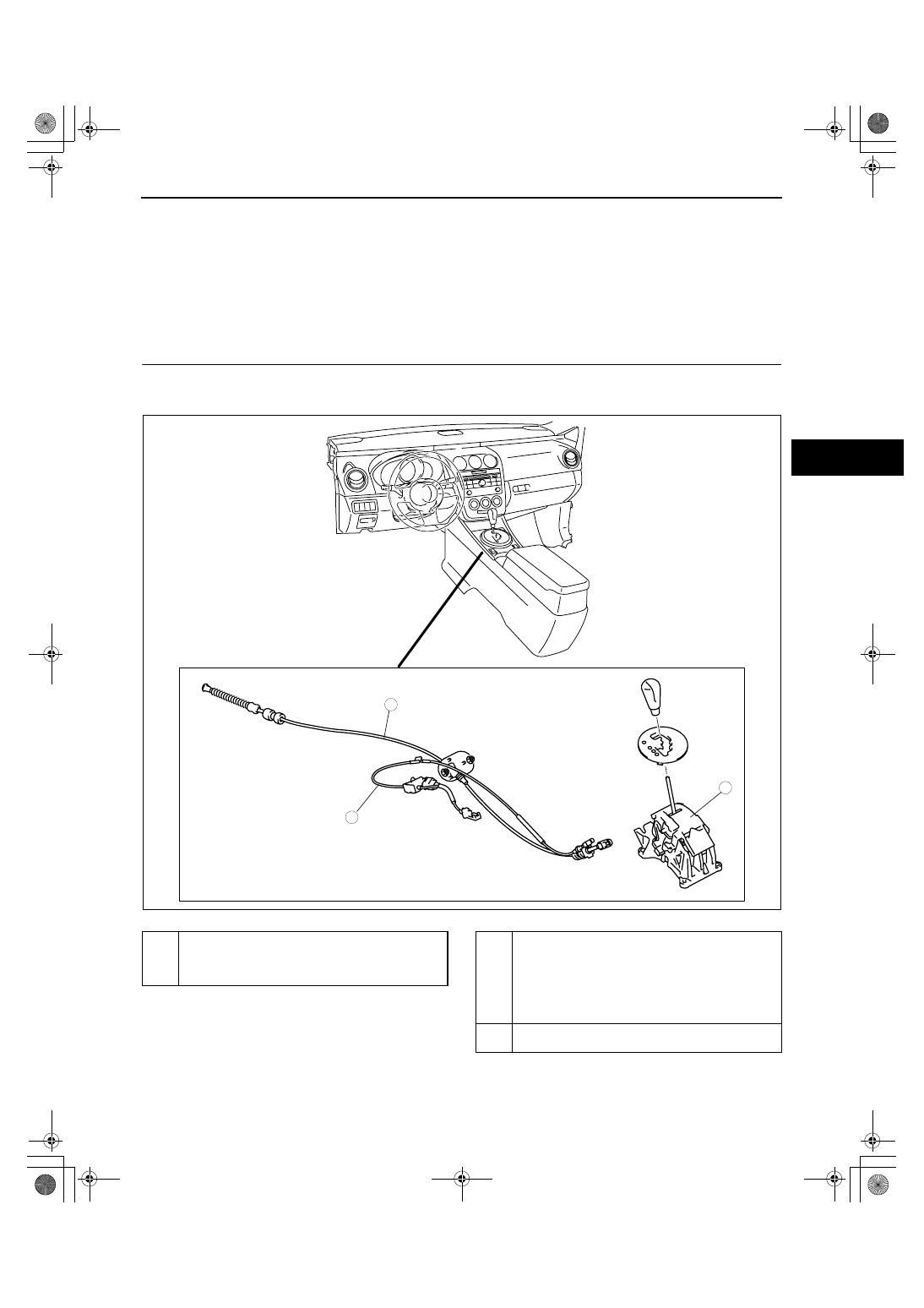

AUTOMATIC TRANSAXLE SHIFT MECHANISM LOCATION INDEX

id051800801000

.

End Of Sie

WM: SHIFT LOCK SYSTEM

3

1

2

acxuuw00000399

1

Interlock cable
 (See05-18-2 KEY INTERLOCK INSPECTION.)
 (See05-18-2 INTERLOCK CABLE INSPECTION.)
 (See05-18-2 INTERLOCK CABLE ADJUSTMENT.)

2

Selector  lever
 (See05-18-2 SHIFT-LOCK INSPECTION.)
 (See05-18-6 SELECTOR LEVER INSPECTION.)
 (See05-18-6 SELECTOR LEVER COMPONENT
INSPECTION.)
 (See05-18-7 SELECTOR LEVER COMPONENT
REMOVAL/INSTALLATION.)

3

Selector cable
 (See05-18-2 INTERLOCK CABLE ADJUSTMENT.)

1871-1U-06B(05-18).fm  1 ページ  2006年3月15日 水曜日 午前11時23分

AUTOMATIC TRANSAXLE SHIFT MECHANISM

05-18–2

SHIFT-LOCK INSPECTION

id051800800400

1. Turn the ignition switch to the ON position.
2. Verify that the selector lever is in the P position.
3. Verify that the selector lever cannot be shifted from the P position without depressing the brake pedal.
4. Depress the brake pedal and verify that the selector lever cannot be shifted from the P position.

• If there is any malfunction, inspect the interlock cable.

 (See 05-18-2 INTERLOCK CABLE INSPECTION.)

End Of Sie

WM: KEY INTERLOCK SYSTEM

KEY INTERLOCK INSPECTION

id051800800100

1. Verify that the ignition key cannot be pulled out except in the P position.

• If there is any malfunction, inspect the interlock cable. (See 05-18-2 INTERLOCK CABLE INSPECTION.)

End Of Sie

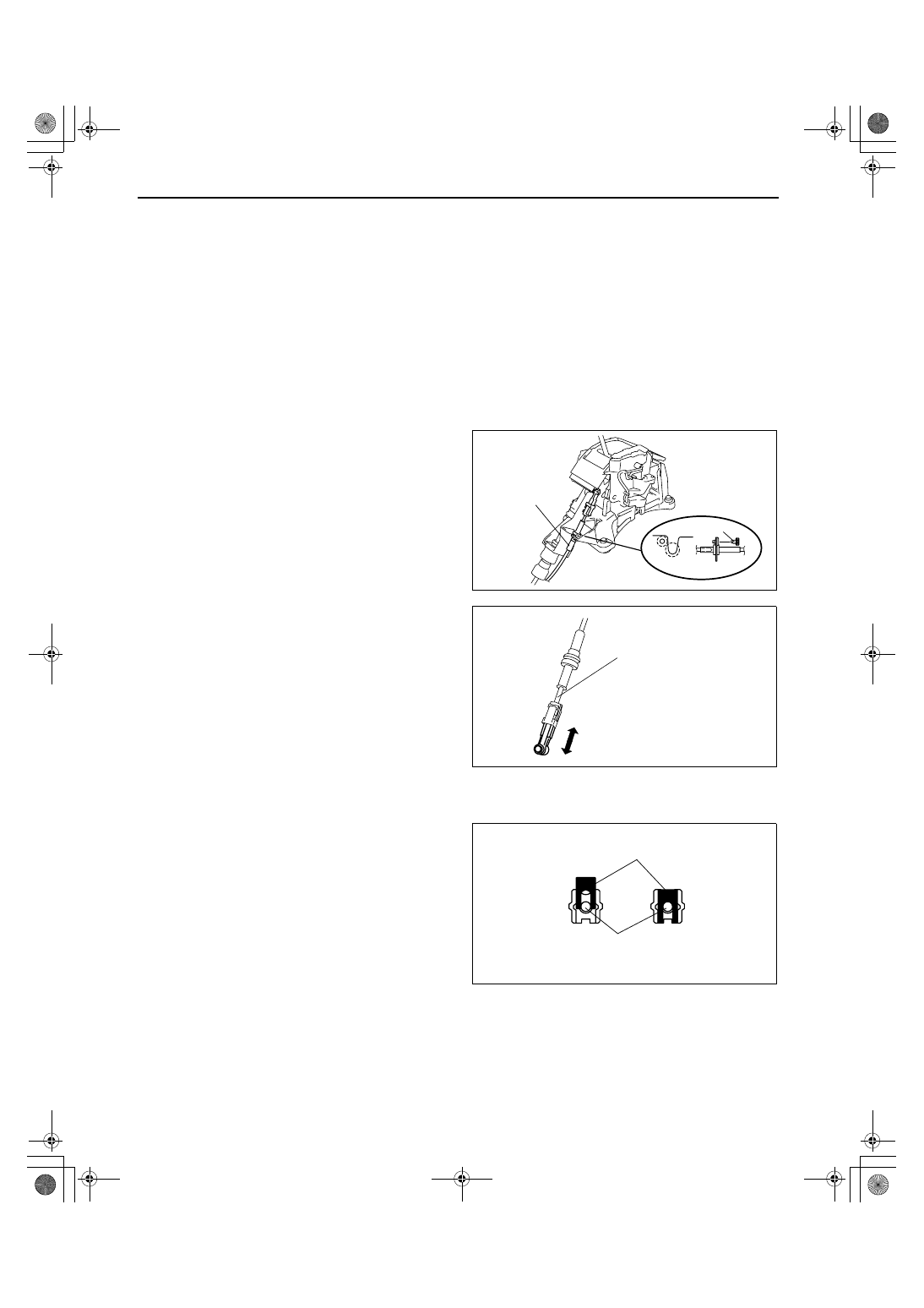

INTERLOCK CABLE INSPECTION

id051800800200

1. Turn the ignition switch to the ON position. (Engine off)
2. Remove the clip of the selector lever base plate,

then remove the interlock cable from the U-
groove.

3. Remove the interlock cable from the selector

lever.

4. Verify that the interlock cable moves freely with

the brake pedal depressed.

• If there is any malfunction, inspect the

interlock cable for abnormal winding.  If any
abnormal winding found, correct it.

• If the malfunction persists after correcting the

interlock cable winding, replace it.

End Of Sie

INTERLOCK CABLE ADJUSTMENT

id051800800300

1. Turn the ignition switch to the ON position. (Engine off)
2. Pull up the lock piece of the interlock cable to

release the lock.

CLIP

INTERLOCK
CABLE

acxuuw00000400

INTERLOCK CABLE

acxuuw00000401

LOCK PIECE

INTERLOCK CABLE

UNLOCK

LOCK

acxuuw00000402

1871-1U-06B(05-18).fm  2 ページ  2006年3月15日 水曜日 午前11時23分
