Mazda CX 7. Manual - part 257





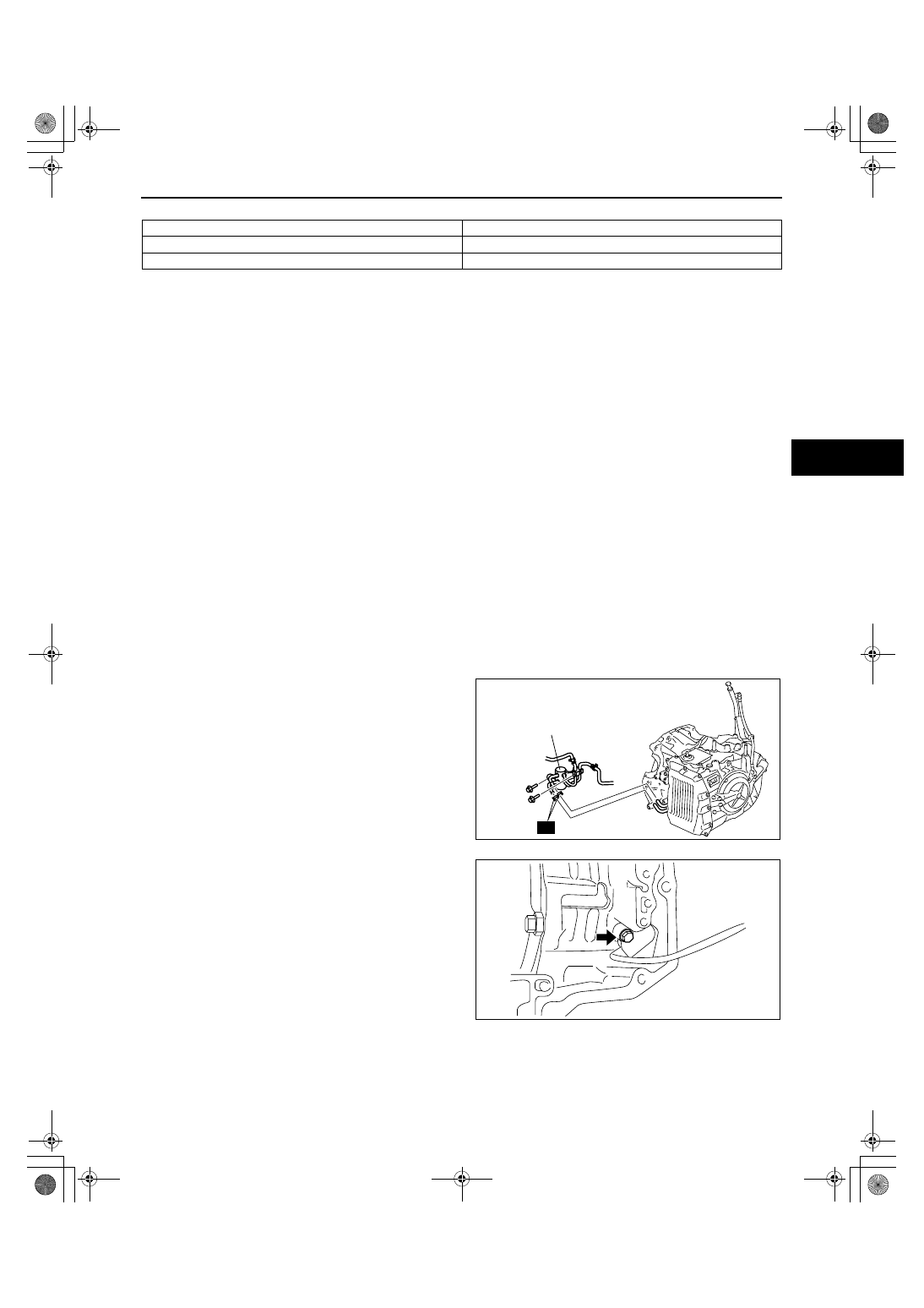

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–17

05-17

Input/turbine speed sensor

11. Install the input/turbine speed sensor. (See 05-17-17 INPUT/TURBINE SPEED SENSOR REMOVAL/

INSTALLATION[AW6A-EL, AW6AX-EL].)

12. Install the control valve body. (See 05-17-38 CONTROL VALVE BODY REMOVAL/INSTALLATION[AW6A-EL,

AW6AX-EL].)

13. Install the thermo valve. (See 05-17-47 OIL COOLER REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)
14. Install the resonance chamber. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
15. Add ATF to the specified level. (See 05-17-11 AUTOMATIC TRANSAXLE FLUID (ATF)

REPLACEMENT[AW6A-EL, AW6AX-EL].)

16. Install the under cover.
17. Install the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

18. Connect the negative battery cable.
19. Perform the mechanical system test. (See 05-17-3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

End Of Sie

INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL]

id051723801300

Warning

• A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until then are cool

before replacing the ATF.

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the under cover.
4. Drain the ATF. (See 05-17-11 AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[AW6A-EL, AW6AX-

EL].)

5. Remove the resonance chamber. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

6. Remove the thermo valve. (See 05-17-47 OIL

COOLER REMOVAL/INSTALLATION[AW6A-EL,
AW6AX-EL].)

7. Remove the control valve body. (See 05-17-38

CONTROL VALVE BODY REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

Caution

• Do not damage the input/turbine speed

sensor.

8. Remove the input/turbine speed sensor.
9. Install the input/turbine speed sensor.

Tightening torque

3.9— 6.9 N·m {40— 70 kgf·cm, 26— 60 in·lbf}

10. Install the control valve body. (See 05-17-38

CONTROL VALVE BODY REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

11. Install the thermo valve. (See 05-17-47 OIL

COOLER REMOVAL/INSTALLATION[AW6A-EL,
AW6AX-EL].)

12. Install the resonance chamber. (See 01-13-5

INTAKE AIR SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

13. Add ATF to the specified level. (See 05-17-11 AUTOMATIC TRANSAXLE FLUID (ATF)

REPLACEMENT[AW6A-EL, AW6AX-EL].)

14. Install the under cover.

Signal

Current (mA)

High

12.0— 16.0

Low

4.0— 8.0

R

THERMO VALVE

acxuuw00000489

acxuuw00000501

1871-1U-06B(05-17).fm  17 ページ  2006年3月15日 水曜日 午前11時20分

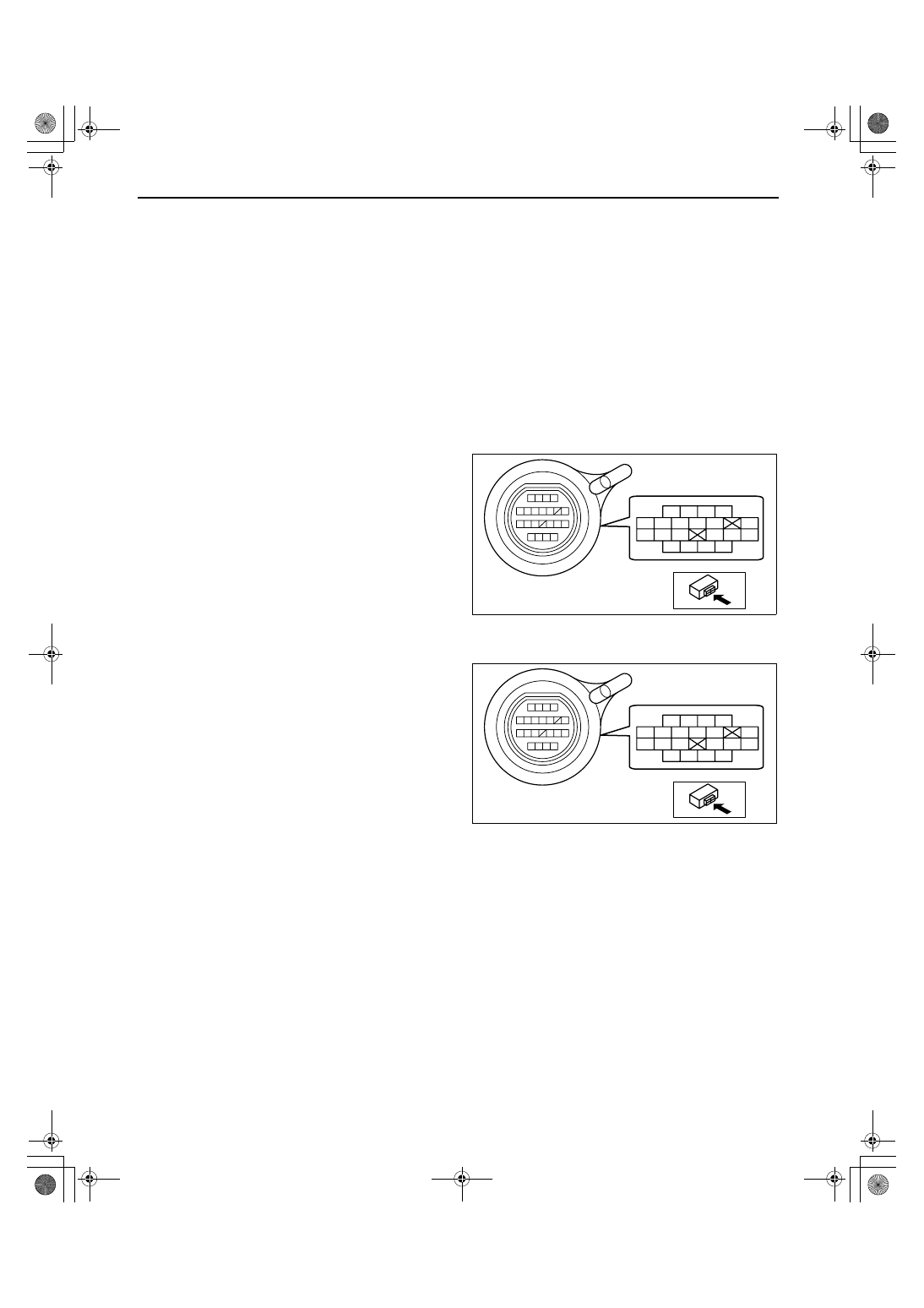

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–18

15. Install the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

16. Connect the negative battery cable.
17. Perform the mechanical system test. (See 05-17-3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

End Of Sie

VEHICLE SPEED SENSOR (VSS) INSPECTION[AW6A-EL, AW6AX-EL]

id051723801400

On-Vehicle Inspection

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to allow water or foreign material on the connector when disconnecting.

• Do not damage the terminals.

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the TCM. (See05-17-25 TCM REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)
4. Verify that there is no continuity between the

coupler component terminals B19 and GND or
B20 and GND.

• If there is any malfunction, inspect the coupler

component.

• If the coupler component is normal, replace

the ATX. (See05-17-29 AUTOMATIC
TRANSAXLE REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

Note

• Inspect with a tester that can indicatemore

than 10 megohms and confirm that the
value is more than 1 megohm.

5. Verify that there is continuity between coupler

component terminals B19 and B20.

• If there is any malfunction, inspect the coupler

component.

• If the coupler component is normal, replace

the ATX. (See05-17-29 AUTOMATIC
TRANSAXLE REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

6. Install the TCM. (See05-17-25 TCM REMOVAL/

INSTALLATION[AW6A-EL, AW6AX-EL].)

7. Install the air cleaner component. (See01-13-5

INTAKE AIR SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

8. Connect the negative battery cable.

Off-Vehicle Inspection

Warning

• A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool

before replacing the ATF.

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to allow water or foreign material on the connector when disconnecting.

• Do not damage the terminals.

1. Disconnect the negative battery cable.
2. Remove the VSS. (See05-17-19 VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION[AW6A-EL,

AW6AX-EL].)

B4 B3

B2

B1

B22 B21 B20 B19

B11 B10 B9

B8

B18 B17 B16

B7

B5

B14 B13 B12

acxuuw00000502

B4 B3

B2

B1

B22 B21 B20 B19

B11 B10 B9

B8

B18 B17 B16

B7

B5

B14 B13 B12

acxuuw00000502

1871-1U-06B(05-17).fm  18 ページ  2006年3月15日 水曜日 午前11時20分

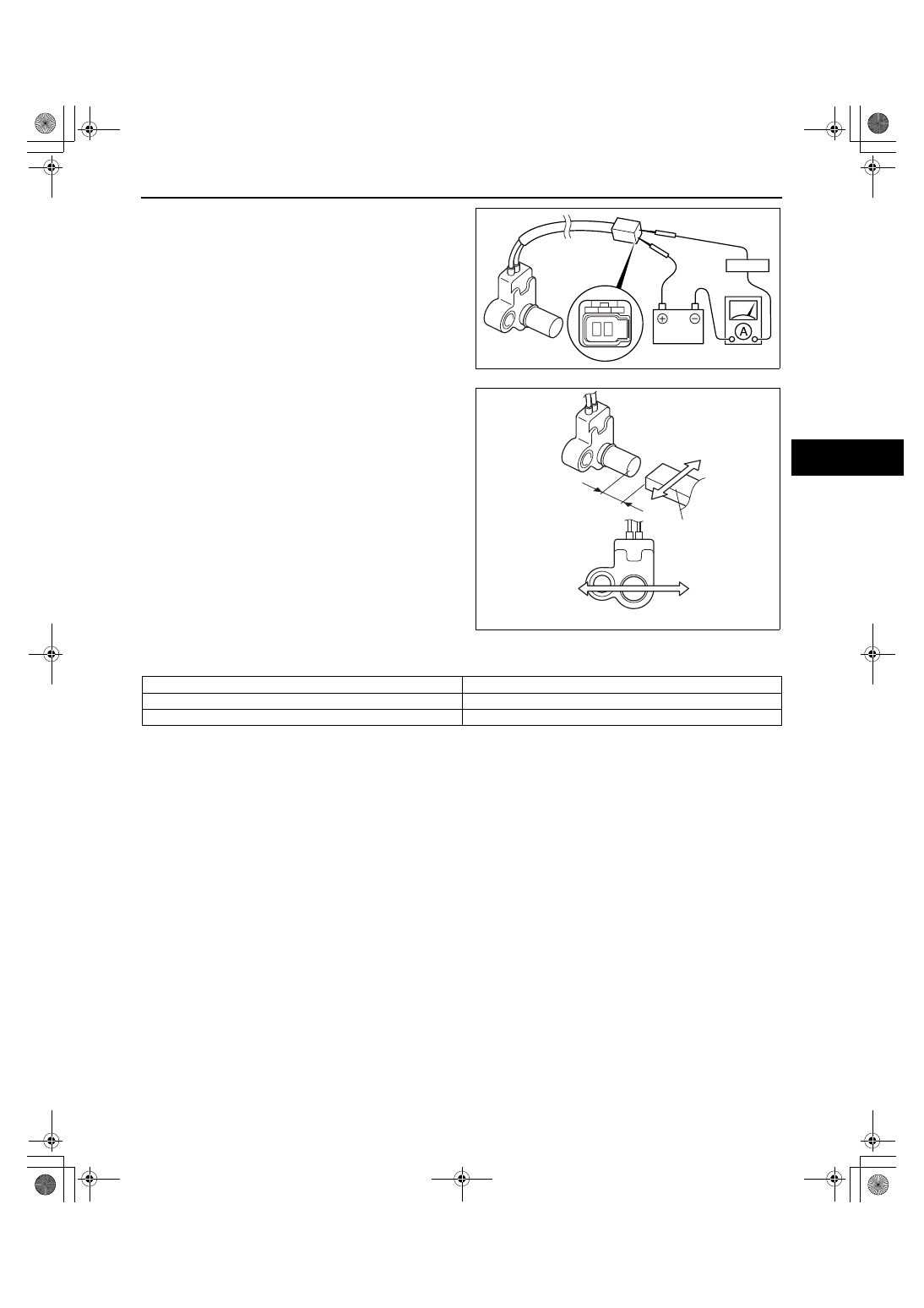

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–19

05-17

3. Connect the VSS terminal 2 to the battery positive

terminal, connect the battery negative terminal to
VSS terminal 1 through an ammeter set to a
resistance of 100 ohm.

4. Measure the current while waving a magnet back

and forth over the top of the VSS (less than 5
mm {0.197 in}).

• If there is any malfunction, replace the VSS.

(See05-17-19 VEHICLE SPEED SENSOR
(VSS) REMOVAL/INSTALLATION[AW6A-EL,
AW6AX-EL].)

VSS

5. Install the VSS. (See05-17-19 VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION[AW6A-EL,

AW6AX-EL].)

6. Connect the negative battery cable.
7. Perform the mechanical system test. (See05-17-3 MECHANICAL SYSTEM TEST[AW6A-EL, AW6AX-EL].)

End Of Sie

VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL]

id051723806100

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to drop water or foreign material on the connector when disconnecting it.

• If foreign materials are stuck to the VSS, disturbance by magnetic flux can cause sensor output to

be abnormal and thereby negatively affect control. Make sure that foreign materials such as iron
filings are not stuck to the VSS during installation.

1. Remove the automatic transaxle. (See 05-17-29 AUTOMATIC TRANSAXLE REMOVAL/

INSTALLATION[AW6A-EL, AW6AX-EL].)

2. Remove the VSS. (See Automatic Transaxle and Transfer Workshop Manual AW6A-EL, AW6AX-EL)

End Of Sie

WM: TRANSMISSION/TRANSAXLE OUTPUT (SOLENOID/INDICATOR LIGHT)

100 ohm

1 2

acxuuw00000499

WAVE BACK AND FORTH

MAGNET

SHAKING DIRECTION

LESS THAN 5 mm {0.197 in}

acxuuw00000500

Signal

Current (mA)

High

12.0— 16.0

Low

4.0— 8.0

1871-1U-06B(05-17).fm  19 ページ  2006年3月15日 水曜日 午前11時20分

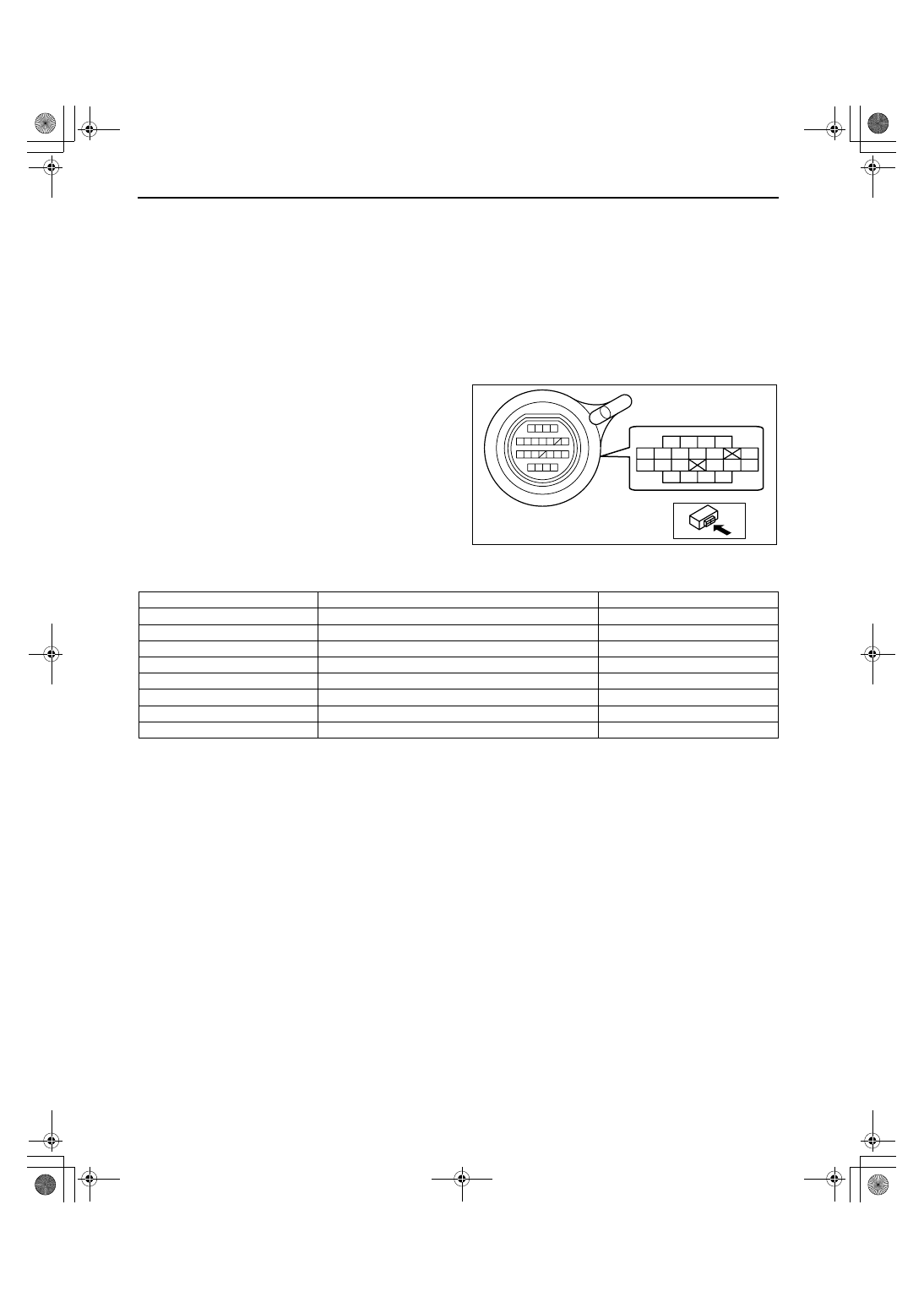

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–20

SOLENOID VALVE INSPECTION[AW6A-EL, AW6AX-EL]

id051723801900

Resistance Inspection (On-Vehicle Inspection)

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to allow water or foreign material on the connector when disconnecting.

• Do not damage the terminals.

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the TCM. (See 05-17-25 TCM REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)
4. Measure the resistance between the following

terminals.

• If there is any malfunction, inspect the coupler

component.

• If the coupler component is normal, replace

the control valve body. (See 05-17-38
CONTROL VALVE BODY REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

Solenoid valve resistance (ATF temperature: 20 C {68 F})

5. Install the TCM. (See 05-17-25 TCM REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)
6. Install the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

7. Connect the negative battery cable.

Continuity Inspection (On-Vehicle Inspection)

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to allow water or foreign material on the connector when disconnecting.

• Do not damage the terminals.

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the TCM. (See 05-17-25 TCM REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)
4. Verify that there is no continuity between coupler component terminals B1, B3, B4, B9, B10, B11, B14, B17,

B18, B21, B22 and GND.

• If there is any malfunction, inspect the coupler component.

• If the coupler component is normal, replace the control valve body. (See 05-17-38 CONTROL VALVE

BODY REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)

5. Install the TCM. (See 05-17-25 TCM REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)
6. Install the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

7. Connect the negative battery cable.

End Of Sie
WM: TCM

B4 B3

B2

B1

B22 B21 B20 B19

B11 B10 B9

B8

B18 B17 B16

B7

B5

B14 B13 B12

acxuuw00000508

Terminal

Solenoid valve

Resistance (ohm)

B5— GND

Shift solenoid A

11— 15

B2— GND

Shift solenoid B

11— 15

B11— B10

Shift solenoid C

5.0— 5.6

B17— B18

Shift solenoid D

5.0— 5.6

B14— B22

Shift solenoid E

5.0— 5.6

B21— B16

Shift solenoid F

5.0— 5.6

B9— B4

TCC control solenoid

5.0— 5.6

B3— B1

Line pressure control solenoid

5.0— 5.6

1871-1U-06B(05-17).fm  20 ページ  2006年3月15日 水曜日 午前11時20分
