AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–9

05-17

M Range Test

1. Perform road test preparation. (See05-17-7 Road Test Preparation.)
2. Shift the selector lever to M range.
3. Verify that 1

→2, 2→3, 3→4, 4→5 and 5→6 upshifts and 6→5, 5→4, 4→3, 3→2, and 2→1 downshifts are

obtained by manual shifting of the selector lever forward and back.

• If there is any malfunction, inspect the TCM and ATX. (See 05-03-4 SYMPTOM TROUBLESHOOTING

ITEM TABLE[AW6A-EL, AW6AX-EL].)

4. Decelerate the vehicle and verify that 6

→5, 5→4, 4→3, 3→1 downshifts are obtained. The shift points must be

as shown in the table below.

• If there is any malfunction, inspect the TCM and ATX. (See 05-03-4 SYMPTOM TROUBLESHOOTING

ITEM TABLE[AW6A-EL, AW6AX-EL].)

5. Decelerate the vehicle and verify that engine braking effect is felt in 1GR.

• If there is any malfunction, inspect the TCM and ATX. (See 05-03-4 SYMPTOM TROUBLESHOOTING

ITEM TABLE[AW6A-EL, AW6AX-EL].)

6. Drive the vehicle and verify that TCC operation is obtained in 4GR, 5GR and 6GR. The operation points must

be as shown in the table below.

• If there is any malfunction, inspect the TCM and ATX. (See 05-03-4 SYMPTOM TROUBLESHOOTING

ITEM TABLE[AW6A-EL, AW6AX-EL].)

7. Drive the vehicle in 6GR, 5GR, 4GR and 3GR and verify that kickdown occurs for 6

→5, 5→4, 4→3, 3→2

downshifts, and that the shift points are as shown in the table below.

• If there is any malfunction, inspect the TCM and ATX. (See 05-03-4 SYMPTOM TROUBLESHOOTING

ITEM TABLE[AW6A-EL, AW6AX-EL].)

D

POWER

Wide open
throttle

D

1

→D

2

43— 49 {27— 30}

5,100— 5,750

D

2

→D

3

82— 90 {51— 55}

5,550— 6,050

D

3

→D

4

127— 137 {79— 84}

5,650— 6,050

TCC ON (D

4

)

127— 137 {79— 84}

4,200— 4,450

D

4

→D

5

167— 177 {104— 109}

5,500— 5,800

TCC ON (D

5

)

167— 177 {104— 109}

4,100— 4,300

Half throttle

D

1

→D

2

24— 32 {15— 19}

2,850— 3,750

D

2

→D

3

51— 64 {32— 39}

3,400— 4,350

D

3

→D

4

83— 107 {52— 66}

3,700— 4,700

TCC ON (D

4

)

121— 139 {76— 86}

4,000— 4,550

D

4

→D

5

144— 165 {90— 102}

4,750— 5,400

TCC ON (D

5

)

161— 179 {100— 110}

3,950— 4,350

Closed throttle
position

D

6

→D

5

117— 123 {73— 76}

2,300— 2,350

D

5

→D

4

42— 48 {27— 29}

1050— 1,150

D

4

→D

3

22— 28 {14— 17}

750— 900

D

3

→D

1

5— 11 {4— 6}

250— 450

D

2

→D

1

5— 11 {4— 6}

350— 700

Kickdown

D

6

→D

5

205— 215 {128— 133}

4,000— 4,150

D

5

→D

4

149— 159 {93— 98}

3,650— 3,850

D

4

→D

3

90— 100 {56— 62}

3,000— 3,250

D

3

→D

2

63— 71 {40— 44}

2,800— 3,100

D

2

→D

1

26— 32 {17— 19}

1,800— 2,150

Range

Mode

Throttle

condition

Shift

Vehicle speed

 (km/h {mph})

Turbine speed

 (rpm)

1871-1U-06B(05-17).fm  9 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–10

Vehicle speed at shift point table

P Position Test

1. Shift into P position on a gentle slope. Release the brake and verify that the vehicle does not roll.

• If there is any malfunction, inspect the ATX. (See 05-03-4 SYMPTOM TROUBLESHOOTING ITEM

TABLE[AW6A-EL, AW6AX-EL].)

End Of Sie

WM: AUTOMATIC TRANSMISSION/TRANSAXLE FLUID

AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION[AW6A-EL, AW6AX-EL]

id051723800500

Automatic Transaxle Fluid (ATF) Condition Inspection

1. Inspect the ATF for the following to determine whether the transaxle should be disassembled.

• The ATF is muddy.

• The ATF smells strange or unusual.

ATF Condition

Automatic Transaxle Fluid (ATF) Level Inspection

Caution

• The ATF amount varies according to ATF temperature. Therefore, when checking the ATF level or

replacing the ATF, use a thermometer to measure the temperature and adjust the ATF amount to
the specified level according to the specified temperature.

1. Place the vehicle on level ground.
2. Apply the parking brake and position wheel chocks securely to prevent the vehicle from rolling.

Range

Mode

Throttle

condition

Shift

Vehicle speed

km/h {mph}

Turbine speed

 (rpm)

M

Manual

Half throttle

TCC ON (M

6

)

185— 198 {115— 122}

3,600— 3,850

All round

M

6

→M

5

49— 55 {31— 34}

1,000— 1,050

M

5

→M

4

31— 37 {20— 22}

800— 900

M

4

→M

3

22— 28 {14— 17}

750— 900

M

3

→M

1

5— 11 {4— 6}

250— 450

M

2

→M

1

5— 11 {4— 6}

350— 700

Kickdown

M

6

→M

5

215— 225 {134— 139}

4,200— 4,350

M

5

→M

4

45— 55 {28— 34}

1,100— 1,300

M

4

→M

3

25— 35 {16— 21}

850— 1,100

M

3

→M

2

4— 12 {3— 7}

200— 500

M

2

→M

1

5— 11 {4— 6}

350— 700

Condition

Possible cause

Clear dark red

Normal

—

Light red (pink)

Contaminated with water

• Damaged oil cooler

• Poor filler tube installation:

Problem could occur to parts inside the transaxle due
to water contamination.
If necessary, replace the transaxle.

Reddish
brown

Has burnt smell and metal
particles are found

Deteriorated ATF

Defective powertrain components inside the transaxle:
Particles cause wide range of problems by clogging
the oil pipe, control valve body and oil cooler.

• A large amount of metal particles are found.

If necessary, replace the transaxle.

• Flush the system due to possible clogging of the oil

pipe or oil cooler.

Has no burnt smell

Normal

• Discoloration by oxidation

1871-1U-06B(05-17).fm  10 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–11

05-17

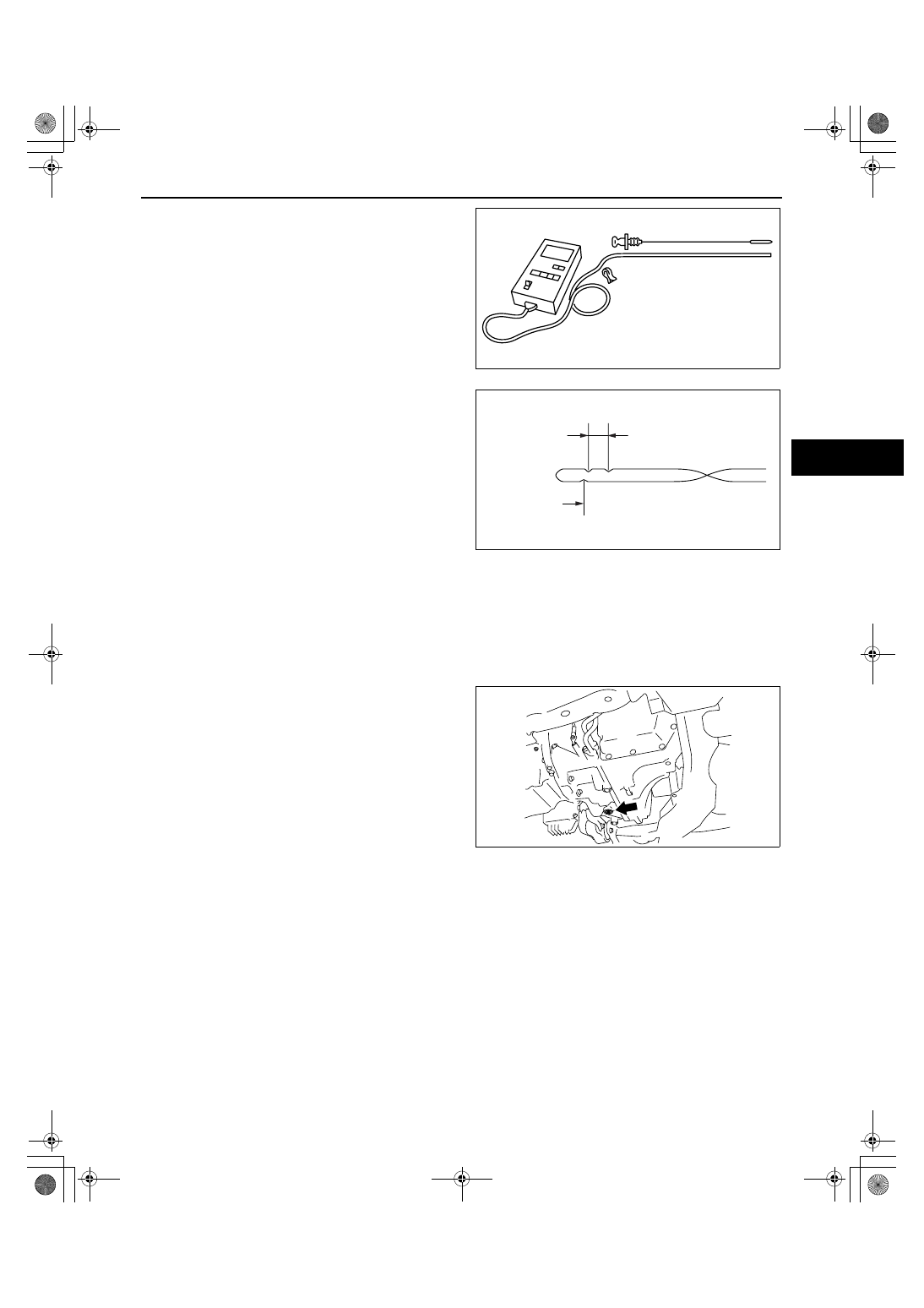

3. Adjust the length or thermometer probe so that

the length is the same as the depth gauge, and
hold the probe with a paper holder. Insert into the
filler tube and measure the temperature.

• If necessary, inspect the ATF before warming

up the engine. In this case, use the ATF
temperature (15— 25

°C {59— 77 °F}).

4. Warm up the engine until the ATF reaches 60—

70

°C {140— 158 °F}.

5. Shift the selector lever and pause momentarily in

each range (P— D) while depressing the brake
pedal.

6. Shift the selector lever to P position.
7. Verify that the ATF level is in the HOT range (65

°C {149 °F}) while the engine is idling.

• If necessary, add ATF to the specification.

ATF type

JWS3309

End Of Sie

AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[AW6A-EL, AW6AX-EL]

id051723800600

Warning

• A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool

before replacing the ATF.

1. Remove the oil dipstick.
2. Remove the under cover.
3. Remove the oil drain plug and gasket.
4. Drain the ATF into a container.
5. Install a new gasket and the drain plug.

Tightening torque

23.5— 54.9 N·m {2.4— 5.5 kgf·m, 17.4— 40.4

ft·lbf}

6. Add the specified ATF through the oil filler tube

until it reaches the lower notch of dipstick.

ATF

Type: JWS3309
Capacity (Approx. quantity): 7.0 L {7.4 US qt,

6.2 lmp qt}

7. Install the under cover.
8. Ensure that the ATF level is in the HOT range (65

°C {149 °F}).

• Add ATF to the specified level as necessary.

End Of Sie

WM: AUTOMATIC TRANSMISSION/TRANSAXLE INPUT (SENSOR/SWITCH)

TRANSAXLE RANGE (TR) SWITCH INSPECTION[AW6A-EL, AW6AX-EL]

id051723800900

Note

• TR switch function is installed as one part of TCM.

1. Inspect the TCM. (See 05-17-21 TCM INSPECTION[AW6A-EL, AW6AX-EL].)

End Of Sie

acxuuw00000484

ATF TEMPERATURE

HOT RANGE

(REFERENCE)

ATF TEMPERATURE

60—70 ˚C {140—158 ˚F}

15—25 ˚C {59—77 ˚F}

65˚C

20˚C

acxuuw00000485

ampjjw00001890

1871-1U-06B(05-17).fm  11 ページ  2006年3月15日 水曜日 午前11時20分

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]

05-17–12

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION[AW6A-EL, AW6AX-EL]

id051723801000

On-Vehicle Inspection

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to allow water or foreign material on the connector when disconnecting.

• Do not damage the terminals.

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the TCM. (See 05-17-25 TCM REMOVAL/INSTALLATION[AW6A-EL, AW6AX-EL].)

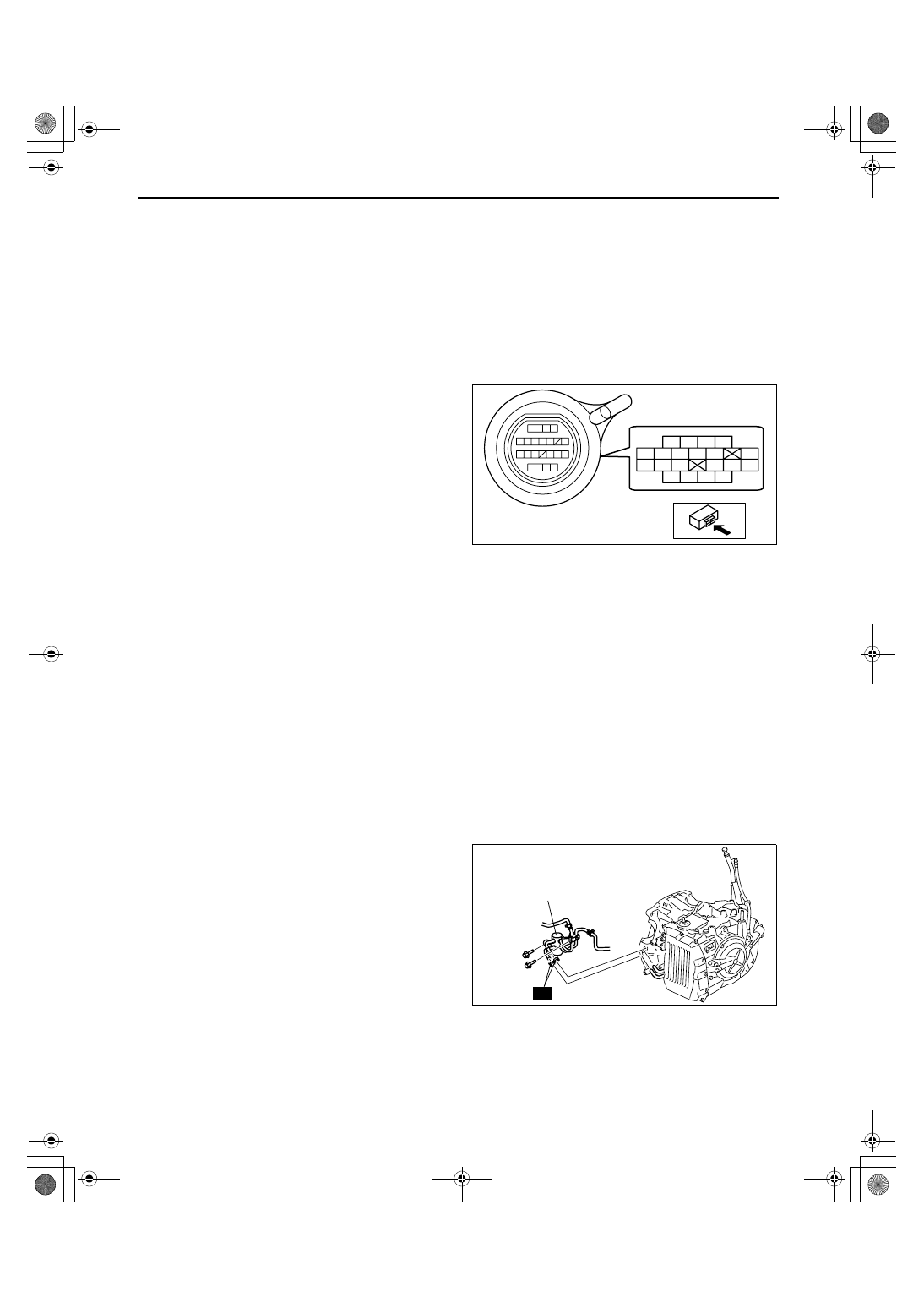

4. Verify that there is no continuity between coupler

component terminals B7 and GND, or B8 and
GND.

• If there is any malfunction, perform an off-

vehicle inspection of TFT sensor. (See 05-17-
12 Off-Vehicle Inspection.)

5. Install the TCM. (See 05-17-25 TCM REMOVAL/

INSTALLATION[AW6A-EL, AW6AX-EL].)

6. Install the air cleaner component. (See 01-13-5

INTAKE AIR SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

7. Connect the negative battery cable.

Off-Vehicle Inspection

Warning

• A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool

before replacing the ATF.

Caution

• Water or foreign material entering the connector can cause a poor connection or corrosion. Be

sure not to allow water or foreign material on the connector when disconnecting.

• Do not damage the terminals.

1. Disconnect the negative battery cable.
2. Remove the air cleaner component. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

3. Remove the under cover.
4. Drain the ATF. (See 05-17-11 AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT[AW6A-EL, AW6AX-

EL].)

5. Remove the resonance chamber. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH

TC].)

6. Remove the thermo valve. (See 05-17-47 OIL

COOLER REMOVAL/INSTALLATION[AW6A-EL,
AW6AX-EL].)

7. Remove the control valve body. (See 05-17-38

CONTROL VALVE BODY REMOVAL/
INSTALLATION[AW6A-EL, AW6AX-EL].)

8. Remove the TFT sensor. (See 05-17-13

TRANSAXLE FLUID TEMPERATURE (TFT)
SENSOR REMOVAL/INSTALLATION[AW6A-EL,
AW6AX-EL].)

B4 B3

B2

B1

B22 B21 B20 B19

B11 B10 B9

B8

B18 B17 B16

B7

B5

B14 B13 B12

acxuuw00000488

R

THERMO VALVE

acxuuw00000489

1871-1U-06B(05-17).fm  12 ページ  2006年3月15日 水曜日 午前11時20分
