DYNAMIC STABILITY CONTROL

04-15–11

04-15

End Of Sie

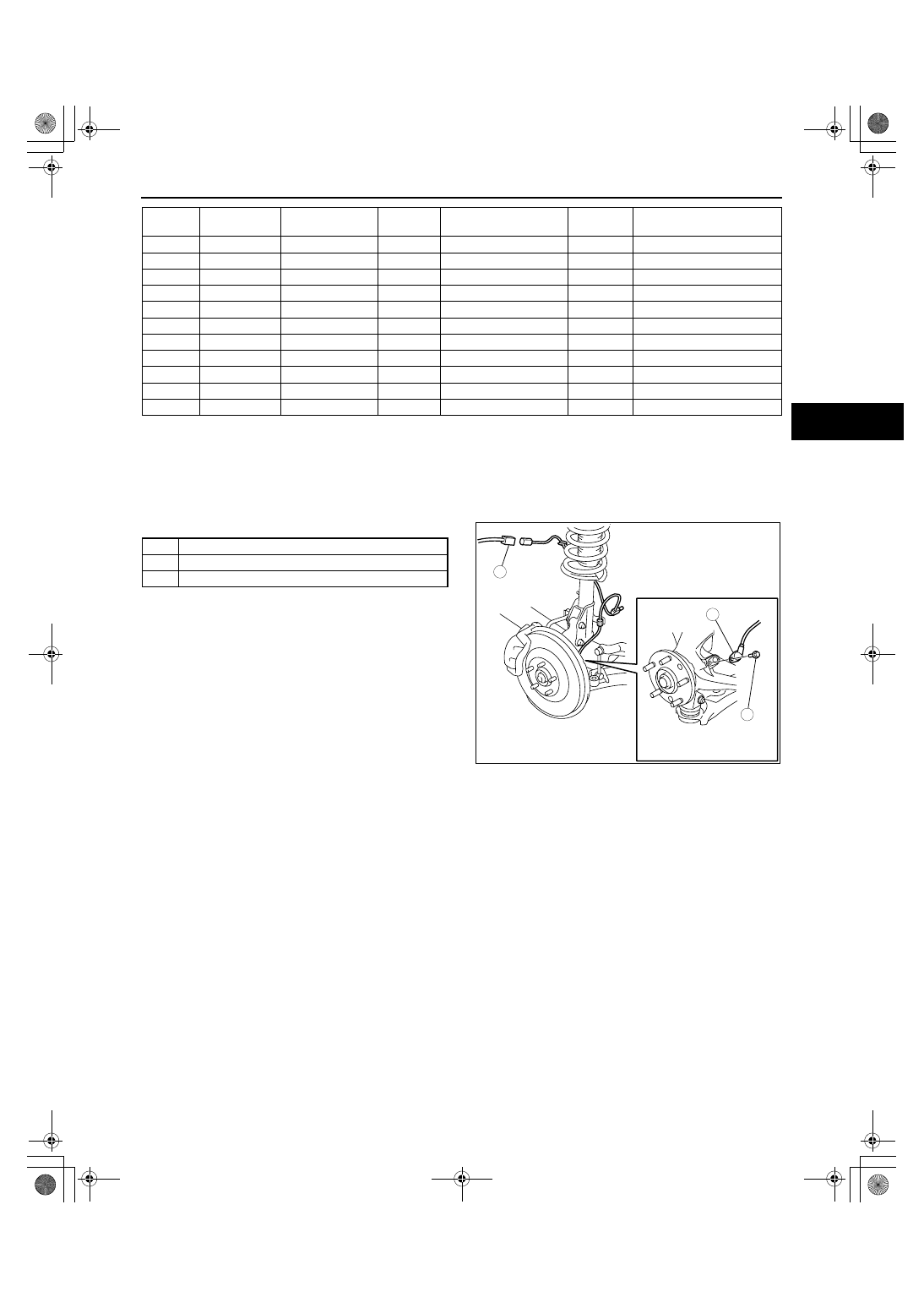

WM: FRONT ABS WHEEL-SPEED SENSOR

FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800300

1. Perform the following procedure and remove the LF ABS wheel-speed sensor.

(1) Remove the battery and battery tray.
(2) Remove the air cleaner component and air hose. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/

INSTALLATION[L3 WITH TC].)

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

AJ

— —

—  —  —

—

AK

— —

—  —  —

—

AL

— —

—  —  —

—

AM

— —

—  —  —

—

AN

— —

—  —  —

—

AO

— —

—  —  —

—

AP

— —

—  —  —

—

AQ

— —

—  —  —

—

AR

— —

—  —  —

—

AS

— —

—  —  —

—

AT

— —

—  —  —

—

Terminal

Signal name

Connected to

Measured

item

Measured terminal

(measured condition)

Standard

Inspection item(s)

1

Front ABS wheel-speed sensor connector

2

Bolt

3

Front ABS wheel-speed sensor

2

3

1

7.8—10.8

 N·m

{80—110 kgf·cm,
 70—95 in·lbf}

acxuuw00001205

1871-1U-06B(04-15).fm  11 ページ  2006年3月15日 水曜日 午前11時16分

DYNAMIC STABILITY CONTROL

04-15–12

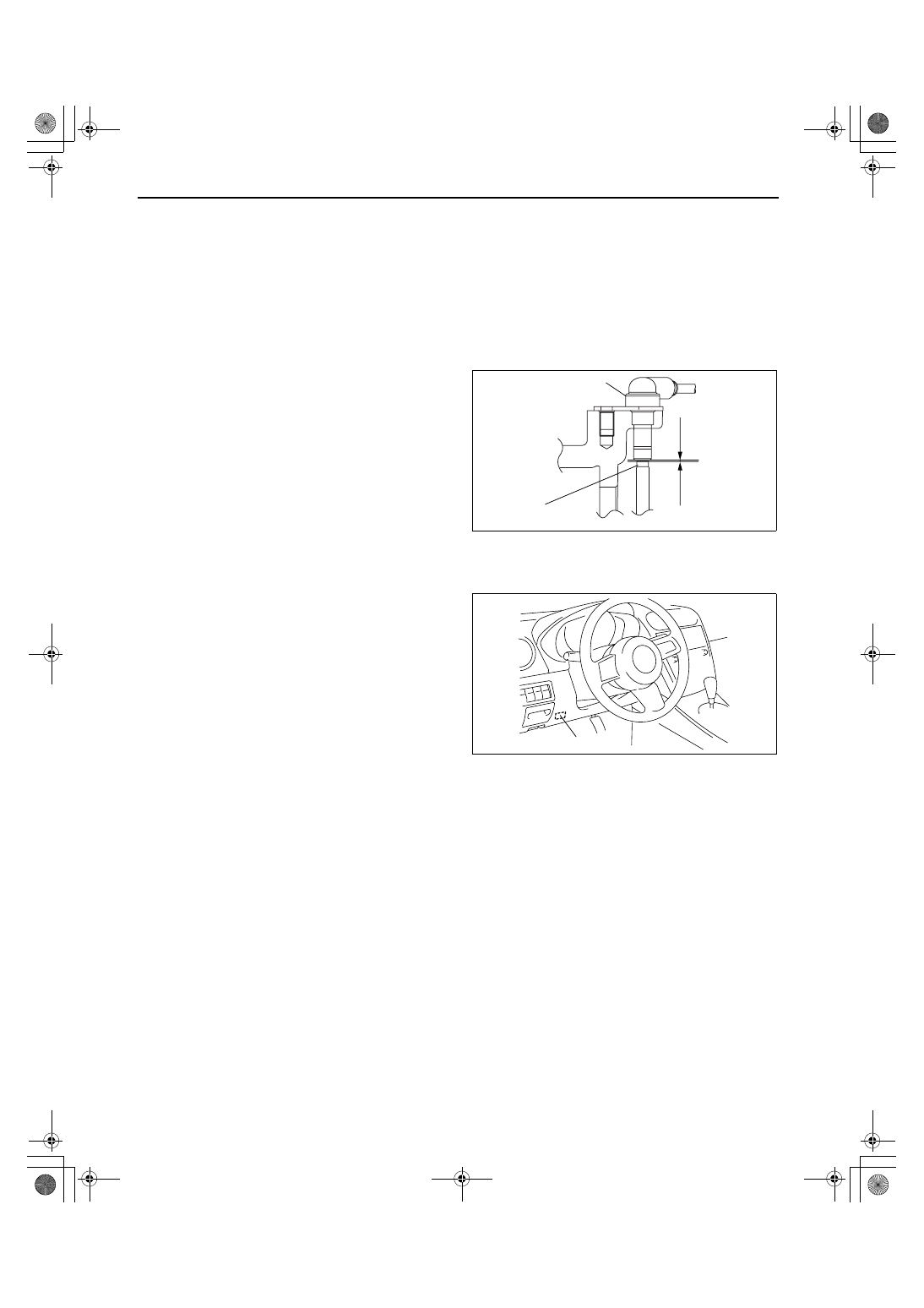

FRONT ABS WHEEL-SPEED SENSOR INSPECTION

id041500800400

Installation Visual Inspection

1. Inspect the following items:

• If there is any malfunction, replace the applicable part.

(1) Excessive play of the ABS wheel-speed sensor
(2) Deformation of the ABS wheel-speed sensor
(3) Deformation or damage of the ABS sensor rotor

Clearance Inspection

1. Verify the clearance between the ABS sensor rotor and the ABS wheel-speed sensor.

• If there is any malfunction, check for improper installation, and replace if necessary.

Clearance

• 0.7— 1.5 mm {0.028— 0.059 in}

Sensor Output Value Inspection

1. Turn the ignition switch off.
2. Connect the M-MDS to the DLC-2.
3. Select the following PIDs using the M-MDS:

• WSPD_LF

(LF ABS wheel-speed sensor)

• WSPD_RF

(RF ABS wheel-speed sensor)

4. Start the engine and drive the vehicle.
5. Verify that the display of the M-MDS shows the

same value as the speedometer.

• If there is any malfunction, replace the front

ABS wheel-speed sensor.

End Of Sie

WM: REAR ABS WHEEL-SPEED SENSOR

FRONT ABS WHEEL-
SPEED SENSOR

FRONT ABS
SENSOR ROTOR

CLEARANCE

acxuuw00001206

DLC-2

acxuuw00001207

1871-1U-06B(04-15).fm  12 ページ  2006年3月15日 水曜日 午前11時16分

DYNAMIC STABILITY CONTROL

04-15–13

04-15

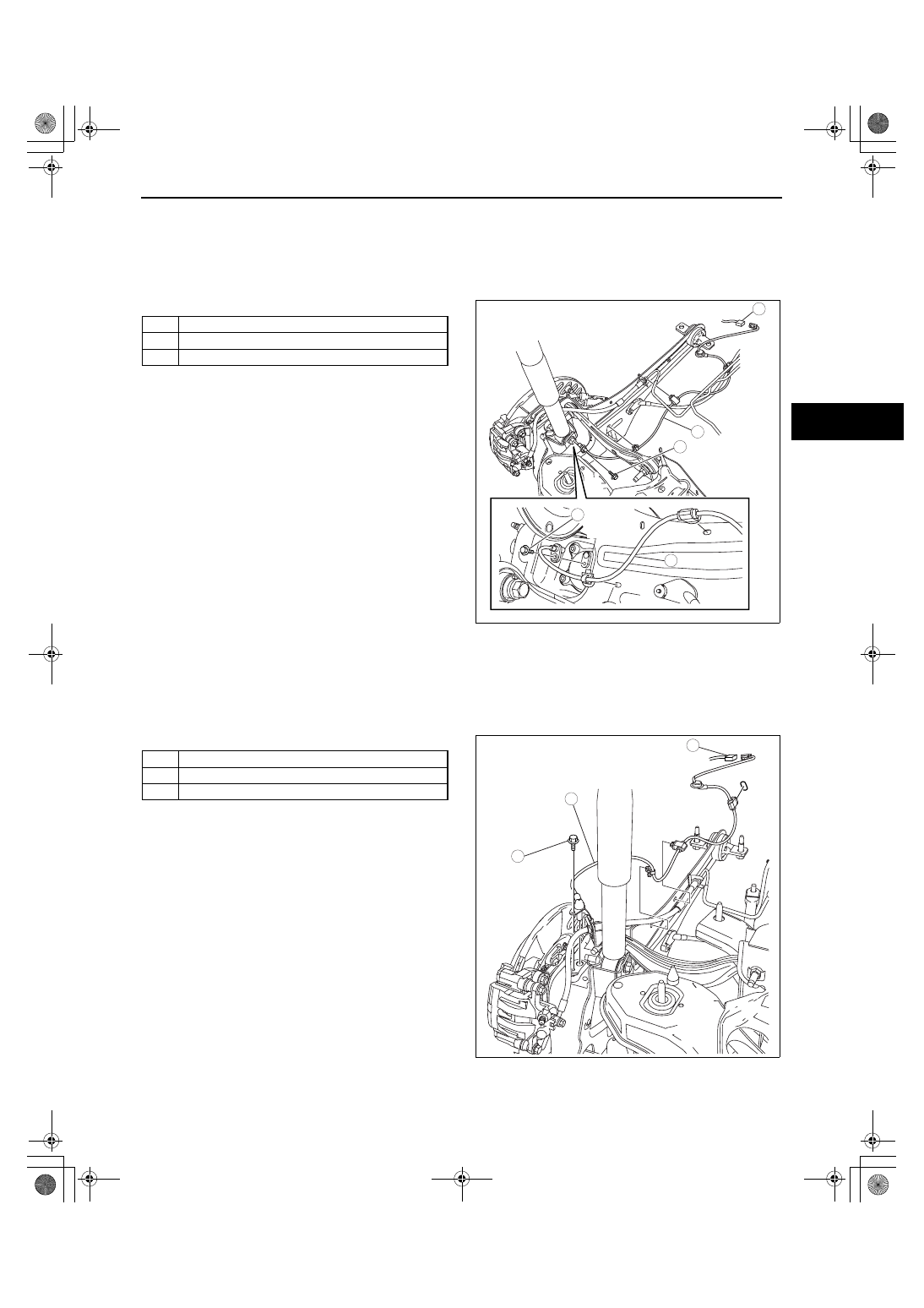

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION[2WD]

id0415008001a1

1. Remove the rear seat. (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
2. Rear scuff plate inner. (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
3. Remove the sub trunk box. (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
4. Remove the trunk end trim. (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)
5. Remove the trunk side trim. (See 09-17-24 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

End Of Sie

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION[AWD]

id0415008001a7

1. Remove the rear seat. (See 09-13-7 REAR SEAT REMOVAL/INSTALLATION.)
2. Rear scuff plate inner. (See 09-17-19 REAR SCUFF PLATE REMOVAL/INSTALLATION.)
3. Remove the sub trunk box. (See 09-17-25 SUB TRUNK BOX REMOVAL/INSTALLATION.)
4. Remove the trunk end trim. (See 09-17-24 TRUNK END TRIM REMOVAL/INSTALLATION.)
5. Remove the trunk side trim. (See 09-17-24 TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

End Of Sie

1

Rear ABS wheel-speed sensor connector

2

Bolt

3

Rear ABS wheel-speed sensor

7.8—10.8
{80—1110,
70—95}

2

1

3

7.8—10.8
{80—1110,
 70—95}

2

3

N·m {kgf·cm,in·lbf}

acxuuw00001876

1

Rear ABS wheel-speed sensor connector

2

Bolt

3

Rear ABS wheel-speed sensor

7.8—10.8 N·m
{80—110 kgf·cm,
 70—95 in·lbf}

2

3

1

acxuuw00001877

1871-1U-06B(04-15).fm  13 ページ  2006年3月15日 水曜日 午前11時16分

DYNAMIC STABILITY CONTROL

04-15–14

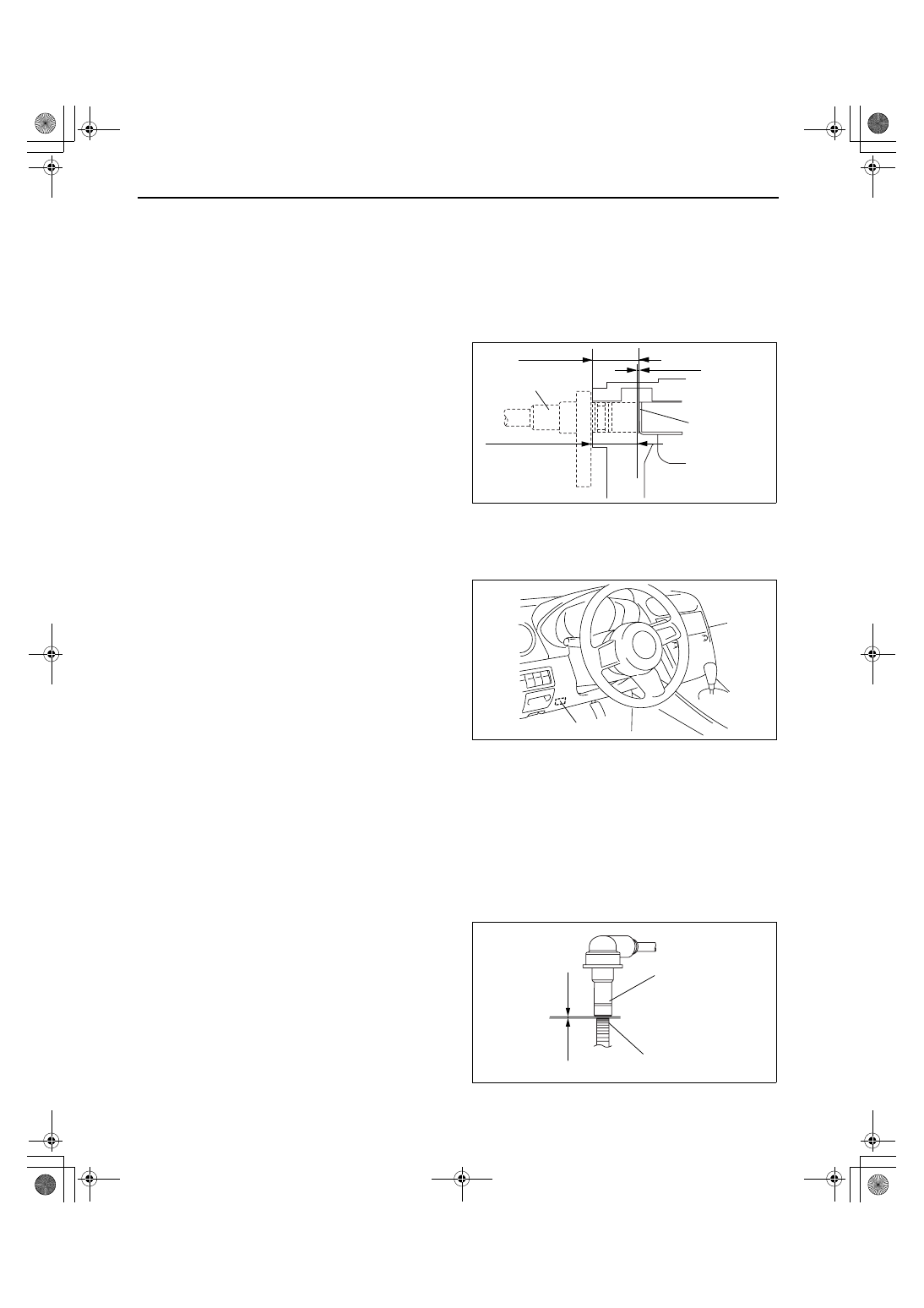

REAR ABS WHEEL-SPEED SENSOR INSPECTION[2WD]

id0415008002a1

Installation Visual Inspection

1. Inspect the following items:

• If there is any malfunction, replace the applicable part.

(1) Excessive play of the ABS wheel-speed sensor
(2) Deformation of the ABS wheel-speed sensor

Clearance Inspection

1. Remove the rear ABS wheel-speed sensor.
2. Measure the distance between the rear ABS

wheel-speed sensor installation surface and the
ABS sensor rotor. This is dimension A.

3. Calculate the clearance between the front ABS

wheel-speed sensor and the ABS sensor rotor
using the following formula:
Clearance (mm {in}) = A-15.0

4. Verify that the clearance between the ABS sensor

rotor and the rear ABS wheel-speed sensor is as
indicated below.

• If there is any malfunction, replace it.

Clearance

• 0.3— 1.1 mm {0.012— 0.043 in}

Sensor Output Value Inspection

1. Turn the ignition switch off.
2. Connect the M-MDS to the DLC-2.
3. Select the following PIDs using the M-MDS:

• WSPD_LR

(LR ABS wheel-speed sensor)

• WSPD_RR

(RR ABS wheel-speed sensor)

4. Start the engine and drive the vehicle.
5. Verify that the display of the M-MDS shows the

same value as the speedometer.

• If there is any malfunction, replace the rear

ABS wheel-speed sensor.

End Of Sie

REAR ABS WHEEL-SPEED SENSOR INSPECTION[AWD]

id0415008002a7

Installation Visual Inspection

1. Inspect the following items:

• If there is any malfunction, replace the applicable part.

(1) Excessive play of the ABS wheel-speed sensor
(2) Deformation of the ABS wheel-speed sensor
(3) Deformation or damage of the ABS sensor rotor

Clearance Inspection

1. Verify the clearance between the ABS sensor rotor and the ABS wheel-speed sensor.

• If there is any malfunction, check for improper installation, and replace if necessary.

Clearance

• 0.3— 1.1 mm {0.012— 0.043 in}

REAR ABS WHEEL-
SPEED SENSOR

REAR ABS
SENSOR ROTOR

15.0 mm {0.60 in}

CLEARANCE

A

acxuuw00001203

DLC-2

acxuuw00001204

REAR ABS WHEEL-
SPEED SENSOR

REAR ABS SENSOR ROTOR

CLEARANCE

acxuuw00001372

1871-1U-06B(04-15).fm  14 ページ  2006年3月15日 水曜日 午前11時16分
