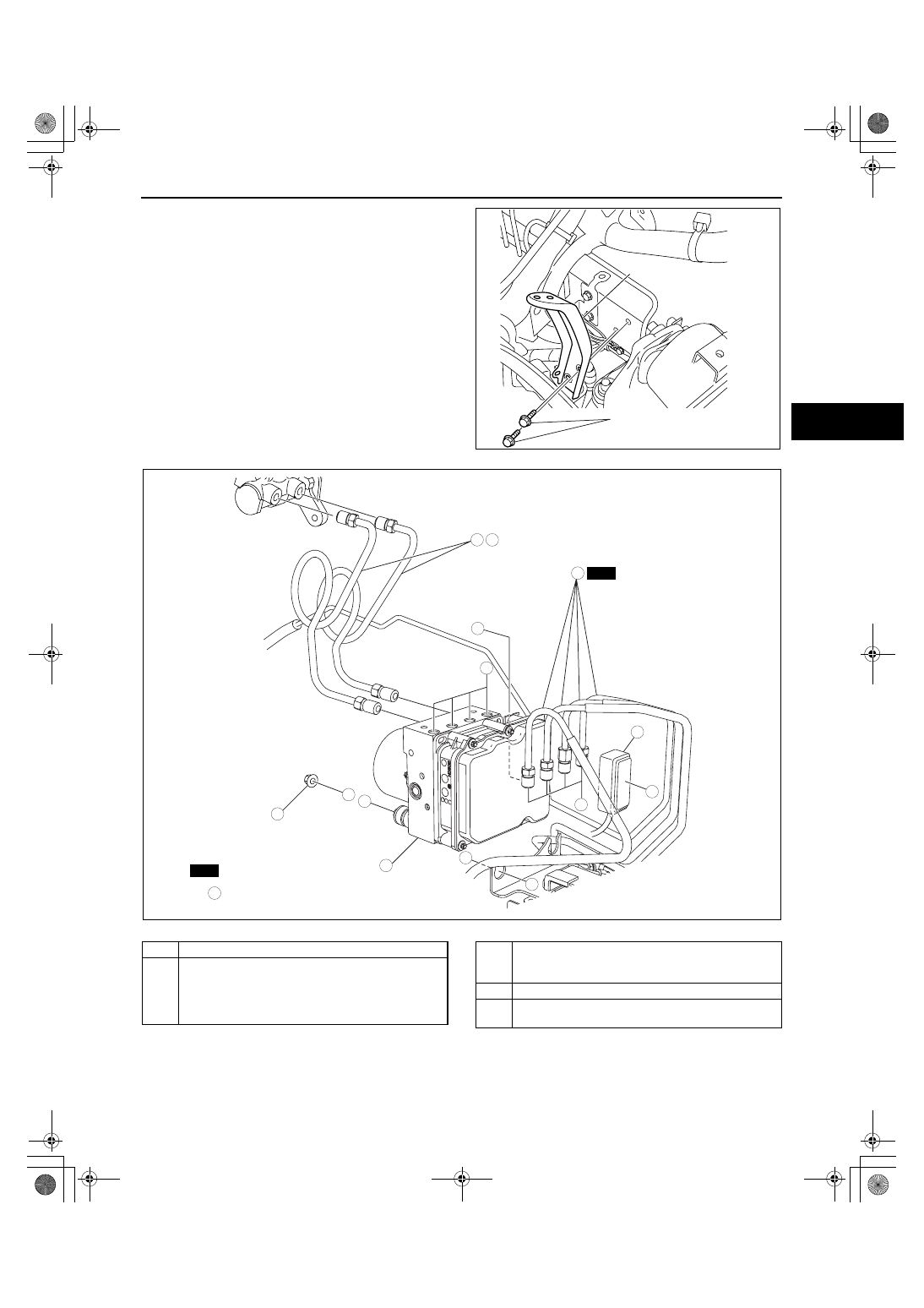

DYNAMIC STABILITY CONTROL

04-15–7

04-15

2. Remove the battery tray bracket as shown in the

figure.

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. After installation, add brake fluid, bleed the air,

and inspect for fluid leakage. (See 04-11-3 AIR
BLEEDING.)

6. After installation, perform the combined sensor

initialization procedure. (See 04-15-17
COMBINED SENSOR INITIALIZATION
PROCEDURE.)

7. After installation, perform the steering angle

sensor initialization procedure. (See 09-40-8
STEERING ANGLE SENSOR INITIALIZATION
PROCEDURE.)

.

BATTERY TRAY BRACKET

18—26 N·m
{1.9—2.6 kgf·m,
 14—19 ft·lbf}

acxuuw00001864

7.8—10.8
{80—110, 70—95}

N·m {kgf·cm, in·lbf}

D

C

B

B

A

A

5

2

4

C

D

12.8—21.6
{131—220,
114—191}

1

12.8—21.6
{131—220, 114—191}

3

SST

*

SST

*

49 0259 770B

COMMERCIALLY AVAILABLE FLARE NUT WRENCH
(FLARE NUT ACROSS FLAT 10 mm {0.39 in})

E

*

E

*

acxuuw00001878

1

Brake pipe (DSC HU/CM— master cylinder)

2

DSC HU/CM connector
(See 04-15-8 DSC HU/CM Connector Removal
Note.)
(See 04-15-9 DSC HU/CM Connector Installation
Note.)

3

Brake  pipe
(See 04-15-8 Brake Pipe Removal Note.)
(See 04-15-8 Brake Pipe Installation Note.)

4

Nut

5

DSC HU/CM
 (See 04-15-8 DSC HU/CM Installation Note.)

1871-1U-06B(04-15).fm  7 ページ  ２００６年３月１５日　水曜日　午前１１時１６分

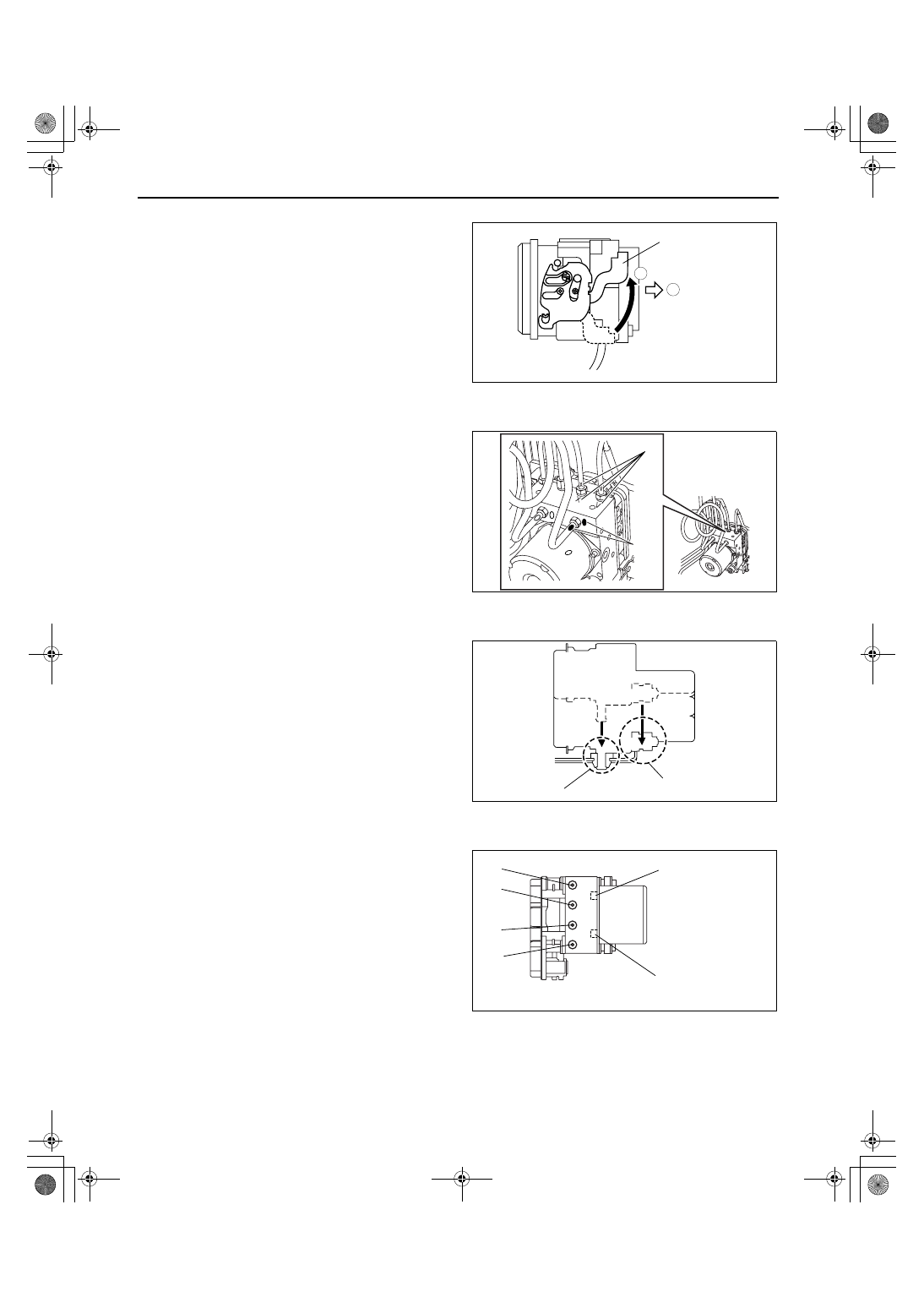

DYNAMIC STABILITY CONTROL

04-15–8

DSC HU/CM Connector Removal Note

1. Pull the lock lever up in the direction of the arrow.
2. Pull the connector toward the vehicle rear and

remove it.

Brake Pipe Removal Note

1. Place an alignment mark on the brake pipe and

DSC HU/CM.

2. Apply protective tape to the connector to prevent

brake fluid from entering.

3. Remove the brake pipe.

DSC HU/CM Installation Note

1. Install the rubber mount on DSC HU/CM section

A to the bracket as shown in the figure.

2. Install DSC HU/CM section B to the bracket.
3. Install the nuts to DSC HU/CM section A and

tighten them.

Brake Pipe Installation Note

1. Align the marks made before removal and install

the brake pipe to the DSC HU/CM and brake pipe
joint referring to the figure.

2. Tighten the brake pipe to the specified torque

using the SST (49 0259 770B) and the
commercially available flare nut wrench.

1

2

LOCK LEVER

acxuuw00001149

MARK

MARK

acxuuw00001879

A

B

acxuuw00001880

LF

RR

RF

LR

MASTER CYLINDER
(PRIMARY SIDE)

MASTER CYLINDER
(SECONDARY SIDE)

acxuuw00001210

1871-1U-06B(04-15).fm  8 ページ  ２００６年３月１５日　水曜日　午前１１時１６分

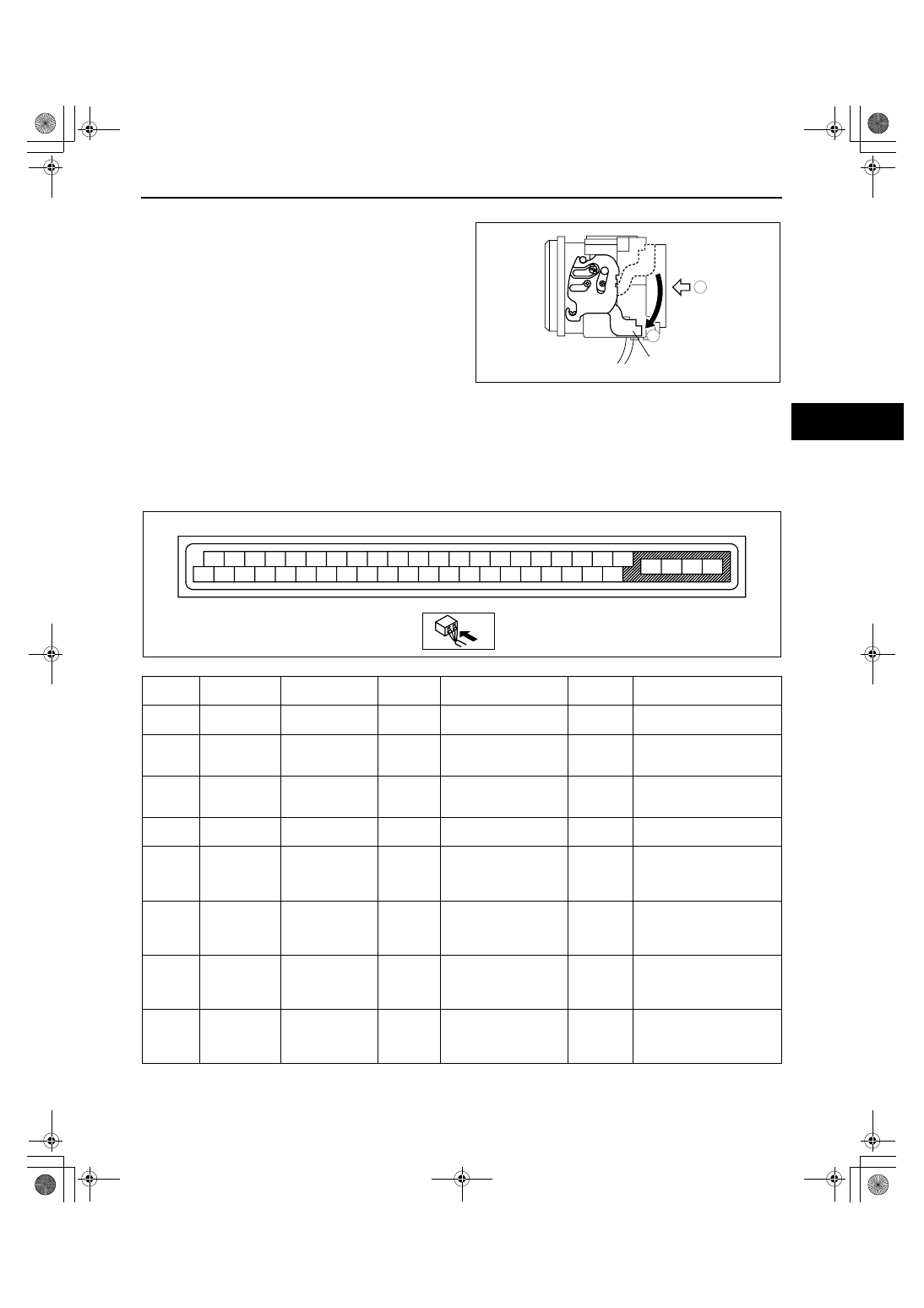

DYNAMIC STABILITY CONTROL

04-15–9

04-15

DSC HU/CM Connector Installation Note

1. After connecting the connector, verify that the lock

lever is completely pushed in.

End Of Sie

DSC HU/CM INSPECTION

id041500801100

1. Disconnect the DSC HU/CM connector. (See 04-15-6 DSC HU/CM REMOVAL/INSTALLATION.)
2. Connect the negative battery cable. (See 01-17-2 BATTERY REMOVAL/INSTALLATION[L3 WITH TC].)
3. Attach the tester lead to the DSC HU/CM harness side connector, then inspect voltage, continuity or resistance

according to the standard (reference value) on the table.

Standard (Reference Value)

1

2

LOCK LEVER

acxuuw00001152

Terminal

Signal name

Connected to

Measured

item

Measured terminal

(measured condition)

Standard

Inspection item(s)

A

Ground
(ABS motor)

Ground point

Continuity A— ground point

Continuity

detected

• Wiring harness (A—

ground point)

B

Power supply
(ABS motor
operation)

Battery

Voltage

Under any condition

B+

• Wiring harness (B—

battery)

C

Power supply
(solenoid
operation)

Battery

Voltage

Under any condition

B+

• Wiring harness (C—

battery)

D

Ground
(DSC system)

Ground point

Continuity D— ground point

Continuity

detected

• Wiring harness (D—

ground point)

E

LF wheel-
speed sensor
(signal)

LF ABS wheel-
speed sensor

Continuity

E— LF ABS wheel-
speed sensor
connector terminal B

Continuity

detected

• Wiring harness (E— LF

ABS wheel-speed
sensor connector
terminal B)

F

LF wheel-
speed sensor
(power
supply)

LF ABS wheel-
speed sensor

Continuity

F— LF ABS wheel-
speed sensor
connector terminal A

Continuity

detected

• Wiring harness (F— LF

ABS wheel-speed
sensor connector
terminal A)

G

LR wheel-
speed sensor
(power
supply)

LR ABS wheel-
speed sensor

Continuity

G— LR ABS wheel-
speed sensor
connector terminal B

Continuity

detected

• Wiring harness (G— LR

ABS wheel-speed
sensor connector
terminal B)

H

LR wheel-
speed sensor
(signal)

LR ABS wheel-
speed sensor

Continuity

H— LR ABS wheel-
speed sensor
connector terminal A

Continuity

detected

• Wiring harness (H— LR

ABS wheel-speed
sensor connector
terminal A)

A

B

C

D

F

I

L

O

R

U

X

E

H

Q

T

W

Z

G

J

M

P

S

V

Y

K

N

AA

AB

AC

AD

AE

AF

AG

AH

AI

AJ

AK

AL

AM

AN

AO

AP

AQ

AR

AS

AT

DSC HU/CM WIRING HARNESS-SIDE CONNECTOR

acxuuw00001211

1871-1U-06B(04-15).fm  9 ページ  ２００６年３月１５日　水曜日　午前１１時１６分

DYNAMIC STABILITY CONTROL

04-15–10

I

RR wheel-
speed sensor
(power
supply)

RR ABS wheel-
speed sensor

Continuity

I— RR ABS wheel-
speed sensor
connector terminal B

Continuity

detected

• Wiring harness (I— RR

ABS wheel-speed
sensor connector
terminal B)

J

Power supply
(system)

Ignition switch

Voltage

Ignition switch at ON

B+

• Wiring harness (J—

ignition switch)

Ignition switch is off.

1 V or less

—

K

— —

—  —  —

—

L

RR wheel-
speed sensor
(signal)

RR ABS wheel-
speed sensor

Continuity

L— RR ABS wheel-
speed sensor
connector terminal A

Continuity

detected

• Wiring harness (L— RR

ABS wheel-speed
sensor connector
terminal A)

M

RF wheel-
speed sensor
(power
supply)

RF ABS wheel-
speed sensor

Continuity

M— RF ABS wheel-
speed sensor
connector terminal A

Continuity

detected

• Wiring harness (M— RF

ABS wheel-speed
sensor connector
terminal A)

N

Brake switch

Brake switch

Voltage

N— ground point
(Brake pedal
depressed)

B+

• Wiring harness (N—

brake switch)

• Brake switch

N— ground point
(Brake pedal not
depressed)

1 V or less

—

O

RF wheel-
speed sensor
(signal)

RF ABS wheel-
speed sensor

Continuity

O— RF ABS wheel-
speed sensor
connector terminal B

Continuity

detected

• Wiring harness (O— RF

ABS wheel-speed
sensor connector
terminal B)

P

TCS OFF
switch

TCS OFF switch

Continuity

P— TCS OFF switch
connector terminal A

Continuity

detected

• Wiring harness (P—

TCS OFF switch
connector terminal A)

Q

— —

—  —  —

—

R

— —

—  —  —

—

S

— —

—  —  —

—

T

— —

—  —  —

—

U

— —

—  —  —

—

V

— —

—  —  —

—

W

CAN_L

DLC-2 (CAN_L)

Continuity

W— DLC-2 terminal
CAN_L

Continuity

detected

• Wiring harness (W—

DLC-2 terminal CAN_L)

X

CAN_H

DLC-2 (CAN_H)

Continuity

X— DLC-2 terminal
CAN_H

Continuity

detected

• Wiring harness (X—

DLC-2 terminal CAN_H)

Y

Ground
(combined
sensor)

Combined sensor Continuity

Y— combined sensor
connector terminal F

Continuity

detected

• Wiring harness (Y—

combined sensor
connector terminal F)

Z

— —

—  —  —

—

AA

Yaw rate
(signal)

Combined sensor Continuity

AA— combined sensor
connector terminal B

Continuity

detected

• Wiring harness (AA—

combined sensor
connector terminal B)

AB

Yaw rate (test
signal)

Combined sensor Continuity

AB— combined sensor
connector terminal C

Continuity

detected

• Wiring harness (AB—

combined sensor
connector terminal C)

AC

— —

—  —  —

—

AD

— —

—  —  —

—

AE

Yaw rate
(reference
signal)

Combined sensor Continuity

AE— combined sensor
connector terminal A

Continuity

detected

• Wiring harness (AE—

combined sensor
connector terminal A)

AF

— —

—  —  —

—

AG

— —

—  —  —

—

AH

— —

—  —  —

—

AI

Lateral-G
(signal)

Combined sensor Continuity

AI— combined sensor
connector terminal D

Continuity

detected

• Wiring harness (AI—

combined sensor
connector terminal D)

Terminal

Signal name

Connected to

Measured

item

Measured terminal

(measured condition)

Standard

Inspection item(s)
