WHEEL ALIGNMENT

02-11–1

02-11

02-11

WHEEL ALIGNMENT

WHEEL ALIGNMENT

PRE-INSPECTION  . . . . . . . . . . . . . . . .  02-11–1

FRONT WHEEL ALIGNMENT  . . . . . . . .  02-11–2

Steering Angle Adjustment . . . . . . . . . . 02-11–2
Camber and Caster Adjustment . . . . . . 02-11–3
Total Toe-in Adjustment . . . . . . . . . . . . . 02-11–3

REAR WHEEL ALIGNMENT . . . . . . . . . . 02-11–4

Total Toe-in Adjustment . . . . . . . . . . . . . 02-11–4

End of Toc

WM: SUSPENSION

WHEEL ALIGNMENT PRE-INSPECTION

id021100800100

1. Park the vehicle on a level ground, in an unloaded condition*, and with the wheels straight forward.

*

: Unloaded condition.....Fuel tank is full. Engine coolant and engine oil are at specified level. Spare tire, jack

and tools are in designated position.

2. Inspect the tire pressure.

• Adjust to the recommended pressure if necessary. (See 02-50-1 SUSPENSION TECHNICAL DATA.)

3. Inspect the wheel bearing play.

• Correct if necessary. (See 03-11-2 WHEEL HUB, STEERING KNUCKLE INSPECTION.) (See 03-12-2

WHEEL HUB COMPONENT INSPECTION.)

4. Inspect the wheel runout.

• Correct if necessary. (See 02-50-1 SUSPENSION TECHNICAL DATA.)

5. Rock the vehicle, and verify that there is no looseness in the steering wheel joint and suspension ball joint.
6. Rock the vehicle, and verify that the shock absorber operates properly.

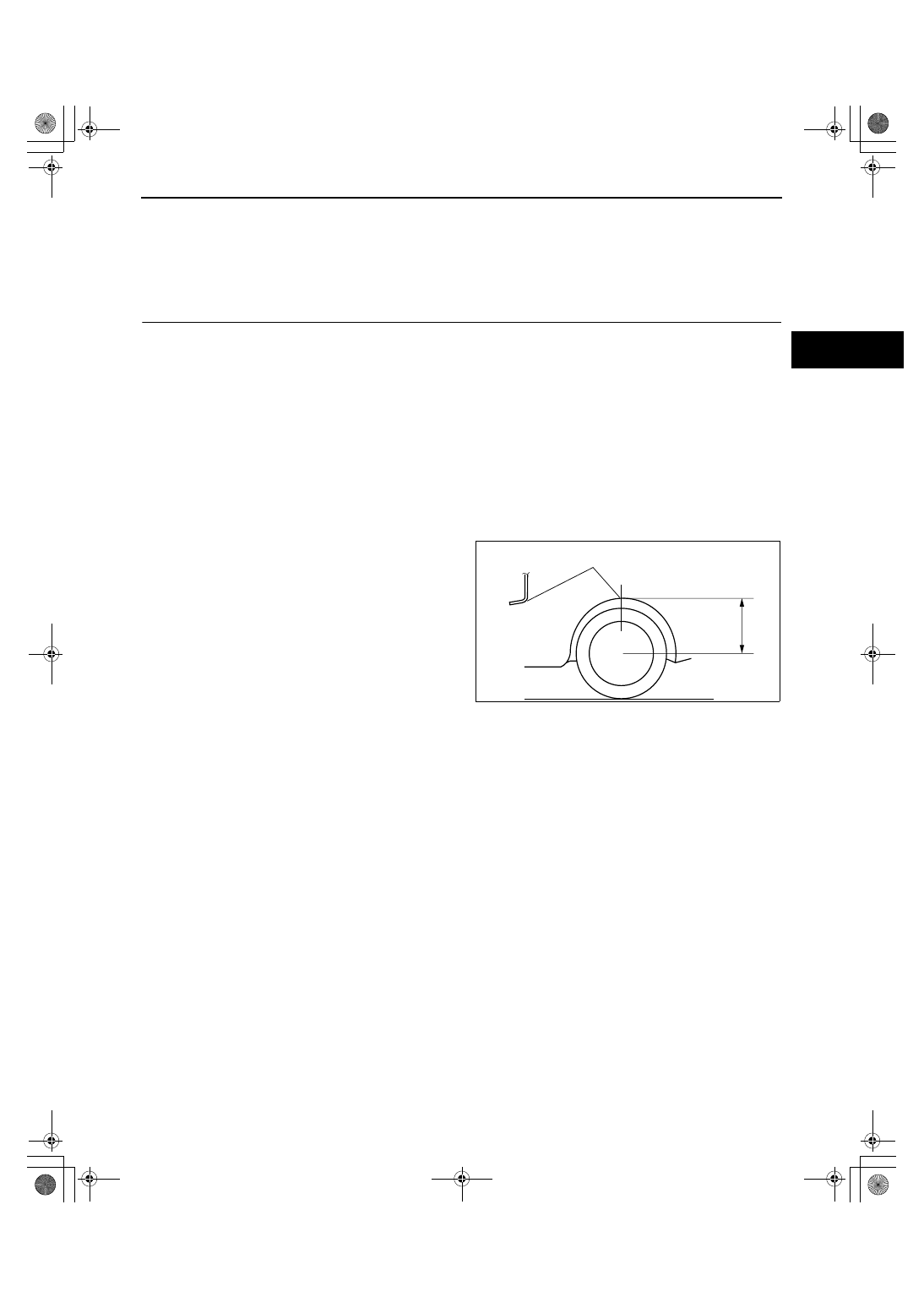

7. Measure height H from the center of the wheel to

the fender brim.

8. Verify that the difference between the left and

right dimension H is within the specification.

• If it exceeds the specification, repeat the Step

2— 7.

Standard

10 mm {0.39 in} or less

End Of Sie

WM: FRONT SUSPENSION

FENDER BRIM
MEASUREMENT POINT

H

A

A

SEC. A-A

acxuuw00001033

1871-1U-06B(02-11).fm  1 ページ  2006年3月15日 水曜日 午前10時59分

WHEEL ALIGNMENT

02-11–2

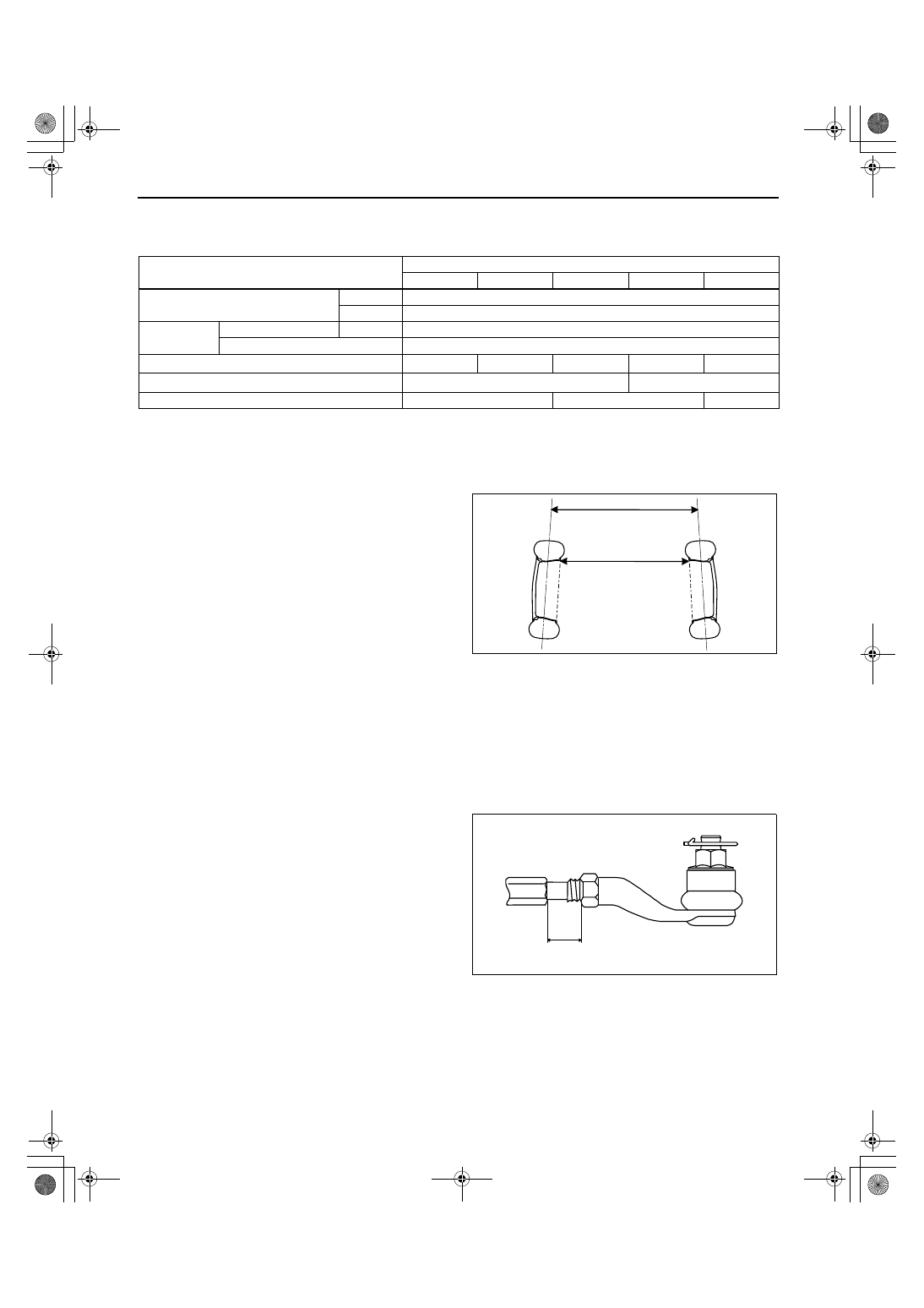

FRONT WHEEL ALIGNMENT

id021100800200

Front wheel alignment (Unloaded)

*1

*

1

: Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.

*

2

: Difference between left and right must not exceed 1

°30.

Note
Total toe-in measuring position

• Tire: A indicated in the figure (between the

center of the tires)

• Rim inner: B indicated in the figure (between

the inner side of the rims)

Steering Angle Adjustment

1. Jack up the front of the vehicle and support it on safety stands.
2. Loosen the locknut of the tie-rod end.
3. Remove the rack boot clamp.
4. Rotate the tie rod and adjust the steering angle.

Note

• The travel distance of the right and left tie rods should be the same.

5. Rotate the tie rod and adjust so that the length L

shown in the figure is within the specification.

Dimension L (reference value)

9.5— 23.5 mm {0.38— 0.92 in}

Difference between left and right

3 mm {0.12 in} or less

6. Tighten the locknut of the tie-rod end.

Tightening torque

68.6— 98.0 N·m {7.00— 9.99 kgf·m, 50.6—

72.2 ft·lbf}

7. Correct the rack boot twists.
8. Install and fix the rack boot clamp.
9. After adjusting the steering angle, always inspect and adjust the toe angle.

Item

Fuel gauge indication

Empty

1/4

1/2

3/4

Full

Maximum steering angle
[Tolerance

±3°]

Inner

36

°06′

Outer

30

°54′

Total toe-in

[Tolerance

±2 {±0.08}]

(mm {in})

0 {0.00}

(degree)

0

°00′±0°09′

Caster angle

*2

 [Tolerance

±1°]

3

°02′

3

°05′

3

°08′

3

°10′

3

°12′

Camber angle

*2

 [Tolerance

±1°]

−0°19′

−0°20′

Steering axis inclination (Reference value)

11

°42′

11

°43′

11

°44′

A

B

acxuuw00000347

L

acxuuw00000348

1871-1U-06B(02-11).fm  2 ページ  2006年3月15日 水曜日 午前10時59分

WHEEL ALIGNMENT

02-11–3

02-11

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

Revised 3/2007 (Ref. No. R051/07)

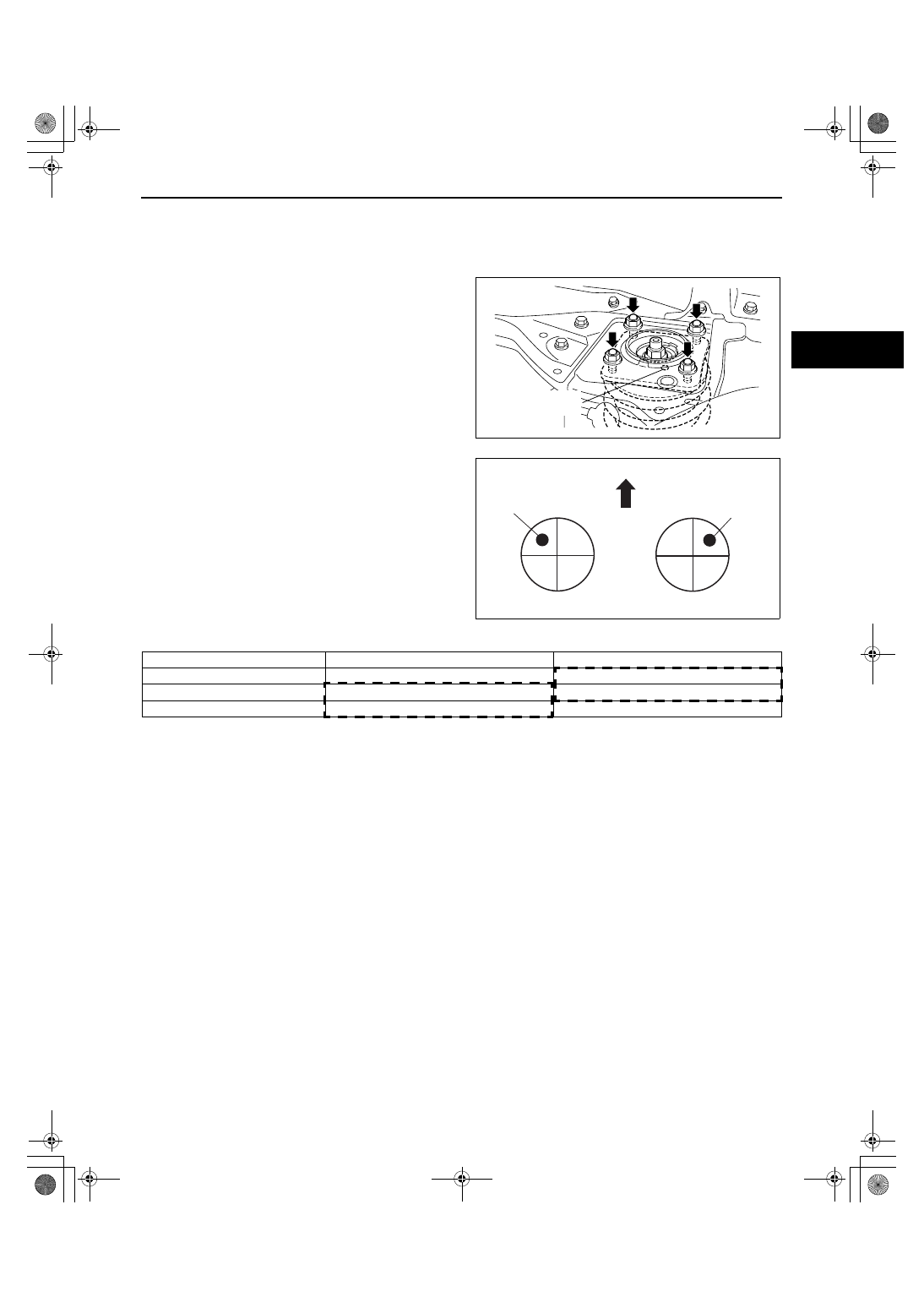

Camber and Caster Adjustment

1. Remove the windshield wiper arm. (See 09-19-3 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

2. Remove the cowl grille. (See 09-16-11 COWL GRILLE REMOVAL/INSTALLATION.)
3. Jack up the front of the vehicle and support it on safety stands.
4. Remove the mounting rubber nuts.

5. Push the shock absorber and coil spring

component downward, and turn the direction
indicator to the desired position.

Adjustment value from original position

6. Install the shock absorber and coil spring, then tighten the mounting rubber nuts to the specified torque.

Tightening torque

46.1— 62.7 N·m {4.71— 6.39 kgf·m, 34.1— 46.2 ft·lbf}

7. Install the cowl grille. (See 09-16-11 COWL GRILLE REMOVAL/INSTALLATION.)
8. Install the windshield wiper arm. (See 09-19-3 WINDSHIELD WIPER ARM AND BLADE REMOVAL/

INSTALLATION.)

Total Toe-in Adjustment

1. Jack up the front of the vehicle and support it on safety stands.
2. Loosen the locknut of the tie-rod end.
3. Remove the rack boot clamp.
4. Adjust the total toe-in by rotating each tie rod (left and right) in the opposite directions by the same amount

respectively.

Note

• Toe angle changes by approx. 6 mm {0.2 in} per one rotation of the tie rod for one wheel.

• Each tie rod has a right-hand thread. When increasing the toe-in angle, rotate the right tie rod toward the

front of the vehicle and rotate the left tie rod toward the rear of the vehicle by the same amount.

5. Tighten the locknut of the tie-rod end.

Tightening torque

68.6— 98.0 N·m {7.00— 9.99 kgf·m, 50.6— 72.2 ft·lbf}

6. Verify that the rack boot does not have any twisting and install the rack boot clamp.

End Of Sie

DIRECTION
INDICATOR

acxuuw00002203

VEHICLE OF FRONT

A

B

C

A

B

C

DIRECTION
INDICATOR

DIRECTION
INDICATOR

LEFT SIDE

RIGHT SIDE

acxuuw00001947

Direction indicator position

Camber angle

Caster angle

A

0

°

-0

°22′

B

+0

°22′

-0

°22′

C

+0

°22′

0

°

WHEEL ALIGNMENT

02-11–4

2007 Mazda CX-7 Workshop Manual (1871–1U–06B)

WM: REAR SUSPENSION

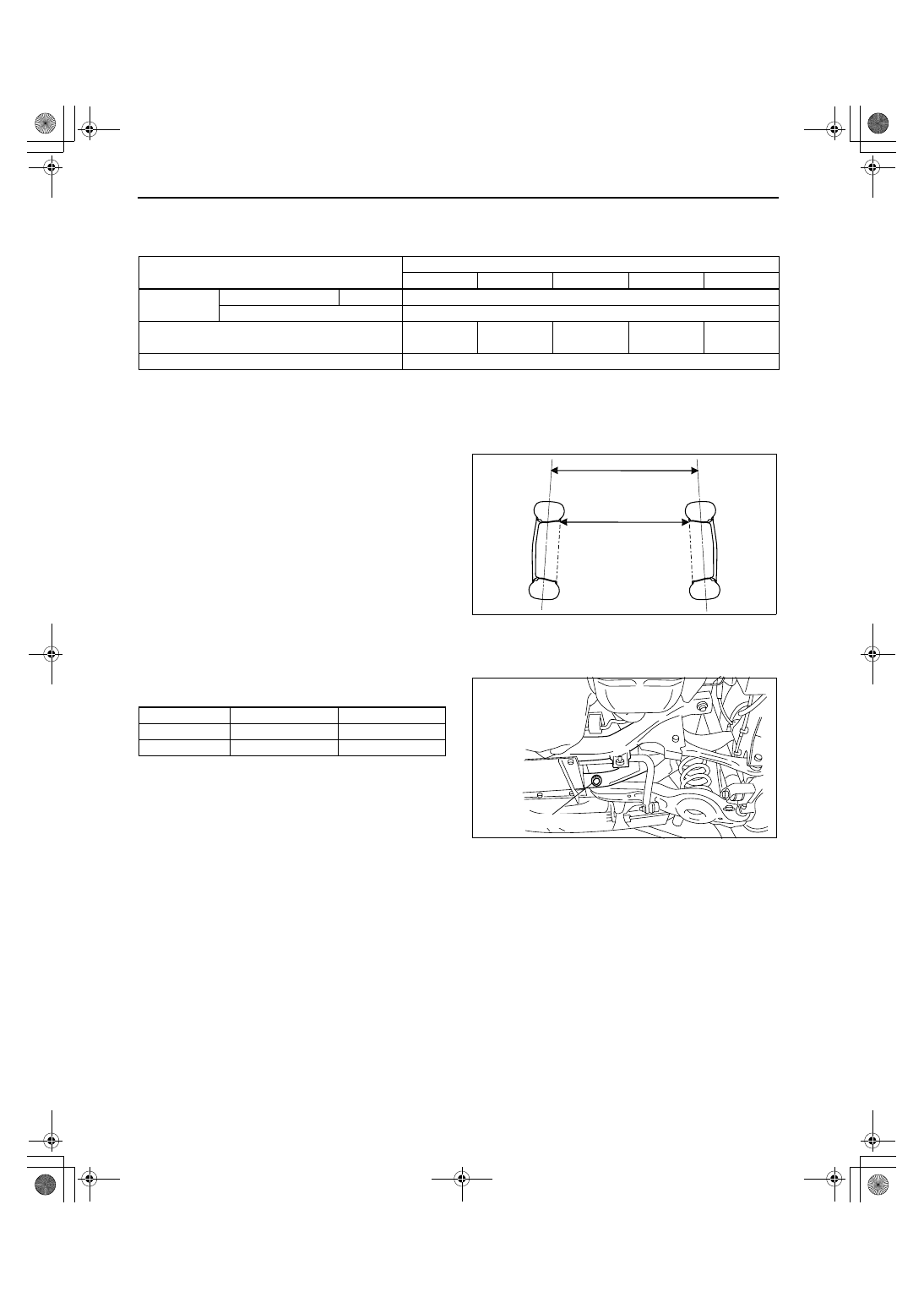

REAR WHEEL ALIGNMENT

id021100800300

Rear wheel alignment (Unloaded)

*1



*

1

: Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.

*

2

: Difference between left and right must not exceed 1

°30.

Note
Total toe-in measuring position

• Tire: A indicated in the figure (between the

center of the tires)

• Rim inner: B indicated in the figure (between

the inner side of the rims)

Total Toe-in Adjustment

1. Loosen the securing nut of the adjusting cam bolt.
2. Rotate the adjusting cam bolt in either direction to

adjust the toe-in.

3. Tighten the nut.

Tightening torque

80— 100 N·m {8.2— 10.1 kgf·m, 59.1— 73.7

ft·lbf}

End Of Sie

Item

Fuel gauge indication

Empty

1/4

1/2

3/4

Full

Total toe-in

[Tolerance

±4 {±0.16}]

(mm {in})

 2 {0.08}

(degree)

0

°10′±0°20′

Camber angle

*2

(Reference value)

[Tolerance

±1°]

−0°51′

−0°54′

−0°57′

−1°00′

−1°03′

Thrust angle (Reference value) [Tolerance

±0°48′]

0

°

A

B

acxuuw00001034

Left wheel

Right wheel

Toe-out direction

Counterclockwise

Clockwise

Toe-in direction

Clockwise

Counterclockwise

ADJUSTING CAM BOLT

LEFT WHEEL

acxuuw00001035
