SYMPTOM TROUBLESHOOTING

02-03–9

02-03

When a replaced wheel unit and a registered wheel unit malfunction

When two replaced wheel units malfunction

When two replaced wheel units and a registered wheel unit malfunction

When three replaced wheel units malfunction

End Of Sie

WU_1

WU_2

WU_3

WU_4

ID Number (Stored)

0xAAAAAAAA

0xBBBBBBBB

0xCCCCCCCC

0xDDDDDDDD

ID Number (Candidate)

0xEEEEEEEE

0xFFFFFFFF

0x00000000

0x00000000

Tire Pressure (Stored)

0 kPa

0 kPa

0 kPa

0 kPa

Tire Pressure (Candidate)

eee kPa

fff kPa

0 kPa

0 kPa

WU_1

WU_2

WU_3

WU_4

ID Number (Stored)

0xAAAAAAAA

0xBBBBBBBB

0xCCCCCCCC

0xDDDDDDDD

ID Number (Candidate)

0xEEEEEEEE

0x00000000

0x00000000

0x00000000

Tire Pressure (Stored)

aaa kPa

0 kPa

0 kPa

0 kPa

Tire Pressure (Candidate)

eee kPa

0 kPa

0 kPa

0 kPa

WU_1

WU_2

WU_3

WU_4

ID Number (Stored)

0xAAAAAAAA

0xBBBBBBBB

0xCCCCCCCC

0xDDDDDDDD

ID Number (Candidate)

0xEEEEEEEE

0x00000000

0x00000000

0x00000000

Tire Pressure (Stored)

0 kPa

0 kPa

0 kPa

0 kPa

Tire Pressure (Candidate)

eee kPa

0 kPa

0 kPa

0 kPa

WU_1

WU_2

WU_3

WU_4

ID Number (Stored)

0xAAAAAAAA

0xBBBBBBBB

0xCCCCCCCC

0xDDDDDDDD

ID Number (Candidate)

0x00000000

0x00000000

0x00000000

0x00000000

Tire Pressure (Stored)

aaa kPa

0 kPa

0 kPa

0 kPa

Tire Pressure (Candidate)

0 kPa

0 kPa

0 kPa

0 kPa

1871-1U-06B(02-03).fm  9 ページ  2006年3月15日 水曜日 午前10時57分

GENERAL PROCEDURES

02-10–1

02-10

02-10

GENERAL PROCEDURES

PRECAUTION (SUSPENSION). . . . . . . .  02-10–1

Wheels and Tires

Removal/Installation. . . . . . . . . . . . . .  02-10–1

Suspension Links

Removal/Installation. . . . . . . . . . . . . .  02-10–1

Brake Lines

Disconnection/Connection  . . . . . . . . . 02-10–1

Power Steering Components

Removal/Installation  . . . . . . . . . . . . . . 02-10–1

End of Toc

WM: SUSPENSION

PRECAUTION (SUSPENSION)

id021000800100

Wheels and Tires Removal/Installation

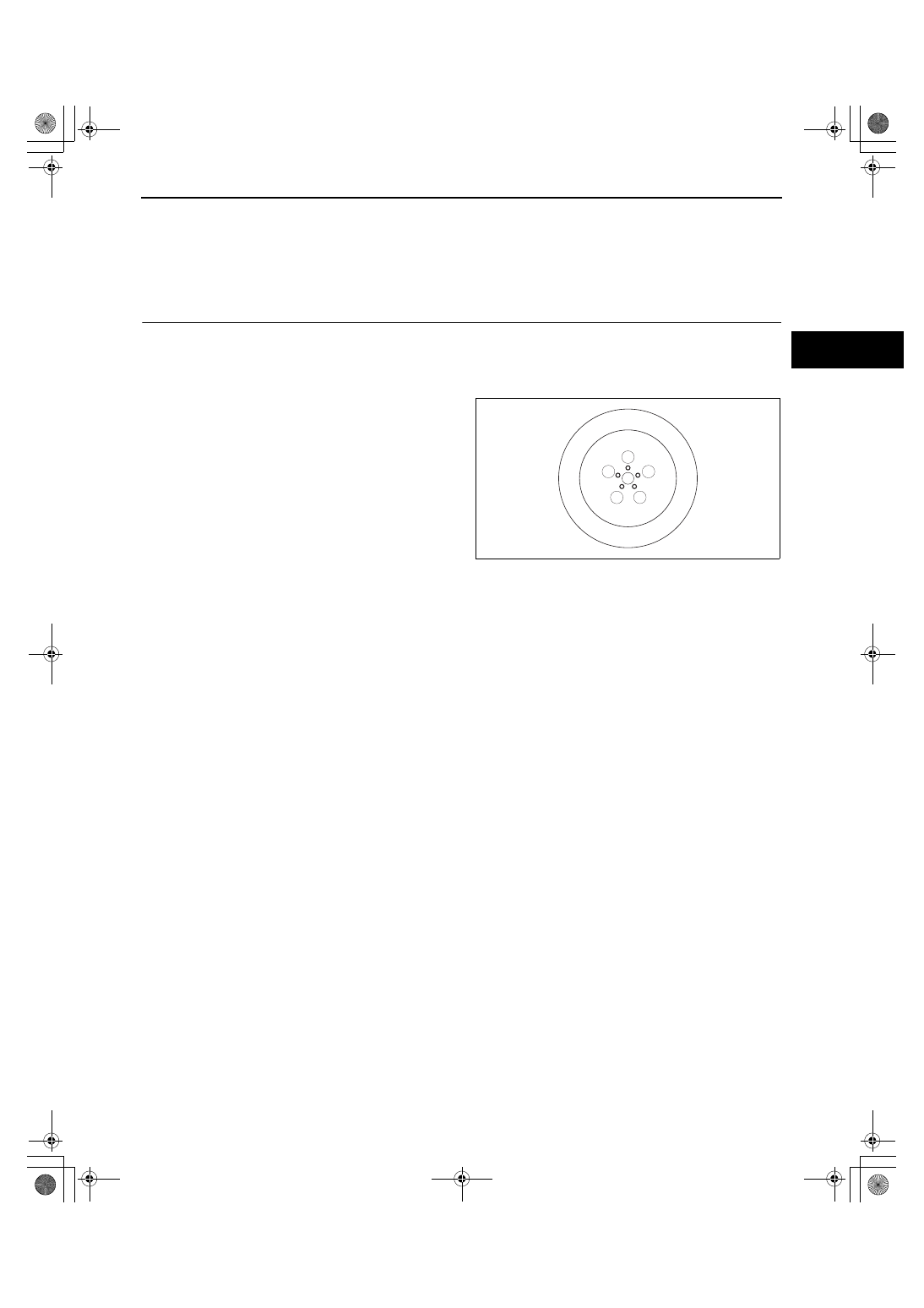

1. When a wheel is installed, tighten it to

88.2— 117.6 N·m {9.00— 11.99 kgf·m, 65.06—
86.73 ft·lbf}.

Suspension Links Removal/Installation

1. Tighten any part of the suspension that uses rubber bushings only after the vehicle has been lowered to the

ground and unloaded.

Note

• Unloaded: Fuel tank is full. Engine coolant and engine oil are at specified levels. Spare tire, jack and tools

are in designated position.

Brake Lines Disconnection/Connection

Caution

• Brake fluid will damage painted surfaces. If brake fluid does get on a painted surface, wipe it off

immediately.

1. Tighten the brake pipe flare nut using the SST (49 0259 770B). Be sure to modify the brake pipe flare nut

tightening torque to allow for use of a torque wrench-SST combination.
 (See 00-00-13 SERVICE CAUTIONS.)

2. If any brake line has been disconnected anytime during the procedure, add brake fluid, bleed the brakes, and

inspect for leakage after the procedure has been completed.

Power Steering Components Removal/Installation

1. If any steering fluid line has been disconnected, perform the following after installation of the power steering

components.

— Power steering fluid amount inspection

— Power steering fluid leakage inspection

— Air bleeding

Power steering fluid

ATF (M-

III or M-V, or equivalent (e.g. Dexron®II))

End Of Sie
