CHARGING SYSTEM [L3 WITH TC]

01-17–11

01-17

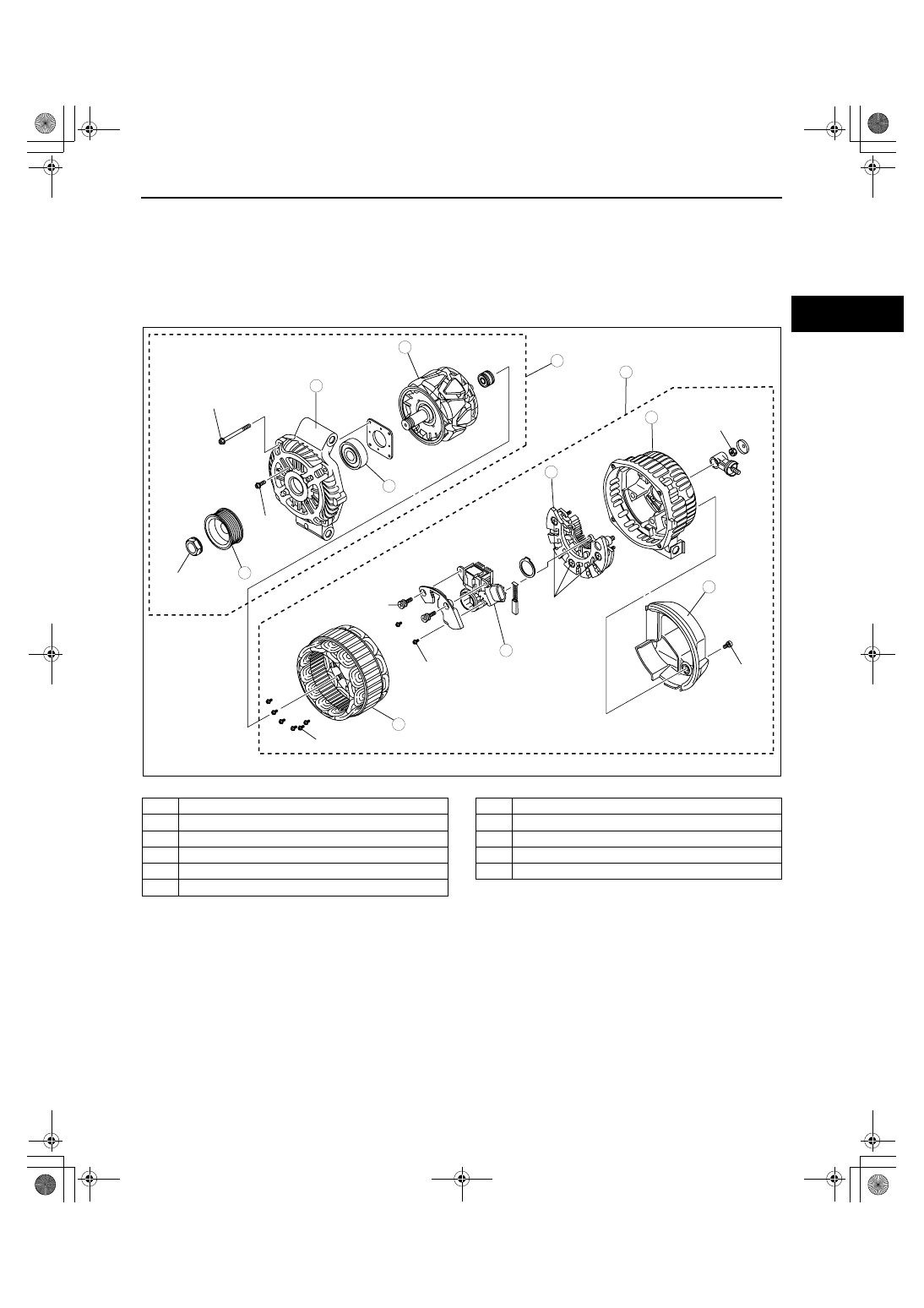

GENERATOR DISASSEMBLY/ASSEMBLY[L3 WITH TC]

id011739800400

Caution

• Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive

heat.

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

.

End Of Sie

9

8

4

3

N·m {kgf·cm, in·lbf}

6.9—10.8
{70—110, 61—96}

1.5—2.5
{15—25, 13—22}

1.5—2.5
{15—25, 13—22}

2.9—4.9
{30—50,
26—43}

2.9—4.9
{30—50,
26—43}

2.9—4.9
{30—50,
26—43}

3.5—5.3
{35—55, 31—47}

2.9—4.9
{30—50,
26—43}

2

98—137 N·m
{10.0—13.9 kgf·m,
72—101 ft·lbf}

1

5

6

7

10

11

acxuuw00002030

1

Rotor component

2

Stator coil component

3

Pulley

4

Rotor

5

Bearing

6

Front cover

7

Generator heat insulator

8

Stator coil

9

Rectifier

10

Brush holder

11

Rear bracket

1871-1U-06B(01-17).fm  11 ページ  2006年3月15日 水曜日 午前10時49分

IGNITION SYSTEM [L3 WITH TC]

01-18–1

01-18

01-18

IGNITION SYSTEM [L3 WITH TC]

IGNITION SYSTEM LOCATION INDEX

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-18–1

IGNITION COIL

 REMOVAL/INSTALLATION
[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-18–2

IGNITION COIL INSPECTION

[L3 WITH TC]  . . . . . . . . . . . . . . . . . . . .  01-18–2

Ignition Coil Inspection . . . . . . . . . . . . .  01-18–2
Ignition Coil with Built-in Igniter

 Inspection . . . . . . . . . . . . . . . . . . . . .  01-18–2

SPARK PLUG

REMOVAL/INSTALLATION
[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-18–3

SPARK PLUG INSPECTION

[L3 WITH TC] . . . . . . . . . . . . . . . . . . . . . 01-18–3

Specification . . . . . . . . . . . . . . . . . . . . . 01-18–3
Plug Gap Inspection  . . . . . . . . . . . . . . . 01-18–3
Cleaning  . . . . . . . . . . . . . . . . . . . . . . . . 01-18–3
Visual Inspection . . . . . . . . . . . . . . . . . . 01-18–4
Resistance Inspection . . . . . . . . . . . . . . 01-18–4

End of Toc

WM: IGNITION SYSTEM

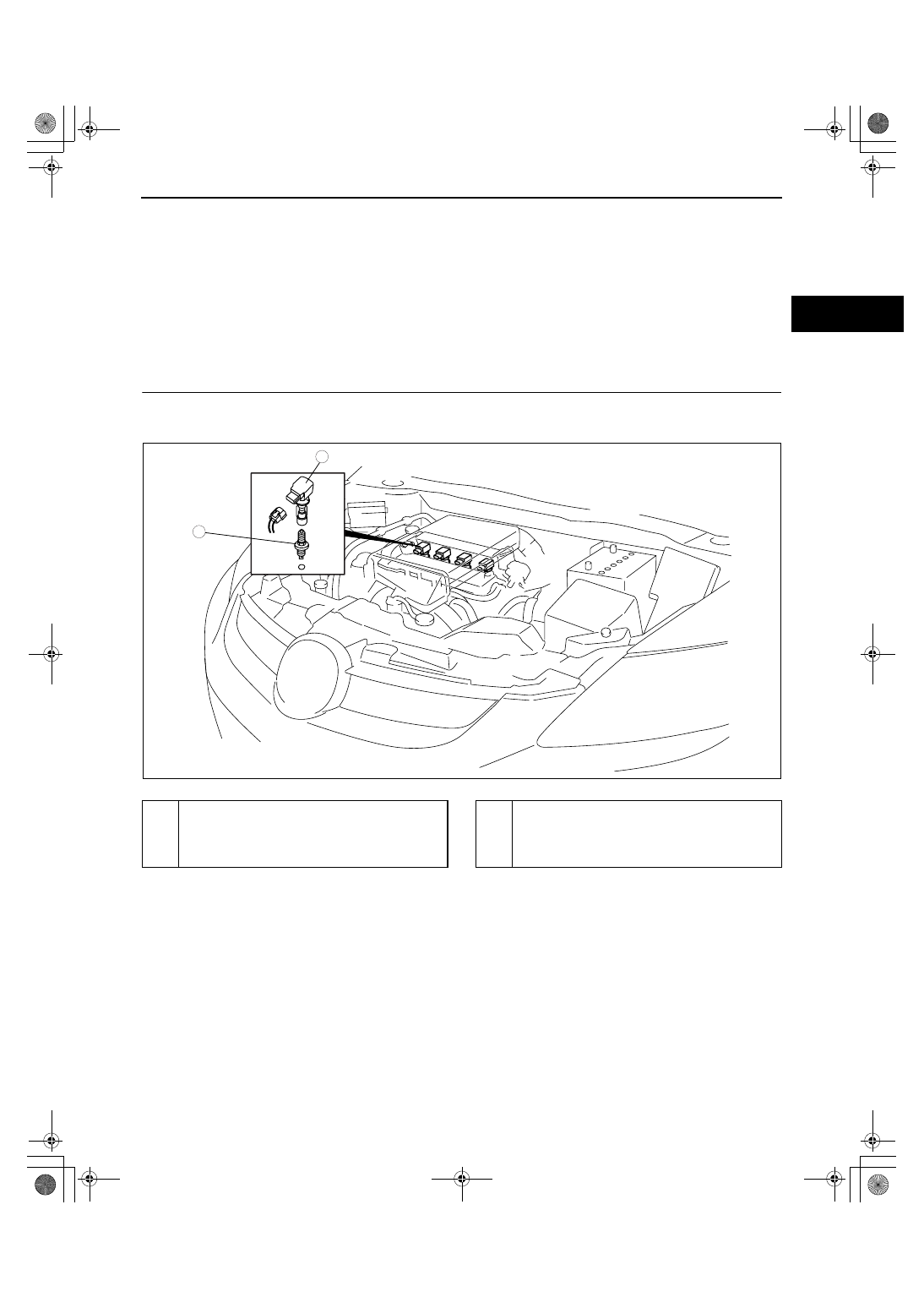

IGNITION SYSTEM LOCATION INDEX[L3 WITH TC]

id011839800100

.

End Of Sie

WM: IGNITION COIL

1

2

acxuuw00002034

1

Ignition coil
(See 01-18-2 IGNITION COIL REMOVAL/
INSTALLATION[L3 WITH TC].)
(See 01-18-2 IGNITION COIL INSPECTION[L3
WITH TC].)

2

Spark plug
(See 01-18-3 SPARK PLUG REMOVAL/
INSTALLATION[L3 WITH TC].)
(See 01-18-3 SPARK PLUG INSPECTION[L3 WITH
TC].)

1871-1U-06B(01-18).fm  1 ページ  2006年3月15日 水曜日 午前10時51分

IGNITION SYSTEM [L3 WITH TC]

01-18–2

IGNITION COIL REMOVAL/INSTALLATION[L3 WITH TC]

id011839800200

1. Disconnect the negative battery cable.
2. Remove the charge air cooler. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal..

End Of Sie

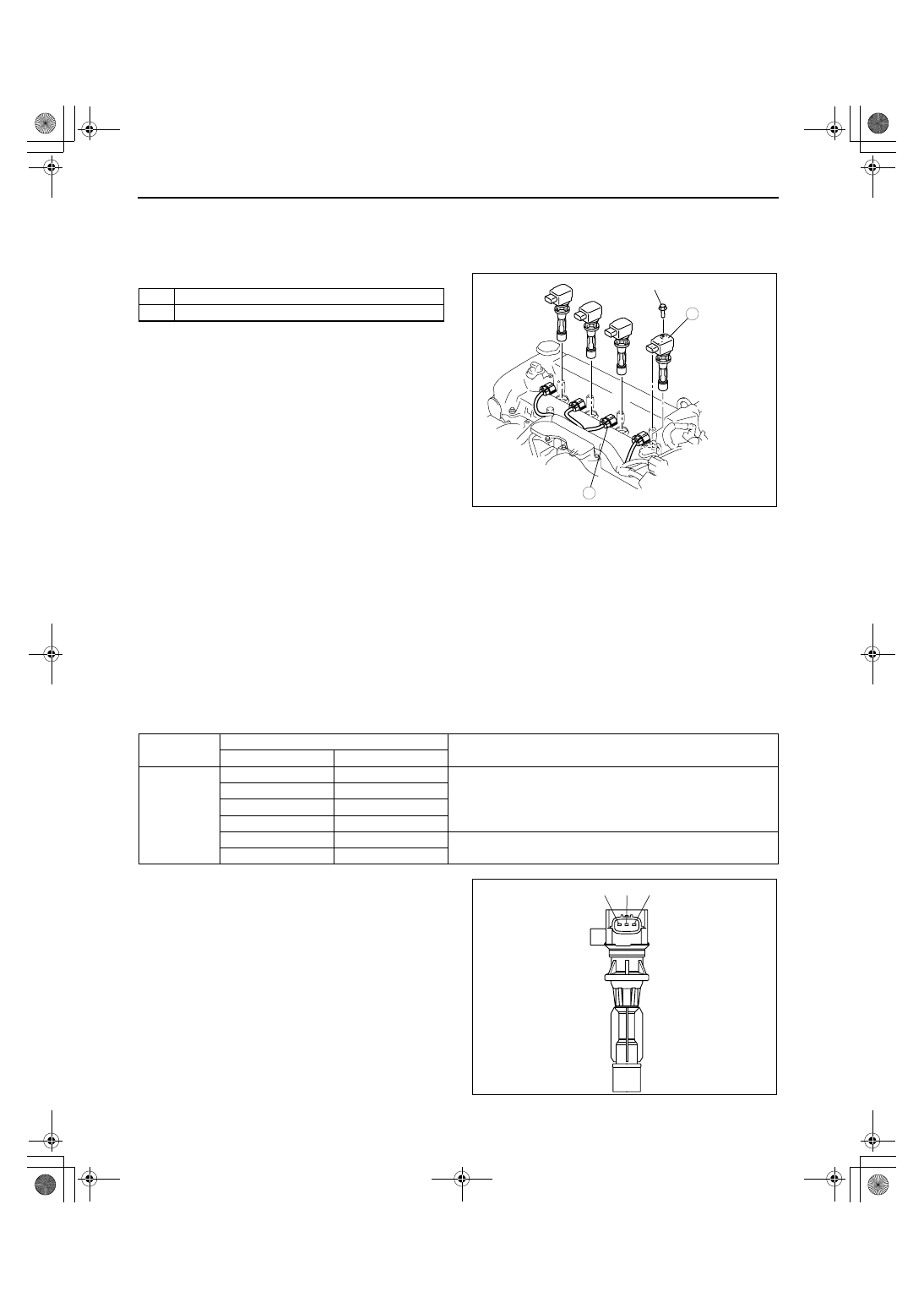

IGNITION COIL INSPECTION[L3 WITH TC]

id011839800300

Ignition Coil Inspection

1. Perform the spark test and identify the malfunctioning cylinder.
2. Replace the ignition coil of the malfunctioning cylinder with that of a normal cylinder, and reperform the spark

test.

• If the spark is not normal due to a malfunctioning ignition coil, replace that ignition coil.

• It is unlikely that all four ignition coils fail to operate properly. To prevent replacing a normal component,

perform the above procedure, identify the malfunctioning ignition coil, and replace it.

Ignition Coil with Built-in Igniter Inspection

1. Disconnect the negative battery cable.
2. Remove the charge air cooler. (See 01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
3. Disconnect the ignition coil connector.
4. Measure the resistance between each terminal on the ignition coil connector using an analog circuit tester.

• If the measurement corresponds to the table, replace the ignition coil.

End Of Sie

WM: SPARK PLUG

1

Connector

2

Ignition coil

1

2

6.0—9.5 {62—96, 54—83}

N·m {kgf·cm, in·lbf}

acxuuw00002035

Item

Tester Connection Position

Condition

Positive

Negative

Terminal

C

A

0 ohm is not normal (

∞ ohm is normal)

A

C

C

B

B

C

A

B

∞ or 0 ohm is not normal (several kilohm is normal)

B

A

A

B

C

acxuuw00001990
