EMISSION SYSTEM [L3 WITH TC]
01-16–7
01-16
2007 Mazda CX-7 Workshop Manual (1871–1U–06B)
Revised 10/2006 (Ref. No. R144/06)

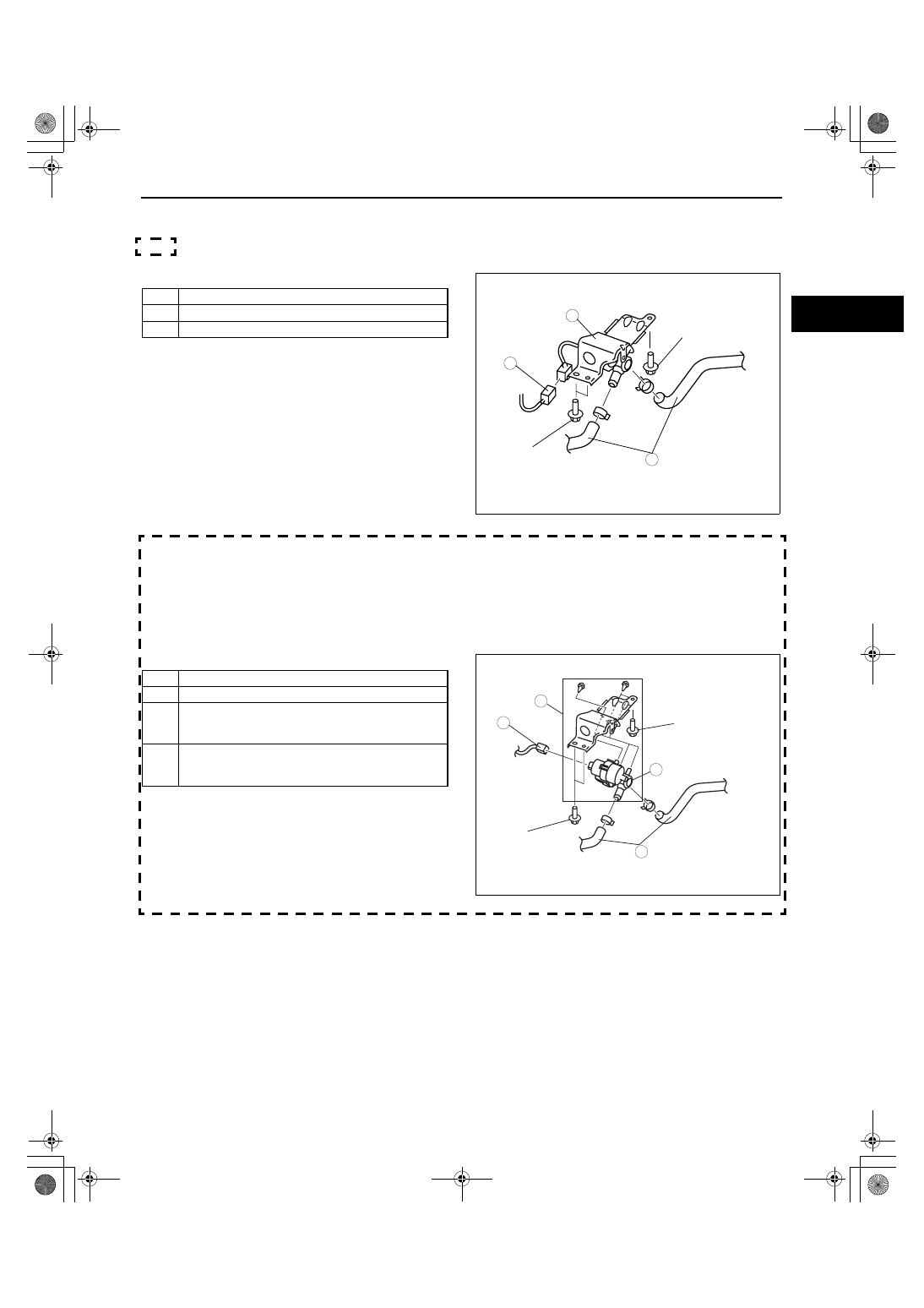

EVAPORATIVE EMISSION (EVAP) SYSTEM LEAK DETECTION PUMP REMOVAL/INSTALLATION[L3 WITH
TC]
id011639800700
2WD
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
.
3. Install in the reverse order of removal.
AWD
1. Disconnect the negative battery cable.
Note
• Because the AWD EVAP system leak detection pump is installed surrounded by the rear differential, there
is insufficient space for removing the pump from the vehicle. Therefore, it is necessary to remove the
EVAP system leak detection pump and bracket separately from the vehicle.
2. Remove in the order indicated in the table.
.
3. Install in the reverse order of removal.
1
Connector
2
Evaporative hose
3
EVAP system leak detection pump
3
2
1
N·m {kgf·cm, in·lbf}
9.0—13.0
{92—132, 80—115}
9.0—13.0
{92—132, 80—115}
acxuuw00000258
1
Connector
2
Evaporative hose
3
EVAP system leak detection pump and bracket

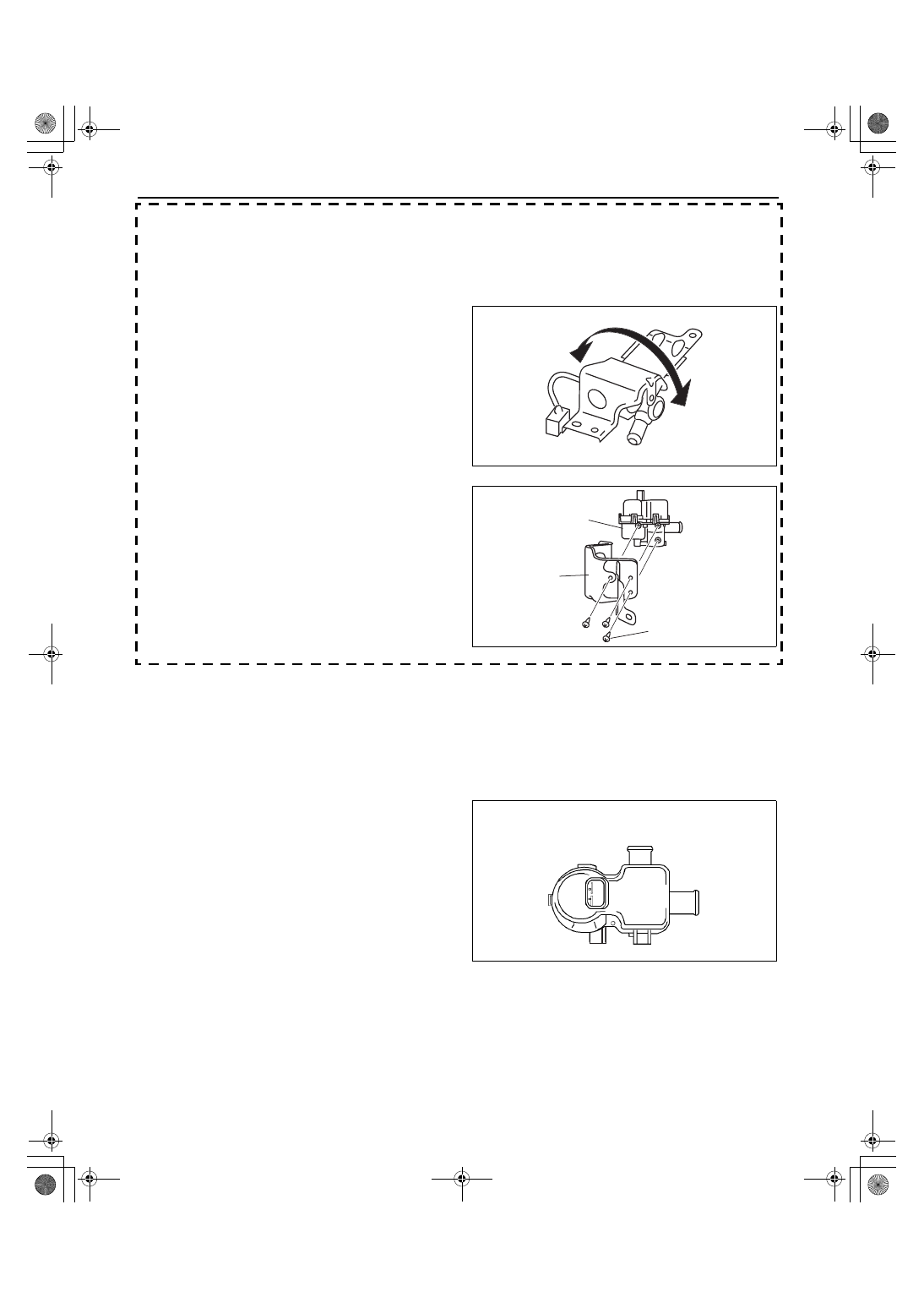

(See 01-16-8 EVAP system leak detection pump
and bracket removal note)
4
EVAP system leak detection pump
(See 01-16-8 EVAP system leak detection pump
and bracket removal note)
3
4
1
2
N·m {kgf·cm, in·lbf}
9.0—13.0
{92—132,
80—115}
9.0—13.0
{92—132,
80—115}
acxuuw00002564
