MECHANICAL [L3 WITH TC]

01-10–3

01-10

End Of Sie
WM: DRIVE BELT

DRIVE BELT INSPECTION[L3 WITH TC]

id011039801500

Note

• Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto

tensioner.

1. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

• If it exceeds the limit, replace the drive belt.

(See01-10-3 DRIVE BELT REMOVAL/
INSTALLATION[L3 WITH TC].)

End Of Sie

DRIVE BELT REMOVAL/INSTALLATION[L3 WITH TC]

id011039801600

1. Remove the splash shield (RH).

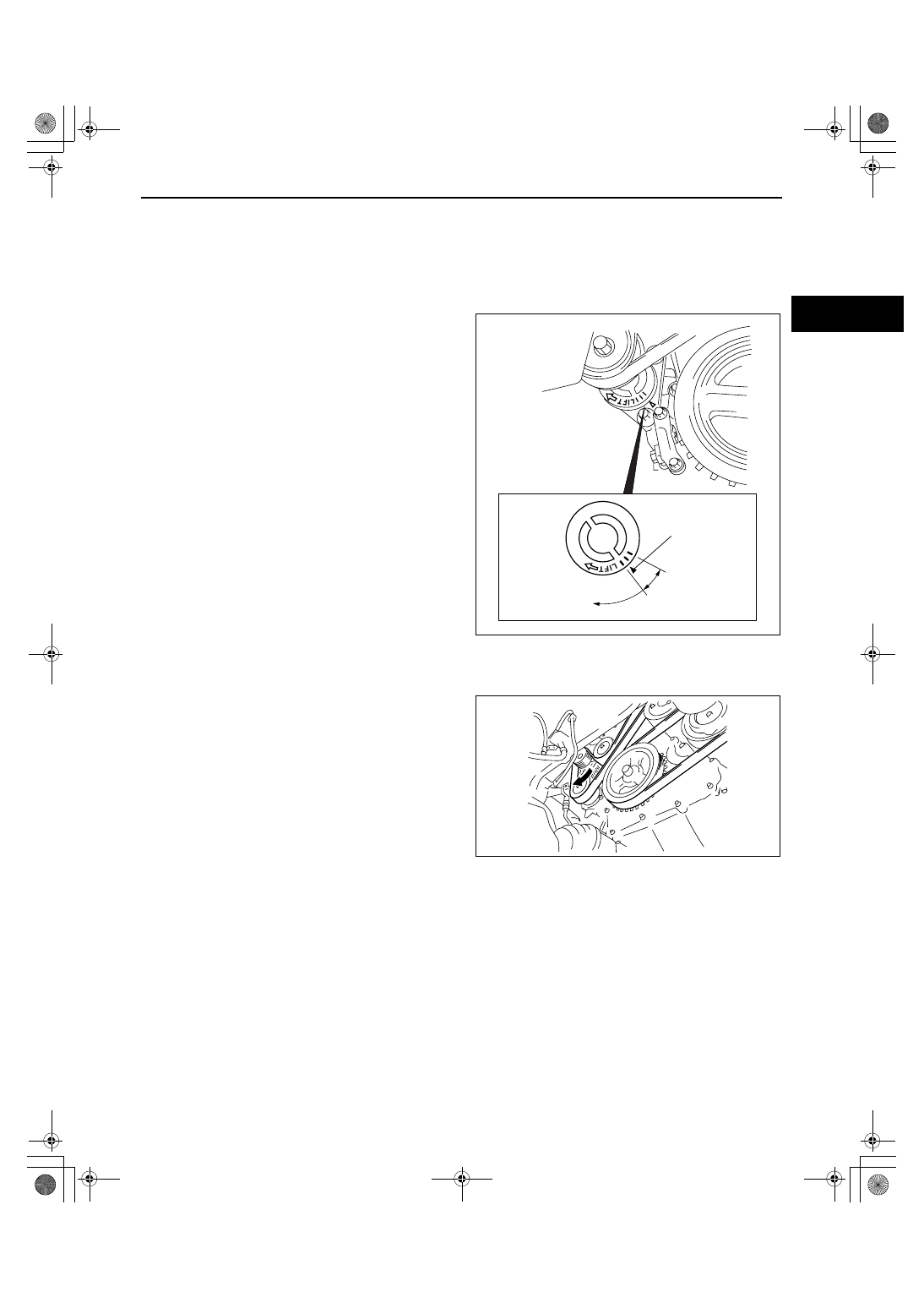

2. Rotate the drive belt auto tensioner in the

direction shown in the figure and remove the drive
belt.

3. Install the drive belt.
4. Verify that the drive belt auto tensioner indicator

mark does not exceed the limit. (See01-10-3
DRIVE BELT INSPECTION[L3 WITH TC].)

5. Install the splash shield (RH).

End Of Sie

WM: DRIVE BELT AUTO TENSIONER

NORMAL

MALFUNCTION

INDICATOR
MARK

acxuuw00000135

acxuuw00000136

1871-1U-06B(01-10).fm 3 ページ２００６年３月１５日　水曜日　午前１０時３９分

MECHANICAL [L3 WITH TC]

01-10–4

DRIVE BELT AUTO TENSIONER INSPECTION[L3 WITH TC]

id011039801700

1. Remove the drive belt. (See01-10-3 DRIVE BELT REMOVAL/INSTALLATION[L3 WITH TC].)
2. Verify that the drive belt auto tensioner moves

smoothly in the operational direction.

• Replace the drive belt auto tensioner if

necessary.

3. Rotate the drive belt auto tensioner pulley by

hand and verify that it rotates smoothly.

• Replace the drive belt auto tensioner if

necessary.

4. Install the drive belt. (See01-10-3 DRIVE BELT

REMOVAL/INSTALLATION[L3 WITH TC].)

End Of Sie

WM: ENGINE COMPLETE

VALVE CLEARANCE INSPECTION/ADJUSTMENT[L3 WITH TC]

id011039800200

Valve Clearance Inspection

1. Disconnect the negative battery cable.
2. Remove the splash shield (RH).
3. Remove the charge air cooler. (See01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
4. Remove the high pressure fuel pump. (See01-14-16 HIGH PRESSURE FUEL PUMP REMOVAL/

INSTALLATION[L3 WITH TC].)

5. Remove the ignition coils. (See01-18-2 IGNITION COIL REMOVAL/INSTALLATION[L3 WITH TC].)
6. Disconnect the wiring harness.
7. Remove the ventilation hose.
8. Remove the cylinder head cover. (See01-10-10 TIMING CHAIN REMOVAL/INSTALLATION[L3 WITH TC].)
9. Measure the valve clearance.

(1) Rotate the crankshaft clockwise so that the No.1 cylinder is at TDC of the compression stroke.
(2) Measure the valve clearance of location A

shown in the figure.

Standard valve clearance [Engine cold]

IN: 0.22— 0.28 mm {0.0087— 0.011 in}
EX: 0.27— 0.33 mm {0.011— 0.012 in}

(3) If it is not within the specification, replace the

tappet and adjust the valve clearance to the
median value of the standard.

Note

• Make sure to note down the measured

values for choosing the suitable replacement
tappets.

(4) Rotate the crankshaft clockwise 360

° so that the No.4 cylinder is at TDC of the compression stroke.

(5) Measure the valve clearance of location B shown in the figure.

Standard valve clearance [Engine cold]

IN: 0.22— 0.28 mm {0.0087— 0.011 in}
EX: 0.27— 0.33 mm {0.011— 0.012 in}

(6) If not within the specification, replace the tappet and adjust the valve clearance to the median value of the

standard.

10. Install the cylinder head cover. (See01-10-10 TIMING CHAIN REMOVAL/INSTALLATION[L3 WITH TC].)
11. Install the ventilation hose.
12. Connect the wiring harness.
13. Install the ignition coils. (See01-18-2 IGNITION COIL REMOVAL/INSTALLATION[L3 WITH TC].)
14. Install the high pressure fuel pump. (See01-14-16 HIGH PRESSURE FUEL PUMP REMOVAL/

INSTALLATION[L3 WITH TC].)

15. Install the charge air cooler. (See01-13-5 INTAKE AIR SYSTEM REMOVAL/INSTALLATION[L3 WITH TC].)
16. Install the splash shield (RH).
17. Connect the negative battery cable.

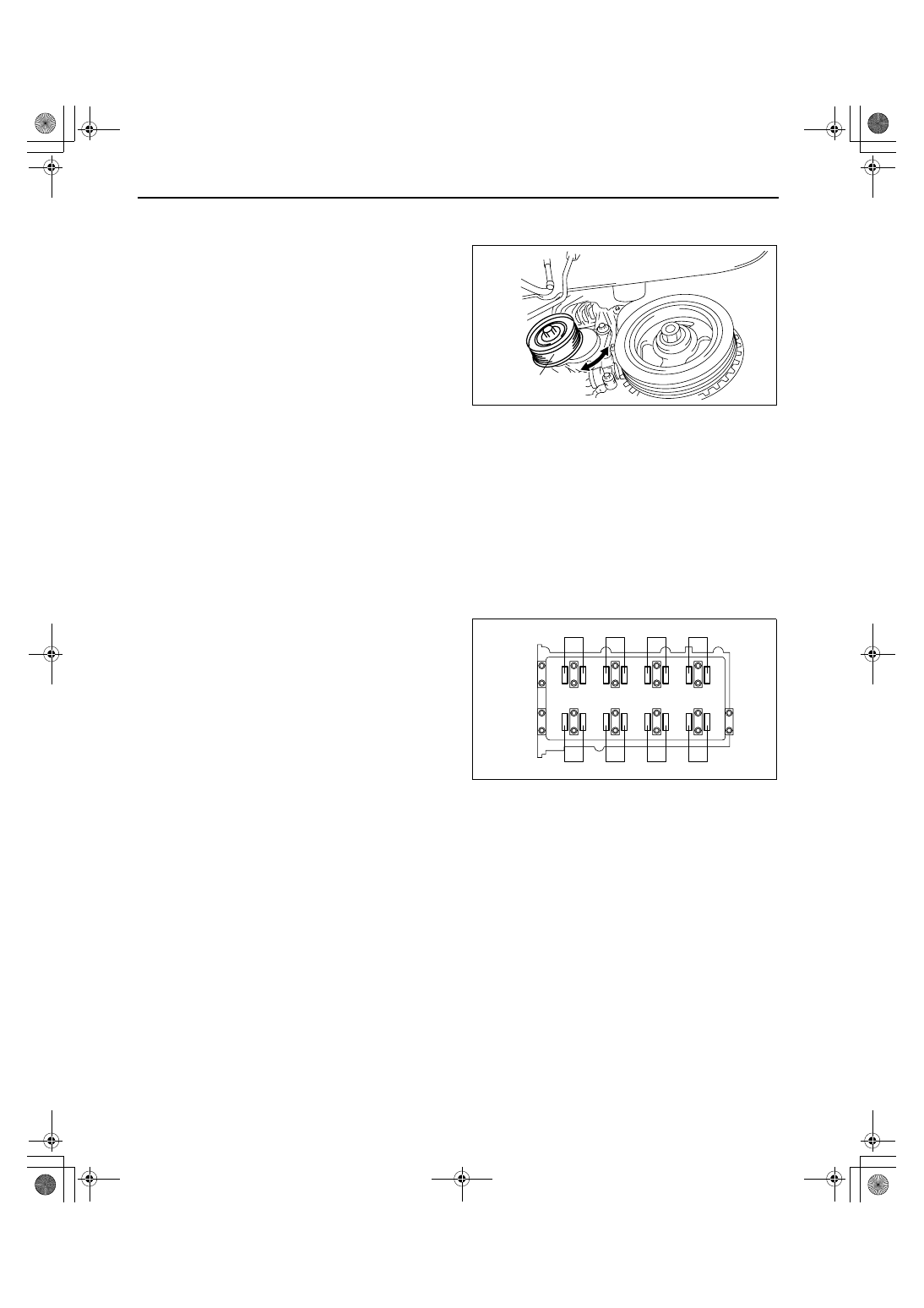

DRIVE BELT
AUTO TENSIONER

acxuuw00000137

No.1

No.2

No.3

No.4

acxuuw00000156

1871-1U-06B(01-10).fm 4 ページ２００６年３月１５日　水曜日　午前１０時３９分

MECHANICAL [L3 WITH TC]

01-10–5

01-10

Valve Clearance Adjustment

INSTALLATION[L3 WITH TC].)

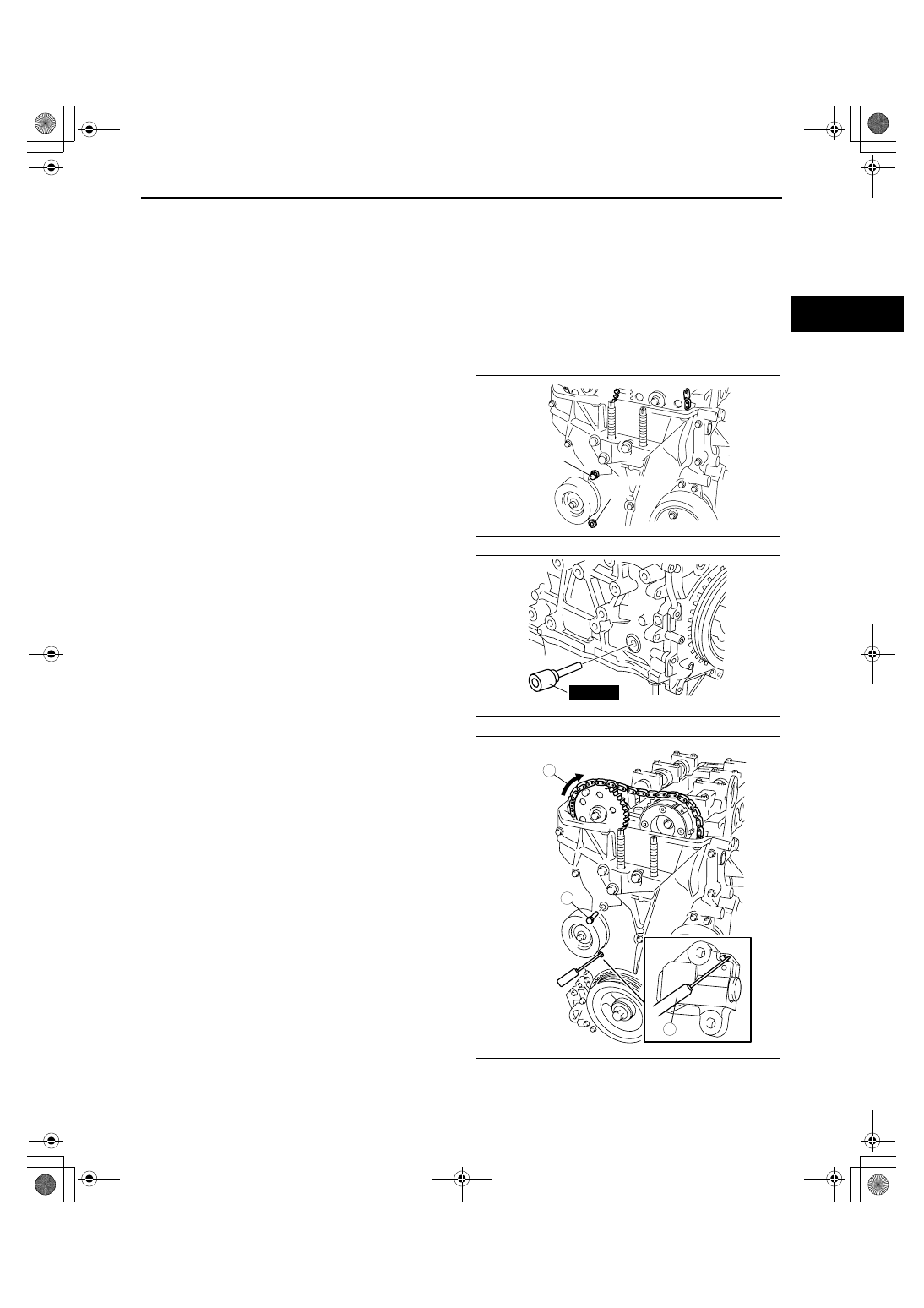

10. Remove the engine front cover lower blind plug.
11. Remove the engine front cover upper blind plug.

12. Remove the cylinder block lower blind plug, and

install the SST.

13. Rotate the crankshaft in the direction of the

engine rotation so that the No.1 piston is at TDC
of the compression stroke. (Until the crank weight
contacts SST and stops.)

14. Release the tension on the timing chain shown in

the figure.

UPPER
BLIND
PLUG

LOWER BLIND
PLUG

acxuuw00000157

303-507

acxuuw00000541

BOLT(M6 x 1.0)

acxuuw00000159

1871-1U-06B(01-10).fm 5 ページ２００６年３月１５日　水曜日　午前１０時３９分

MECHANICAL [L3 WITH TC]

01-10–6

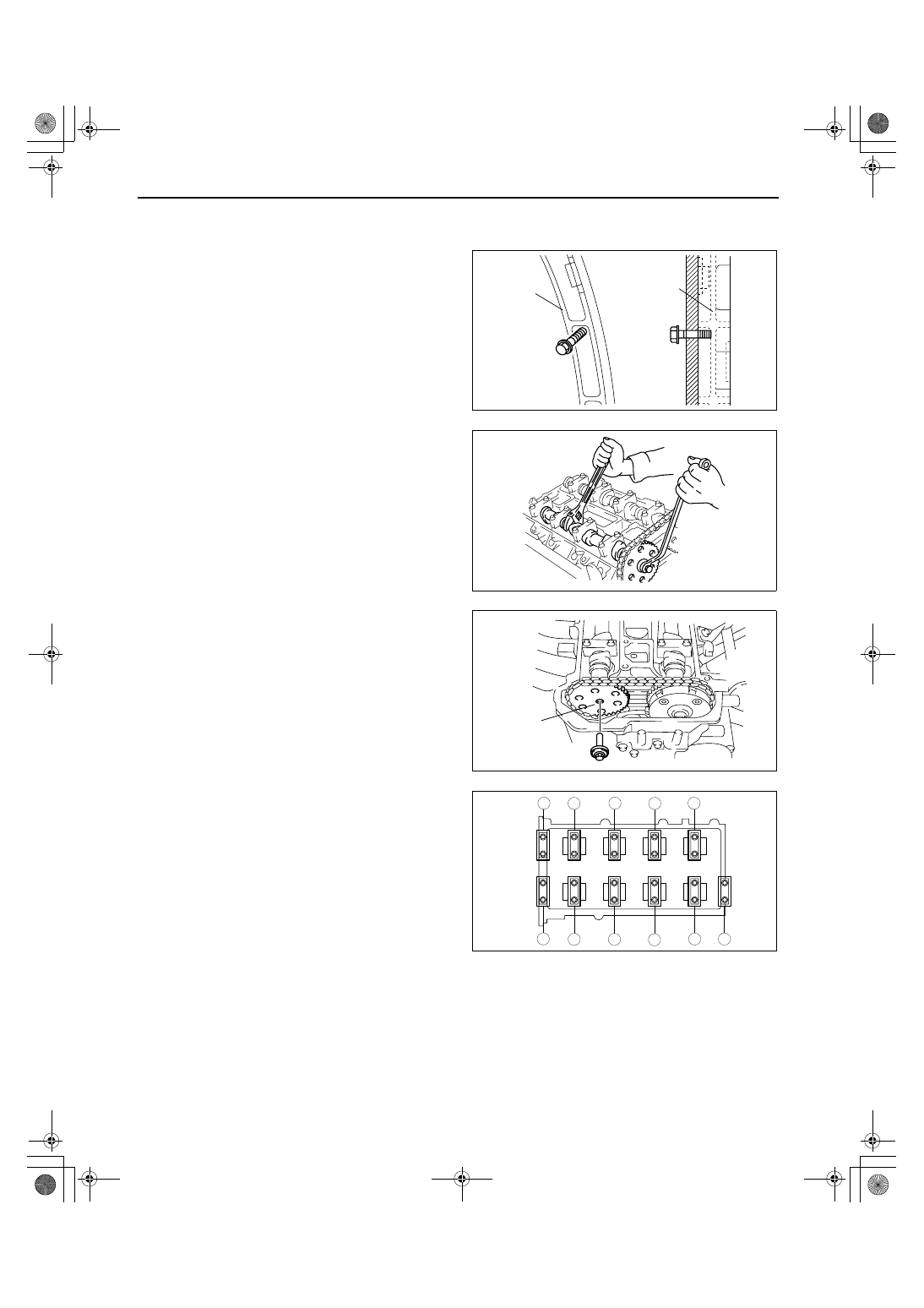

(1) Using a suitable screwdriver or equivalent tool, unlock the chain tensioner ratchet.
