ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–211

01-02

End Of Sie

4

INSPECT APP SENSOR CONNECTOR FOR
POOR CONNECTION

• Disconnect the APP sensor connector.

• Inspect for poor connection (such as damaged/

pulled-out pins, corrosion).

• Is there any malfunction?

Yes

Repair or replace the suspected terminal, then go to Step
10.

No

Go to the next step.

5

INSPECT APP SENSOR

• Perform the APP sensor inspection.

 (See01-40-33 ACCELERATOR PEDAL
POSITION (APP) SENSOR INSPECTION[L3
WITH TC].)

• Is the APP sensor normal?

Yes

Go to the next step.

No

Replace the APP sensor, then go to Step 10.

6

INSPECT APP1 SIGNAL CIRCUIT FOR SHORT
TO POWER SUPPLY

• Turn ignition switch to the ON position (Engine

off).

• Measure the voltage between APP sensor

terminal F (harness-side) and body ground.

• Is the voltage above 4.8 V?

Yes

Repair or replace a short to power supply. Then, go to Step
10.

No

Go to the next step.

7

VERIFY APP SENSOR GROUND CIRCUIT FOR
OPEN CIRCUIT

• Disconnect the PCM connector.

• Inspect for continuity between APP sensor

terminal E (harness side) and PCM terminal
1U (harness side).

• Is there continuity?

Yes

Repair or replace for an open circuit between APP sensor
terminal F (harness-side) and PCM connector terminal 1Y
(harness-side). Then, go to Step 10.

No

Go to the next step.

8

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

• Inspect for poor connection (such as damaged/

pulled-out pins, corrosion).

• Is there any malfunction?

Yes

Repair the terminal, then go to Step 10.

No

Go to the next step.

9

VERIFY TP SIGNAL CIRCUIT FOR SHORT TO
POWER SUPPLY CIRCUIT

• Inspect for continuity between throttle body

terminals D and F (harness side).

• Is there continuity?

Yes

Repair or replace the suspected wiring harness, then go to
the next step.

No

Go to the next step.

10

VERIFY TROUBLESHOOTING OF DTC P2123
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Turn ignition switch to the ON position (Engine

off).

• Clear the DTC from the PCM memory using

the M-MDS.

• Start the engine and warm it up completely.

• Is the same DTC present?

Yes

Replace the PCM, then go to the next step.
 (See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

11

VERIFY AFTER REPAIR PROCEDURE

• Perform the “After Repair Procedure”.

 (See01-14-4 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
 (See01-02-13 DTC TABLE[L3 WITH TC].)

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

1871-1U-06B(01-02).fm  211 ページ  ２００６年３月１５日　水曜日　午前１０時３２分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–212

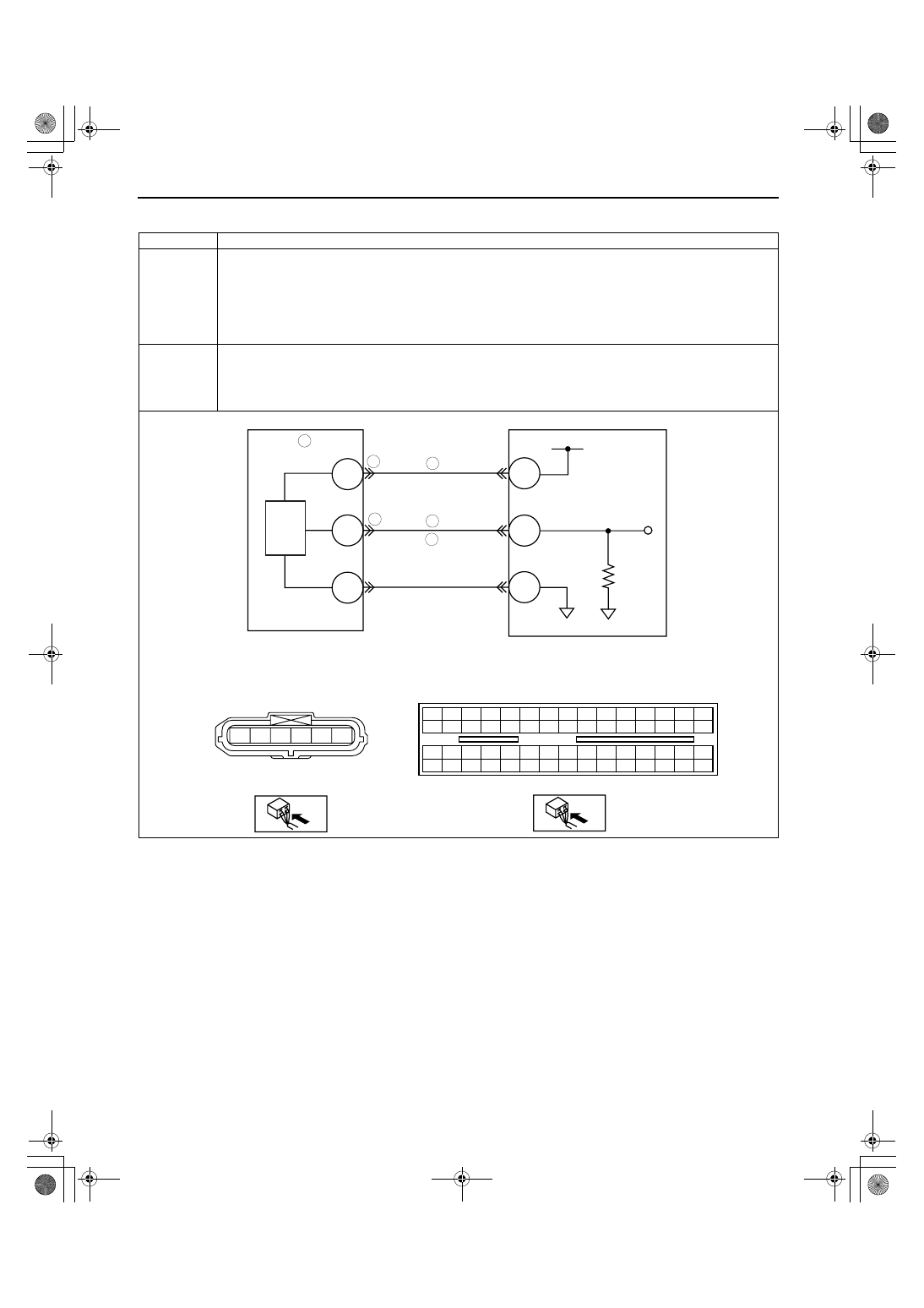

DTC P2127[L3 WITH TC]

id010239811900

DTC P2127

Accelerator pedal position (APP) sensor No.2 circuit low input

DETECTION

CONDITION

• The PCM monitors the APP sensor No.2 signal. If the PCM detects that the APP sensor No.2 voltage is

below 0.2 V, the PCM determines that the APP sensor No.2 circuit has a malfunction.

Diagnostic support note

• This is a continuous monitor (CCM).

• MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• APP sensor malfunction

• Connector or terminal malfunction

• Open circuit between APP sensor terminal C and PCM terminal 1AC

• Short to ground circuit between APP sensor terminal C and PCM terminal 1AC

• Open circuit between APP sensor terminal A and PCM terminal 1AJ

A

C

B

PCM

APP SENSOR

3

4

5

6

3

7

1AJ

1AC

1AV

D

E

F

APP SENSOR

WIRING HARNESS SIDE CONNECTOR

PCM

WIRING HARNESS SIDE CONNECTOR

1BE 1BA 1AW 1AS 1AO 1AK 1AG 1AC 1Y 1U 1Q 1M

1E

1A

1I

1BH 1BD 1AZ 1AV 1AR 1AN 1AJ 1AF 1AB 1X

1T

1P

1H

1D

1L

1BG 1BC 1AY 1AU 1AQ 1AM 1AI 1AE 1AA 1W 1S 1O

1G

1C

1K

1BF 1BB 1AX 1AT 1AP 1AL 1AH 1AD 1Z

1V

1R 1N

1F

1B

1J

1871-1U-06B(01-02).fm  212 ページ  ２００６年３月１５日　水曜日　午前１０時３２分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–213

01-02

Diagnostic procedure

End Of Sie

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

• Has the FREEZE FRAME DATA been

recorded?

Yes

Go to the next step.

No

Record FREEZE FRAME DATA on the repair order, then go
to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Check for related Service Bulletins and/or on-

line repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

CLASSIFY APP SENSOR OR HARNESS
MALFUNCTION

• Connect the M-MDS.

• Access the APP2 PID.

• Disconnect the throttle body connector.

• Connect a jumper wire between APP sensor

terminals A and C (harness-side).

• Is the PID approx. 100%?

Yes

Go to the next step.

No

Go to step 5.

4

INSPECT APP SENSOR

• Perform the APP sensor inspection.

 (See01-40-33 ACCELERATOR PEDAL
POSITION (APP) SENSOR INSPECTION[L3
WITH TC].)

• Is the APP sensor normal?

Yes

Inspect for poor APP sensor connector terminal A
connection. Repair or replace if necessary, then go to Step
8.

No

Replace the APP sensor, then go to Step 8.

5

INSPECT POWER SUPPLY CIRCUIT VOLTAGE
AT APP SENSOR CONNECTOR

• Turn ignition switch to the ON position (Engine

off).

• Measure the voltage at APP sensor terminal A

(harness-side).

• Is the voltage within 4.5— 5.5 V?

Yes

Go to the next step.

No

Repair or replace for an open circuit between APP sensor
connector terminal A and PCM connector terminal 1AJ
(harness-side).
Then, then go to Step 8.

6

VERIFY APP2 SIGNAL CIRCUIT FOR OPEN
CIRCUIT

• Turn the ignition switch to off.

• Inspect for continuity between APP sensor

terminal C (harness-side) and PCM terminal
1AC (harness-side).

• Inspect for continuity between APP sensor

terminal A (harness-side) and PCM terminal
1AT (harness-side).

• Is there continuity?

Yes

Go to the next step.

No

Repair or replace the suspected wiring harness, then go to
Step 8.

7

VERIFY APP2 SIGNAL CIRCUIT FOR SHORT
TO GROUND

• Inspect for continuity between APP sensor

terminal C (harness-side) and body ground.

• Is there continuity?

Yes

Repair or replace the suspected wiring harness, then go to
the next step.

No

Go to the next step.

8

VERIFY TROUBLESHOOTING OF DTC P2127
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Turn ignition switch to the ON position (Engine

off).

• Clear the DTC from the PCM memory using

the M-MDS.

• Start engine and warm it up completely.

• Is the same DTC present?

Yes

Replace the PCM, then go to the next step.
 (See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

9

VERIFY AFTER REPAIR PROCEDURE

• Perform the “After Repair Procedure”.

 (See01-14-4 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
 (See01-02-13 DTC TABLE[L3 WITH TC].)

No

Troubleshooting completed.

1871-1U-06B(01-02).fm  213 ページ  ２００６年３月１５日　水曜日　午前１０時３２分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–214

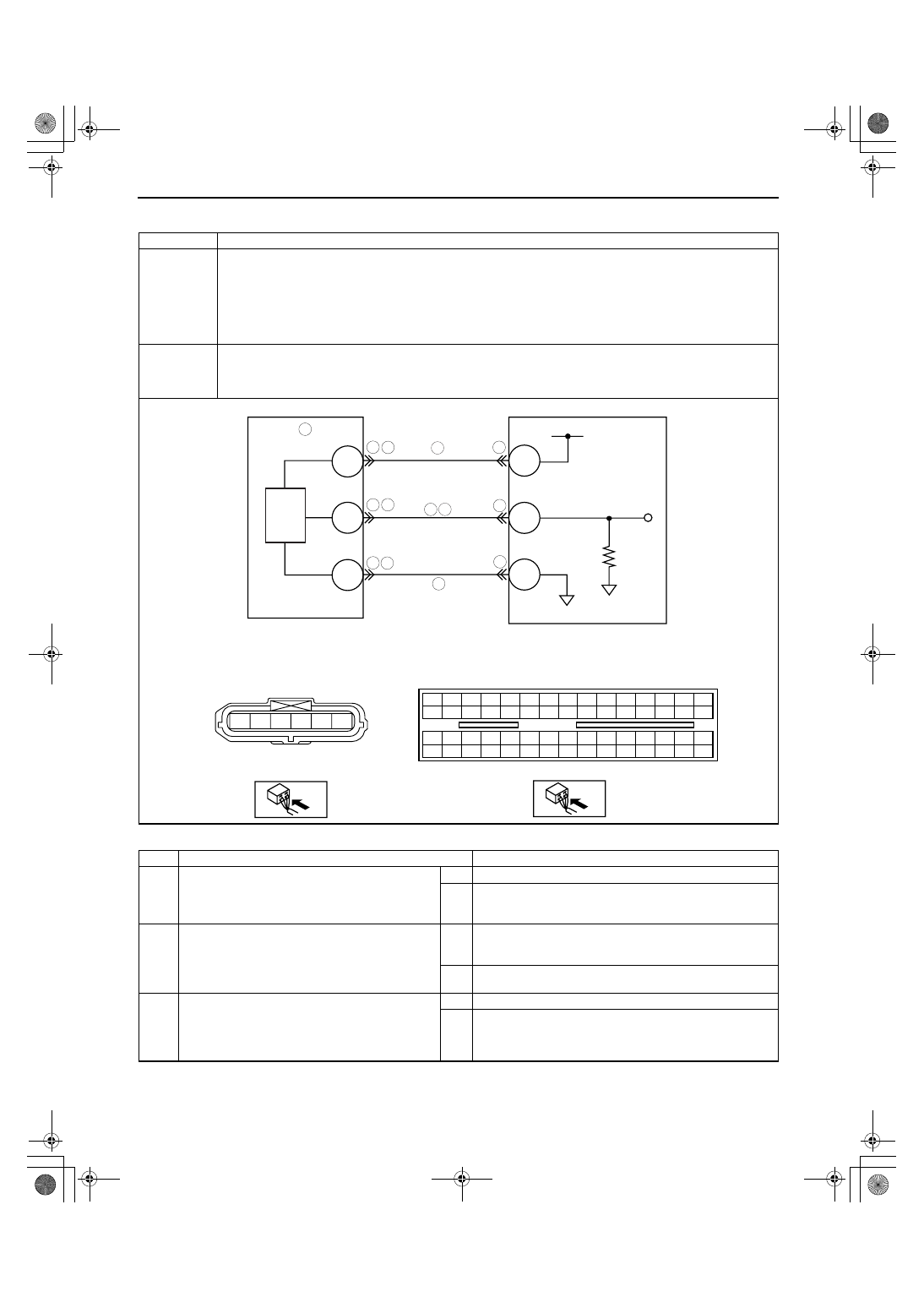

DTC P2128[L3 WITH TC]

id010239812000

Diagnostic procedure

DTC P2128

Accelerator pedal position (APP) sensor No.2 circuit high input

DETECTION

CONDITION

• The PCM monitors the APP sensor No.2 signal. If the PCM detects that the APP sensor No.2 voltage is

above 4.5 V, the PCM determines that the APP sensor No.2 circuit has a malfunction.

Diagnostic support note

• This is a continuous monitor (CCM).

• MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• APP sensor malfunction

• Connector or terminal malfunction

• Open circuit between APP sensor terminal B and PCM terminal 1AV

• Short to power supply circuit between APP sensor terminal C and PCM terminal 1AC

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED

• Has the FREEZE FRAME DATA been

recorded?

Yes

Go to the next step.

No

Record FREEZE FRAME DATA on the repair order, then go
to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Check for related Service Bulletins and/or on-

line repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT APP SENSOR CONNECTOR

• Turn the ignition switch to off.

• Verify that the APP sensor connector is

connected securely.

• Is the connector normal?

Yes

Go to the next step.

No

Connect the connector securely, then go to Step 10.

PCM

APP SENSOR

3

7

3

3

4

8

5

4

4

8

8

6

9

A

C

B

1AJ

1AC

1AV

D

E

APP SENSOR

WIRING HARNESS SIDE CONNECTOR

PCM

WIRING HARNESS SIDE CONNECTOR

1BE 1BA 1AW 1AS 1AO 1AK 1AG 1AC 1Y 1U 1Q 1M

1E

1A

1I

1BH 1BD 1AZ 1AV 1AR 1AN 1AJ 1AF 1AB 1X

1T

1P

1H

1D

1L

1BG 1BC 1AY 1AU 1AQ 1AM 1AI 1AE 1AA 1W 1S 1O

1G

1C

1K

1BF 1BB 1AX 1AT 1AP 1AL 1AH 1AD 1Z

1V

1R 1N

1F

1B

1J

9
