ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–27

01-02

Diagnostic procedure

POSSIBLE

CAUSE

• Front HO2S heater malfunction

• Connector or terminal malfunction

• Open circuit in wiring harness between front HO2S heater terminal 2D and PCM terminal 2C

• Short to ground in the wiring harness between front HO2S heater terminal 2D and PCM terminal 2C

• Short to power supply in the wiring harness between front HO2S heater terminal 2D and PCM terminal 2C

• Open circuit in the wiring harness between front HO2S heater terminal 1B and PCM terminal 2AC

• PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA AND
DIAGNOSTIC MONITORING TEST RESULTS
HAVE BEEN RECORDED

• Have the FREEZE FRAME DATA and

DIAGNOSTIC MONITORING TEST RESULTS
(HO2S heater related) been recorded?

Yes

Go to the next step.

No

Record the FREEZE FRAME DATA and DIAGNOSTIC
MONITORING TEST RESULTS on the repair order, then
go to the next step.

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Verify related Service Bulletins and/or on-line

repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

VERIFY RELATED PENDING CODE OR
STORED DTCs

• Turn the ignition switch off, then to the ON

position (Engine off).

• Verify the related PENDING CODE or stored

DTCs using the M-MDS.

• Is DTC P0031 or P0032 also present?

Yes

Go to appropriate DTC troubleshooting procedure.
(See01-02-13 DTC TABLE[L3 WITH TC].)

No

Go to the next step.

4

IDENTIFY TRIGGER DTC FOR FREEZE FRAME
DATA

• Is DTC P0030 on FREEZE FRAME DATA?

Yes

Go to the next step.

No

Go to troubleshooting for DTC on FREEZE FRAME DATA.
(See01-02-13 DTC TABLE[L3 WITH TC].)

5

INSPECT FRONT HO2S CONNECTOR FOR
POOR CONNECTION

• Turn the ignition switch off.

• Disconnect the front HO2S connector.

• Inspect for poor connection (such as damaged/

pulled-out pins, and corrosion).

• Is there any malfunction?

Yes

Repair or replace the terminal, then go to Step 8.

No

Go to the next step.

6

INSPECT FRONT HO2S HEATER

• Inspect the front HO2S heater.

(See01-40-37 HEATED OXYGEN SENSOR
(HO2S) INSPECTION[L3 WITH TC].)

• Is there any malfunction?

Yes

Replace the front HO2S, then go to Step 8.
(See01-15-2 EXHAUST SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

No

Go to the next step.

7

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

• Turn the ignition switch off.

• Disconnect the PCM connector.

• Inspect for poor connection (such as damaged/

pulled-out pins, and corrosion).

• Is there any malfunction?

Yes

Repair or replace the terminal, then go to the next step.

No

Go to the next step.

8

VERIFY TROUBLESHOOTING OF DTC P0030
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Clear the DTC from the PCM memory using

the M-MDS.

• Perform the HO2S heater, HO2S, and TWC

Repair Verification Drive Mode.
(See01-02-10 OBD-II DRIVE MODE[L3 WITH
TC].)

• Is the PENDING CODE for this DTC present?

Yes

Replace the PCM, then go to the next step.
(See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

9

VERIFY AFTER REPAIR PROCEDURE

• Perform the “AFTER REPAIR PROCEDURE”.

(See01-02-10 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
(See01-02-13 DTC TABLE[L3 WITH TC].)

No

DTC troubleshooting completed.

DTC P0030

Front HO2S heater control circuit problem

1871-1U-06B(01-02).fm  27 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–28

End Of Sie

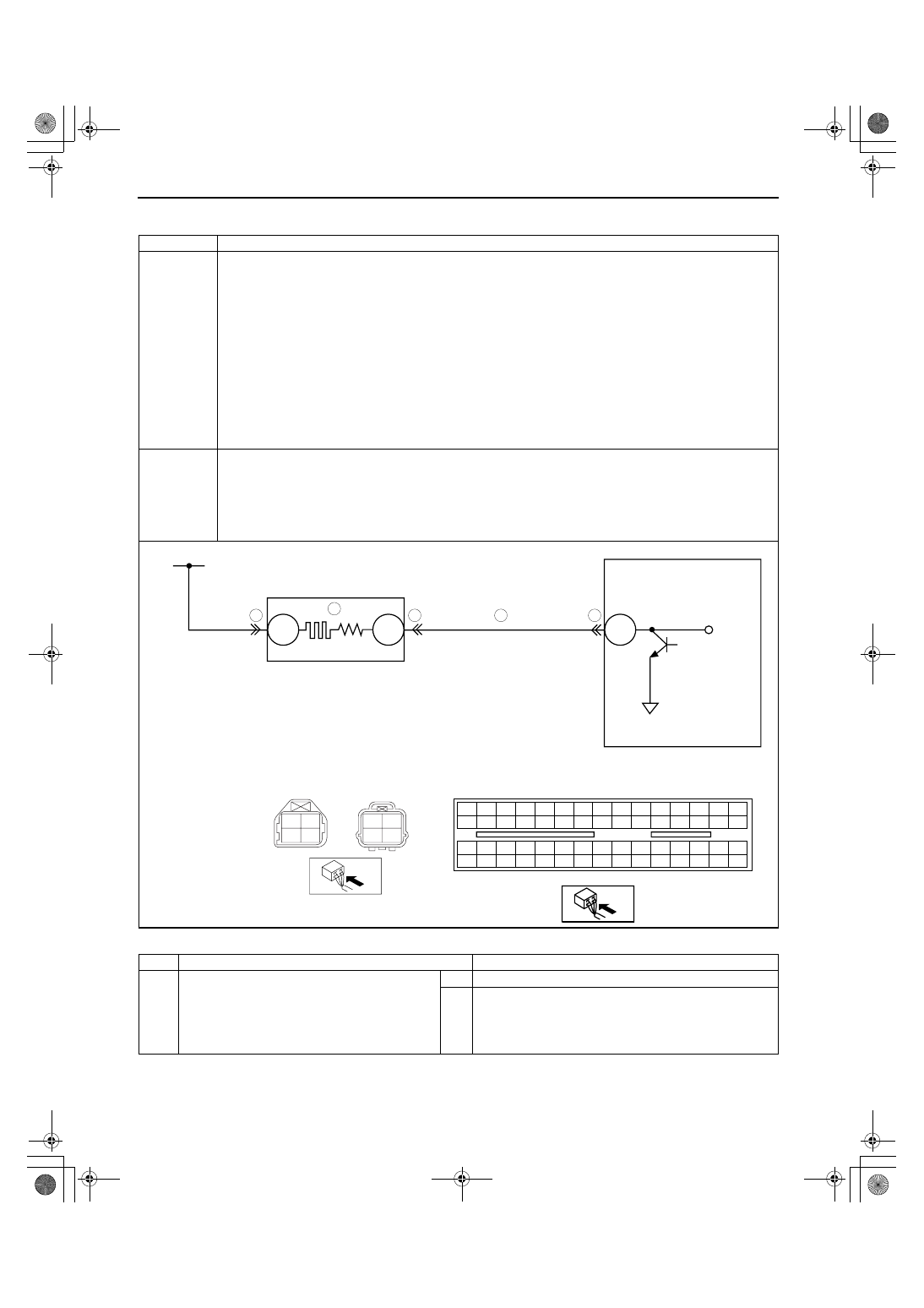

DTC P0031[L3 WITH TC]

id010239802000

Diagnostic procedure

DTC P0031

Front HO2S heater circuit low input

DETECTION

CONDITION

• The PCM monitors the front HO2S heater output voltage. If the PCM turns the front HO2S heater off or on

but the front HO2S heater circuit voltage remains low the PCM determines that the front HO2S heater
circuit has a malfunction.

Note

• The front HO2S heater is controlled by a duty signal.

Diagnostic support note

• This is a continuous monitor (HO2S heater).

• The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or

in one drive cycle while the DTC for the same malfunction has been stored in the PCM.

• PENDING CODE is available if the PCM detects the above malfunction condition during the first drive

cycle.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• Front HO2S heater malfunction

• Connector or terminal malfunction

• Open circuit in the wiring harness between main relay and front HO2S terminal 2B

• Short to ground in the wiring harness between main relay and front HO2S terminal 2B

• Open circuit in the wiring harness between front HO2S terminal 2D and PCM terminal 2C

• Short to ground in the wiring harness between front HO2S terminal 2D and PCM terminal 2C

• PCM malfunction

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA AND
DIAGNOSTIC MONITORING TEST RESULTS
HAVE BEEN RECORDED

• Have the FREEZE FRAME DATA and

DIAGNOSTIC MONITORING TEST RESULTS
(HO2S heater related) been recorded?

Yes

Go to the next step.

No

Record the FREEZE FRAME DATA and DIAGNOSTIC
MONITORING TEST RESULTS on the repair order, then
go to the next step.

3

3

4

6

5

FRONT HO2S HEATER

2C

PCM

PCM

WIRING HARNESS-SIDE CONNECTOR

2B

2D

MAIN RELAY

FRONT HO2S

WIRING HARNESS-SIDE CONNECTOR

2BE 2BA 2AW 2AS 2AO 2AK 2AG 2AC 2Y 2U 2Q 2M

2E

2A

2I

2BH 2BD 2AZ 2AV 2AR 2AN 2AJ 2AF 2AB 2X 2T 2P

2H

2D

2L

2BG 2BC 2AY 2AU 2AQ 2AM 2AI 2AE 2AA 2W 2S 2O

2G

2C

2K

2BF 2BB 2AX 2AT 2AP 2AL 2AH 2AD 2Z

2V 2R 2N

2F

2B

2J

1A

1B

1C

1D

2A

2B

2C

2D

1871-1U-06B(01-02).fm  28 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–29

01-02

End Of Sie

2

VERIFY RELATED REPAIR INFORMATION
AVAILABILITY

• Verify related Service Bulletins and/or on-line

repair information availability.

• Is any related repair information available?

Yes

Perform the repair or diagnosis according to the available
repair information.

• If the vehicle is not repaired, go to the next step.

No

Go to the next step.

3

INSPECT FRONT HO2S CONNECTOR FOR
POOR CONNECTION

• Turn the ignition switch off.

• Disconnect the front HO2S connector.

• Inspect for poor connection (such as damaged/

pulled-out pins, and corrosion).

• Is there any malfunction?

Yes

Repair or replace the terminal, then go to Step 9.

No

Go to the next step.

4

INSPECT FRONT HO2S HEATER POWER
CIRCUIT FOR OPEN CIRCUIT OR SHORT TO
GROUND

• Turn the ignition switch to the ON position

(Engine off).

• Measure the voltage between front HO2S

terminal 2B (wiring harness-side) and body
ground.

• Is the voltage B+?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open
circuit or short to ground, then go to Step 9.

5

INSPECT FRONT HO2S HEATER CONTROL
CIRCUIT FOR SHORT TO GROUND

• Turn the ignition switch off.

• Inspect for continuity between front HO2S

terminal 2D (wiring harness-side) and body
ground.

• Is there continuity?

Yes

Repair or replace the wiring harness for a possible short to
ground, then go to Step 9.

No

Go to the next step.

6

INSPECT FRONT HO2S HEATER

• Inspect the front HO2S heater.

(See01-40-37 HEATED OXYGEN SENSOR
(HO2S) INSPECTION[L3 WITH TC].)

• Is there any malfunction?

Yes

Replace the front HO2S, then go to Step 9.
(See01-15-2 EXHAUST SYSTEM REMOVAL/
INSTALLATION[L3 WITH TC].)

No

Go to the next step.

7

INSPECT PCM CONNECTOR FOR POOR
CONNECTION

• Turn the ignition switch off.

• Disconnect the PCM connector.

• Inspect for poor connection (such as damaged/

pulled-out pins, and corrosion).

• Is there any malfunction?

Yes

Repair or replace the terminal, then go to Step 9.

No

Go to the next step.

8

INSPECT FRONT HO2S HEATER CONTROL
CIRCUIT FOR OPEN CIRCUIT

• Turn the ignition switch off.

• Inspect for continuity between front HO2S

terminal 2D (wiring harness-side) and PCM
terminal 2C (wiring harness-side).

• Is there continuity?

Yes

Go to the next step.

No

Repair or replace the wiring harness for a possible open
circuit, then go to the next step.

9

VERIFY TROUBLESHOOTING OF DTC P0031
COMPLETED

• Make sure to reconnect all disconnected

connectors.

• Clear the DTC from the PCM memory using

the M-MDS.

• Perform the HO2S heater, HO2S, and TWC

Repair Verification Drive Mode.
(See01-02-10 OBD-II DRIVE MODE[L3 WITH
TC].)

• Is the PENDING CODE for this DTC present?

Yes

Replace the PCM, then go to the next step.
(See01-40-6 PCM REMOVAL/INSTALLATION[L3 WITH
TC].)

No

Go to the next step.

10

VERIFY AFTER REPAIR PROCEDURE

• Perform the “AFTER REPAIR PROCEDURE”.

(See01-02-10 AFTER REPAIR
PROCEDURE[L3 WITH TC].)

• Are any DTCs present?

Yes

Go to the applicable DTC inspection.
(See01-02-13 DTC TABLE[L3 WITH TC].)

No

DTC troubleshooting completed.

STEP

INSPECTION

ACTION

1871-1U-06B(01-02).fm  29 ページ  2006年3月15日 水曜日 午前10時32分

ON-BOARD DIAGNOSTIC [L3 WITH TC]

01-02–30

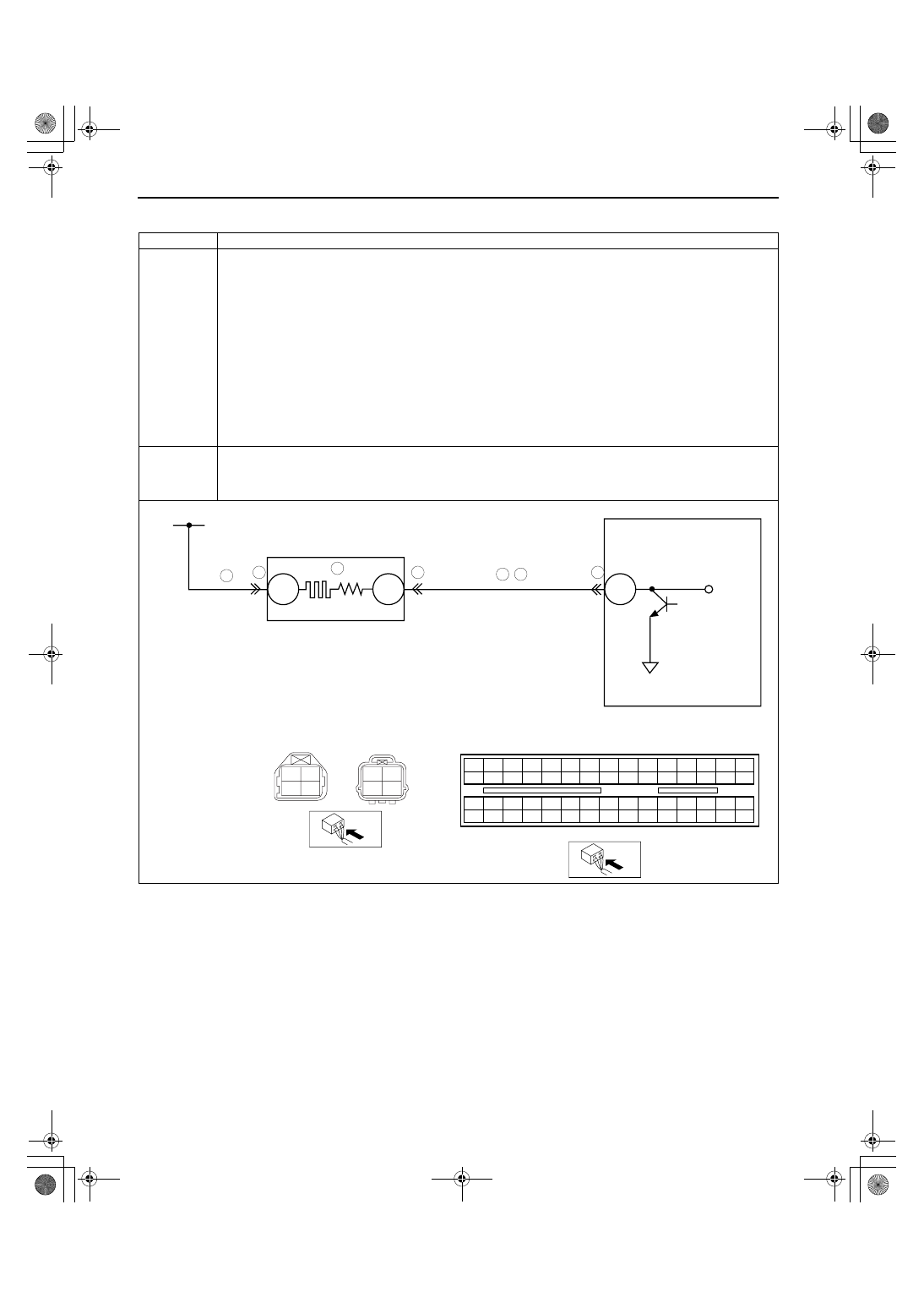

DTC P0032[L3 WITH TC]

id010239802100

DTC P0032

Front HO2S heater circuit high input

DETECTION

CONDITION

• The PCM monitors the front HO2S heater output voltage. If the PCM turns the front HO2S heater on or off

but the front HO2S heater circuit voltage remains high the PCM determines that the front HO2S heater
circuit has a malfunction.

Note

• The front HO2S heater is controlled by a duty signal.

Diagnostic support note

• This is a continuous monitor (HO2S heater).

• The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or

in one drive cycle while the DTC for the same malfunction has been stored in the PCM.

• PENDING CODE is available if the PCM detects the above malfunction condition during the first drive

cycle.

• FREEZE FRAME DATA is available.

• DTCs are stored in the PCM memory.

POSSIBLE

CAUSE

• Front HO2S heater malfunction

• Connector or terminal malfunction

• Short to power supply in the wiring harness between front HO2S terminal 2D and PCM terminal 2C

• PCM malfunction

FRONT HO2S HEATER

2C

PCM

PCM

WIRING HARNESS-SIDE CONNECTOR

2B

2D

MAIN RELAY

FRONT HO2S

WIRING HARNESS-SIDE CONNECTOR

3

3

7

6

4

8

5

2BE 2BA 2AW 2AS 2AO 2AK 2AG 2AC 2Y 2U 2Q 2M

2E

2A

2I

2BH 2BD 2AZ 2AV 2AR 2AN 2AJ 2AF 2AB 2X 2T 2P

2H

2D

2L

2BG 2BC 2AY 2AU 2AQ 2AM 2AI 2AE 2AA 2W 2S 2O

2G

2C

2K

2BF 2BB 2AX 2AT 2AP 2AL 2AH 2AD 2Z

2V 2R 2N

2F

2B

2J

1A

1B

1C

1D

2A

2B

2C

2D
