09 BODY & ACCESSORIES

66

Power Windows

One touch operation
All power windows have one touch up and down capability from the master switch
and the sub-switches.

Anti-pinch
To protect hands from injury during power window closing, all power windows will
automatically stop and reverse direction when an object is caught between the
window and upper door frame.  Internal circuitry senses the amperage draw of the
motor and engages auto reverse when necessary.

Automatic opening and closing functions:

Opening

Closing

Transmitter

Hold unlock for more than
1.5-seconds all windows
automatically open, (press
the button a second time to
stop the windows)

No applicable

Advanced
keyless request
switch

Not applicable

Hold drivers door advanced
keyless request switch for
more than 1.5 seconds until all
windows close (windows will
halt closing when the button is
released)

Driver door key
cylinder

Hold the driver key cylinder
in the unlock position until all
windows open

Hold driver Key cylinder in
lock until all windows close
completely (windows will halt the
close function when the key is
released)

09 BODY & ACCESSORIES

67

Power window initialize procedure
Any time battery power to the power window circuit is lost several power window
automatic features will not function.

passsenger power windows will not function from the driver switch

one-touch up and one touch down will not operate

anti-pinch stops functioning,

power window functions are disabled from the remote, the key in the driver door
lock cylinder and the advanced keyless request switch.

If battery power is lost to any of the passenger door switches, then just the affected
door will loose the functions listed above.

If only one window is affected, perform this procedure on the affected window.  If all
windows are affected perform this procedure on all windows:

Roll the drivers window down

Roll the drivers window up

Hold the power window switch in the up position for more than 2-seconds

Repeat step 1 thru 3 at the power window sub-switch of each  door

Verify all power window functions operate properly

I

•

•

•

•

1.

2.

3.

4.

5.

09 BODY & ACCESSORIES

68

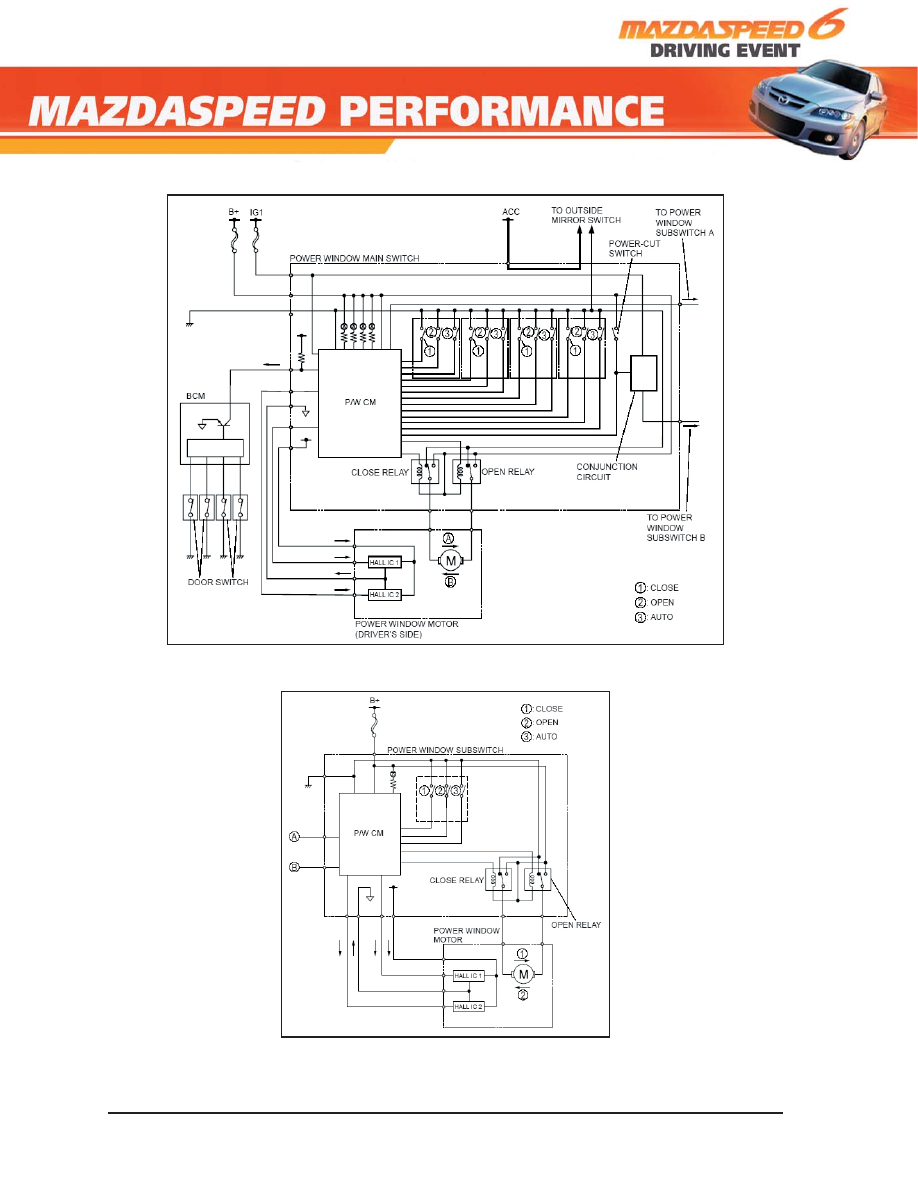

Power Window Main Switch

Power Window Sub Switches

09 BODY & ACCESSORIES

69

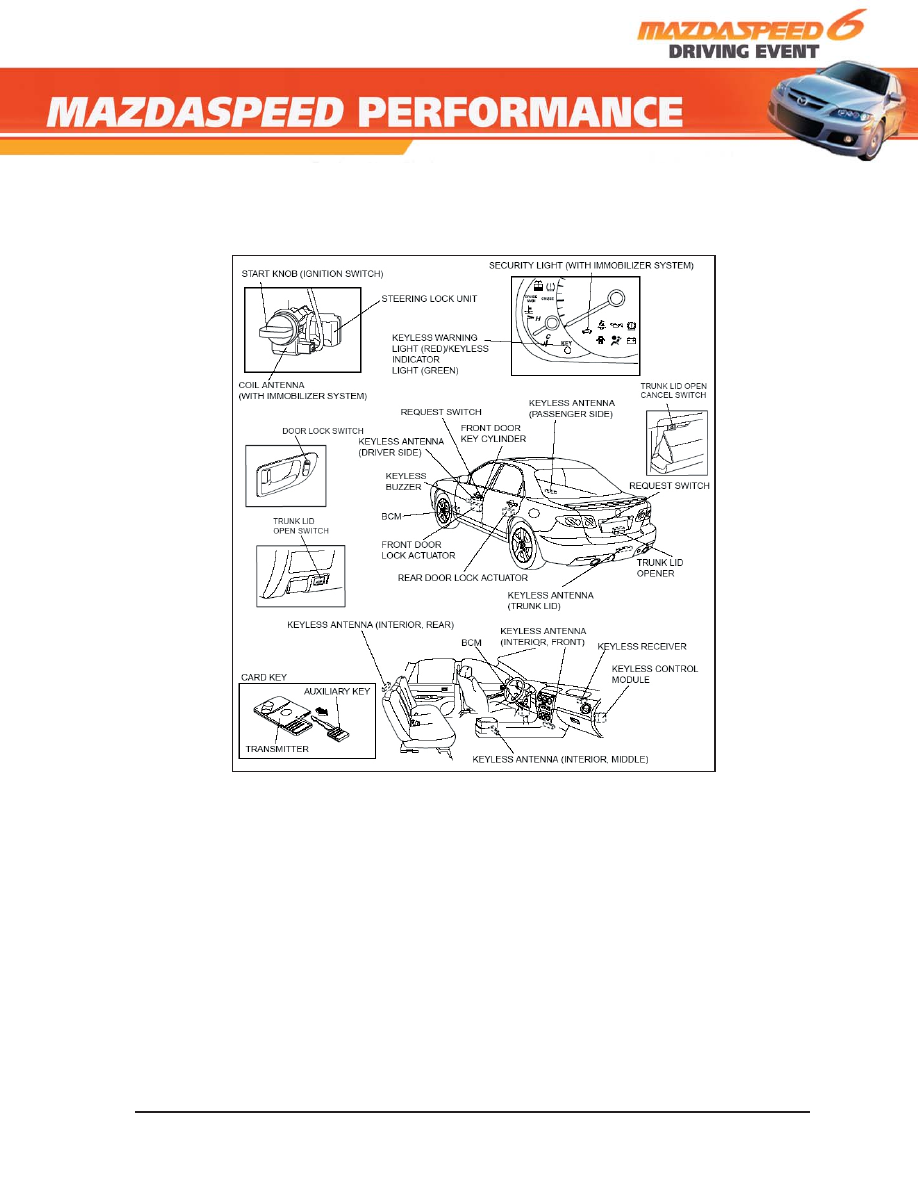

Advanced Keyless System
This system allows a customer to enter and start the vehicle without using a
transmitter button or key.

System components:

Advanced keyless control module

6-antennas (driver, passenger, interior front, interior middle, interior rear,
trunk)

Keyless receiver

3-request switches (driver, passenger, trunk)

2-indicator lights (red and green) in the Instrument Cluster (IC)

Keyless buzzer (in driver door)

Start knob push button switch

Up to 6 transmitters

•

•

•

•

•

•

•

•
