01 ENGINE

14

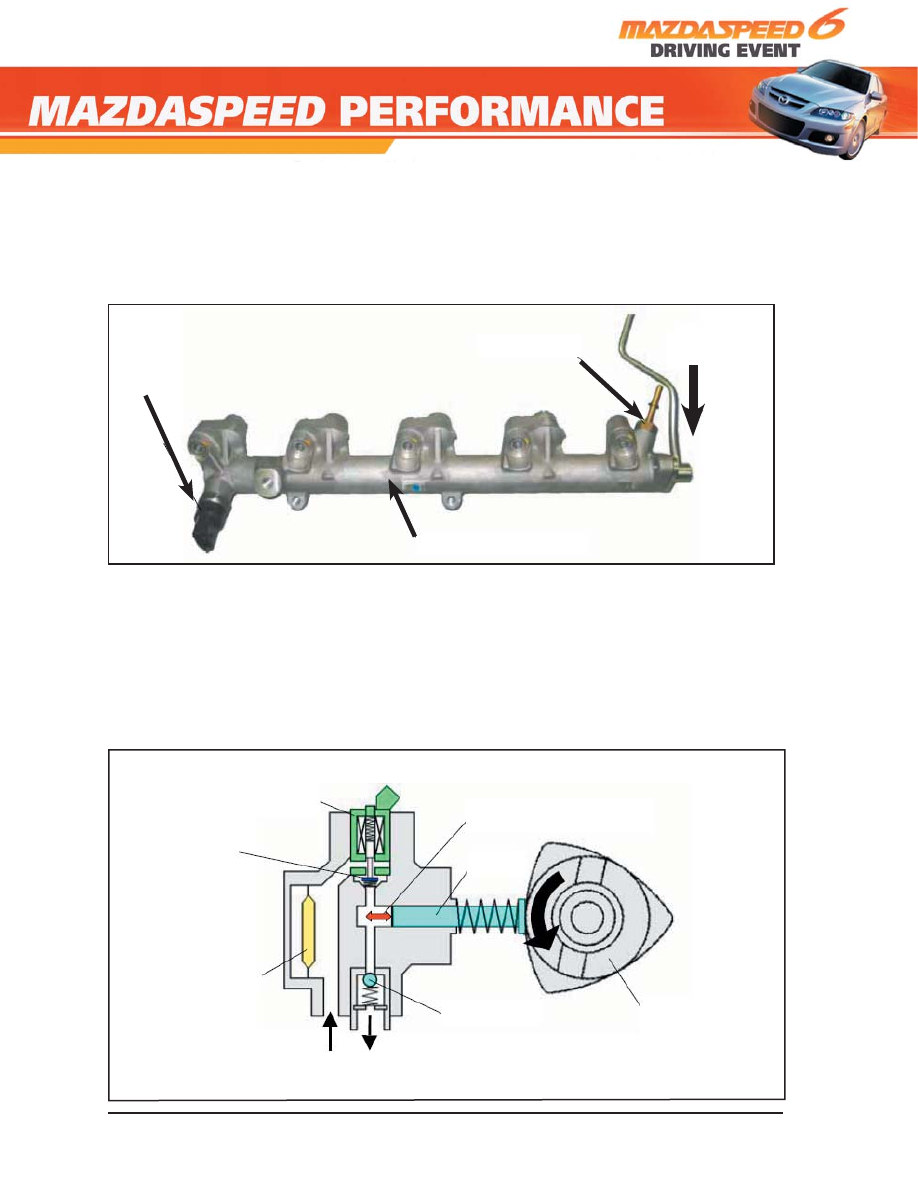

High Pressure Fuel Rail
The fuel rail supplies fuel to the injectors.  The fuel rail pressure sensor supplies
pressure information to the PCM. A pressure relief valve inside the low pressure
return line allows pressure over 1885 psi to return to the low pressure side of the
high pressure fuel pump.

High Pressure Pump Internal Construction
A trochoid drive on the camshaft at the rear of the cylinder head drives the high
pressure pump.  When the PCM energizes the spill control solenoid fuel enters
the pump chamber.  When the spill solenoid is commanded off, the high pressure
chamber is isolated and can build high pressure.  The one way check valve assures
high pressure can only go one direction, into the rail.

Low pressure
fuel return to
pump (internal
pressure relief)

In from high
pressure pump

Fuel rail

Fuel pressure
sensor

Plunger

Pulsation
damper

Spill control
solenoid

High
pressure
to rail

Low
pressure
from tank

One-way
check valve

Pump chamber

Trochoid pump
drive

Valve

01 ENGINE

15

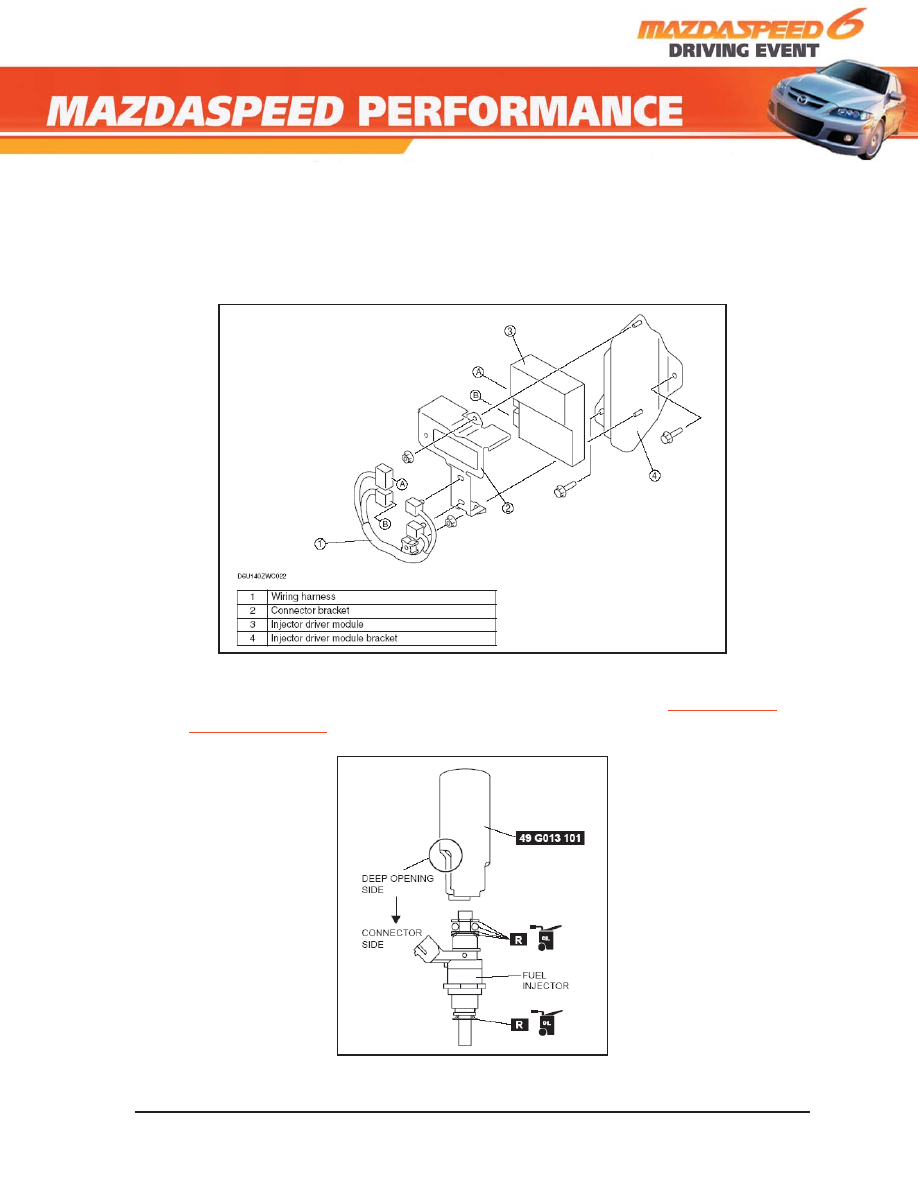

Injector Driver Module
The PCM fi res the injectors with the injector driver module.  Because the fuel system
is running at up to 1885 PSI, it requires more energy to open the fuel injectors.  The
injector driver module turns the injectors on with +100 volts.  The injector is then held
open with +12 volts.  The injector driver module then closes the injectors with -100
volts.  The injector driver module is located at the rear of the drive strut tower.

High Pressure Fuel Injectors

Removal requires a special tool similar to O

2

 sensor socket,

fuel pressure

must be released

 and intake manifold must be removed.  The tool is rocked

left to right to loosen any carbon holding the injector.

01 ENGINE

16

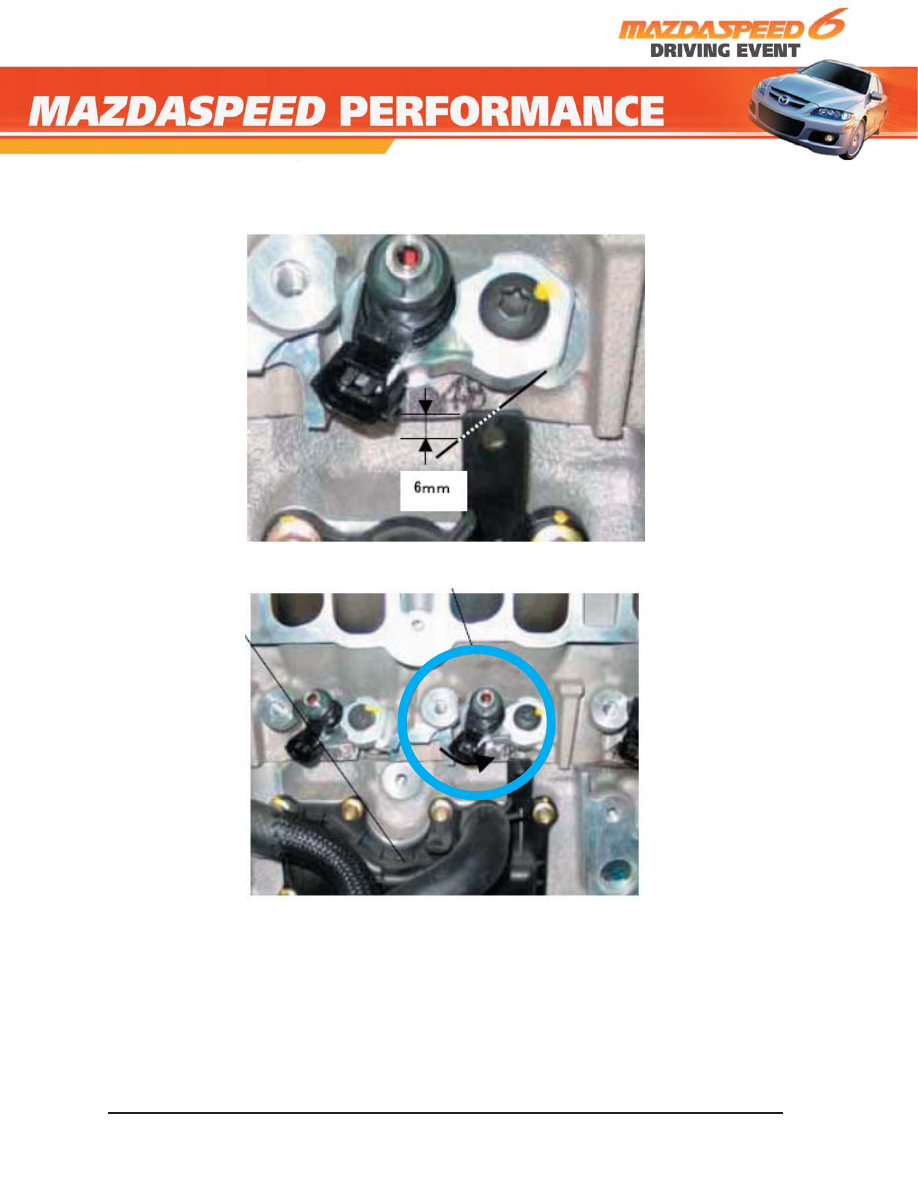

The #3 injector requires cutting the corner off of the PCV catch tank to allow more
clearance.



01 ENGINE

17

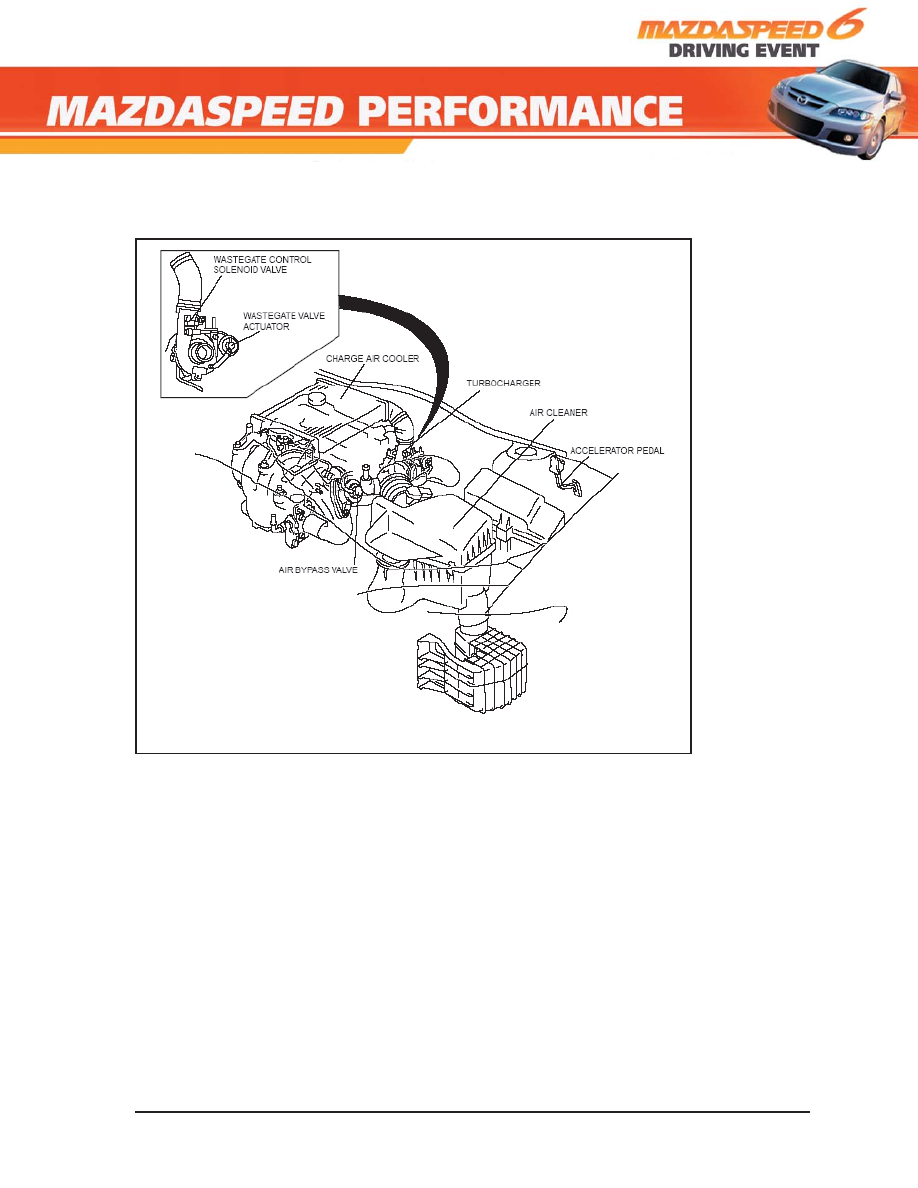

Turbocharger

The main components of the turbocharging system are:

Air ducts and charge air cooler (Intercooler)

Turbocharger

Waste gate
Waste gate actuator

Boost control:

Waste gate control solenoid
Air bypass valve
