P0964

Pressure control (PC) solenoid B - control circuit open

Wiring, poor connection, pressure control solenoid,
ECM/PCM/TCM

P0965

Pressure control (PC) solenoid B - control circuit
range/performance

Wiring, poor connection, pressure control solenoid,
ECM/PCM/TCM

P0966

Pressure control (PC) solenoid B - control circuit low

Wiring, short to earth, pressure control solenoid,
ECM/PCM/TCM

P0967

Pressure control (PC) solenoid B - control circuit high

Wiring, short to positive, pressure control solenoid,
ECM/PCM/TCM

P0968

Pressure control (PC) solenoid C - control circuit open

Wiring, poor connection, pressure control solenoid,
ECM/PCM/TCM

P0969

Pressure control (PC) solenoid C - control circuit
range/performance

Wiring, poor connection, pressure control solenoid,
ECM/PCM/TCM

P0970

Pressure control (PC) solenoid C - control circuit low

Wiring, short to earth, pressure control solenoid,
ECM/PCM/TCM

P0971

Pressure control (PC) solenoid C - control circuit high

Wiring, short to positive, pressure control solenoid,
ECM/PCM/TCM

P0972

Shift solenoid (SS) A - control circuit range/performance

Wiring, poor connection, shift solenoid, ECM/PCM/TCM

P0973

Shift solenoid (SS) A - control circuit low

Wiring, short to earth, shift solenoid, ECM/PCM/TCM

P0974

Shift solenoid (SS) A - control circuit high

Wiring, short to positive, shift solenoid, ECM/PCM/TCM

P0975

Shift solenoid (SS) B - control circuit range/performance

Wiring, poor connection, shift solenoid, ECM/PCM/TCM

P0976

Shift solenoid (SS) B - control circuit low

Wiring, short to earth, shift solenoid, ECM/PCM/TCM

P0977

Shift solenoid (SS) B - control circuit high

Wiring, short to positive, shift solenoid, ECM/PCM/TCM

P0978

Shift solenoid (SS) C - control circuit range/performance

Wiring, poor connection, shift solenoid, ECM/PCM/TCM

P0979

Shift solenoid (SS) C - control circuit low

Wiring, short to earth, shift solenoid, ECM/PCM/TCM

P0980

Shift solenoid (SS) C - control circuit high

Wiring, short to positive, shift solenoid, ECM/PCM/TCM

P0981

Shift solenoid (SS) D - control circuit range/performance

Wiring, poor connection, shift solenoid, ECM/PCM/TCM

P0982

Shift solenoid (SS) D - control circuit low

Wiring, short to earth, shift solenoid, ECM/PCM/TCM

P0983

Shift solenoid (SS) D - control circuit high

Wiring, short to positive, shift solenoid, ECM/PCM/TCM

P0984

Shift solenoid (SS) E - control circuit range/performance

Wiring, poor connection, shift solenoid, ECM/PCM/TCM

P0985

Shift solenoid (SS) E - control circuit low

Wiring, short to earth, shift solenoid, ECM/PCM/TCM

P0986

Shift solenoid (SS) E - control circuit high

Wiring, short to positive, shift solenoid, ECM/PCM/TCM

P0987

Transmission fluid pressure (TFP) sensor E - circuit
malfunction

Wiring, poor connection, TFP sensor, ECM/PCM/TCM

P0987

Transmission fluid pressure (TFP) switch E - circuit
malfunction

Wiring, poor connection, TFP switch, ECM/PCM/TCM

P0988

Transmission fluid pressure (TFP) sensor E - circuit
range/performance

Wiring, poor connection, TFP sensor, ECM/PCM/TCM

P0988

Transmission fluid pressure (TFP) switch E - circuit
range/performance

Wiring, poor connection, TFP switch, ECM/PCM/TCM

P0989

Transmission fluid pressure (TFP) sensor E - circuit low

Wiring, short to earth, TFP sensor, ECM/PCM/TCM

P0989

Transmission fluid pressure (TFP) switch E - circuit low

Wiring, short to earth, TFP switch, ECM/PCM/TCM

P0990

Transmission fluid pressure (TFP) sensor E - circuit high

Wiring, short to positive, TFP sensor, ECM/PCM/TCM

P0990

Transmission fluid pressure (TFP) switch E - circuit high

Wiring, short to positive, TFP switch, ECM/PCM/TCM

P0991

Transmission fluid pressure (TFP) sensor E - circuit
intermittent

Wiring, poor connection, TFP sensor, ECM/PCM/TCM

P0991

Transmission fluid pressure (TFP) switch E - circuit
intermittent

Wiring, poor connection, TFP switch, ECM/PCM/TCM

P0992

Transmission fluid pressure (TFP) sensor F - circuit
malfunction

Wiring, poor connection, TFP sensor, ECM/PCM/TCM

P0992

Transmission fluid pressure (TFP) switch F - circuit
malfunction

Wiring, poor connection, TFP switch, ECM/PCM/TCM

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

P0993

Transmission fluid pressure (TFP) sensor F - circuit
range/performance

Wiring, poor connection, TFP sensor, ECM/PCM/TCM

P0993

Transmission fluid pressure (TFP) switch F - circuit
range/performance

Wiring, poor connection, TFP switch, ECM/PCM/TCM

P0994

Transmission fluid pressure (TFP) sensor F - circuit low

Wiring, short to earth, TFP sensor , ECM/PCM/TCM

P0994

Transmission fluid pressure (TFP) switch F - circuit low

Wiring, short to earth, TFP switch, ECM/PCM/TCM

P0995

Transmission fluid pressure (TFP) sensor F - circuit high

Wiring, short to positive, TFP sensor, ECM/PCM/TCM

P0995

Transmission fluid pressure (TFP) switch F - circuit high

Wiring, short to positive, TFP switch, ECM/PCM/TCM

P0996

Transmission fluid pressure (TFP) sensor F - circuit
intermittent

Wiring, poor connection, TFP sensor, ECM/PCM/TCM

P0996

Transmission fluid pressure (TFP) switch F - circuit
intermittent

Wiring, poor connection, TFP switch, ECM/PCM/TCM

P0997

Shift solenoid (SS) F - control circuit range/performance

Wiring, poor connection, shift solenoid, ECM/PCM/TCM

P0998

Shift solenoid (SS) F - control circuit low

Wiring short to earth, shift solenoid, ECM/PCM/TCM

P0999

Shift solenoid (SS) F - control circuit high

Wiring short to positive, shift solenoid, ECM/PCM/TCM

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

Description

Values

Units

Note

1/1

Engine code KF

MAZDA - KF

Compression

    Compression pressure

10.8 - 14.7

bar

Idle speed

800 ± 50

1/min

Exhaust gas emissions

    CO content at idle speed

< 0.5

vol. %

    CO2 content at idle speed

14.5 - 16.0

vol. %

    HC content at idle speed

100

ppm

Oil pressure

    At rated power

3.4 - 5.0

bar

Thermostat opening temperature

84 - 89

°C

Valve clearance

hydraulic

Firing order

1-2-3-4-5-6

’ Data from secondary source; No manufacturer's information

© Copyright, Wessels + Mьller AG

26.03.2007

Environmental Data

MAZDA - Xedos 6 - 2.0i V6 24V - KF

Values

Item

Units

Engine code



KF

Idle speed

(rpm)

670 ±30

Fuel system (make & type)



Mazda VRIS

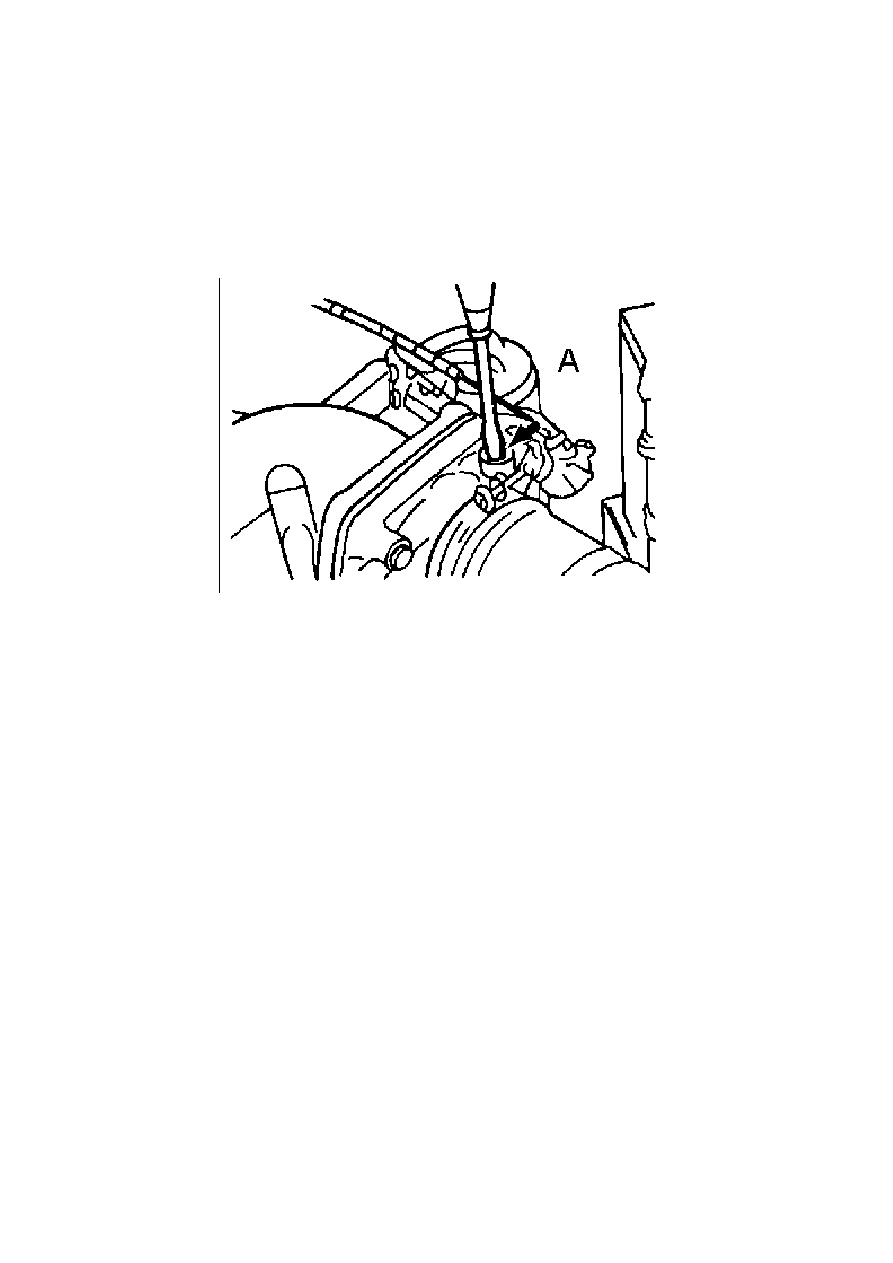

Adjustment screws (A = idle speed B = CO)



A

Timing stroboscopic (before TDC)

(° / rpm)

10 ± 1/670

Fuel-pump pressure

(bar)

6.2

Injection pressure / system pressure

(bar)

2.8

CO exhaust gas

(%)

< 0.5

CO2

(%)

> 12

HC

(ppm)

100

O2

(%)

0.1 - 0.5

Lambda



0.97 - 1.03

Lambda change (Delta Lambda)



0.03

Oil temperature during test

60

(°C)

Fast-idle speed

(rpm)

2500-2800

CO at fast-idle speed

(%)

< 0.3
