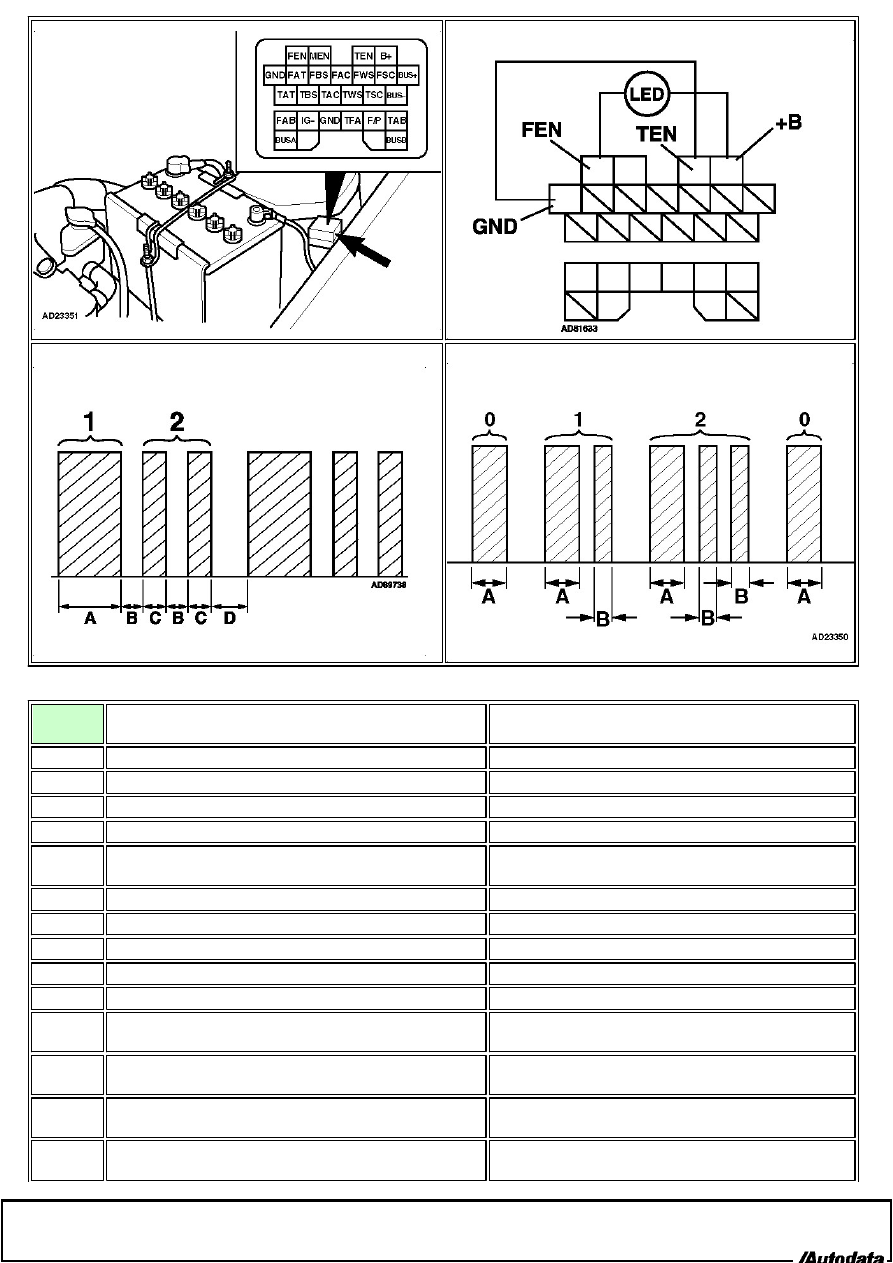

P1182

Fuel shut-off solenoid

Wiring, fuel shut-off solenoid

P1189

Fuel injection pump position/speed sensor

Wiring, fuel injection pump speed sensor

P1190

Module coding plug

Wiring, module coding plug

P1195

Barometric pressure (BARO) sensor

Wiring, BARO sensor, ECM

P1196

Ignition switch, start signal - circuit malfunction

Wiring, starter motor

P1221

Traction control system (TCS) - malfunction

Wiring, TCS malfunction

P1226

Fuel quantity adjuster position sensor - circuit
malfunction

Wiring, fuel quantity adjuster position sensor

P1250

Fuel pressure regulator control solenoid

Wiring, fuel pressure regulator control solenoid

P1252

Fuel pressure regulator control solenoid 2

Wiring, fuel pressure regulator control solenoid

P1279

Fuel quantity adjuster position sensor -
range/performance problem

Wiring, fuel quantity adjuster position sensor

P1298

Fuel quantity adjuster control module - circuit
malfunction

Wiring, fuel quantity adjuster control module

P1312

Fuel injection timing valve

Wiring, fuel injection timing valve

P1318

Fuel injection timing valve position sensor - circuit
malfunction

Wiring, fuel injection timing valve position sensor

P1319

Fuel injection timing valve position sensor -
range/performance problem

Wiring, fuel injection timing valve position sensor

P1345

Camshaft position (CMP) sensor - no signal

Wiring, sensor supply voltage, CMP sensor

P1402

Exhaust gas recirculation (EGR) valve position
sensor

Wiring, EGR valve position sensor

P1409

Exhaust gas recirculation (EGR) valve - circuit
malfunction

Wiring, EGR valve

P1474

Engine coolant blower motor relay - circuit
malfunction

Wiring, engine coolant blower motor relay

P1485

Exhaust gas recirculation (EGR) solenoid -
vacuum

Wiring, EGR solenoid

P1486

Exhaust gas recirculation (EGR) solenoid - vent

Wiring, EGR solenoid

P1487

Manifold absolute pressure (MAP) sensor solenoid Wiring, MAP sensor solenoid

P1496

Exhaust gas recirculation (EGR) valve, motor coil
1

Wiring, EGR valve

P1497

Exhaust gas recirculation (EGR) valve, motor coil
2

Wiring, EGR valve

P1498

Exhaust gas recirculation (EGR) valve, motor coil
3

Wiring, EGR valve

P1499

Exhaust gas recirculation (EGR) valve, motor coil
4

Wiring, EGR valve

P1500

Vehicle speed sensor (VSS) - intermittent signal

Wiring, VSS

P1504

Idle air control (IAC) valve

Wiring, IAC valve

P1508

Bypass solenoid 1

Wiring, bypass solenoid

P1509

Bypass solenoid 2

Wiring, bypass solenoid

P1521

Intake manifold air control solenoid 1

Wiring, intake manifold air control solenoid

P1522

Intake manifold air control solenoid 2

Wiring, intake manifold air control solenoid

P1523

Intake manifold air control solenoid 1

Wiring, intake manifold air control solenoid

P1524

Intercooler bypass solenoid

Wiring, intercooler bypass solenoid

P1525

Air bypass valve solenoid - vacuum

Wiring, air bypass valve solenoid

P1526

Air bypass valve solenoid - vent

Wiring, air bypass valve solenoid

P1540

Air bypass valve control

Hose leak/blockage, wiring, air bypass valve actuator/solenoid

P1562

Engine control module (ECM) - supply voltage low Battery, alternator, wiring

P1601

Data bus, TCM

Wiring, ECM, TCM

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

P1602

Engine control module (ECM)/immobilizer control
module - communication error

Wiring, reader coil, ignition key, immobilizer control module,
ECM

P1603

Ignition key - not programmed into ECM

ECM incorrectly/not programmed

P1604

Engine control module (ECM) - immobilizer code
not stored

ECM incorrectly/not programmed

P1606

Engine control relay

Wiring, engine control relay

P1608

Engine control module (ECM)

ECM

P1609

Engine control module (ECM) - knock control

ECM

P1621

Engine control module (ECM)/immobilizer control
module - immobilizer codes do not match

Incorrectly programmed immobilizer control module/ECM

P1622

Engine control module (ECM)/immobilizer control
module - ignition key codes not match

Incorrect/damaged key, ECM incorrectly programmed

P1623

Engine control module (ECM) - EEPROM error

ECM

P1624

Engine control module (ECM) - immobilizer
deactivation signal missing

Battery disconnected - erase trouble code, immobilizer system
malfunction

P1627

ECM/ABS electrical connection - communication
error

Wiring, ABS control module, ECM

P1631

Alternator - output voltage low

Wiring, alternator drive belt, alternator

P1632

Engine control module (ECM) - supply voltage low Wiring, alternator, battery

P1633

Engine control module (ECM) - supply voltage high Wiring, voltage surge when battery disconnected, alternator

P1634

Alternator - output voltage high/battery voltage low Wiring, alternator, battery

P1649

Engine control module (ECM) - defective

ECM

P1650

Power steering pressure (PSP) switch

Wiring, PSP switch

P1720

Vehicle speed sensor (VSS)

Wiring, speedometer, VSS

P1743

Torque converter clutch (TCC) control solenoid

Wiring, TCC control solenoid

P1744

Torque converter clutch (TCC) solenoid

Wiring, TCC solenoid

P1765

Shift timing solenoid, 3-2

Wiring, shift timing solenoid

P1770

Overrunning clutch solenoid

Wiring, overrunning clutch solenoid

P1790

Throttle position (TP) sensor

Wiring, TP sensor

EOBD codes

All EOBD codes starting with P zero have standard meanings irrespective of vehicle make or model.
For EOBD codes, other than those starting P zero, refer to model specific chapters.
The following list covers all P0 codes allocated at the time of publication.

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

1

2

3

Trouble

code

Fault location

Probable cause

P0000

No fault found

-

P0001

Fuel volume regulator control - circuit open

Wiring, regulator control solenoid

P0002

Fuel volume regulator control - circuit range/performance

Wiring, regulator control solenoid

P0003

Fuel volume regulator control - circuit low

Wiring short to earth, regulator control solenoid

P0004

Fuel volume regulator control - circuit high

Wiring open circuit/short to positive, regulator control
solenoid

P0005

Fuel shut-off valve - circuit open

Wiring open circuit, fuel shut-off valve

P0006

Fuel shut-off valve - circuit low

Wiring short to earth, fuel shut-off valve

P0007

Fuel shut-off valve - circuit high

Wiring short to positive, fuel shut-off valve

P0008

Engine position system, bank 1 - engine performance

Mechanical fault

P0009

Engine position system, bank 2 - engine performance

Mechanical fault

P0010

Camshaft position (CMP) actuator, intake/left/front, bank
1 - circuit malfunction

Wiring, CMP actuator, ECM

P0011

Camshaft position (CMP), intake/left/front, bank 1 - timing
over-advanced/system performance

Valve timing, engine mechanical fault, CMP actuator

P0012

Camshaft position (CMP), intake/left/front, bank 1 - timing
over-retarded

Valve timing, engine mechanical fault, CMP actuator

P0013

Camshaft position (CMP) actuator, intake/left/front, bank
1 - circuit malfunction

Wiring, CMP actuator, ECM

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-

P0014

Camshaft position (CMP) actuator, exhaust/right/rear,
bank 1 - timing over-advanced/system performance

Valve timing, engine mechanical fault, CMP actuator

P0015

Camshaft position (CMP) actuator, exhaust/right/rear,
bank 1 - timing over-retarded

Valve timing, engine mechanical fault, CMP actuator

P0016

Crankshaft position/camshaft position, bank 1 sensor A -
correlation

Wiring, CKP sensor, CMP sensor, mechanical fault

P0017

Crankshaft position/camshaft position, bank 1 sensor B -
correlation

Wiring, CKP sensor, CMP sensor, mechanical fault

P0018

Crankshaft position/camshaft position, bank 2 sensor A -
correlation

Wiring, CKP sensor, CMP sensor, mechanical fault

P0019

Crankshaft position/camshaft position, bank 2 sensor B -
correlation

Wiring, CKP sensor, CMP sensor, mechanical fault

P0020

Camshaft position (CMP) actuator, intake/left/front, bank
2 - circuit malfunction

Wiring, CMP actuator, ECM

P0021

Camshaft position (CMP), intake/left/front, bank 2 - timing
over-advanced/system performance

Valve timing, engine mechanical fault, CMP actuator

P0022

Camshaft position (CMP), intake/left/front, bank 2 - timing
over-retarded

Valve timing, engine mechanical fault, CMP actuator

P0023

Camshaft position (CMP) actuator, exhaust/right/rear,
bank 2 - circuit malfunction

Wiring, CMP actuator, ECM

P0024

Camshaft position (CMP), exhaust/right/rear, bank 2 -
timing over-advanced/system performance

Valve timing, engine mechanical fault, CMP actuator

P0025

Camshaft position (CMP), exhaust/right/rear, bank 2 -
timing over-retarded

Valve timing, engine mechanical fault, CMP actuator

P0026

Intake valve control solenoid circuit, bank 1 -
range/performance

Wiring, intake valve control solenoid

P0027

Exhaust valve control solenoid circuit, bank 1 -
range/performance

Wiring, exhaust valve control solenoid

P0028

Intake valve control solenoid circuit, bank 2 -
range/performance

Wiring, intake valve control solenoid

P0029

Exhaust valve control solenoid circuit, bank 2 -
range/performance

Wiring, exhaust valve control solenoid

P0030

Heated oxygen sensor (HO2S) 1, bank 1, heater control -
circuit malfunction

Wiring, HO2S, ECM

P0031

Heated oxygen sensor (HO2S) 1, bank 1, heater control -
circuit low

Wiring short to earth, HO2S, ECM

P0032

Heated oxygen sensor (HO2S) 1, bank 1, heater control -
circuit high

Wiring short to positive, HO2S, ECM

P0033

Turbocharger (TC) wastegate regulating valve - circuit
malfunction

Wiring, TC wastegate regulating valve, ECM

P0034

Turbocharger (TC) wastegate regulating valve - circuit low

Wiring short to earth, TC wastegate regulating valve,
ECM

P0035

Turbocharger (TC) wastegate regulating valve - circuit
high

Wiring short to positive, TC wastegate regulating valve,
ECM

P0036

Heated oxygen sensor (HO2S) 2, bank 1, heater control -
circuit malfunction

Wiring, HO2S, ECM

P0037

Heated oxygen sensor (HO2S) 2, bank 1, heater control -
circuit low

Wiring short to earth, HO2S, ECM

P0038

Heated oxygen sensor (HO2S) 2, bank 1, heater control -
circuit high

Wiring short to positive, HO2S, ECM

P0039

Turbo/super charger bypass valve, control circuit -
range/performance

Wiring, bypass valve

P0040

Oxygen sensor signals swapped, bank 1 sensor 1/bank 2
sensor 1

Wiring

Manufacturer: Mazda

Model: Xedos 6 (CA) 2,0

Engine code: KF

Output: 103 (140) 6000

Tuned for: R-Cat

Year: 1995-00

© Autodata Limited 2004

26.03.2007

V5.500-
