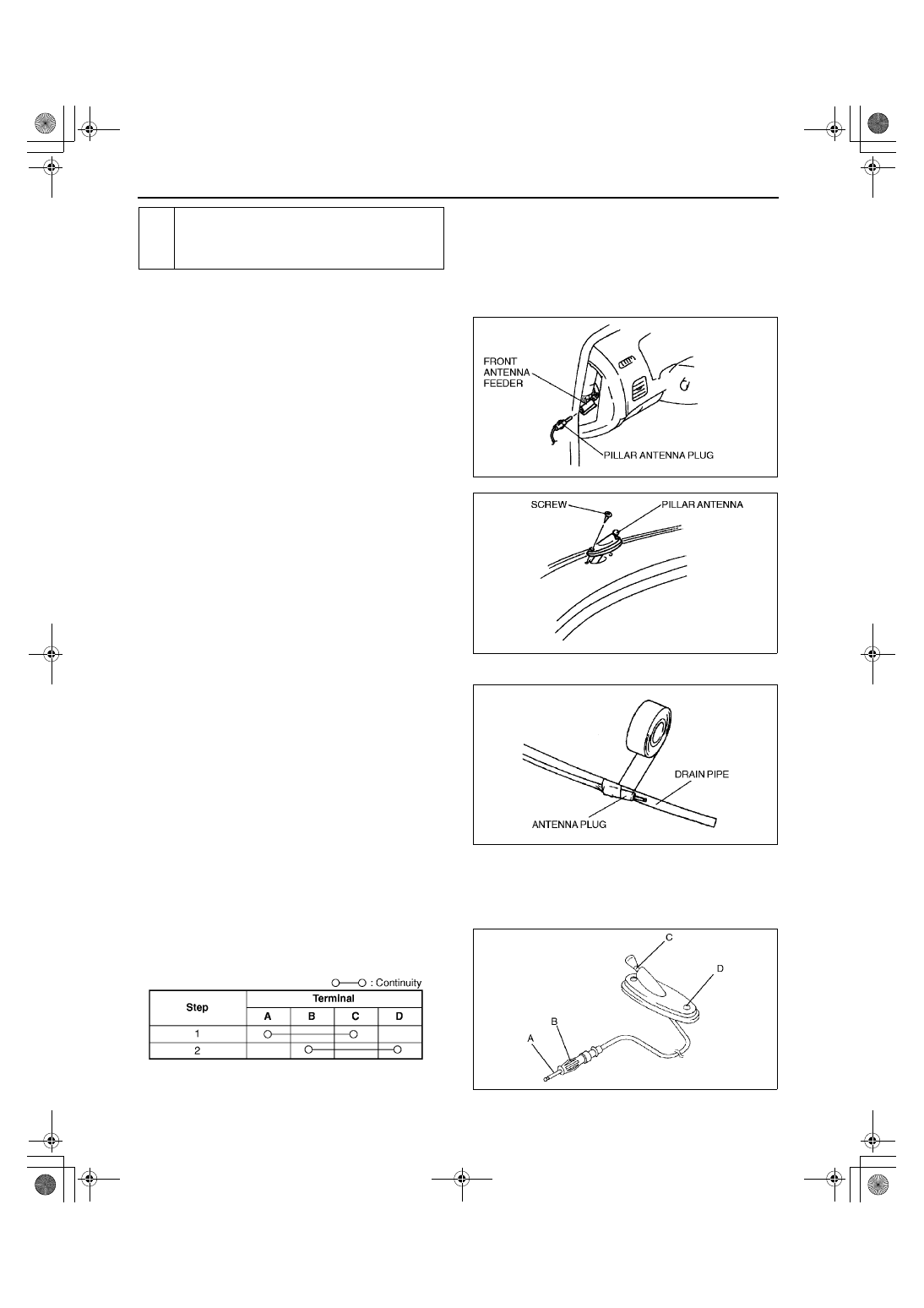

PILLAR ANTENNA REMOVAL

1. Disconnect the negative battery cable.
2. Remove the driver-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3. Disconnect the pillar antenna plug.

4. Remove the screw and pull out the pillar antenna.

End Of Sie

PILLAR ANTENNA INSTALLATION

1. Tape the antenna plug to the antenna drain pipe.
2. Pass the pillar antenna and antenna drain pipe

through the A-pillar from the hole in the roof.

3. Install the screws and install the roof antenna.
4. Connect the antenna plug.
5. Install the driver-side front side trim. (See 09–17–

13 FRONT SIDE TRIM REMOVAL/
INSTALLATION.)

6. Connect the negative battery cable.

End Of Sie

PILLAR ANTENNA INSPECTION

1. Remove the driver-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
2. Disconnect the pillar antenna plug.
3. Verify that there is no continuity between pillar antenna terminal A and B using an ohmmeter.

If not as specified, replace the pillar antenna.

4. Inspect for continuity between the pillar antenna

terminals using an ohmmeter.

If not as specified, replace the pillar antenna.

End Of Sie

9

Cigarette lighter
(See 09–20–8 CIGARETTE LIGHTER REMOVAL/
INSTALLATION)
(See 09–20–9 CIGARETTE LIGHTER
INSPECTION)

X3U920WA8

X3U920WA9

X3U920WAA

X3U920WAC

X3U920WAB

1712-1U-01G(09-20).fm  2 ページ  2001年6月29日 金曜日 午前10時37分

ENTERTAINMENT

09–20–3

09–20

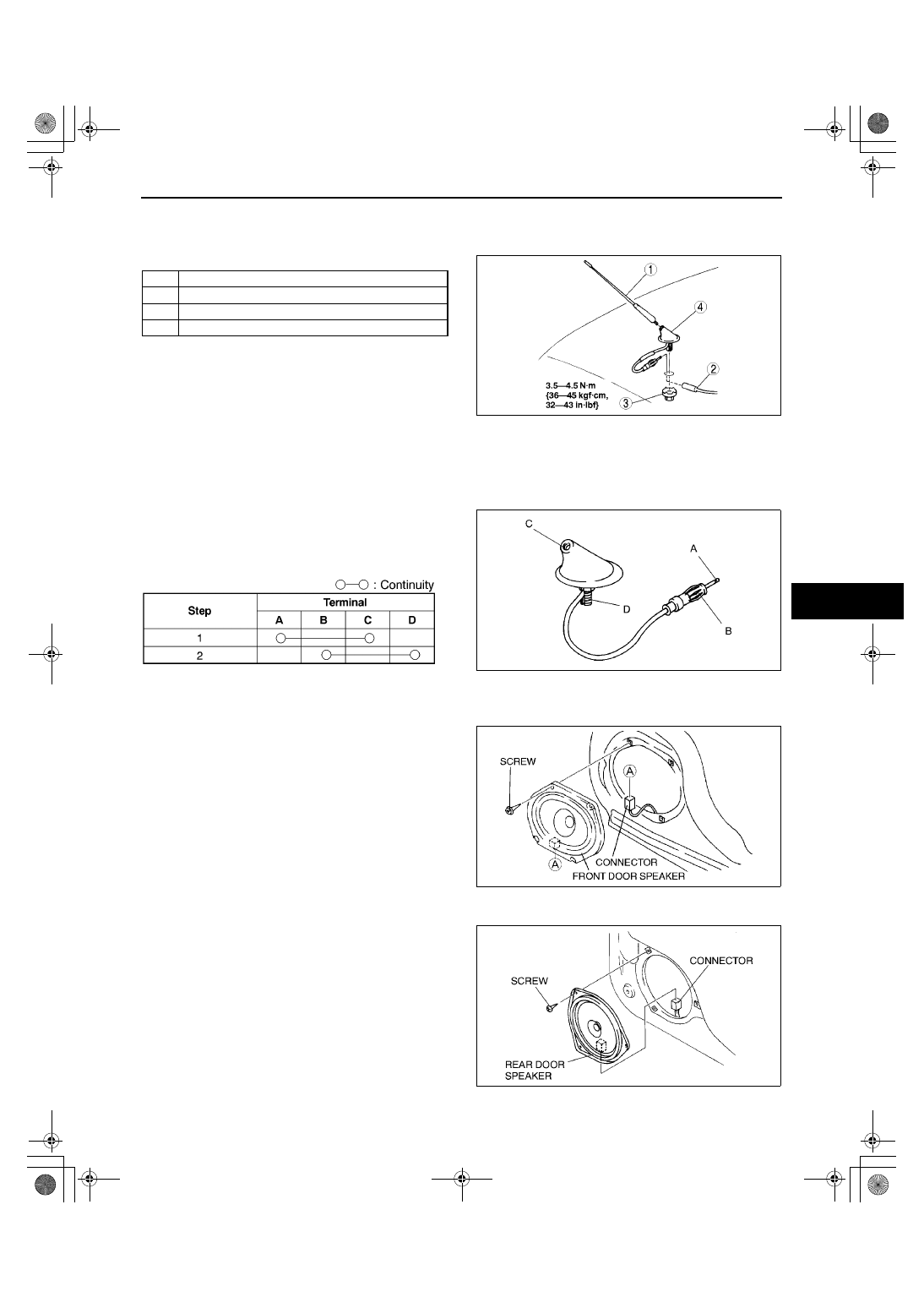

REAR CENTER ROOF ANTENNA REMOVAL/INSTALLATION

A3U092066939W01

1. Disconnect the negative battery cable.
2. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. After installation, verify that the rubber of the rear

center roof antenna is installed to the roof panel
with no space between them.

End Of Sie

REAR CENTER ROOF ANTENNA INSPECTION

A3U092066939W02

1. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
2. Disconnect the rear center roof antenna jack.
3. Remove the antenna rod.
4. Verify that there is no continuity between roof antenna terminals A and B using an ohmmeter.
5. Inspect for continuity between the rear center roof

antenna terminals using an ohmmeter.

If not as specified, replace the rear center roof
antenna.

End Of Sie

FRONT DOOR SPEAKER REMOVAL/INSTALLATION

A3U092066961W01

1. Disconnect the negative battery cable.
2. Remove the front door trim. (See 09–17–9

FRONT DOOR TRIM REMOVAL/
INSTALLATION.)

3. Remove the screws.
4. Disconnect the connector and remove the front

door speaker.

5. Install in the reverse order of removal.

End Of Sie

REAR DOOR SPEAKER REMOVAL/INSTALLATION

A3U092066961W02

1. Disconnect the negative battery cable.
2. Remove the rear door trim. (See 09–17–9 REAR

DOOR TRIM REMOVAL/INSTALLATION.)

3. Remove the screws.
4. Disconnect the connector and remove the rear

door speaker.

5. Install in the reverse order of removal.

End Of Sie

1

Antenna rod

2

Rear center roof antenna feeder

3

Nut

4

Rear center roof antenna

Y3A8124W001

Y3A8124W003

Y3A8124W002

X3U920WA2

A3U0920W001

1712-1U-01G(09-20).fm  3 ページ  2001年6月29日 金曜日 午前10時37分

ENTERTAINMENT

09–20–4

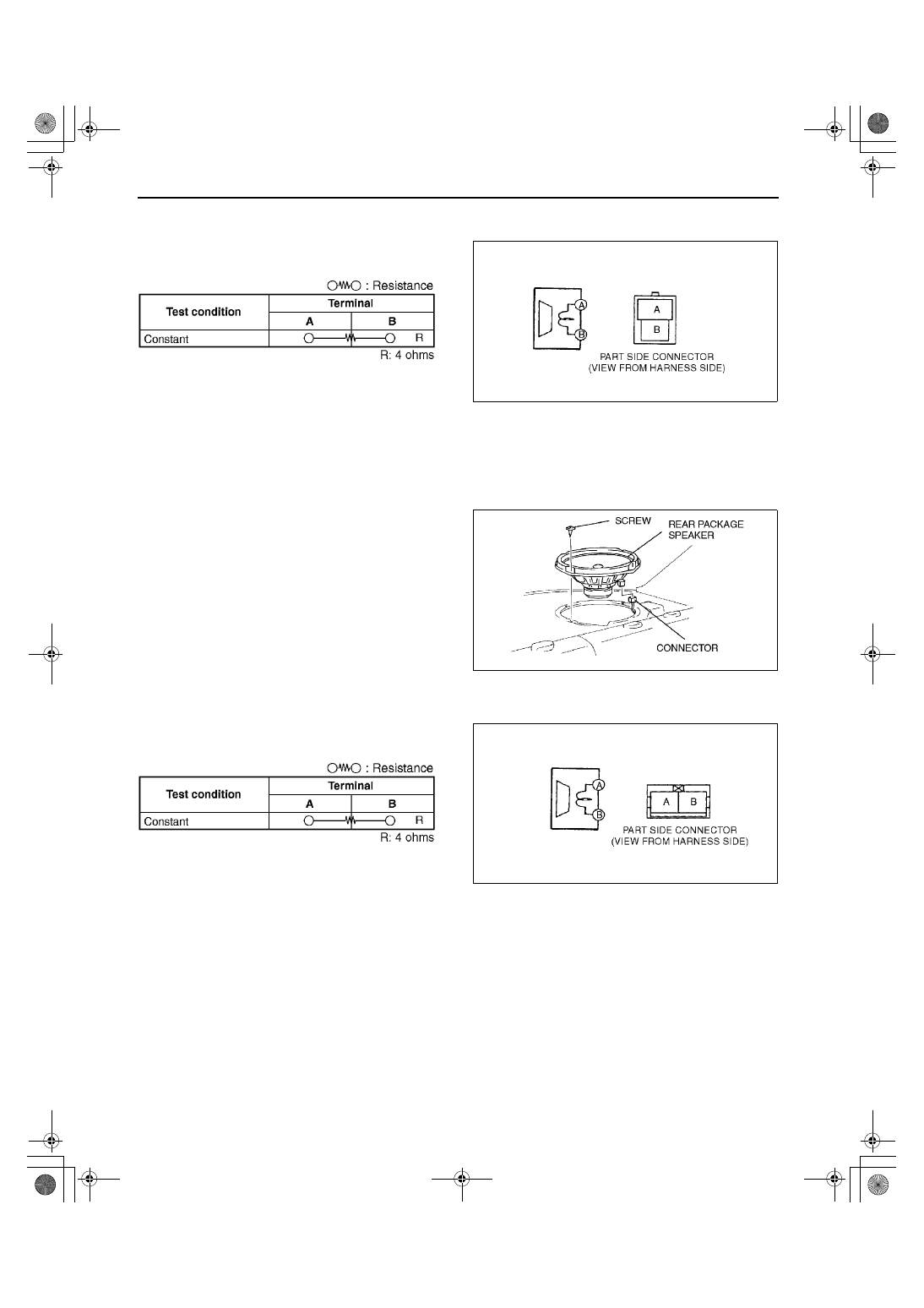

DOOR SPEAKER INSPECTION

A3U092066961W03

1. Remove the door speaker.
2. Inspect for resistance between the door speaker

terminals using an ohmmeter.

3. To verify that the speakers output sound, apply

voltage to each speaker and release using a 1.5-
V battery.

If not as specified, replace the door speaker.

End Of Sie

REAR PACKAGE SPEAKER REMOVAL/INSTALLATION

A3U092066964W01

1. Disconnect the negative battery cable.
2. Remove the rear package trim. (See 09–17–12 REAR PACKAGE TRIM REMOVAL/INSTALLATION.)
3. Remove the screws.
4. Disconnect the connector and remove the rear

package speaker.

5. Install in the reverse order of removal.

End Of Sie

REAR PACKAGE SPEAKER INSPECTION

A3U092066964W02

1. Remove the rear package speaker.
2. Inspect for resistance between the rear package

speaker terminals using an ohmmeter.

3. To verify that the speakers output sound, apply

voltage to each speaker and release using a 1.5-
V battery.

If not as specified, replace the rear package speaker.

End Of Sie

Y3U920WA0

Z3U0920W002

X3U920WA5

Y3U920WA1

Z3U0920W002

1712-1U-01G(09-20).fm  4 ページ  2001年6月29日 金曜日 午前10時37分

ENTERTAINMENT

09–20–5

09–20

FRONT ANTENNA FEEDER REMOVAL/INSTALLATION

A3U092066941W01

1. Disconnect the negative battery cable.
2. Remove the audio unit. (See 09–20–6 AUDIO UNIT REMOVAL.) (See 09–20–6 AUDIO UNIT

INSTALLATION.)

3. Remove the driver-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
4. Disconnect the connection between the pillar antenna and the front antenna feeder.
5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

End Of Sie

FRONT ANTENNA FEEDER INSPECTION

A3U092066941W02

1. Disconnect the negative battery cable.
2. Remove the audio unit. (See 09–20–6 AUDIO UNIT REMOVAL.) (See 09–20–6 AUDIO UNIT

INSTALLATION.)

3. Remove the driver-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
4. Disconnect the connection between the pillar antenna and the front antenna feeder.
5. Verify that there is no continuity between the front antenna feeder terminals A and B using an ohmmeter.

If not as specified, replace the front antenna feeder.

6. Inspect for continuity between the front antenna

feeder terminals using an ohmmeter.

If not as specified, replace the front antenna
feeder.

End Of Sie

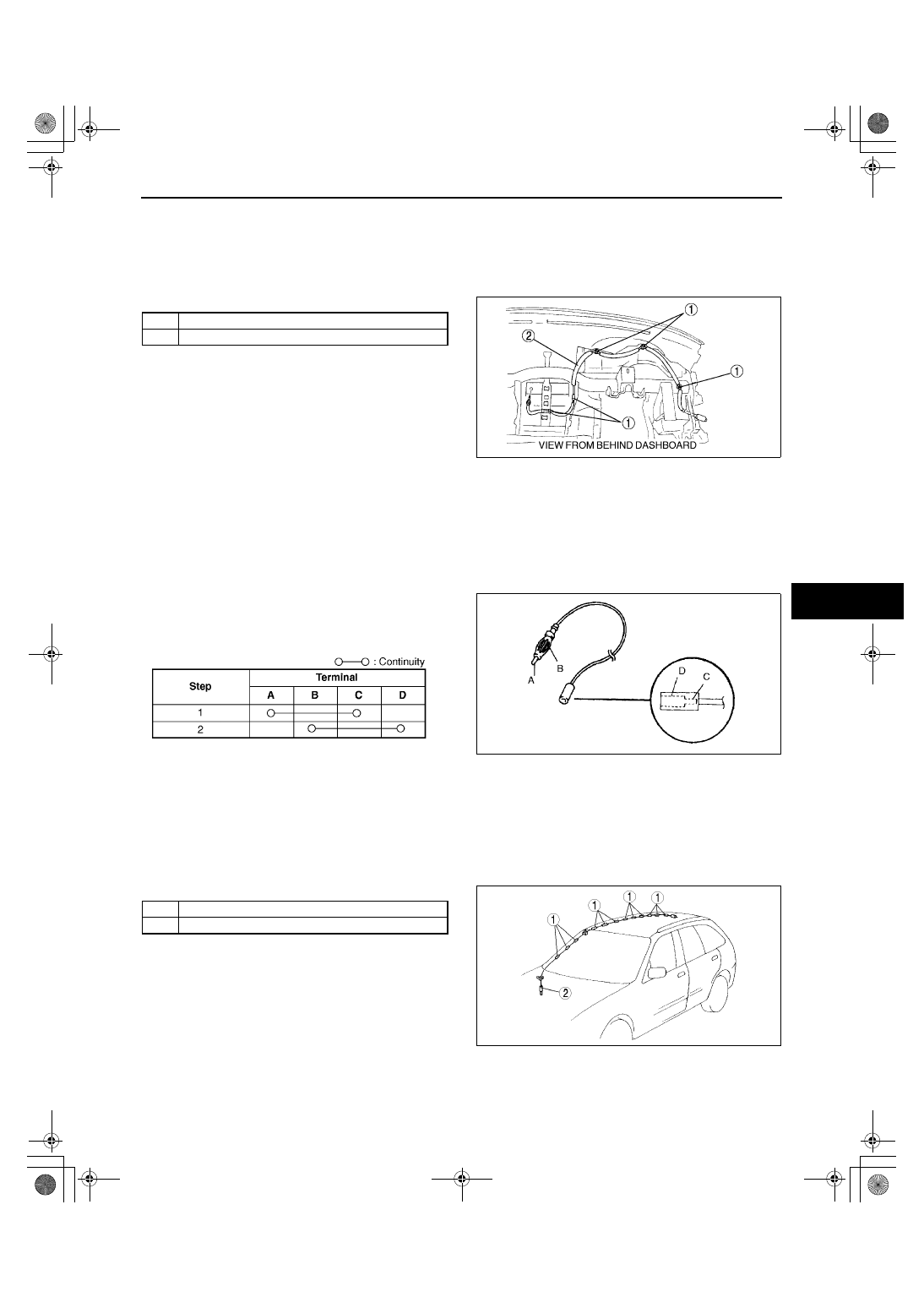

REAR ANTENNA FEEDER REMOVAL/INSTALLATION

A3U092066942W01

1. Disconnect the negative battery cable.
2. Remove the right-side front side trim. (See 09–17–13 FRONT SIDE TRIM REMOVAL/INSTALLATION.)
3. Remove the right-side A-pillar trim. (See 09–17–10 A-PILLAR TRIM REMOVAL/INSTALLATION.)
4. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
5. Disconnect the connector between the rear center roof antenna and rear antenna feeder.
6. Disconnect the connector between the front antenna feeder and rear antenna feeder.
7. Remove in the order indicated in the table.

8. Install in the reverse order of removal.

End Of Sie

1

Clip

2

Front antenna feeder

X3U920WAD

X3U920WAF

X3U920WAE

1

Clip

2

Rear antenna feeder

Y3A8124W004
