WIPER/WASHER SYSTEM

09–19–6

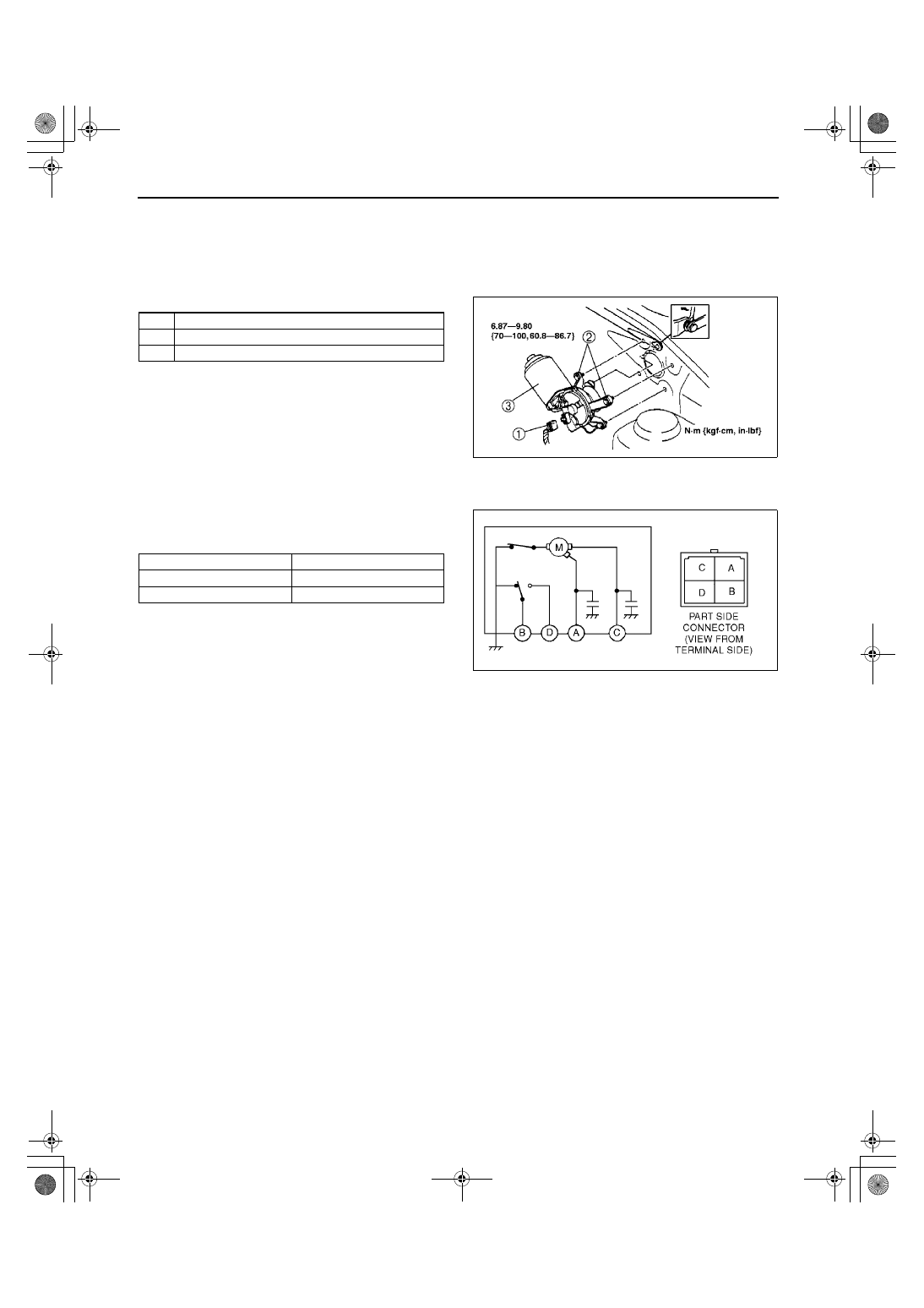

WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION

A3U091967340W01

1. Disconnect the negative battery cable.
2. Remove the windshield wiper arm and blade. (See 09–19–5 WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION.)

3. Remove the cowl grille. (See 09–16–1 COWL GRILLE REMOVAL/INSTALLATION.)
4. Pry off the connection between the windshield wiper motor and windshield wiper link.
5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
7. Adjust the windshield wiper arm and blade. (See

09–19–5 WINDSHIELD WIPER ARM AND
BLADE ADJUSTMENT.)

End Of Sie

WINDSHIELD WIPER MOTOR INSPECTION

A3U091967340W02

1. Disconnect the windshield wiper motor connector.
2. Connect battery positive voltage and inspect the

operation of the windshield wiper motor as
indicated below.

3. Disconnect battery positive voltage from terminal

C of the motor while the wipers are operating.

4. Verify that the wipers do not stop in the park

position.

5. Short between terminal B and C of the motor and

connect battery positive voltage to terminal D of
the motor.

6. Verify that the wipers operate at low speed again, then stop in the park position.

If not as specified, replace the windshield wiper motor.

End Of Sie

1

Connector

2

Bolt

3

Windshield wiper motor

X3U919WA0

Terminal

Operation

A

High

C

Low

Z3U0919W001

1712-1U-01G(09-19).fm  6 ページ  2001年6月29日 金曜日 午前10時37分

WIPER/WASHER SYSTEM

09–19–7

09–19

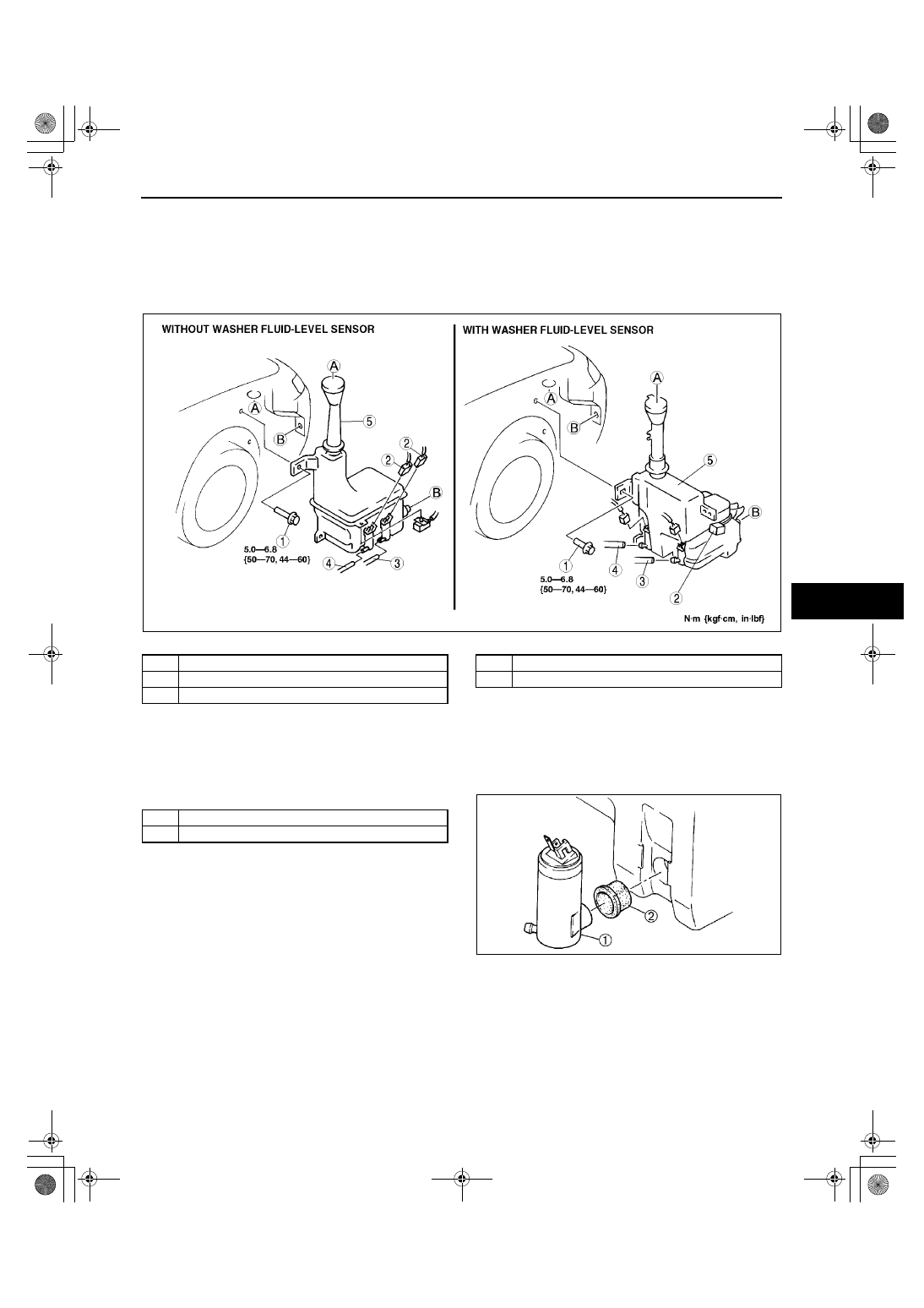

WASHER TANK REMOVAL/INSTALLATION

A3U091967480W01

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.
3. Partially remove the right side front bumper (if equipped with washer fluid-level sensor). (See 09–10–5 FRONT

BUMPER REMOVAL/INSTALLATION.)

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.

.

End Of Sie

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

A3U091976670W01

1. Disconnect the negative battery cable.
2. Remove the washer tank. (See 09–19–7 WASHER TANK REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

A3U0919W112

1

Bolt

2

Connector

3

Windshield washer hose

4

Rear washer hose

5

Washer tank

1

Windshield washer motor

2

Grommet

X3U919WA8

1712-1U-01G(09-19).fm  7 ページ  2001年6月29日 金曜日 午前10時37分

WIPER/WASHER SYSTEM

09–19–8

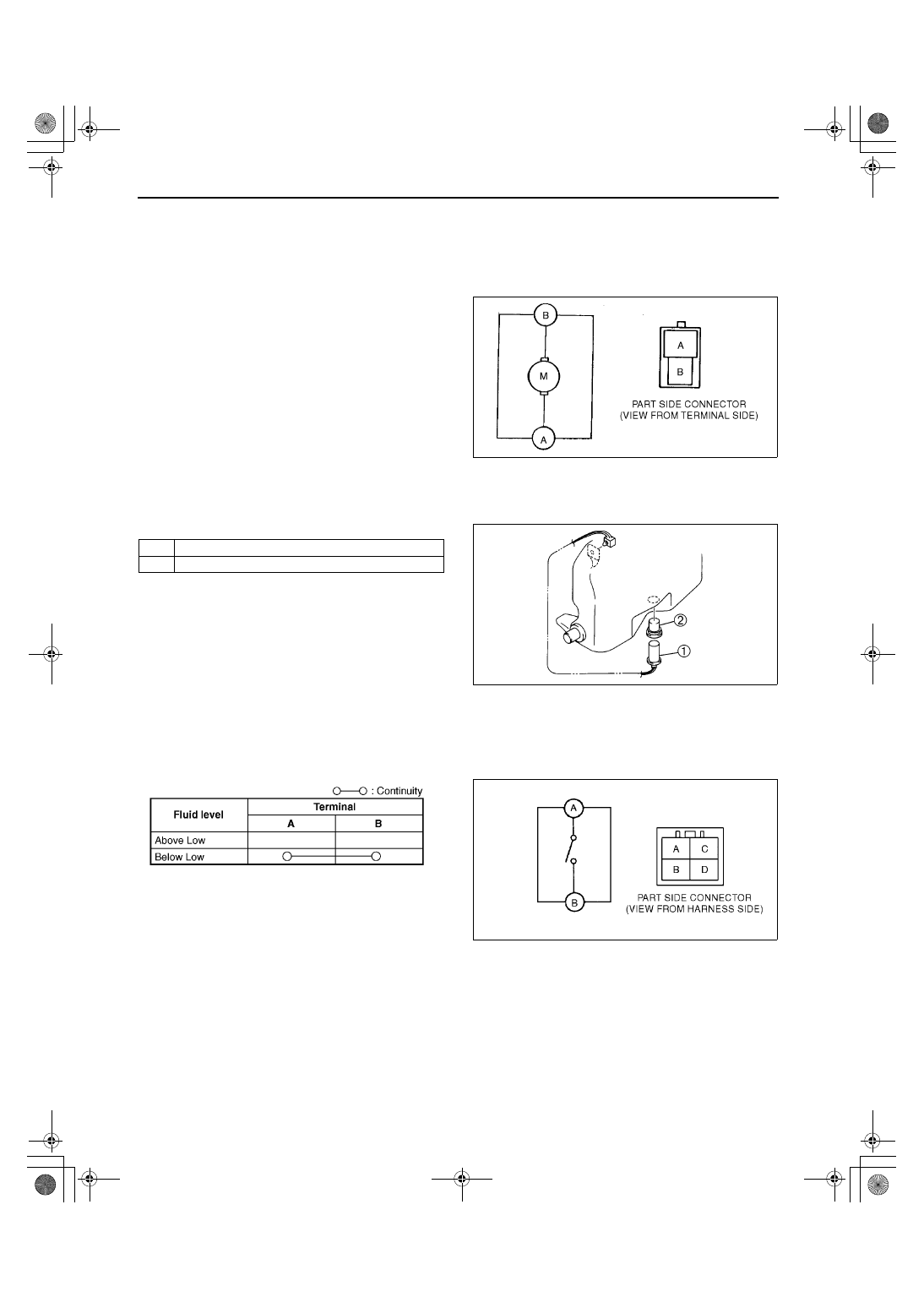

WINDSHIELD WASHER MOTOR INSPECTION

A3U091976670W02

1. Disconnect the negative battery cable.
2. Remove the washer tank. (See 09–19–7 WASHER TANK REMOVAL/INSTALLATION.)
3. Connect battery positive voltage to the terminal B and ground to the terminal A of the motor.
4. Verify that the windshield washer motor operates.

If the motor does not operate, replace the windshield washer motor.

End Of Sie

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

A3U091967488W01

1. Disconnect the negative battery cable.
2. Remove the washer tank. (See 09–19–7 WASHER TANK REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

WASHER FLUID-LEVEL SENSOR INSPECTION

A3U091967488W02

1. Disconnect the negative battery cable.
2. Remove the washer tank. (See 09–19–7 WASHER TANK REMOVAL/INSTALLATION.)
3. Inspect for continuity between the washer fluid-level sensor terminals using an ohmmeter.

If not as specified, replace the washer fluid-level sensor.

End Of Sie

Y3U919WA3

1

Washer fluid-level sensor

2

Grommet

X3U919WB0

Y3U919WA4

X3U919WB1

1712-1U-01G(09-19).fm  8 ページ  2001年6月29日 金曜日 午前10時37分

WIPER/WASHER SYSTEM

09–19–9

09–19

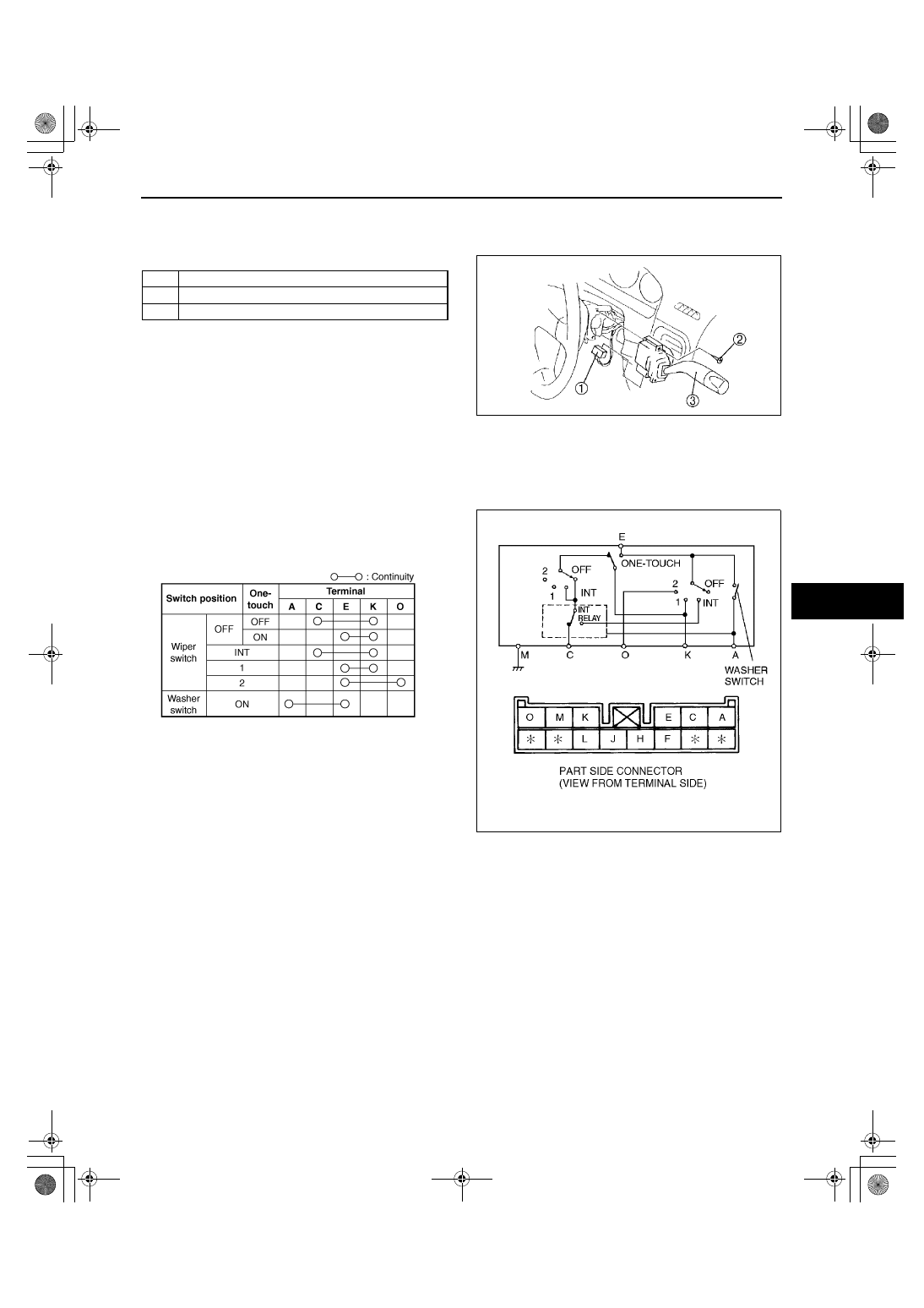

WIPER AND WASHER SWITCH REMOVAL/INSTALLATION

A3U091966122W01

1. Disconnect the negative battery cable.
2. Remove the column cover. (See 09–17–5 COLUMN COVER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

WIPER AND WASHER SWITCH INSPECTION

A3U091966122W02

Windshield Wiper and Washer

1. Disconnect the negative battery cable.
2. Remove the wiper and washer switch. (See 09–19–9 WIPER AND WASHER SWITCH REMOVAL/

INSTALLATION.)

3. Inspect for continuity between the wiper and

washer switch terminals using an ohmmeter.

If not as specified, replace the wiper and
washer switch.

1

Connector

2

Screw

3

Wiper and washer switch

X3U919WB7

Y3U919WA5

X3U919WB8

1712-1U-01G(09-19).fm  9 ページ  2001年6月29日 金曜日 午前10時37分
