WIPER/WASHER SYSTEM

09–19–2

LOCATION INDEX

A3U091901063W01

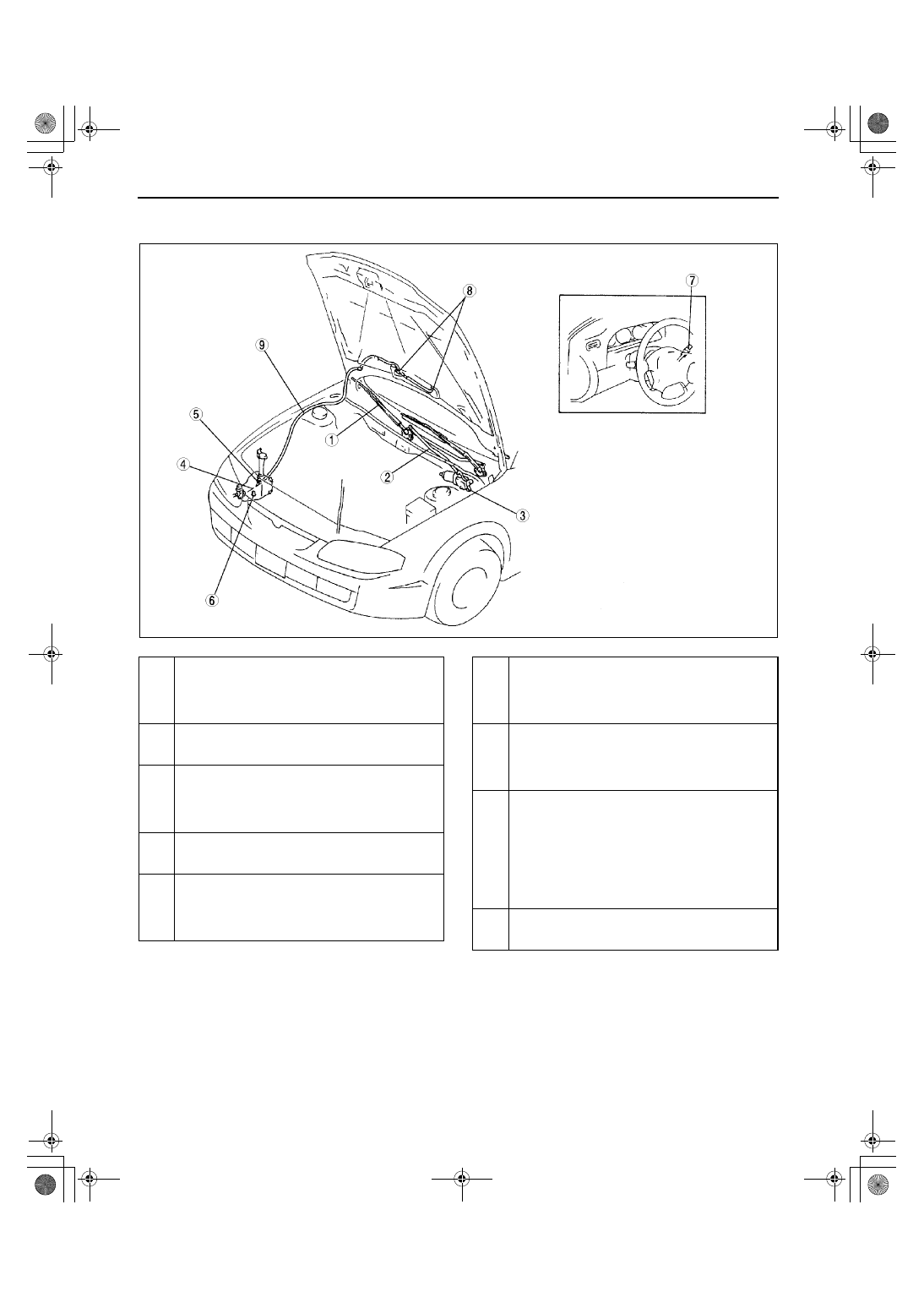

Windshield Wiper and Washer System

Z3U0919W003

1

Windshield wiper arm and blade
(See 09–19–5 WINDSHIELD WIPER ARM AND
BLADE ADJUSTMENT)
(See 09–19–5 WINDSHIELD WIPER ARM AND
BLADE REMOVAL/INSTALLATION)

2

Windshield wiper link
(See 09–19–5 WINDSHIELD WIPER LINK
REMOVAL/INSTALLATION)

3

Windshield wiper motor
(See 09–19–6 WINDSHIELD WIPER MOTOR
REMOVAL/INSTALLATION)
(See 09–19–6 WINDSHIELD WIPER MOTOR
INSPECTION)

4

Washer tank
(See 09–19–7 WASHER TANK REMOVAL/
INSTALLATION)

5

Windshield washer motor
(See 09–19–7 WINDSHIELD WASHER MOTOR
REMOVAL/INSTALLATION)
(See 09–19–8 WINDSHIELD WASHER MOTOR
INSPECTION)

6

Washer fluid-level sensor
(See 09–19–8 WASHER FLUID-LEVEL SENSOR
REMOVAL/INSTALLATION)
(See 09–19–8 WASHER FLUID-LEVEL SENSOR
INSPECTION)

7

Wiper and washer switch
(See 09–19–9 WIPER AND WASHER SWITCH
REMOVAL/INSTALLATION)
(See 09–19–9 WIPER AND WASHER SWITCH
INSPECTION)

8

Windshield washer nozzle
(See 09–19–10 WINDSHIELD WASHER NOZZLE
ADJUSTMENT)
(See 09–19–11 WINDSHIELD WASHER NOZZLE
CLEANING)
(See 09–19–11 WINDSHIELD WASHER NOZZLE
REMOVAL)
(See 09–19–11 WINDSHIELD WASHER NOZZLE
INSTALLATION)

9

Windshield washer hose
(See 09–19–11 WINDSHIELD WASHER HOSE
REMOVAL/INSTALLATION)

1712-1U-01G(09-19).fm  2 ページ  ２００１年６月２９日 金曜日 午前１０時３７分

WIPER/WASHER SYSTEM

09–19–3

09–19

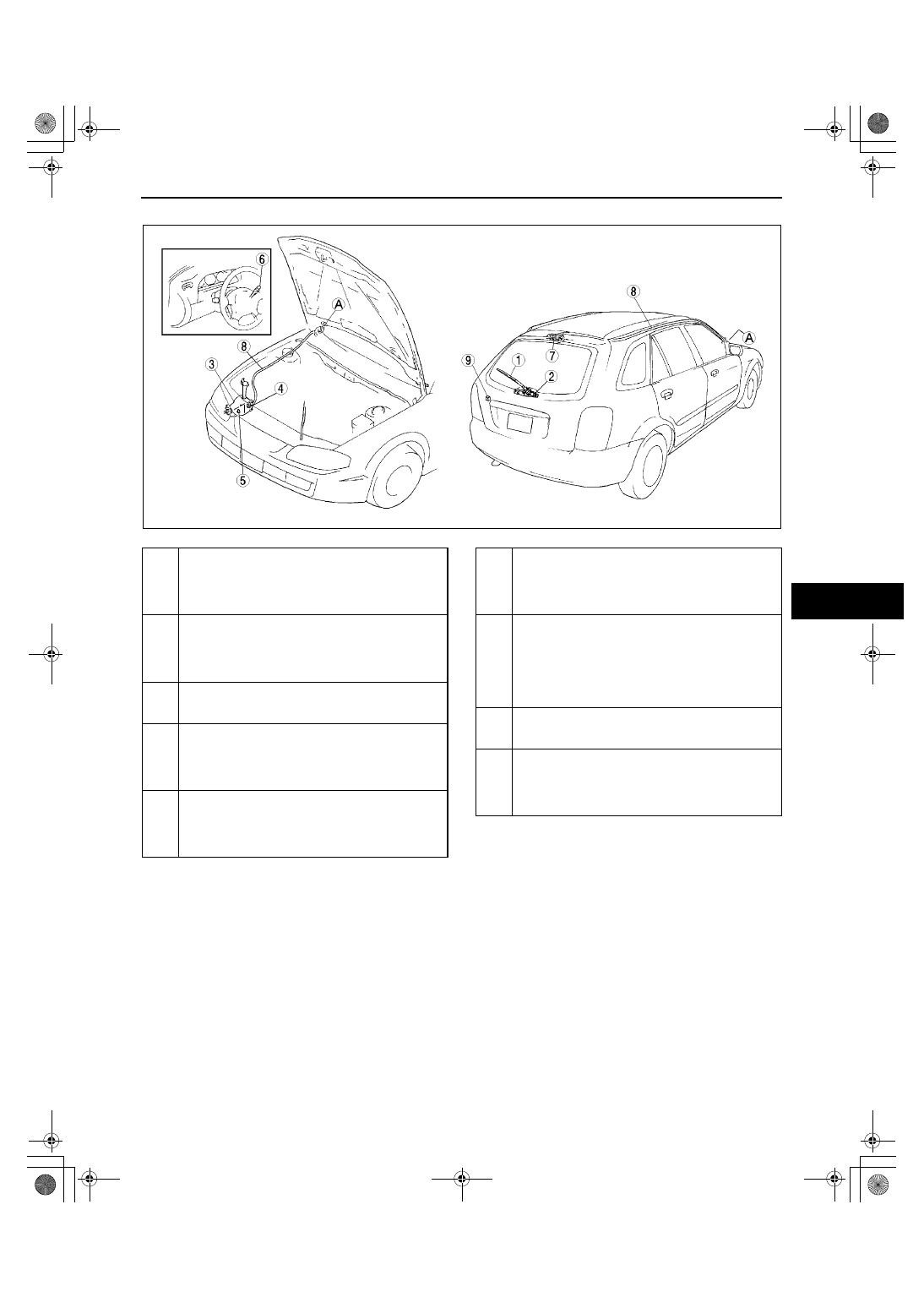

Rear Wiper and Washer System

End Of Sie

A3U0919W109

1

Rear wiper arm and blade
(See 09–19–12 REAR WIPER ARM AND BLADE
ADJUSTMENT)
(See 09–19–12 REAR WIPER ARM AND BLADE
REMOVAL/INSTALLATION)

2

Rear wiper motor
(See 09–19–12 REAR WIPER MOTOR REMOVAL/
INSTALLATION)
(See 09–19–13 REAR WIPER MOTOR
INSPECTION)

3

Windshield washer tank
(See 09–19–7 WASHER TANK REMOVAL/
INSTALLATION)

4

Rear washer motor
(See 09–19–14 REAR WASHER MOTOR
REMOVAL/INSTALLATION)
(See 09–19–14 REAR WASHER MOTOR
INSPECTION)

5

Washer fluid-level sensor
(See 09–19–8 WASHER FLUID-LEVEL SENSOR
REMOVAL/INSTALLATION)
(See 09–19–8 WASHER FLUID-LEVEL SENSOR
INSPECTION)

6

Wiper and washer switch
(See 09–19–9 WIPER AND WASHER SWITCH
REMOVAL/INSTALLATION)
(See 09–19–9 WIPER AND WASHER SWITCH
INSPECTION)

7

Rear washer nozzle
(See 09–19–15 REAR WASHER NOZZLE
ADJUSTMENT)
(See 09–19–15 REAR WASHER NOZZLE
CLEANING)
(See 09–19–14 REAR WASHER NOZZLE
REMOVAL/INSTALLATION)

8

Rear washer hose
(See 09–19–15 REAR WASHER HOSE REMOVAL/
INSTALLATION)

9

Intermittent rear wiper relay
(See 09–19–16 INTERMITTENT REAR WIPER
RELAY REMOVAL/INSTALLATION)
(See 09–19–16 INTERMITTENT REAR WIPER
RELAY INSPECTION)

1712-1U-01G(09-19).fm  3 ページ  ２００１年６月２９日 金曜日 午前１０時３７分

WIPER/WASHER SYSTEM

09–19–4

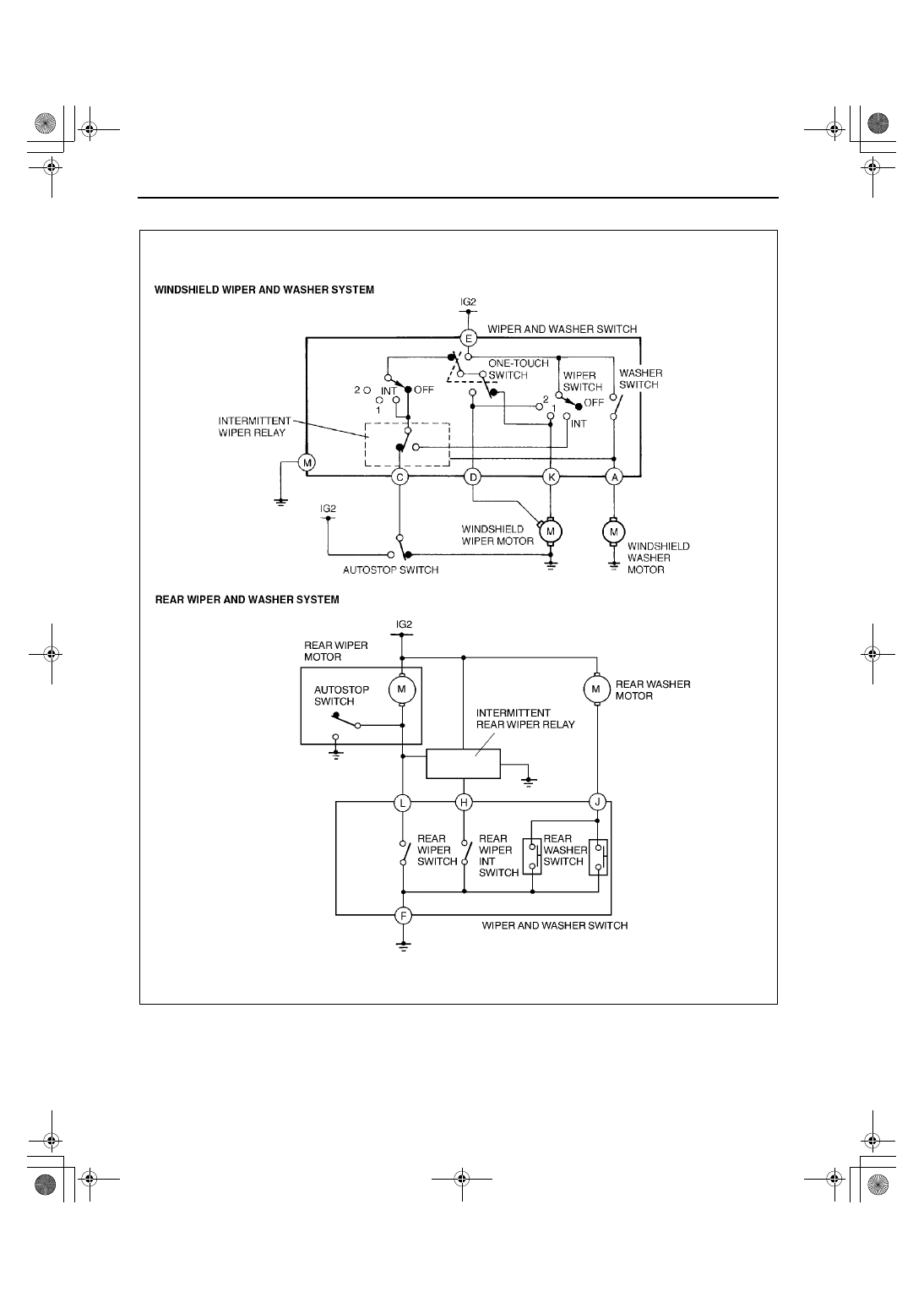

WIPER/WASHER SYSTEMS WIRING DIAGRAM

A3U091901063W02

End Of Sie

A3U0919W108

1712-1U-01G(09-19).fm  4 ページ  ２００１年６月２９日 金曜日 午前１０時３７分

WIPER/WASHER SYSTEM

09–19–5

09–19

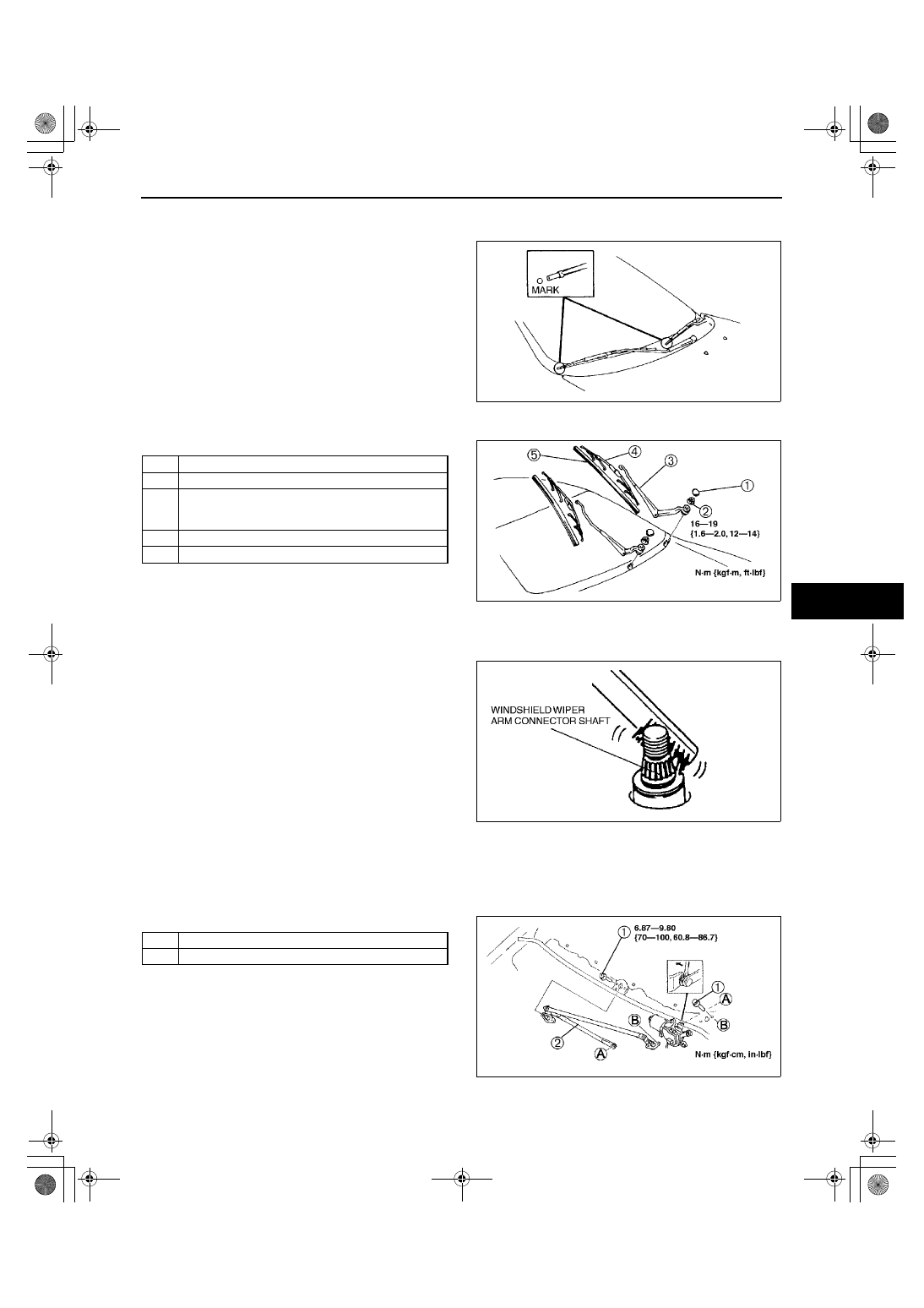

WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT

A3U091967320W01

1. Operate the windshield wiper motor to set the wipers in the park position.
2. Align the windshield wiper blades to the marks.

End Of Sie

WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION

A3U091967320W02

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.
3. Adjust the windshield wiper arm and blade. (See

09–19–5 WINDSHIELD WIPER ARM AND
BLADE ADJUSTMENT.)

Windshield Wiper Arm Installation Note

1. Clean the windshield wiper arm connector shafts

using a wire brush before installing the windshield
wiper arms.

End Of Sie

WINDSHIELD WIPER LINK REMOVAL/INSTALLATION

A3U091967360W01

1. Remove the windshield wiper arm and blade. (See 09–19–5 WINDSHIELD WIPER ARM AND BLADE

REMOVAL/INSTALLATION.)

2. Remove the cowl grille. (See 09–16–1 COWL GRILLE REMOVAL/INSTALLATION.)
3. Pry off the connection between the windshield wiper motor and windshield wiper link.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Adjust the windshield wiper arm and blade. (See

09–19–5 WINDSHIELD WIPER ARM AND
BLADE ADJUSTMENT.)

End Of Sie

X3U919WA4

1

Cap

2

Nut

3

Windshield wiper arm
(See 09–19–5 Windshield Wiper Arm Installation
Note)

4

Windshield wiper blade

5

Rubber brush

X3U919WA2

X3U919WA3

1

Bolt

2

Windshield wiper link

X3U919WA5
