LIGHTING SYSTEMS

09–18–25

09–18

Rear

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

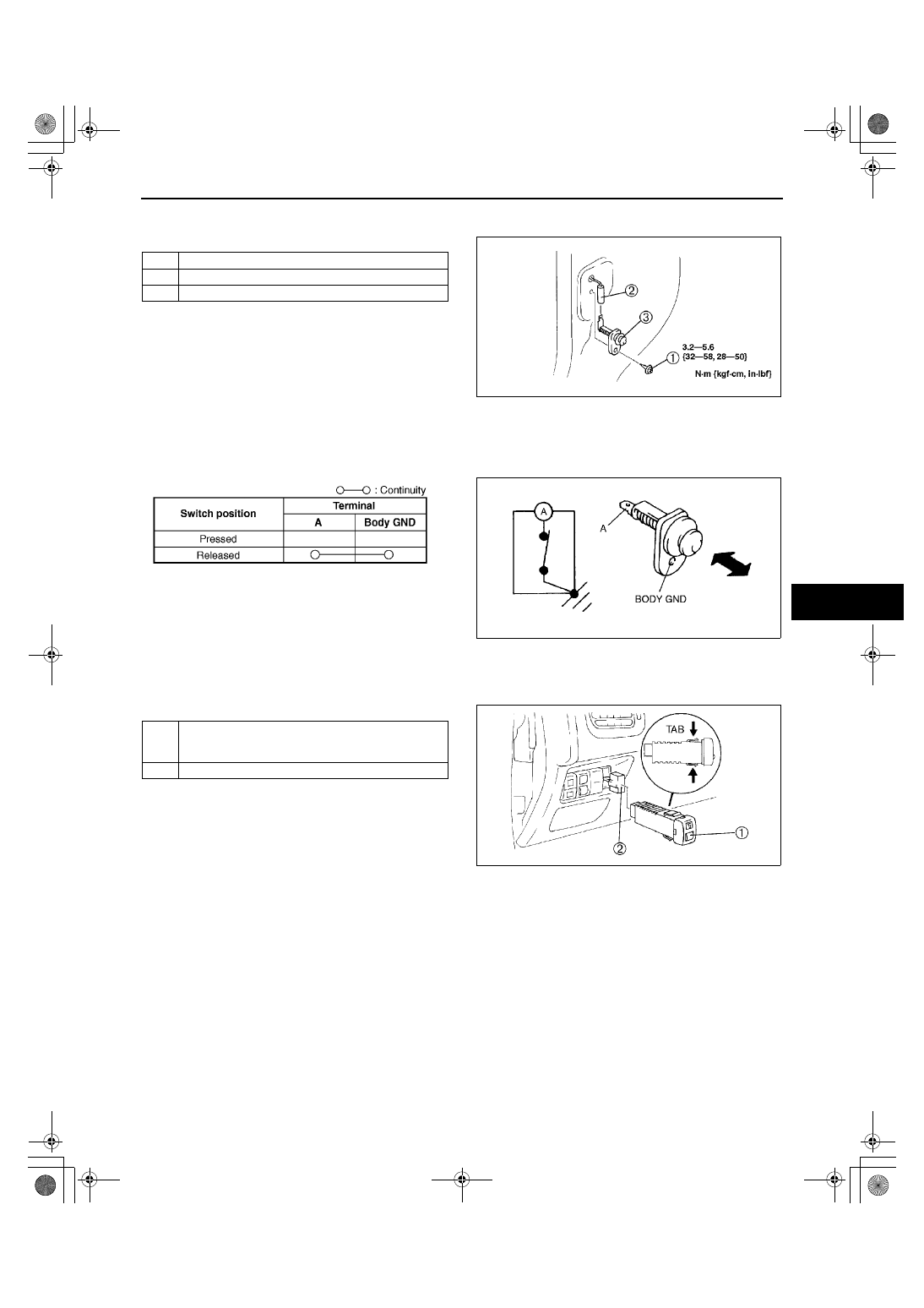

DOOR SWITCH INSPECTION

A3U091866540W02

1. Remove the door switch. (See 09–18–24 DOOR SWITCH REMOVAL/INSTALLATION.)
2. Inspect for continuity between the door switch terminal and a body ground using an ohmmeter.

If not as specified, replace the door switch.

End Of Sie

PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION

A3U091866600W01

1. Disconnect the negative battery cable.
2. Remove the driver-side side panel.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Panel Light Control Switch Removal Note

1. Insert your hand into the hole in the driver-side side panel, grasp the tabs of the panel light control switch and

pull it forward to remove.

End Of Sie

1

Screw

2

Connector

3

Door switch

Y3U918WAF

X3U918WB9

X3U918WBR

1

Panel light control switch
(See 09–18–25 Panel Light Control Switch Removal
Note)

2

Connector

Y3U918WAS

1712-1U-01G(09-18).fm  25 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–26

PANEL LIGHT CONTROL SWITCH INSPECTION

A3U091866600W02

1. Remove the panel light control switch. (See 09–18–25 PANEL LIGHT CONTROL SWITCH REMOVAL/

INSTALLATION.)

2. Connect the negative battery cable.
3. Connect the connector to the panel light control switch.
4. Measure the voltage at the panel light control switch as indicated below.
5. Disconnect the panel light control switch connector before inspecting for continuity at terminal D.

If not as specified, inspect the parts listed under “Action.”

If the parts and wiring harnesses are okay but the system still does not work properly, replace the panel
light control switch.

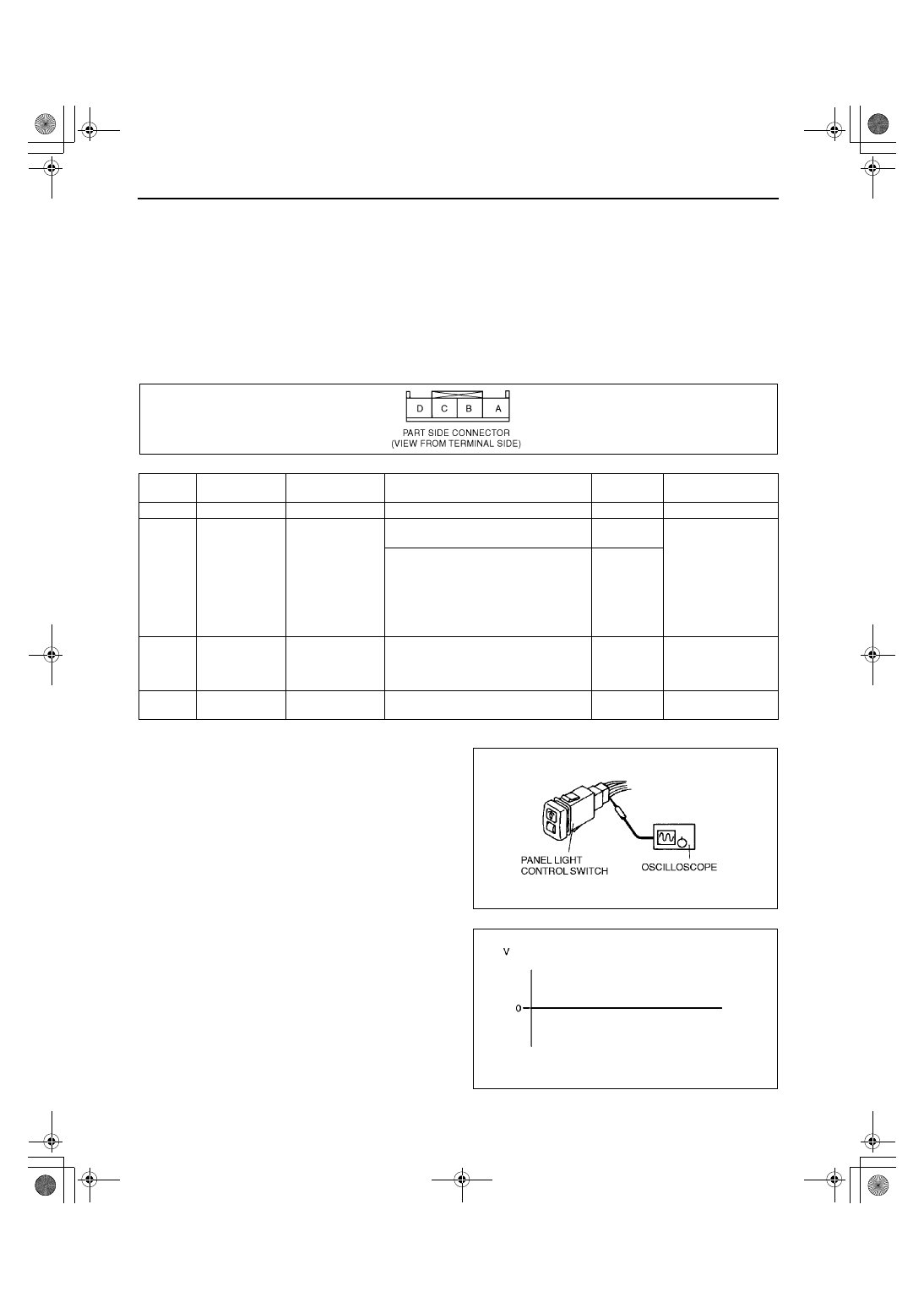

Terminal Voltage List (Reference)

Terminal C inspection

1. Measure the wave pattern of the C terminal on

the panel light control switch using an
oscilloscope.

2. Set the headlight switch to either the TNS or

headlight position.

3. Set the panel light control switch to the brightest

position.

4. Verify that the pattern on the screen is as shown

in the figure.

Terminal

Signal

Connected to

Test condition

Voltage (V)/

Continuity

Action

A

B

TNS

TNS relay

Headlight switch at TNS or headlight
position

B+

Inspect TNS
relay

Inspect
combination
switch

Inspect TAIL 15 A
fuse

Inspect related
harness

Other

Below 1.0

C

Illumination

Each illumination

Inspect using an oscilloscope
(See 09–18–26 Terminal C inspection)

Inspect each
illumination

Inspect related
harness

D

Ground

GND

Constant: inspect for continuity to
ground

Yes

Inspect GND

Y3U918WAG

X3U918WBC

X3U918WBD

1712-1U-01G(09-18).fm  26 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–27

09–18

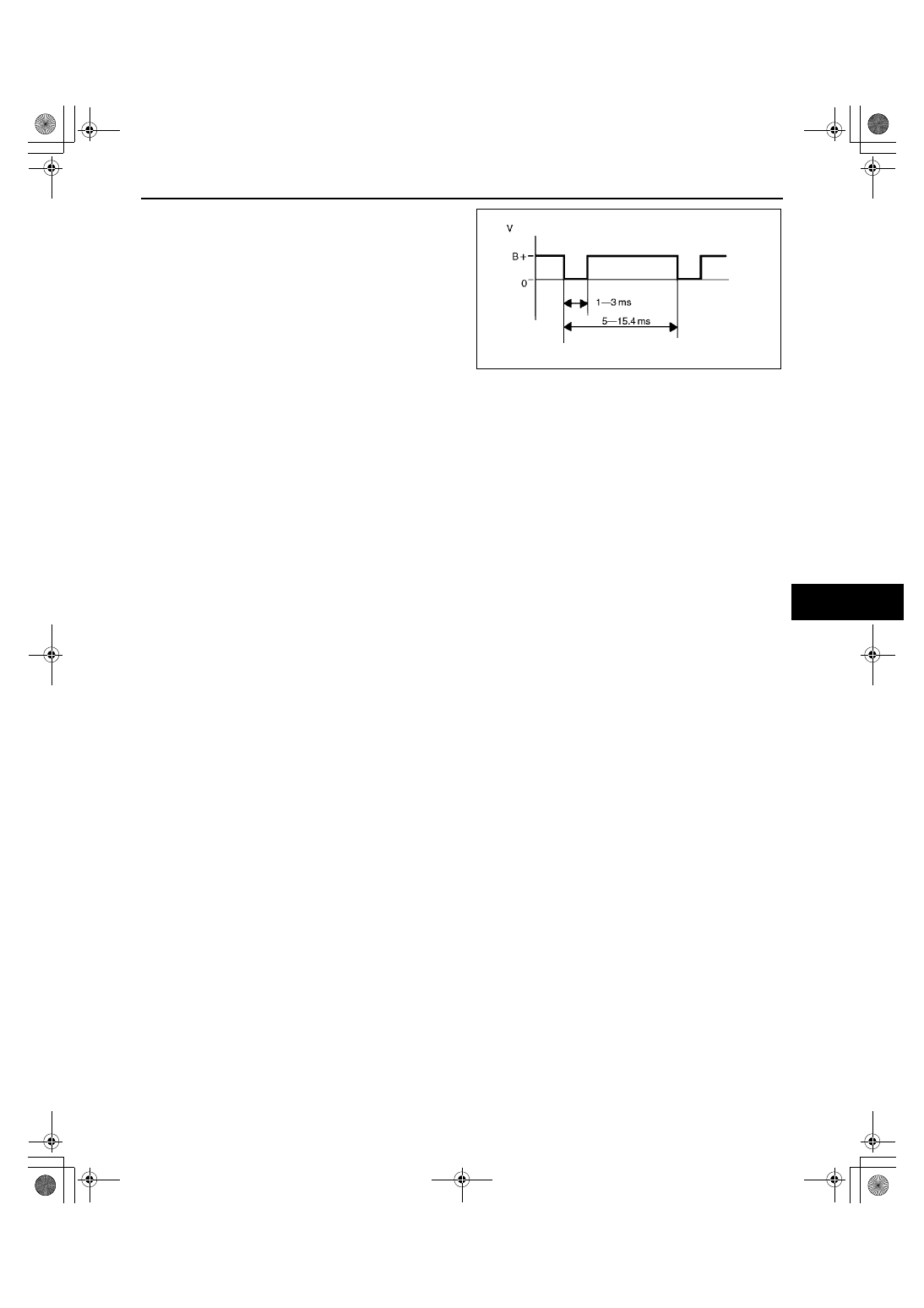

5. Verify that the pattern on the screen matches the

pattern shown in the figure as the panel light
control switch is gradually turned to the darkest
position.

End Of Sie

X3U918WBE

1712-1U-01G(09-18).fm  27 ページ  2001年6月29日 金曜日 午後12時57分

WIPER/WASHER SYSTEM

09–19–1

09–19

09–19

WIPER/WASHER SYSTEM
