LIGHTING SYSTEMS

09–18–21

09–18

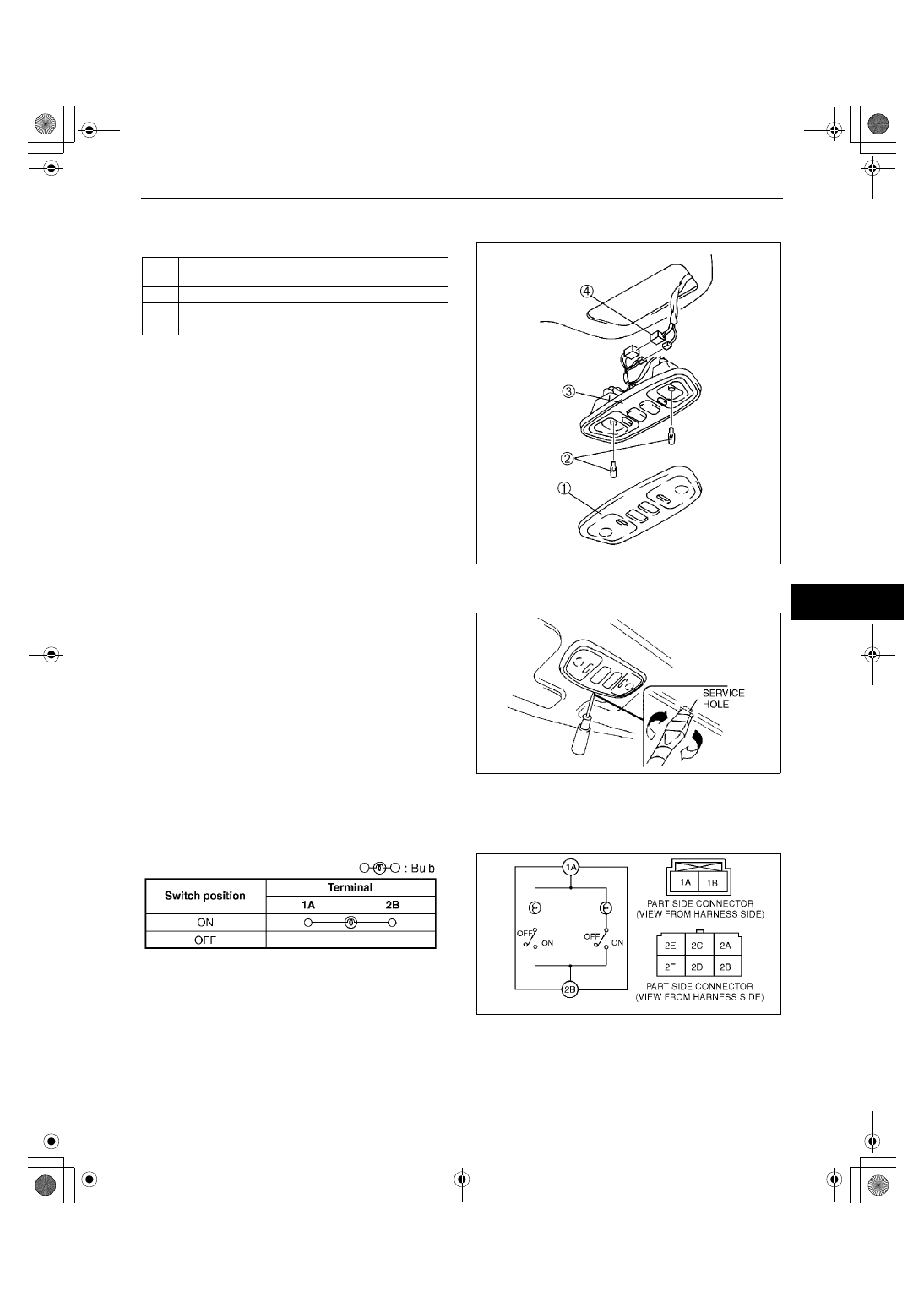

MAP LIGHT REMOVAL/INSTALLATION

A3U091851310W03

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Lens Removal Note

1. Insert a tape-wrapped, flathead screwdriver into

the service hole.

2. Twist the flathead screwdriver in the direction

indicated by the arrow to remove the lens.

End Of Sie

MAP LIGHT INSPECTION

A3U091851310W04

1. Remove the map light. (See 09–18–21 MAP LIGHT REMOVAL/INSTALLATION.)
2. Inspect for continuity between the map light terminals using an ohmmeter.

•

If not as specified, replace the map light.

End Of Sie

1

Lens
(See 09–18–21 Lens Removal Note)

2

Map light bulb

3

Map light

4

Connector

X3U918WAZ

X3U918WB0

Y3U918WAB

X3U918WBN

1712-1U-01G(09-18).fm  21 ページ  ２００１年６月２９日 金曜日 午後１２時５７分

LIGHTING SYSTEMS

09–18–22

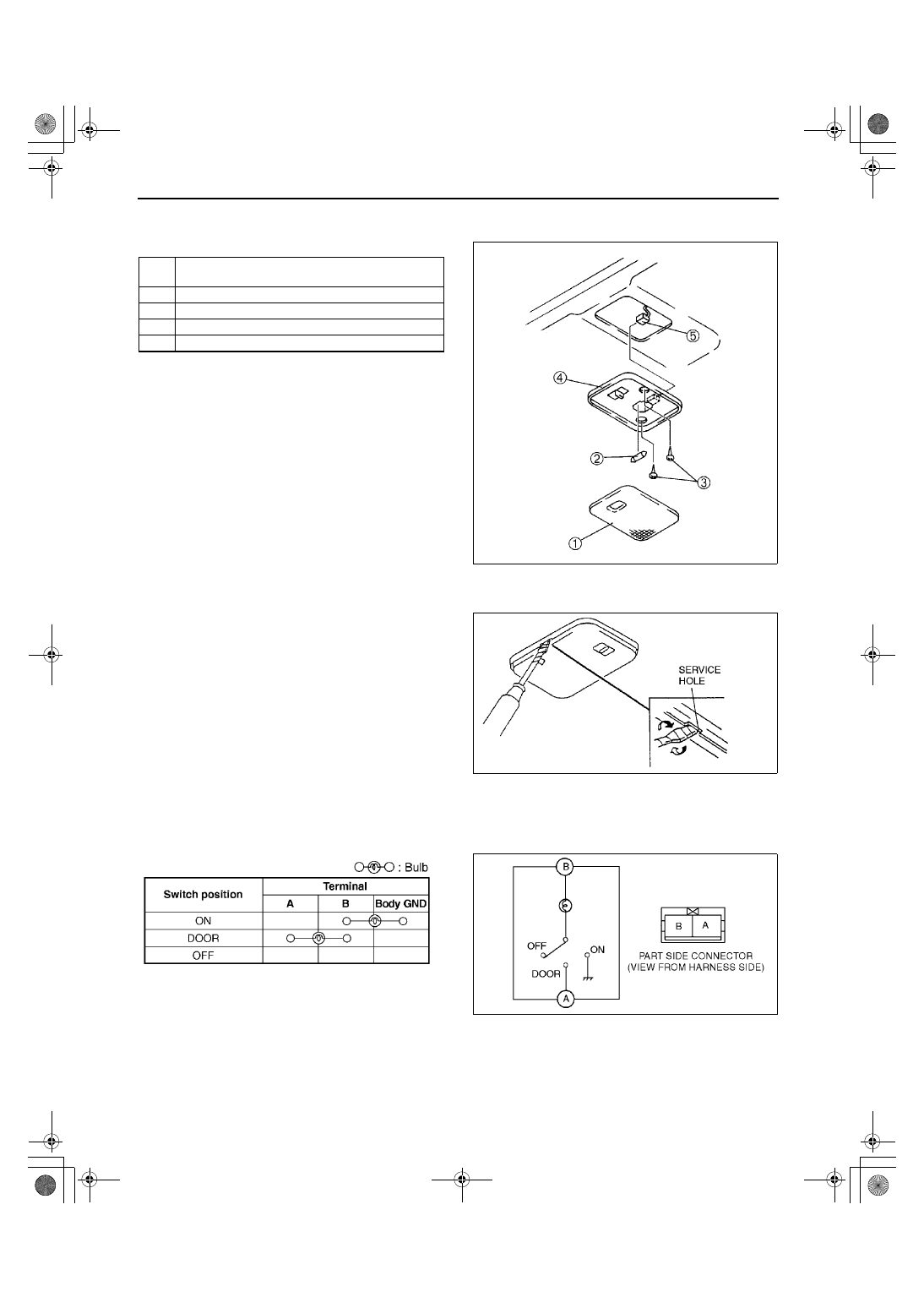

INTERIOR LIGHT REMOVAL/INSTALLATION

A3U091869970W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Lens Removal Note

1. Insert a tape-wrapped, flathead screwdriver into

the service hole.

2. Twist the flathead screwdriver in the direction

indicated by the arrow to remove the lens.

End Of Sie

INTERIOR LIGHT INSPECTION

A3U091869970W02

1. Remove the interior light. (See 09–18–22 INTERIOR LIGHT REMOVAL/INSTALLATION.)
2. Inspect for continuity between the interior light terminals using an ohmmeter.

•

If not as specified, replace the interior light.

End Of Sie

1

Lens
(See 09–18–22 Lens Removal Note)

2

Interior light bulb

3

Screw

4

Interior light

5

Connector

X3U918WB2

X3U918WB3

Z3U0918W005

X3U918WBP

1712-1U-01G(09-18).fm  22 ページ  ２００１年６月２９日 金曜日 午後１２時５７分

LIGHTING SYSTEMS

09–18–23

09–18

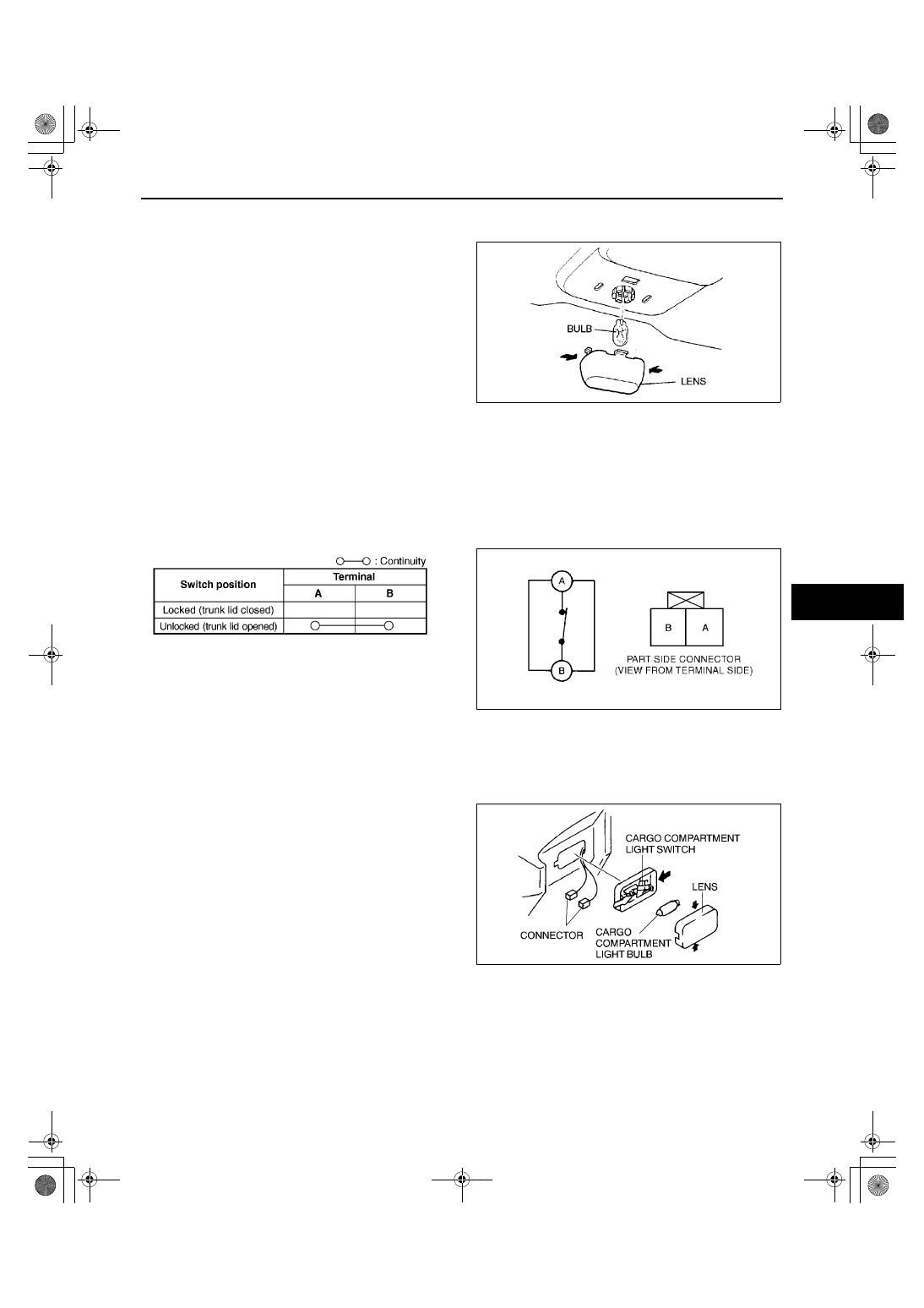

TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

A3U091851440W01

1. Disconnect the negative battery cable.
2. Pinch the sides of the lens and pull down to

remove.

3. Remove the bulb.
4. Install in the reverse order of removal.

End Of Sie

TRUNK COMPARTMENT LIGHT SWITCH INSPECTION

A3U091851440W02

Note

•

Trunk compartment light switch has a built-in trunk lid lock.

1. Disconnect the trunk compartment light switch connector.
2. Inspect for continuity between the trunk compartment light switch terminal and a body ground using an

ohmmeter.

•

If not as specified, replace the trunk lid lock.

End Of Sie

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

A3U091851441W01

1. Disconnect the negative battery cable.
2. Pinch the sides of the lens and pull to remove.
3. Remove the cargo compartment light bulb.
4. Push the area indicated by the arrow and pull to remove the cargo compartment light.
5. Disconnect the connectors.
6. Install in the reverse order of removal.

End Of Sie

X3U918WB5

Y3U918WAD

X3U918WBQ

A3U0918W005

1712-1U-01G(09-18).fm  23 ページ  ２００１年６月２９日 金曜日 午後１２時５７分

LIGHTING SYSTEMS

09–18–24

CARGO COMPARTMENT LIGHT INSPECTION

A3U091851441W02

1. Remove the cargo compartment light. (See 09–18–23 CARGO COMPARTMENT LIGHT REMOVAL/

INSTALLATION.)

2. Inspect for continuity between the cargo

compartment light terminals using an ohmmeter.

•

If not as specified, replace the cargo
compartment light.

End Of Sie

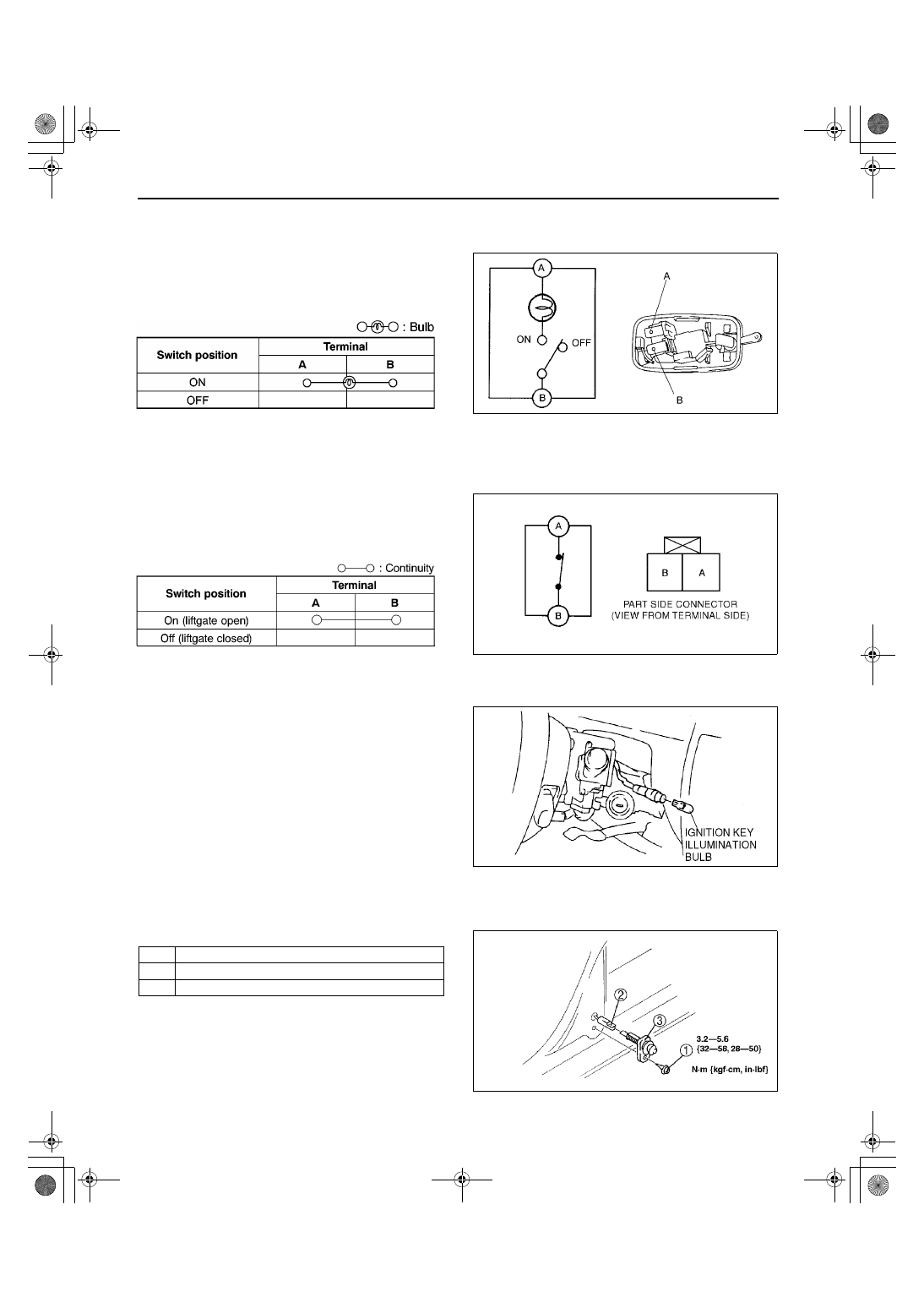

CARGO COMPARTMENT LIGHT SWITCH INSPECTION

A3U091851442W01

1. Remove the liftgate trim. (See 09–17–16 LIFTGATE TRIM REMOVAL/INSTALLATION.)
2. Disconnect the cargo compartment light switch connector.
3. Inspect for continuity between the cargo

compartment light switch terminals using an
ohmmeter.

•

If not as specified, replace the liftgate lock.

End Of Sie

IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION

A3U091860231W01

1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Remove the ignition key illumination bulb.
4. Install in the reverse order of removal.

End Of Sie

DOOR SWITCH REMOVAL/INSTALLATION

A3U091866540W01

Front

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

A3U0918W007

YMU918WB7

Y3U918WAD

YMU918WB9

Z3U0918W015

1

Screw

2

Connector

3

Door switch

Y3U918WAE
