LIGHTING SYSTEMS

09–18–13

09–18

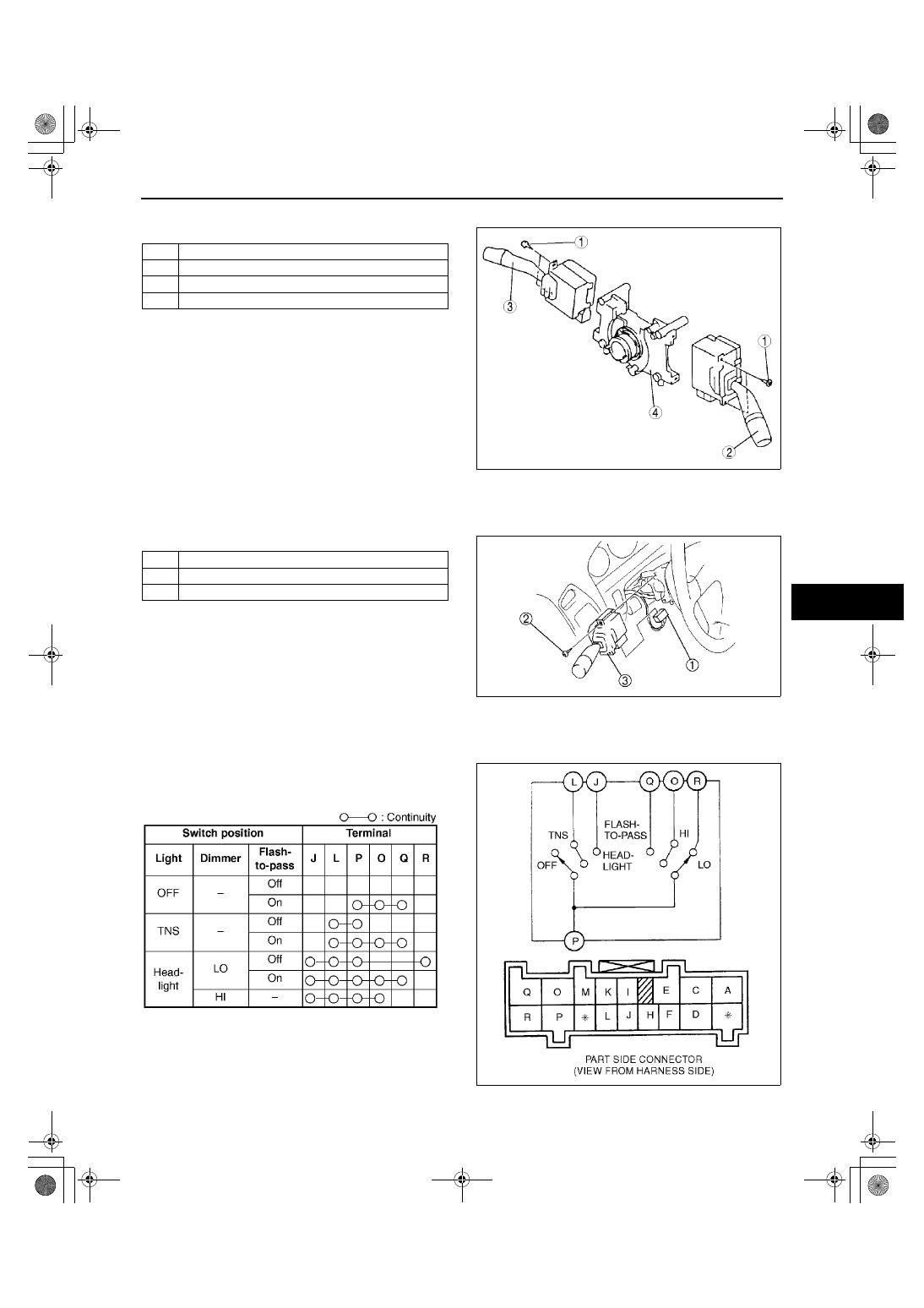

COMBINATION SWITCH DISASSEMBLY/ASSEMBLY

A3U091866120W02

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

End Of Sie

LIGHT SWITCH REMOVAL/INSTALLATION

A3U091866121W01

1. Disconnect the negative battery cable.
2. Remove the column cover. (See 09–17–5 COLUMN COVER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

LIGHT SWITCH INSPECTION

A3U091866121W02

Headlight switch

1. Remove the light switch. (See 09–18–13 LIGHT SWITCH REMOVAL/INSTALLATION.)
2. Inspect for continuity between the light switch

terminals using an ohmmeter.

If not as specified, replace the light switch.

1

Screw

2

Wiper lever

3

Light lever

4

Body

Z3U0918W003

1

Connector

2

Screw

3

Light lever

X3U918WAB

Y3U918WA0

Y3U918WAN

1712-1U-01G(09-18).fm  13 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–14

Turn switch

1. Remove the light switch. (See 09–18–13 LIGHT SWITCH REMOVAL/INSTALLATION.)
2. Inspect for continuity between the light switch

terminals using an ohmmeter.

If not as specified, replace the light switch.

End Of Sie

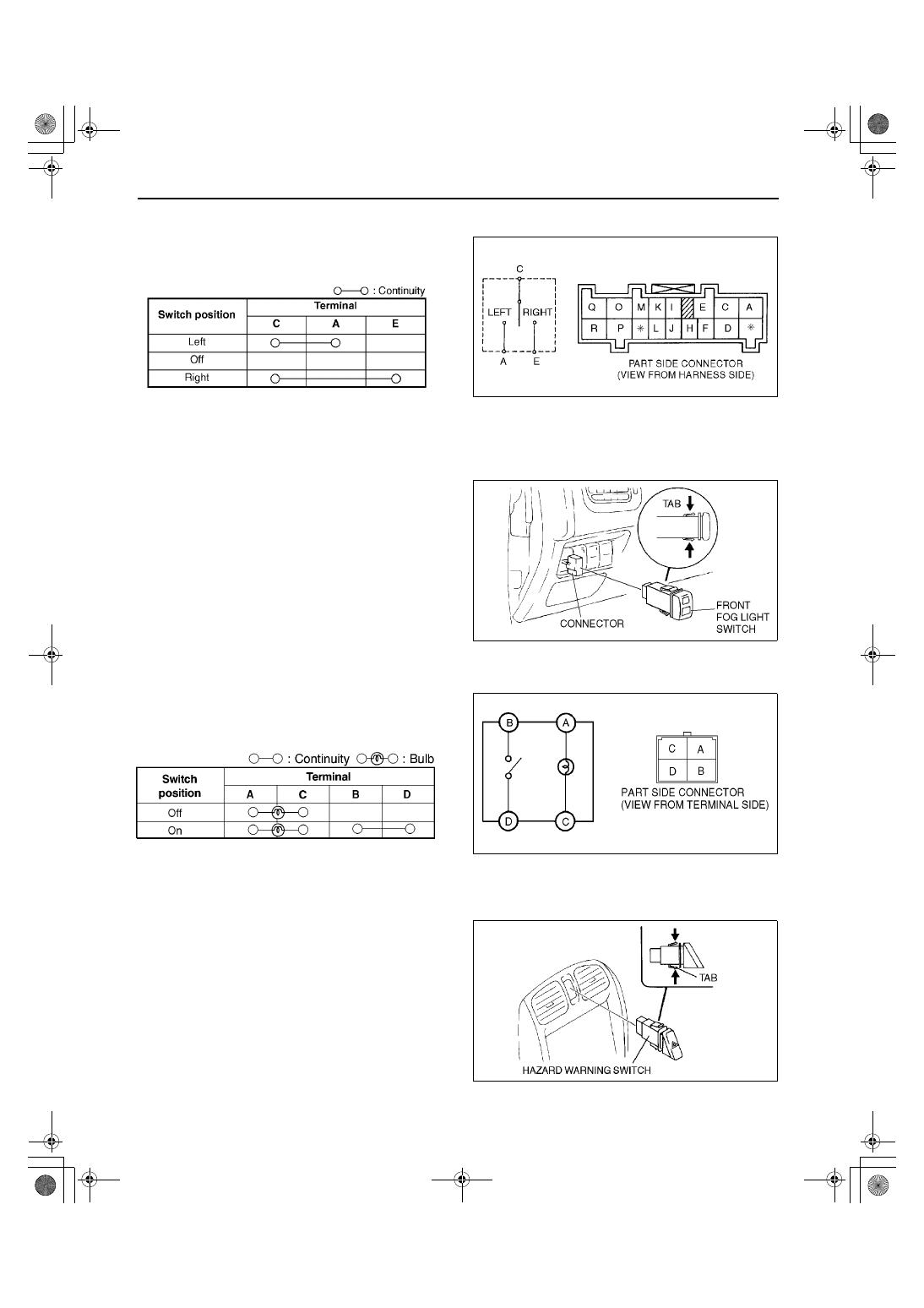

FRONT FOG LIGHT SWITCH REMOVAL/INSTALLATION

A3U091866402W01

1. Disconnect the negative battery cable.
2. Remove the left side side panel from the dashboard.
3. Compress the tabs of the front fog light switch

and pull the switch out of the dashboard.

4. Disconnect the connector to remove the front fog

light switch.

5. Install in the reverse order of removal.

End Of Sie

FRONT FOG LIGHT SWITCH INSPECTION

A3U091866402W02

1. Remove the front fog light switch. (See 09–18–14 FRONT FOG LIGHT SWITCH REMOVAL/INSTALLATION.)
2. Inspect for continuity between the front fog light

switch terminals using an ohmmeter.

If not as specified, replace the front fog light
switch.

End Of Sie

HAZARD WARNING SWITCH REMOVAL/INSTALLATION

A3U091866401W01

1. Disconnect the negative battery cable.
2. Remove the center panel. (See 09–17–4 CENTER PANEL REMOVAL/INSTALLATION.)
3. Grasp the tabs of the hazard warning switch and

pull it forward to remove it.

4. Install in the reverse order of removal.

End Of Sie

Y3U918WA1

X3U918WBG

Z3U0918W009

Z3U0918W007

Z3U0918W008

Y3U918WAP

1712-1U-01G(09-18).fm  14 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–15

09–18

HAZARD WARNING SWITCH INSPECTION

A3U091866401W02

1. Remove the hazard warning switch. (See 09–18–14 HAZARD WARNING SWITCH REMOVAL/

INSTALLATION.)

2. Inspect for continuity between the hazard warning

switch terminals using an ohmmeter.

If not as specified, replace the hazard warning
switch.

End Of Sie

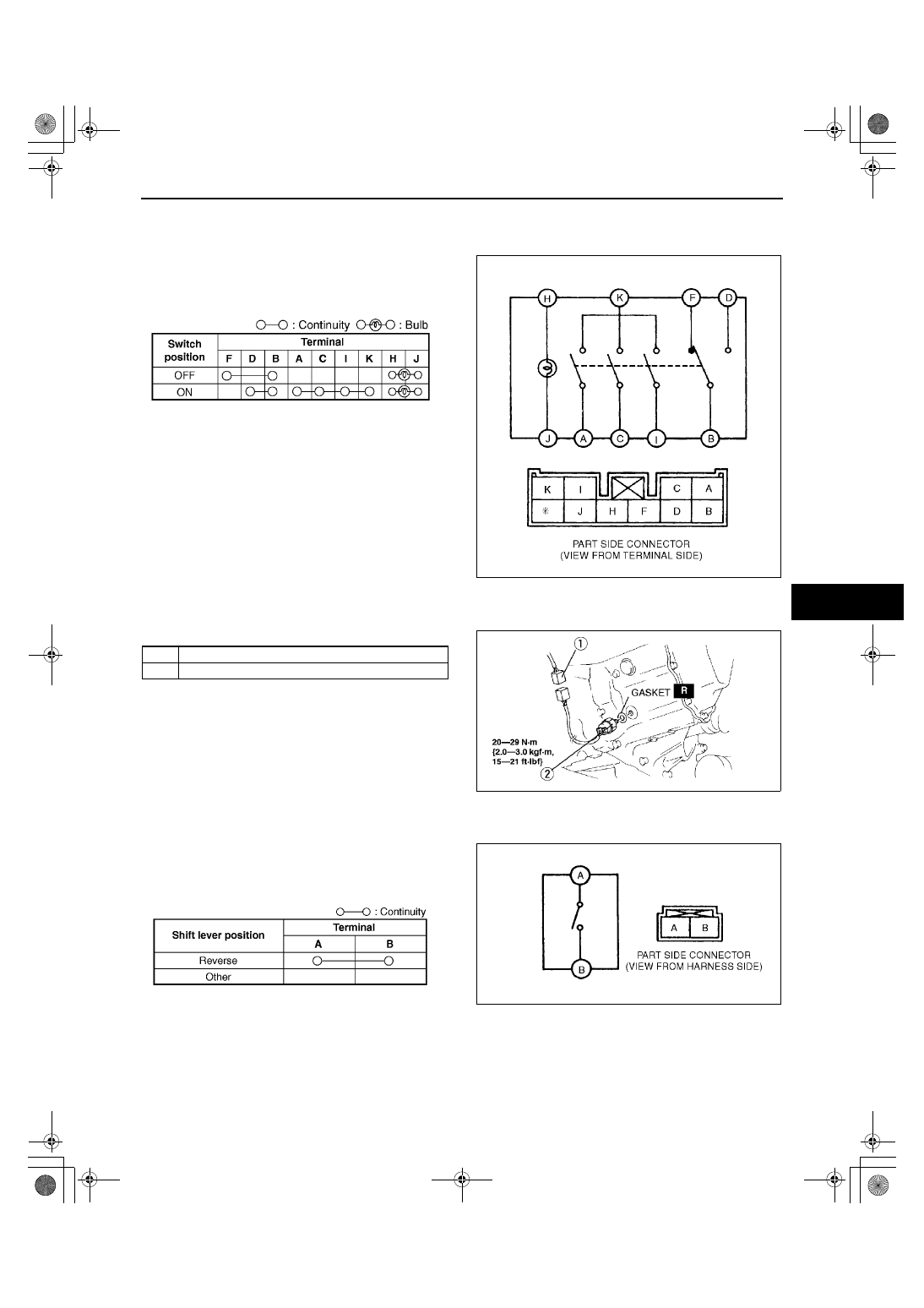

BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION

A3U091817640W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

BACK-UP LIGHT SWITCH INSPECTION

A3U091817640W02

1. Disconnect the back-up light switch connector.
2. Inspect for continuity between the back-up light

switch terminals using an ohmmeter.

If not as specified, replace the back-up light
switch.

End Of Sie

Y3U918WA2

X3U918WBH

1

Connector

2

Back-up light switch

X3U918WAG

Y3U918WA3

X3U918WBJ

1712-1U-01G(09-18).fm  15 ページ  2001年6月29日 金曜日 午後12時57分

LIGHTING SYSTEMS

09–18–16

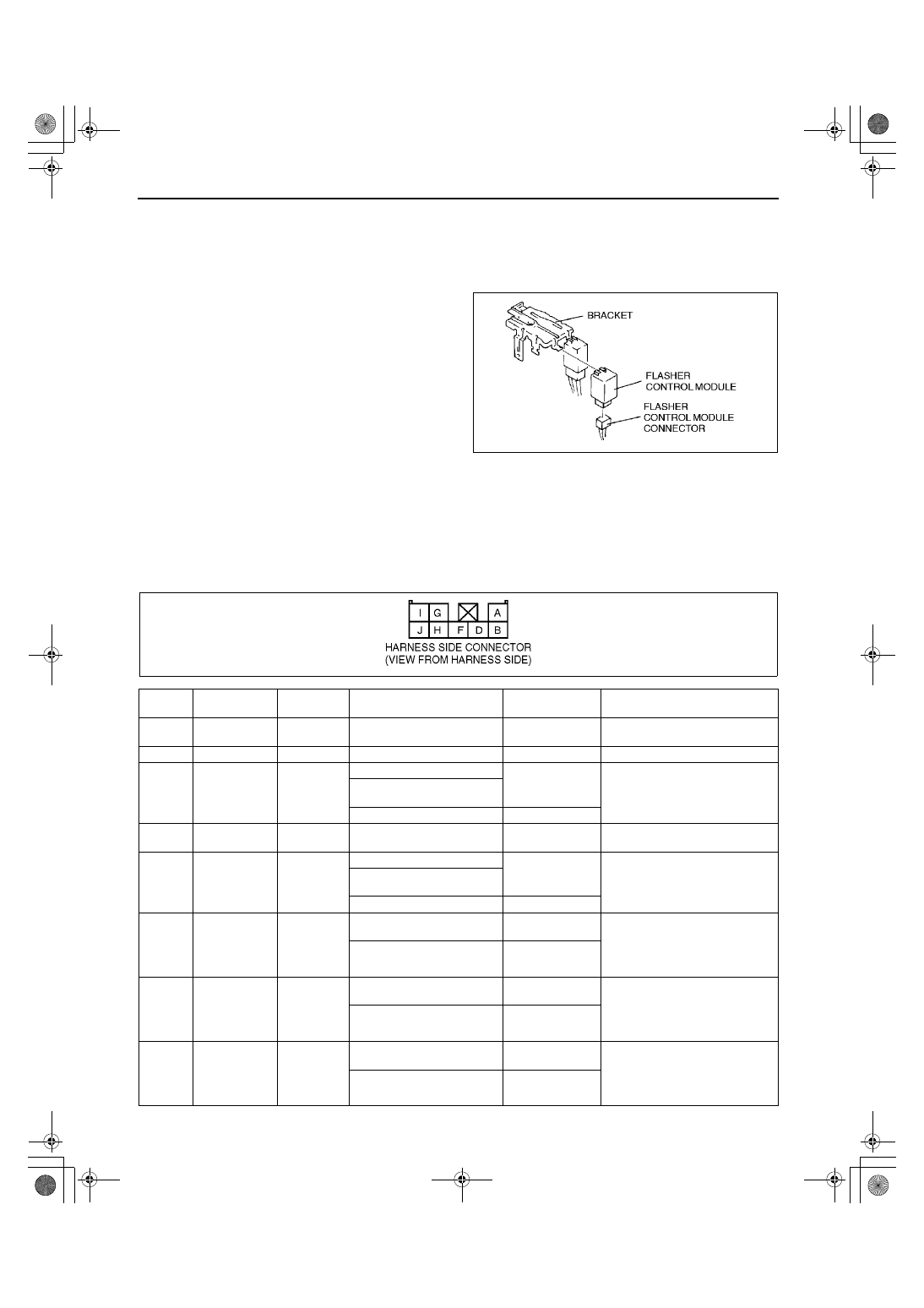

FLASHER CONTROL MODULE REMOVAL/INSTALLATION

A3U091866830W01

Note

Because the lock section of the control module is damaged easily, do not remove the control module from
the bracket unless replacement is necessary. Always perform an inspection of the flasher control module
before removal.

1. Disconnect the negative battery cable.
2. Remove the bracket.
3. Disconnect the flasher control module connector.
4. Remove the flasher control module by prying the

lock section of the upper part with a flathead
screwdriver.

5. Install in the reverse order of removal.

End Of Sie

FLASHER CONTROL MODULE INSPECTION

A3U091866830W02

1. Remove the bracket and pull it toward you.
2. Measure the voltage at the flasher control module terminals as indicated below.
3. Disconnect the flasher control module connector before inspecting for continuity at terminal F.

If not as specified, inspect the parts listed under “Action."

If the parts and wiring harnesses are okay but the system still does not work properly, replace the flasher
control module.

Terminal Voltage List (Reference)

X3U918WAJ

Terminal

Signal

Connected

to

Test condition

Voltage (V)/

Continuity

Action

A

Power supply

HAZARD 15
A fuse

Under any condition

B+

Inspect HAZARD 15 A fuse

Inspect related harness

B

D

Turn signal
flasher (LH)

Turn signal
light (LH)

Turn signal light (LH) flashes.

Alternates below

1.0 and B+

Inspect turn signal light (LH)

Inspect related harness

Hazard warning switch at on
position.

Other

Below 1.0

F

Flasher control
module ground

GND

Constant: inspect for
continuity to ground.

Yes

Inspect GND

G

Turn signal
flasher (RH)

Turn signal
light (RH)

Turn signal light (RH) flashes.

Alternates below

1.0 and B+

Inspect turn signal light (RH)

Inspect related harness

Hazard warning switch at on
position.

Other

Below 1.0

H

Hazard
warning on

Hazard
warning
switch

Hazard warning switch at on
position.

Below 1.0

Inspect hazard warning switch
 (See 09–18–15 HAZARD
WARNING SWITCH
INSPECTION)

Inspect related harness

Hazard warning switch at off
position.

B+

I

Turn switch on/
off (RH)

Combination
switch (light
switch)

Ignition switch is at ON and
turn switch (RH) on.

B+

Inspect light switch
(See 09–18–13 LIGHT
SWITCH INSPECTION)

Inspect TURN 10 A fuse

Inspect related harness

Other

Below 1.0

J

Turn switch on/
off (LH)

Combination
switch (light
switch)

Ignition switch is at ON and
turn switch (LH) on.

B+

Inspect light switch
(See 09–18–13 LIGHT
SWITCH INSPECTION)

Inspect TURN 10 A fuse

Inspect related harness

Other

Below 1.0

ZLU918WA6
