LIGHTING SYSTEMS

09–18–5

09–18

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

A3U091851060W01

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See 09–10–5 FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. Adjust the headlight aiming. (See 09–18–5

HEADLIGHT ADJUSTMENT.)

End Of Sie

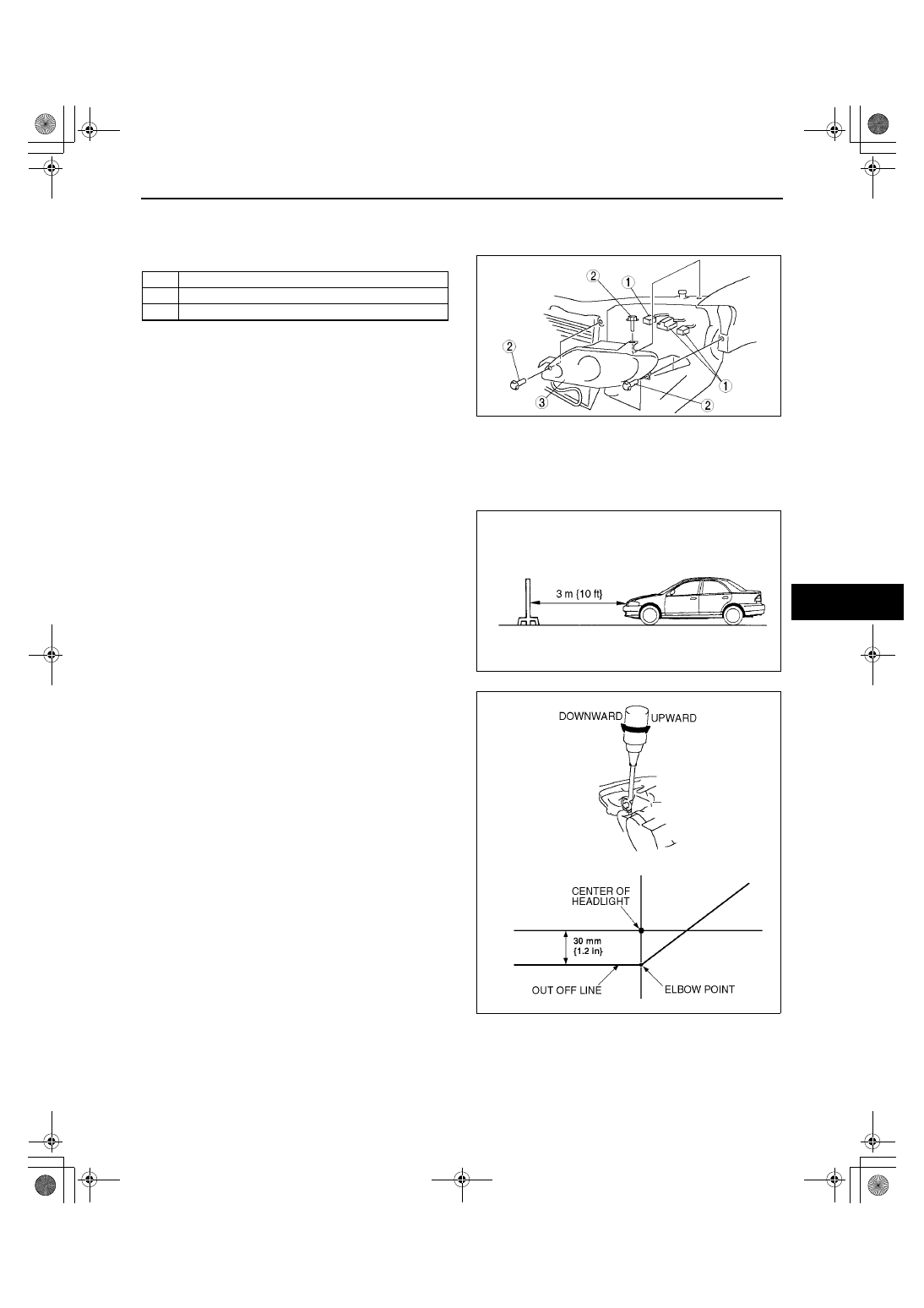

HEADLIGHT ADJUSTMENT

A3U091851030W01

1. Adjust the tire air pressure to the specification.
2. Position the unloaded vehicle on a flat, level surface.
3. Seat one person in the driver's seat.
4. Position the vehicle straight ahead and perpendicular to a wall.
5. Set the headlights 3 m {10 ft} from the wall.
6. While adjusting one headlight, disconnect the

connector of the other.

7. Start the engine to charge the battery.
8. Turn on the low-beam headlight.

9. Adjust the headlights by turning the adjusting

screws as shown in the figure. Loosen the screws
first, then tighten them.

Note

•

If the adjusting screws are tightened first,
then loosened, they will continue to loosen
when the vehicle is in motion and may cause
the headlights to become misaligned.

End Of Sie

1

Connector

2

Bolt

3

Front combination light

Y3J8112W111

Z3U0918W006

Z3U0918W001

1712-1U-01G(09-18).fm  5 ページ  ２００１年６月２９日 金曜日 午後１２時５７分

LIGHTING SYSTEMS

09–18–6

HEADLIGHT BULB REMOVAL/INSTALLATION

A3U091851030W02

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

Caution

••••

A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is dirty,
excessive heat will build up and the light's life will be shortened. When replacing the bulb, hold the
metal flange, not the glass.

3. Install in the reverse order of removal.

.

Headlight Bulb Removal Note (4SD and 5HB Low-beam)

1. Release the bulb seating wire to remove the headlight bulb.

Headlight Bulb Removal Note (5HB High-beam)

1. Turn the bulb to remove the headlight bulb.

Cover Installation Note

1. Make sure the cover is seated properly to prevent the moisture from getting into the headlight housing.

End Of Sie

A3U0918W101

1

Connector

2

Cover
(See 09–18–6 Cover Installation Note)

3

Headlight bulb
(See 09–18–6 Headlight Bulb Removal Note (4SD
and 5HB Low-beam))
(See 09–18–6 Headlight Bulb Removal Note (5HB
High-beam))

1712-1U-01G(09-18).fm  6 ページ  ２００１年６月２９日 金曜日 午後１２時５７分

LIGHTING SYSTEMS

09–18–7

09–18

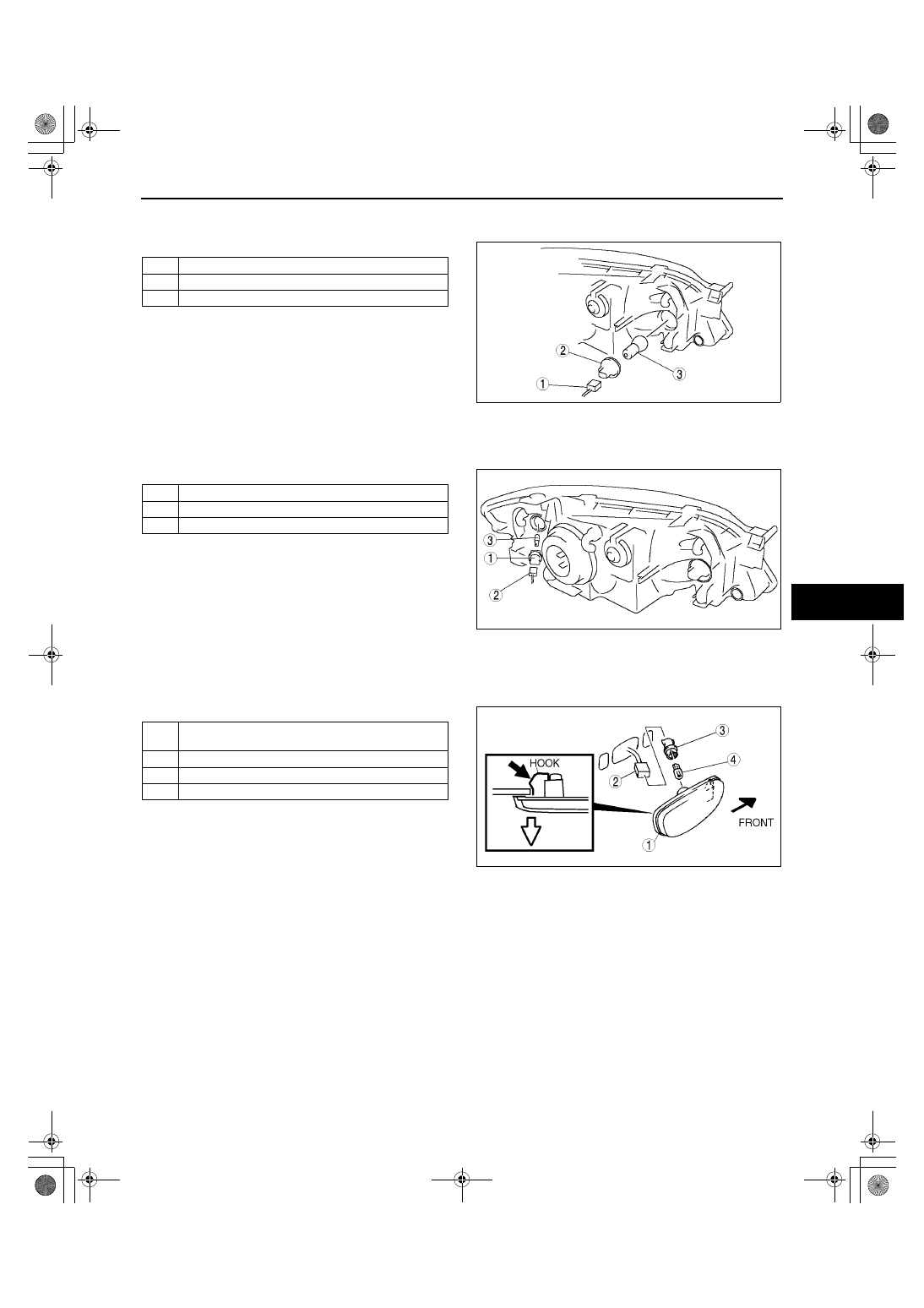

FRONT TURN LIGHT/PARKING LIGHT BULB REMOVAL/INSTALLATION

A3U091851050W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

End Of Sie

FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION

A3U091851120W01

4SD

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

5HB

1. Disconnect the negative battery cable.
2. Remove the bolts and fasteners, and bend the splash shield down.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Front side marker light removal note

1. Pull out the rear end of the front side marker light while pressing the hook.

End Of Sie

1

Connector

2

Socket

3

Front turn light/parking light bulb

Y3J8112W107

1

Socket

2

Connector

3

Front side marker light bulb

Z3U0918W002

1

Front side marker light
(See 09–18–7 Front side marker light removal note)

2

Connector

3

Socket

4

Front side marker light bulb

A3U0918W112

1712-1U-01G(09-18).fm  7 ページ  ２００１年６月２９日 金曜日 午後１２時５７分

LIGHTING SYSTEMS

09–18–8

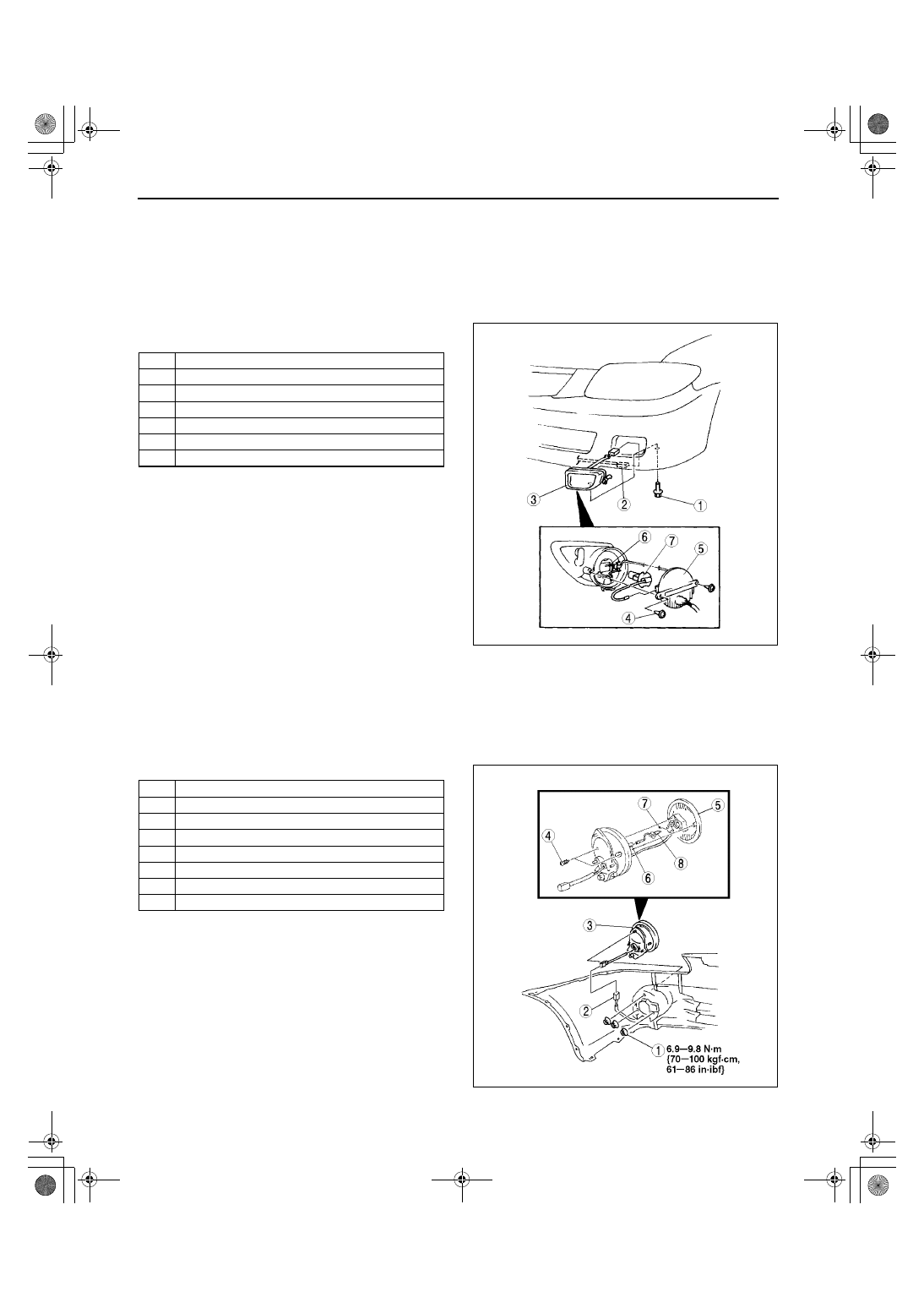

FRONT FOG LIGHT REMOVAL/INSTALLATION

A3U091851680W01

4SD

Caution

••••

A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is dirty,
excessive heat will build up and the bulb’s life will be shortened. When replacing the bulb, hold the
metal flange, not the glass.

1. Disconnect the negative battery cable.
2. Turn over the mud guard.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. Adjust the front fog light aiming. (See 09–18–9

FRONT FOG LIGHT ADJUSTMENT.)

5HB

Caution

••••

A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is dirty,
excessive heat will build up and the bulb’s life will be shortened. When replacing the bulb, hold the
metal flange, not the glass.

1. Disconnect the negative battery cable.
2. Remove the front bumper. (See 09–10–5 FRONT BUMPER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
5. Adjust the front fog light aiming. (See 09–18–9

FRONT FOG LIGHT ADJUSTMENT.)

End Of Sie

1

Bolt

2

Connector

3

Front fog light

4

Screw

5

Cover

6

Bulb pressing wire

7

Front fog light bulb

Z3U0918W014

1

Nut

2

Connector

3

Front fog light

4

Screw

5

Front fog light unit

6

Connector

7

Bulb pressing wire

8

Front fog light bulb

A3U0918W110

1712-1U-01G(09-18).fm  8 ページ  ２００１年６月２９日 金曜日 午後１２時５７分
