INTERIOR TRIM

09–17–10

5. Remove the screws and fasteners.
6. Disengage clips C using a fastener remover.
7. Pull the rear door trim upward, then disengage

pins D from the body.

8. Disconnect the power window sub switch

connector if equipped.

9. Remove the inner handle from the rear door trim.

10. Install in the reverse order of removal.

End Of Sie

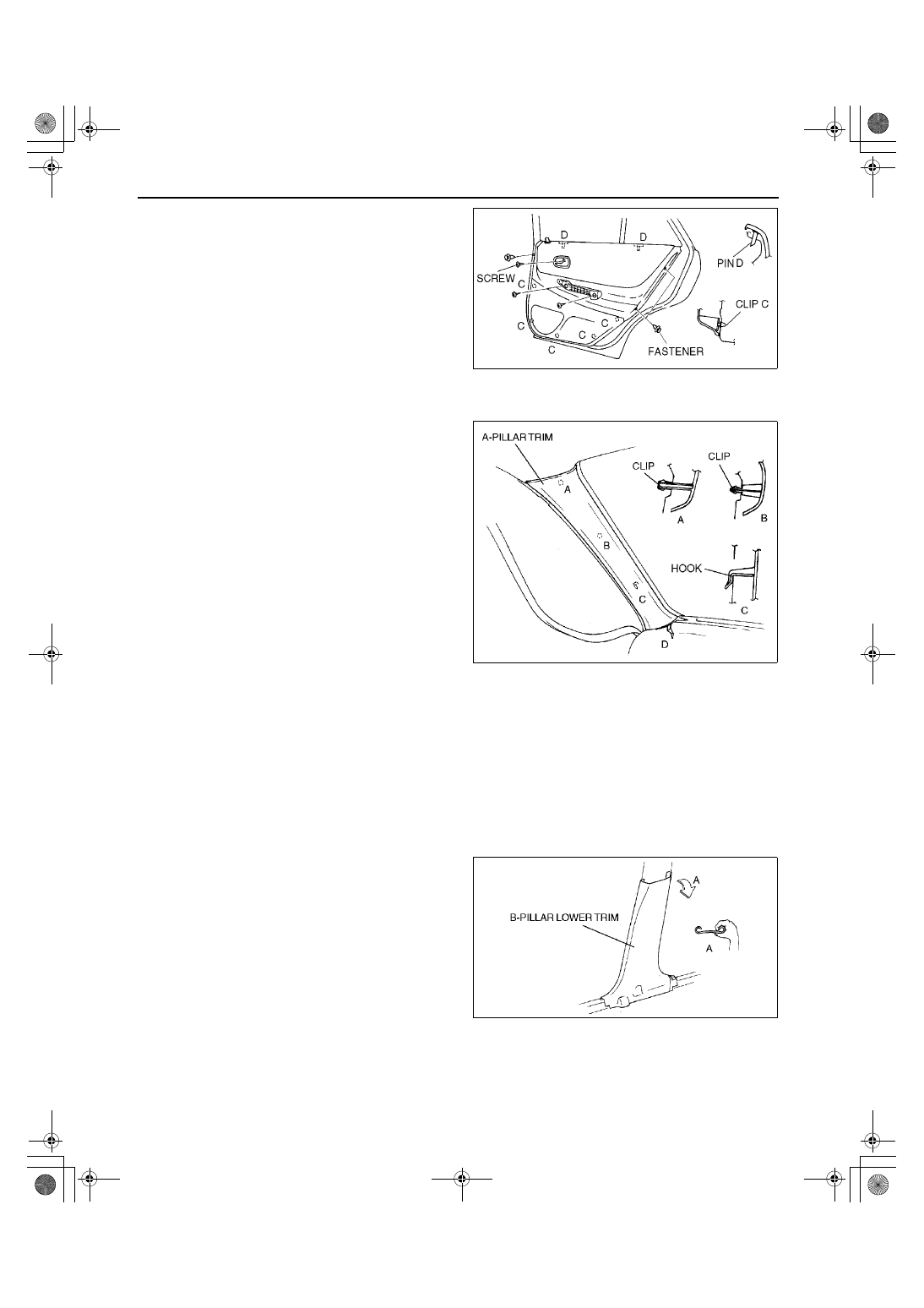

A-PILLAR TRIM REMOVAL/INSTALLATION

A3U091768160W01

1. Turn the seaming welt over.
2. Disengage clips A and B using a fastener

remover.

3. Pull the A-pillar trim upward, then disengage

hooks C and D.

4. Install in the reverse order of removal.

End Of Sie

B-PILLAR LOWER TRIM REMOVAL

A3U091768220W01

Warning

••••

Handling the side air bag sensor improperly can accidentally deploy the side air bag module,
which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before working
around the B-pillar areas. (See 08–10–3 AIR BAG SYSTEM SERVICE WARNINGS.)

Note

•

The side air bag sensor is located in the B-pillar.

1. Disconnect the negative battery cable.
2. Remove the front scuff plate.
3. Remove the rear scuff plate.
4. Pull the area marked A, then remove one side of

the B-pillar lower trim.

End Of Sie

A3U0916W017

Y3U917WA5

X3U917WAS

1712-1U-01G(09-17).fm 10 ページ２００１年６月２９日金曜日午前１０時３５分

INTERIOR TRIM

09–17–11

09–17

B-PILLAR LOWER TRIM INSTALLATION

A3U091768220W02

Warning

••••

Note

•

The side air bag sensor is located in the B-pillar.

1. Disconnect the negative battery cable.
2. Install the B-pillar lower trim to the B-pillar with setting 5—10 mm {0.20—0.39 in} upward from its original

installation place.

3. Slide the B-pillar lower trim downward.
4. Install the rear scuff plate.
5. Install the front scuff plate.

End Of Sie

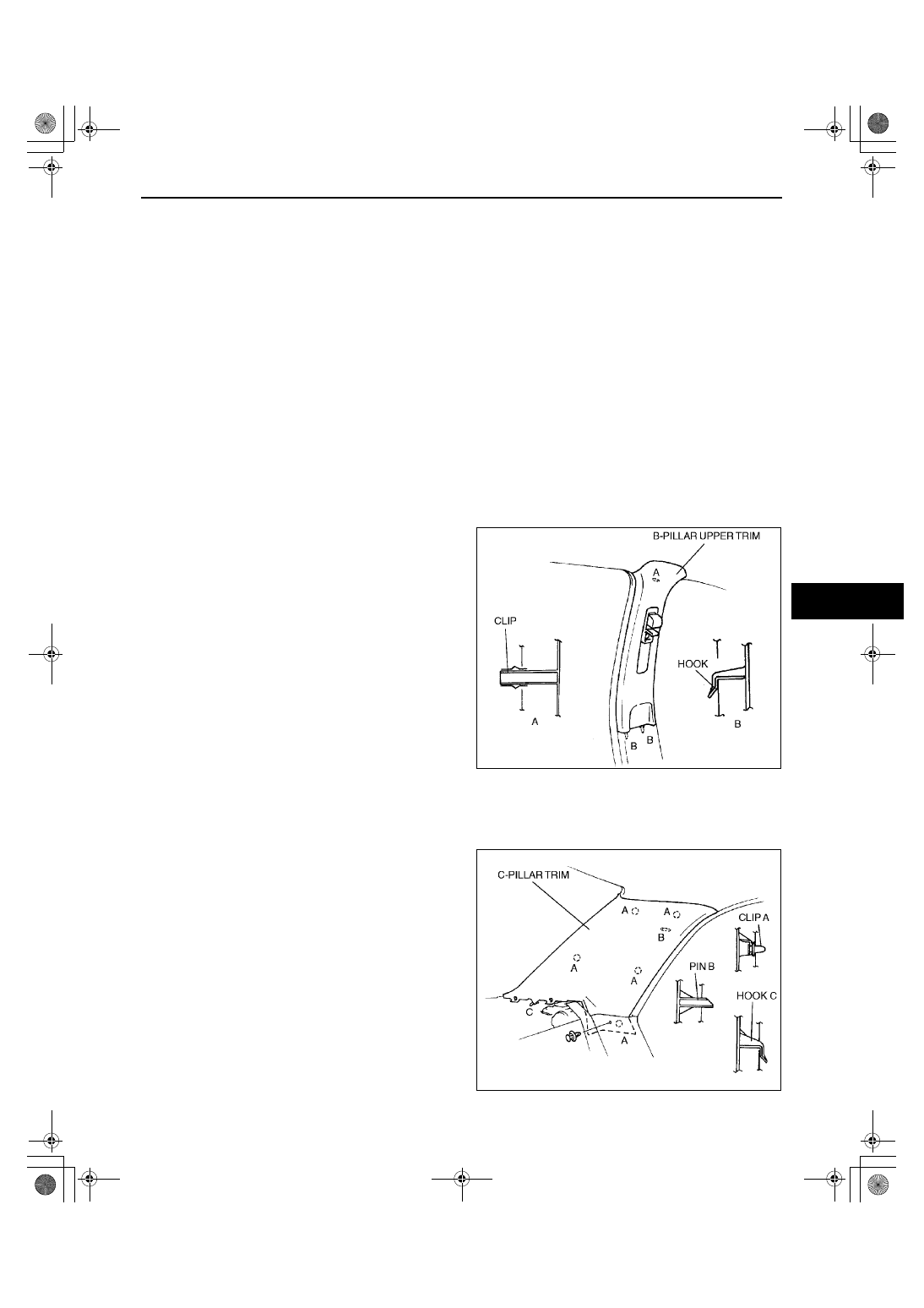

B-PILLAR UPPER TRIM REMOVAL/INSTALLATION

A3U091768210W01

1. Remove the upper anchor of the front seat belt. (See 08–11–1 FRONT SEAT BELT REMOVAL/

INSTALLATION.)

2. Remove the B-pillar lower trim. (See 09–17–10 B-PILLAR LOWER TRIM REMOVAL.) (See 09–17–11 B-

PILLAR LOWER TRIM INSTALLATION.)

3. Turn the seaming welt over.
4. Disengage clip A using a fastener remover.
5. Pull the B-pillar upper trim upward, then

disengage hooks B from the body.

6. Install in the reverse order of removal.

End Of Sie

C-PILLAR TRIM REMOVAL/INSTALLATION

A3U091768240W01

4SD

1. Remove the tire house trim.
2. Turn the seaming welt over.
3. Disengage clips A and pin B using a fastener

remover.

4. Pull the C-pillar trim upward, then disengage hook

C from the body.

5. Install in the reverse order of removal.

Y3U917WA6

Y3U917WA7

1712-1U-01G(09-17).fm 11 ページ２００１年６月２９日金曜日午前１０時３５分

INTERIOR TRIM

09–17–12

5HB

1. Remove the trunk side trim.
2. Remove the rear center seat belt upper anchor installation bolt. (LH only)
3. Remove the fastener.
4. Disengage clips A and pins B using a fastener

remover.

5. Pull the C-pillar trim upward, then disengage

hooks C from the body.

6. Install in the reverse order of removal.

End Of Sie

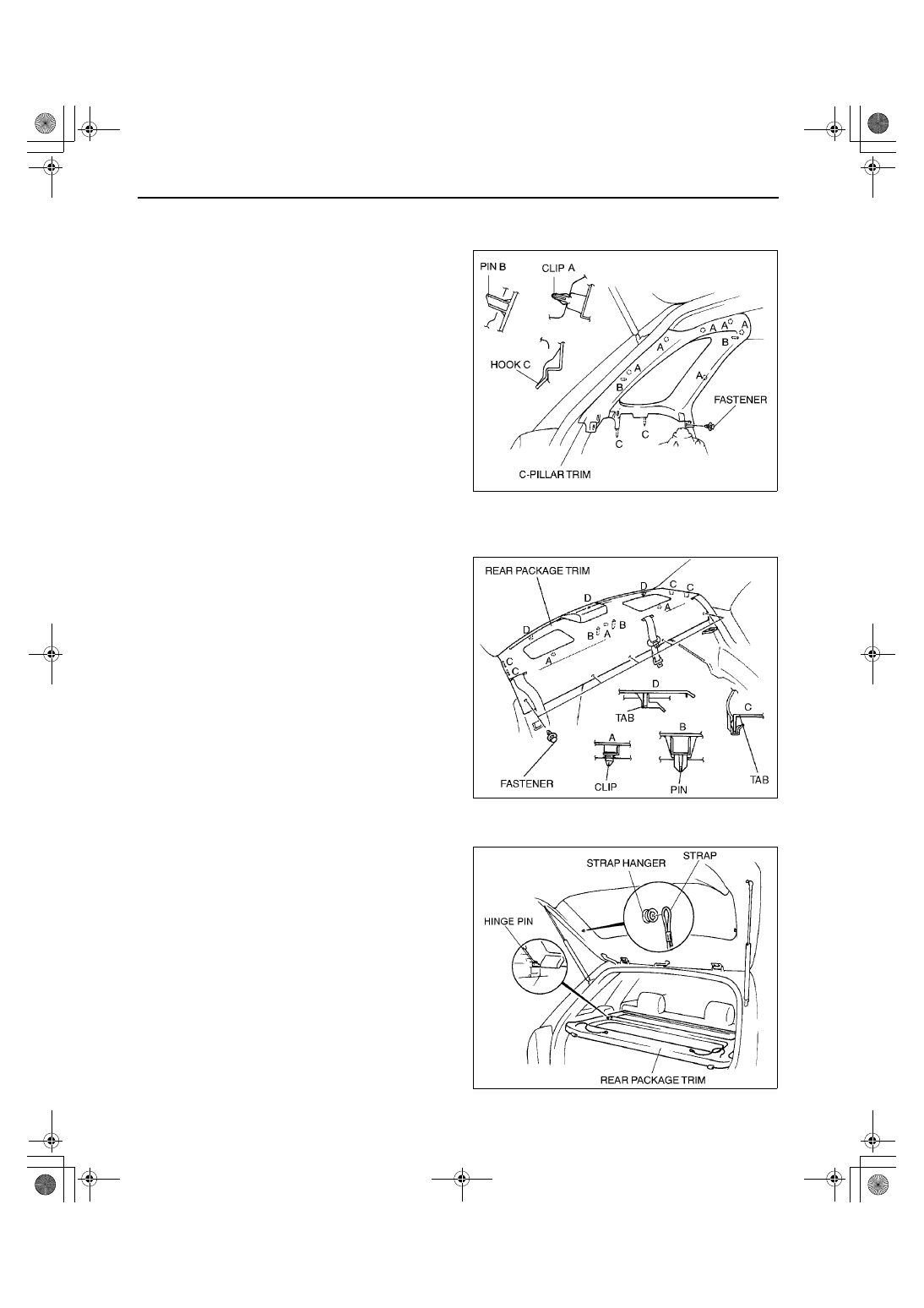

REAR PACKAGE TRIM REMOVAL/INSTALLATION

A3U091768320W01

4SD

1. Remove the rear seat back.
2. Pull the rear package trim upward, then

disengage clips A, pins B and tabs C from the
body.

3. Pull the rear package trim toward you, then

disengage tabs D from the body.

4. Install in the reverse order of removal.

5HB

1. Remove the straps from the strap hangers.
2. Pull the rear package trim, then remove the hinge

pin from the trunk side trim.

3. Install in the reverse order of removal.

End Of Sie

A3U0917W001

Z3U0917W001

A3U0917W003

1712-1U-01G(09-17).fm 12 ページ２００１年６月２９日金曜日午前１０時３５分

INTERIOR TRIM

09–17–13

09–17

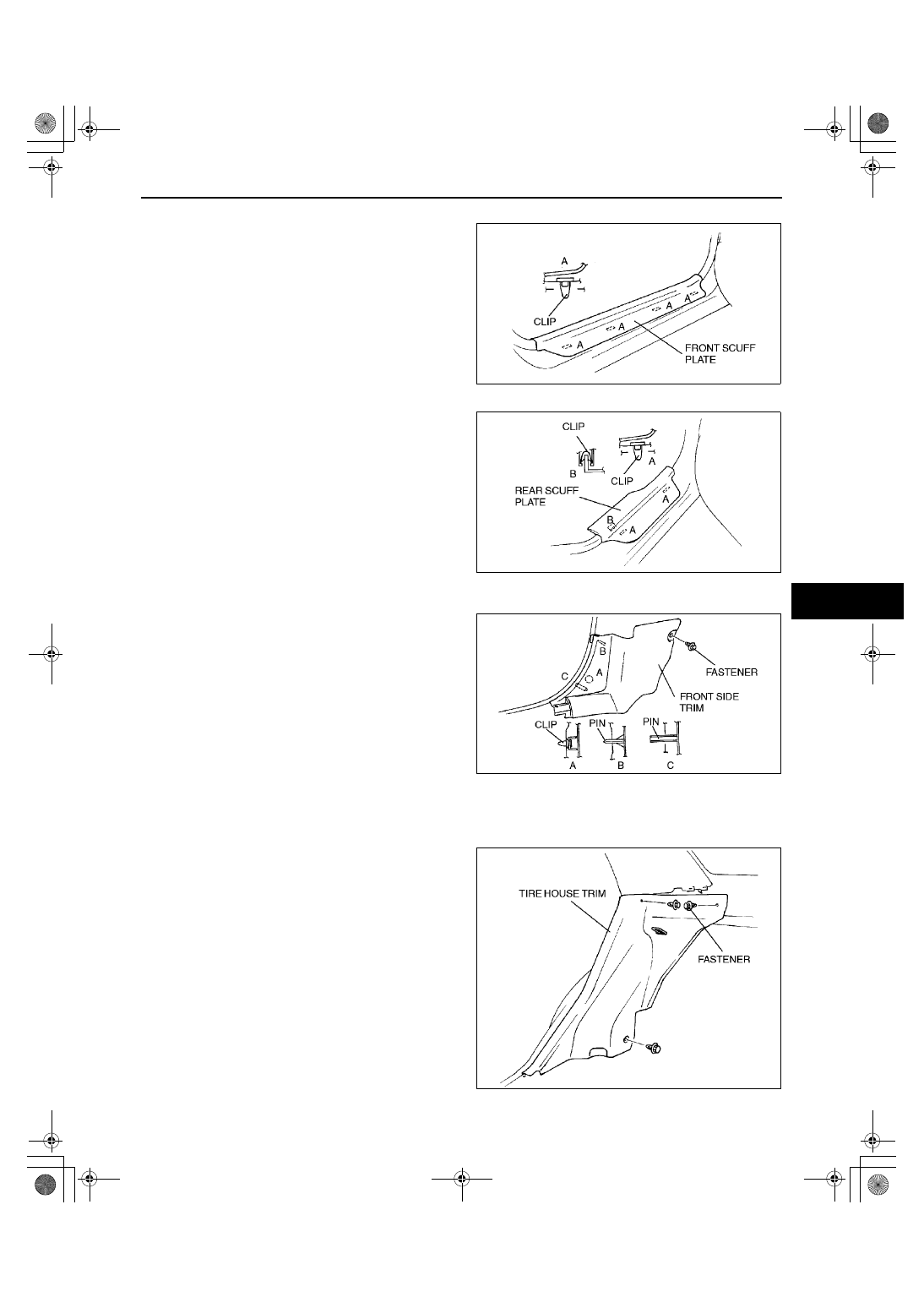

FRONT SCUFF PLATE REMOVAL/INSTALLATION

1. Pull the front scuff plate upward, then disengage

clips A from the body.

2. Install in the reverse order of removal.

End Of Sie

REAR SCUFF PLATE REMOVAL/INSTALLATION

1. Pull the rear scuff plate upward, then disengage

clips A and B from the body.

2. Install in the reverse order of removal.

End Of Sie

FRONT SIDE TRIM REMOVAL/INSTALLATION

1. Remove the front scuff plate.
2. Turn the seaming welt over.
3. Remove the fasteners.
4. Pull the front side trim toward you, then

disengage clip A, pins B and C from the body.

5. Install in the reverse order of removal.

End Of Sie

TIRE HOUSE TRIM REMOVAL/INSTALLATION

A3U091768760W01

4SD

1. Remove the rear seat back.

2. Remove the rear scuff plate.

3. Remove the rear package trim.

4. Remove the lower anchor installation bolt from

the rear seat belt.

5. Remove the fasteners.
6. Pull the tire house trim forward, then remove the

tire house trim.

7. Install in the reverse order of removal.

X3U917WAW

X3U917WAX

X3U917WAY

X3U917WAZ
