SUNROOF

09–15–1

09–15

09–15

SUNROOF

LOCATION INDEX  . . . . . . . . . . . . . . . . .  09–15–1
DEFLECTOR REMOVAL/INSTALLATION09–15–2

4SD  . . . . . . . . . . . . . . . . . . . . . . . . . . .  09–15–2
5HB  . . . . . . . . . . . . . . . . . . . . . . . . . . .  09–15–2

GLASS PANEL ADJUSTMENT  . . . . . . .  09–15–3
GLASS PANEL

REMOVAL/INSTALLATION . . . . . . . . .  09–15–3

FRONT DRAIN HOSE REMOVAL  . . . . .  09–15–4
FRONT DRAIN HOSE INSTALLATION .  09–15–4
REAR DRAIN HOSE REMOVAL  . . . . . .  09–15–4
REAR DRAIN HOSE INSTALLATION  . .  09–15–5
SUNROOF UNIT

REMOVAL/INSTALLATION . . . . . . . . .  09–15–5

SUNROOF UNIT DISASSEMBLY. . . . . .  09–15–5

4SD  . . . . . . . . . . . . . . . . . . . . . . . . . . .  09–15–5
5HB  . . . . . . . . . . . . . . . . . . . . . . . . . . .  09–15–7

SUNROOF UNIT ASSEMBLY. . . . . . . . .  09–15–8

4SD  . . . . . . . . . . . . . . . . . . . . . . . . . . .  09–15–8

5HB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–9

SUNROOF MOTOR REMOVAL . . . . . . . . 09–15–11
SUNROOF MOTOR INSTALLATION. . . . 09–15–11
SUNROOF MOTOR INSPECTION . . . . . . 09–15–12

4SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–12
5HB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–13

SUNROOF RELAY

REMOVAL/INSTALLATION . . . . . . . . . . 09–15–14

4SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–14
5HB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–14

SLIDING SUNROOF SYSTEM

WIRING DIAGRAM. . . . . . . . . . . . . . . . . 09–15–14

SUNROOF RELAY INSPECTION  . . . . . . 09–15–16

4SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–16
5HB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 09–15–17

SUNROOF SWITCH

REMOVAL/INSTALLATION . . . . . . . . . . 09–15–18

SUNROOF SWITCH INSPECTION  . . . . . 09–15–18

End of Toc

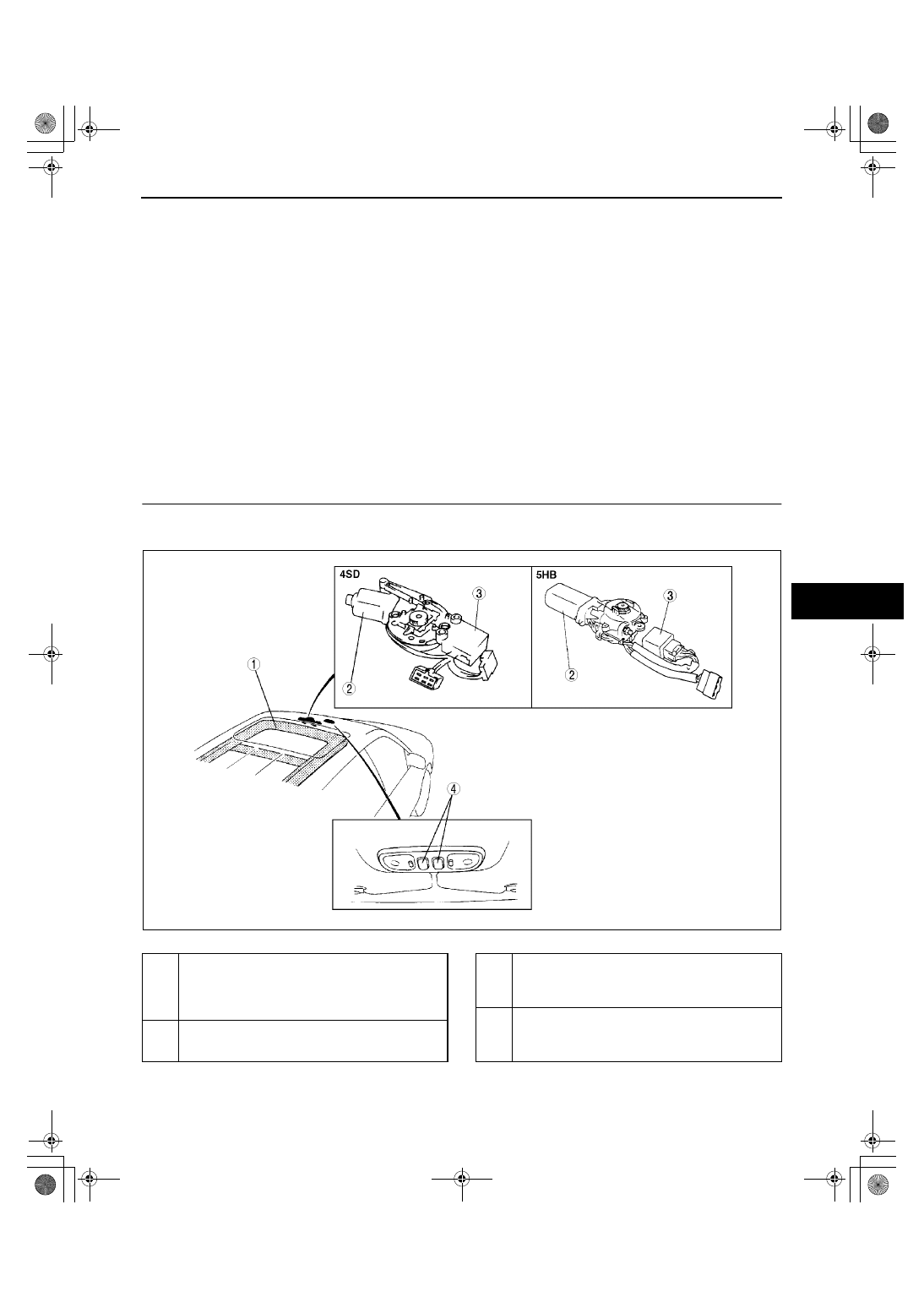

LOCATION INDEX

A3U091501049W01

.

A3U0915W024

1

Sunroof unit
(See 09–15–5 SUNROOF UNIT REMOVAL/
INSTALLATION)
(See 09–15–8 SUNROOF UNIT ASSEMBLY)
(See 09–15–5 SUNROOF UNIT DISASSEMBLY)

2

Sunroof motor
(See 09–15–5 SUNROOF UNIT REMOVAL/
INSTALLATION)

3

Sunroof relay
(See 09–15–14 SUNROOF RELAY REMOVAL/
INSTALLATION)
(See 09–15–16 SUNROOF RELAY INSPECTION)

4

Sunroof switch
(See 09–15–18 SUNROOF SWITCH INSPECTION)
(See 09–15–18 SUNROOF SWITCH REMOVAL/
INSTALLATION)

1712-1U-01G(09-15).fm  1 ページ  2001年6月29日 金曜日 午前10時33分

SUNROOF

09–15–2

End Of Sie

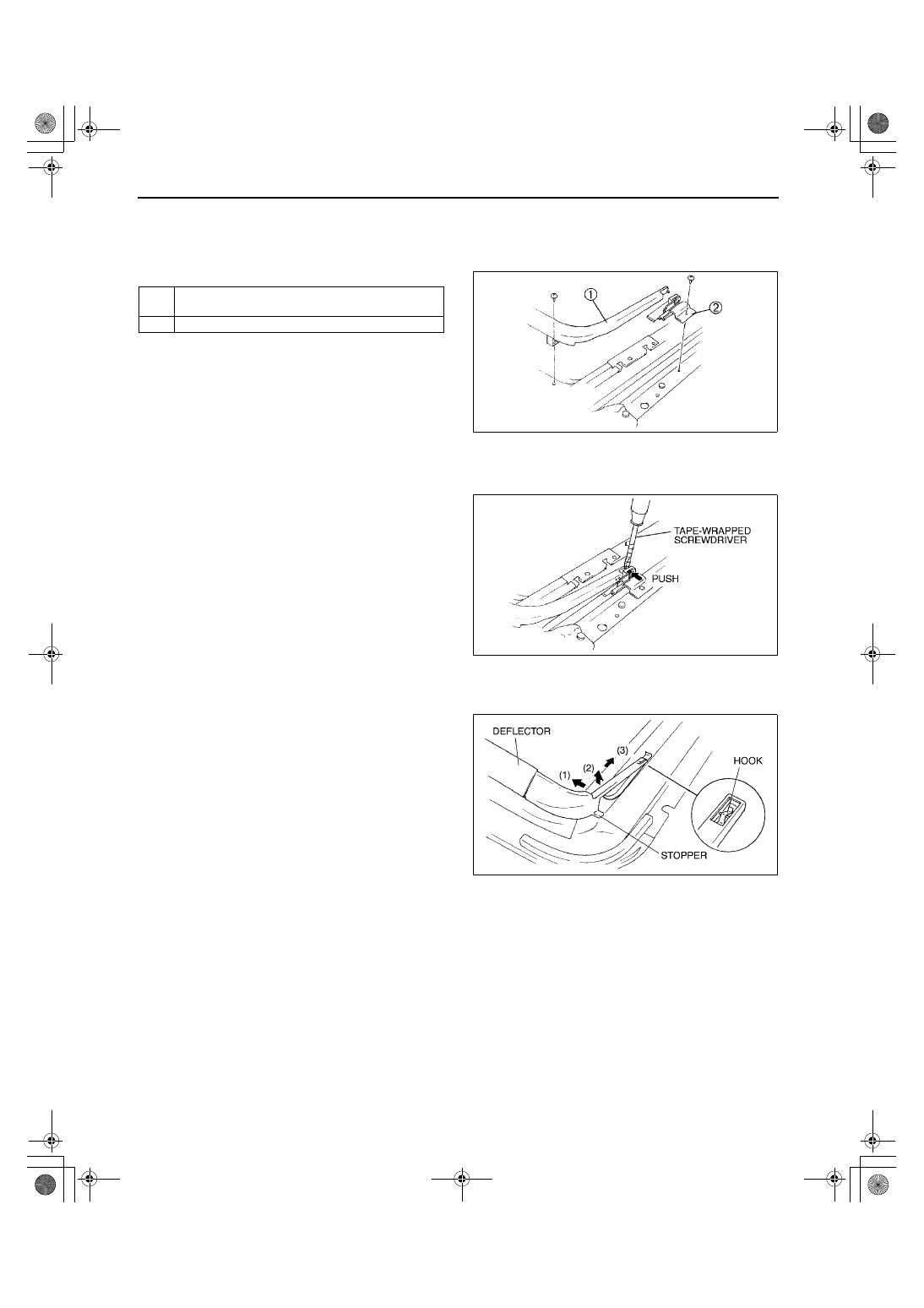

DEFLECTOR REMOVAL/INSTALLATION

A3U091569880W01

4SD

1. Fully open the glass panel.
2. To remove the stopper, remove the sunroof unit. (See 09–15–5 SUNROOF UNIT REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Deflector Removal Note

1. Remove the deflector using a tape-wrapped screwdriver.

5HB

1. Fully open the glass panel.
2. Push the deflector inside (1) and pull it up (2) to

release the stopper.

3. Slide the deflector to disengage from the hook.

(3)

4. Remove the deflector.
5. Install in the reverse order of removal.

End Of Sie

1

Deflector
(See 09–15–2 Deflector Removal Note)

2

Stopper

X3U915WA2

X3U915WA3

A3U0915W001

1712-1U-01G(09-15).fm  2 ページ  2001年6月29日 金曜日 午前10時33分

SUNROOF

09–15–3

09–15

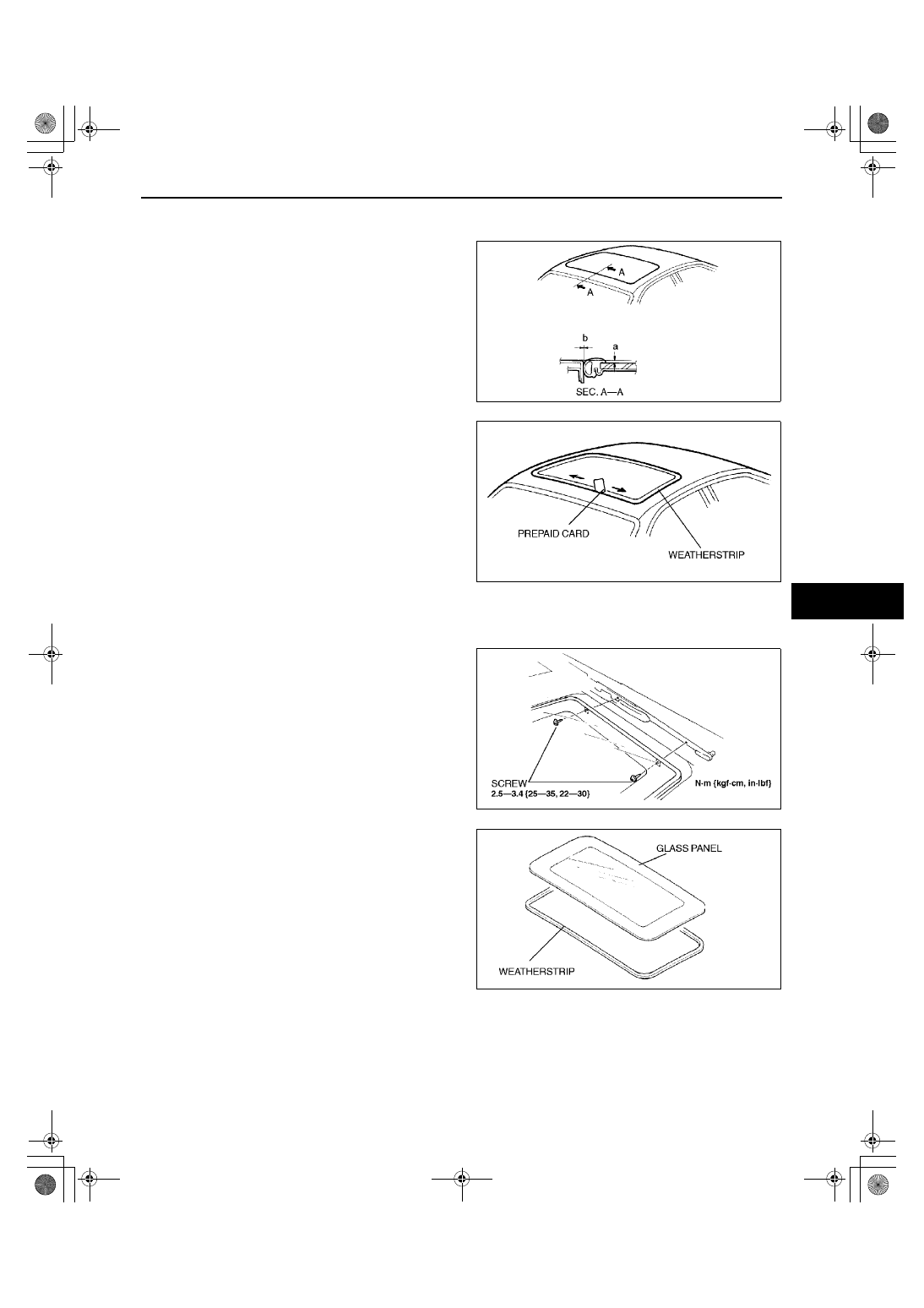

GLASS PANEL ADJUSTMENT

A3U091569810W01

1. Fully close the glass panel.
2. Measure the gap and height between the glass

panel and body.

If not as specified, loosen the glass panel
installation screws and reposition the glass
panel.

Clearance

a: 0.2—2.2 mm {0.008—0.086 in}
b: 0 mm {0 in}

3. Tighten the installation screws.

4. Insert a prepaid card between the weatherstrip

and the body of the vehicle. Verify that the
sunroof is shut tightly (there is resistance when
the prepaid card is moved).

If the sunroof is not shut tightly, readjust by
performing Steps 3 and 4.

End Of Sie

GLASS PANEL REMOVAL/INSTALLATION

A3U091569810W02

1. Fully close the glass panel.
2. Fully open the sunshade.
3. Remove the screws, and then remove the glass

panel.

4. Peel the weatherstrip off the glass panel.
5. Install in the reverse order of removal.
6. Adjust the glass panel. (See 09–15–3 GLASS

PANEL ADJUSTMENT.)

End Of Sie

X3U915WA6

X3U915WA7

X3U915WA4

X3U915WA5

1712-1U-01G(09-15).fm  3 ページ  2001年6月29日 金曜日 午前10時33分

SUNROOF

09–15–4

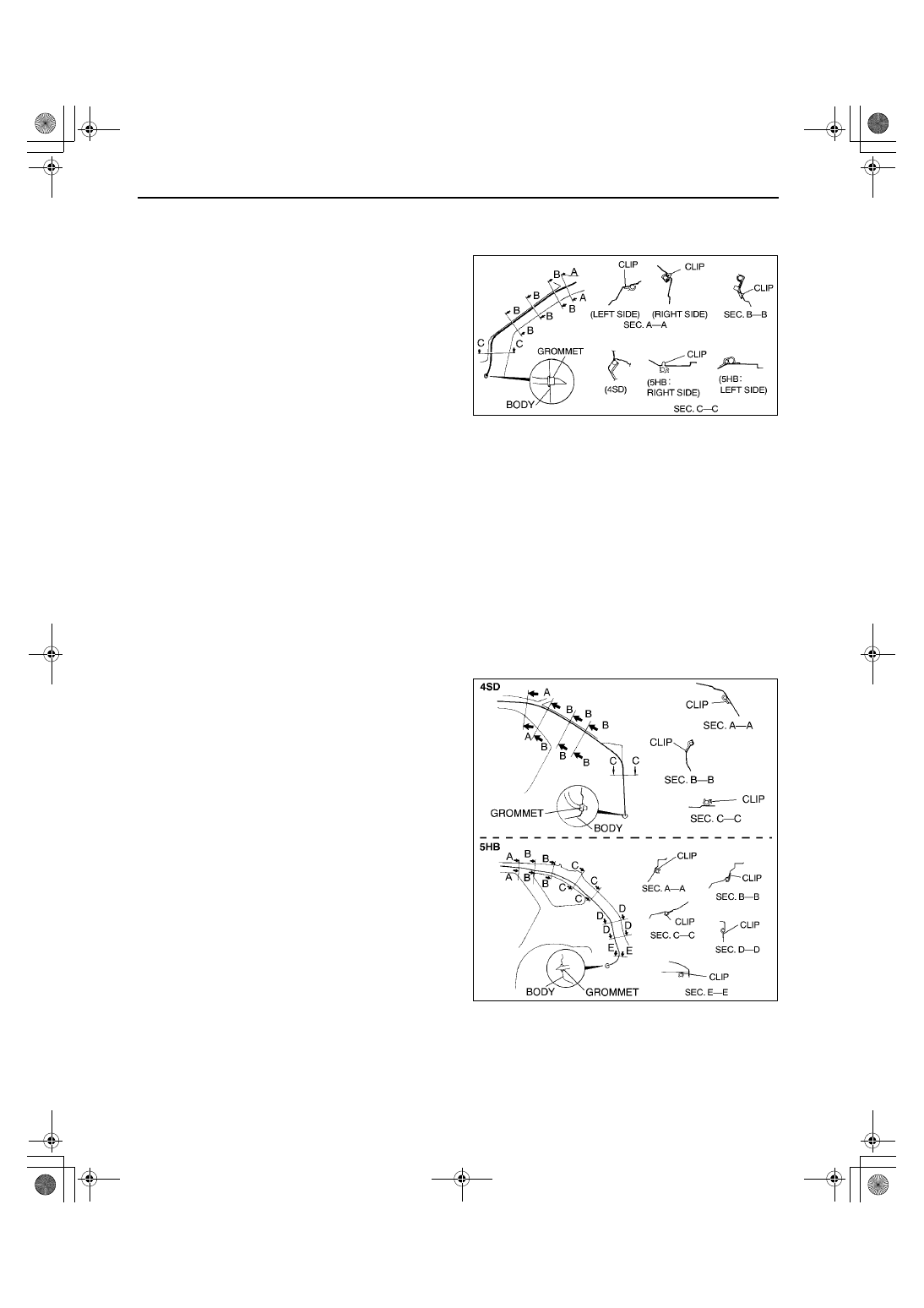

FRONT DRAIN HOSE REMOVAL

A3U091569920W01

1. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
2. Disconnect the front drain hose from the sunroof frame.
3. Remove the front drain hose from the clips.
4. Pull the front drain hose into the room side.
5. Remove the front drain hose.

End Of Sie

FRONT DRAIN HOSE INSTALLATION

A3U091569920W02

Caution

••••

If the front drain hose is pinched or bent anywhere, the water in the hose may not discharge and
enter the inside of the vehicle. During and after installation of the trims and the headliner, always
make sure there is no interference with the front drain hose. Fix any problem if found.

1. Apply soapy water to the front drain hose inserting area.
2. Insert one end of the front drain hose into the sunroof frame.
3. Install the front drain hose to the clips parallel to the pillar and free of slack.
4. Insert the front drain hose joint into the hinge pillar inner hole.
5. Install the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)

End Of Sie

REAR DRAIN HOSE REMOVAL

A3U091569922W01

1. Remove the headliner. (See 09–17–16 HEADLINER REMOVAL/INSTALLATION.)
2. For 4SD, remove the trunk side trim.
3. Disconnect the rear drain hose from the sunroof frame.
4. Remove the rear drain hose from the clips.
5. Pull the rear drain hose into the room side.
6. Remove the rear drain hose.

End Of Sie

A3U0915W022

A3U0915W002

1712-1U-01G(09-15).fm  4 ページ  2001年6月29日 金曜日 午前10時33分
