SEATS

09–13–3

09–13

.

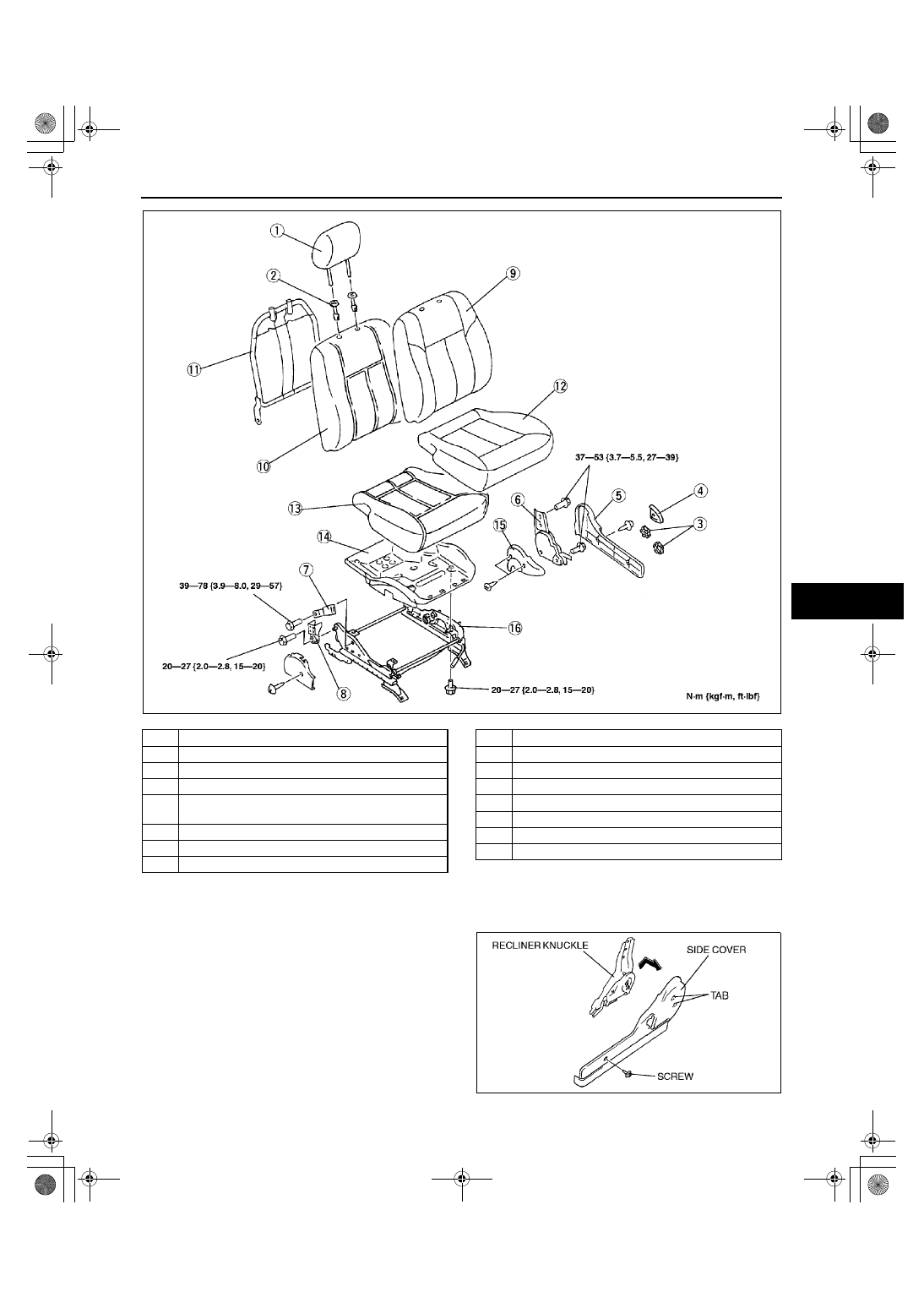

Side cover removal note

1. Remove the screws.
2. Lift the side cover up in the direction of the arrow,

then unhook it from the recliner knuckle.

X3U913WA5

1

Headrest

2

Pole guide

3

Tilt dial

4

Recliner lever

5

Side cover
(See 09–13–3 Side cover removal note)

6

Recliner knuckle

7

Front buckle

8

Hinge cover

9

Seat back trim

10

Seat back pad

11

Seat back frame

12

Seat cushion trim

13

Seat cushion pad

14

Seat cushion frame

15

Reverse cover

16

Slide adjuster

Y3U913WA3

1712-1U-01G(09-13).fm  3 ページ  ２００１年６月２９日 金曜日 午前１０時３１分

SEATS

09–13–4

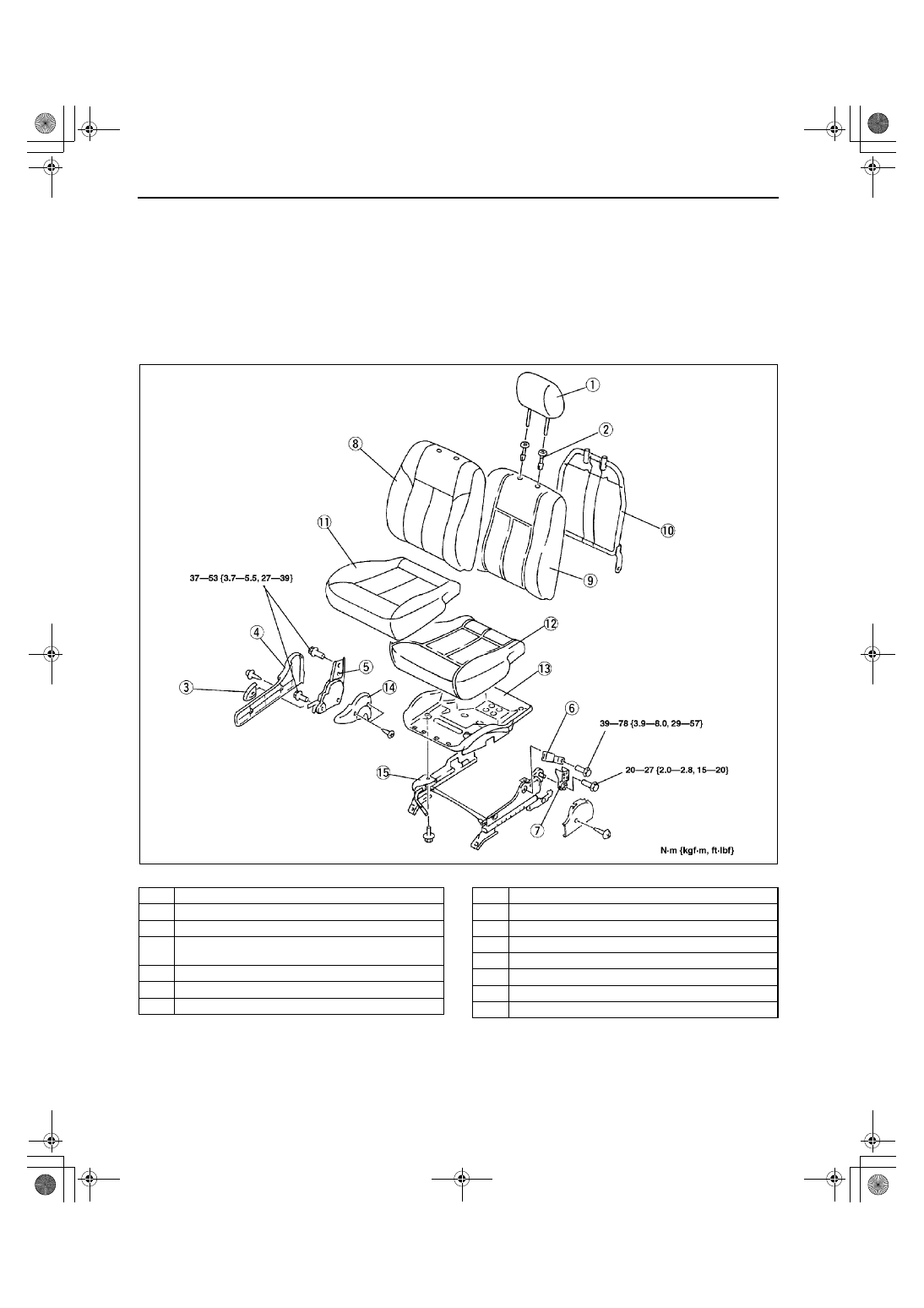

Passenger's Seat

Warning

••••

Handling the front seat (side air bag) improperly can accidently deploy the side air bag, which may
seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat.
(See 08–10–3 AIR BAG SYSTEM SERVICE WARNINGS.)

1. Remove the passenger-side side air bag module. (See 08–10–6 PASSENGER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

.

End Of Sie

X3U913WA6

1

Headrest

2

Pole guide

3

Recliner lever

4

Side cover
(See 09–13–3 Side cover removal note)

5

Recliner knuckle

6

Front buckle

7

Hinge cover

8

Seat back trim

9

Seat back pad

10

Seat back frame

11

Seat cushion trim

12

Seat cushion pad

13

Seat cushion frame

14

Reverse cover

15

Slide adjuster

1712-1U-01G(09-13).fm  4 ページ  ２００１年６月２９日 金曜日 午前１０時３１分

SEATS

09–13–5

09–13

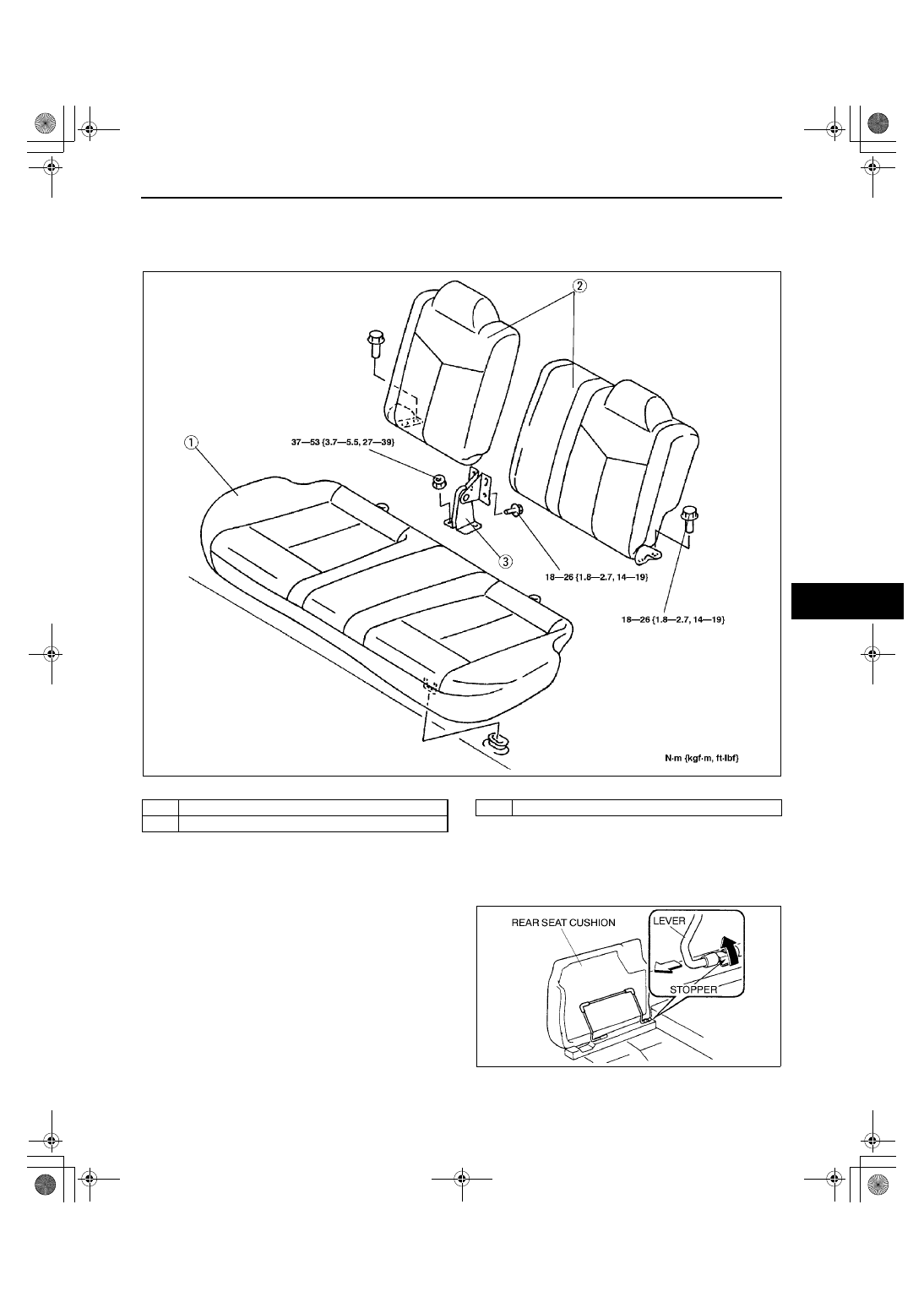

REAR SEAT REMOVAL/INSTALLATION

A3U091357200W01

4SD

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

.

5HB
Rear seat cushion

1. Lift up the rear seat cushion.
2. Pull the stopper to release the lever, and remove

the rear seat cushion.

3. Install in the reverse order of removal.

X3U913WA9

1

Rear seat cushion

2

Rear seat back

3

Center hinge

A3U0913W001

1712-1U-01G(09-13).fm  5 ページ  ２００１年６月２９日 金曜日 午前１０時３１分

SEATS

09–13–6

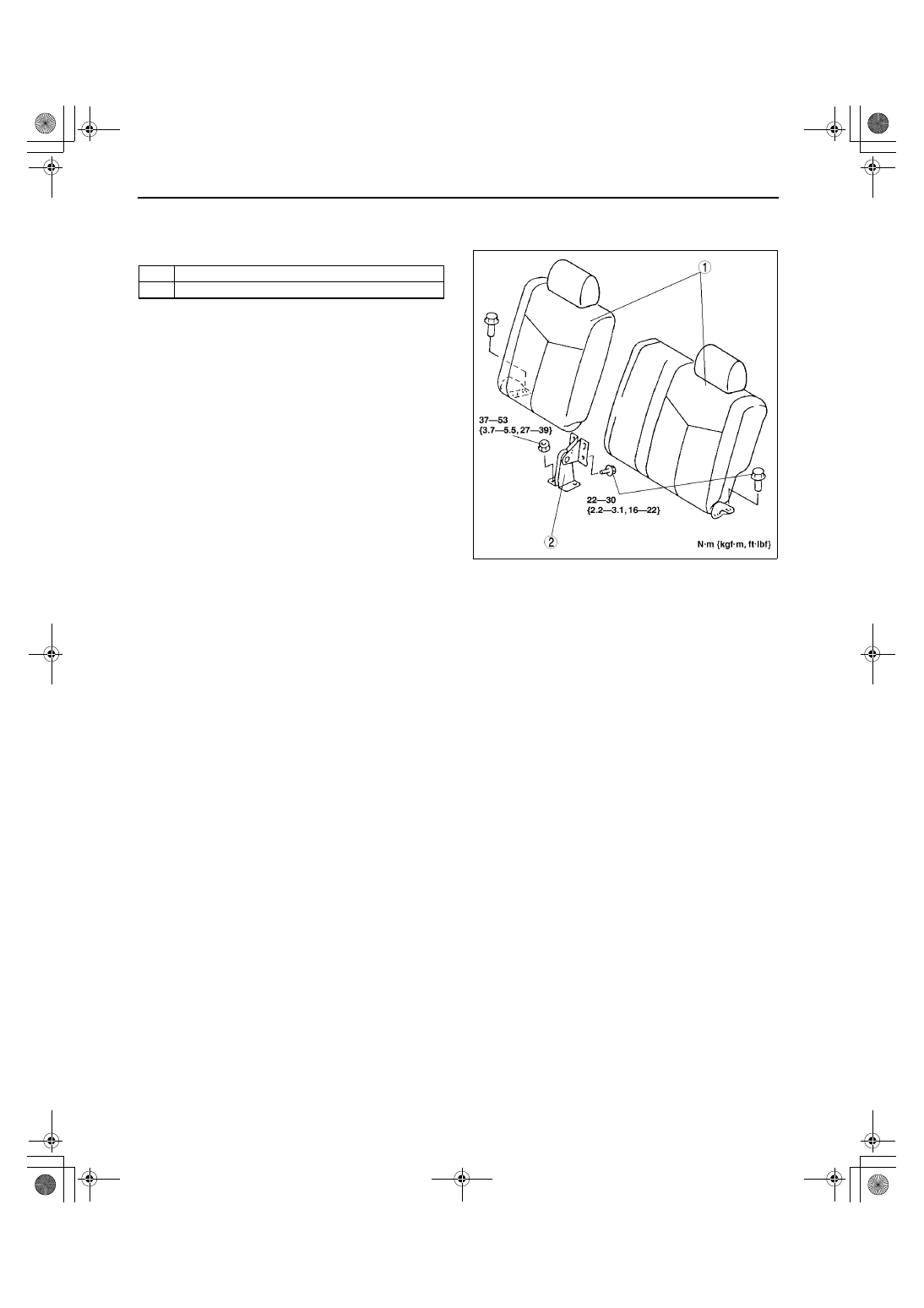

Rear seat back

1. Lift up the rear seat cushion.
2. Remove the service hole cover.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

End Of Sie

1

Rear seat back

2

Center hinge

A3U0913W002
