GLASS/WINDOWS/MIRRORS

09–12–3

09–12

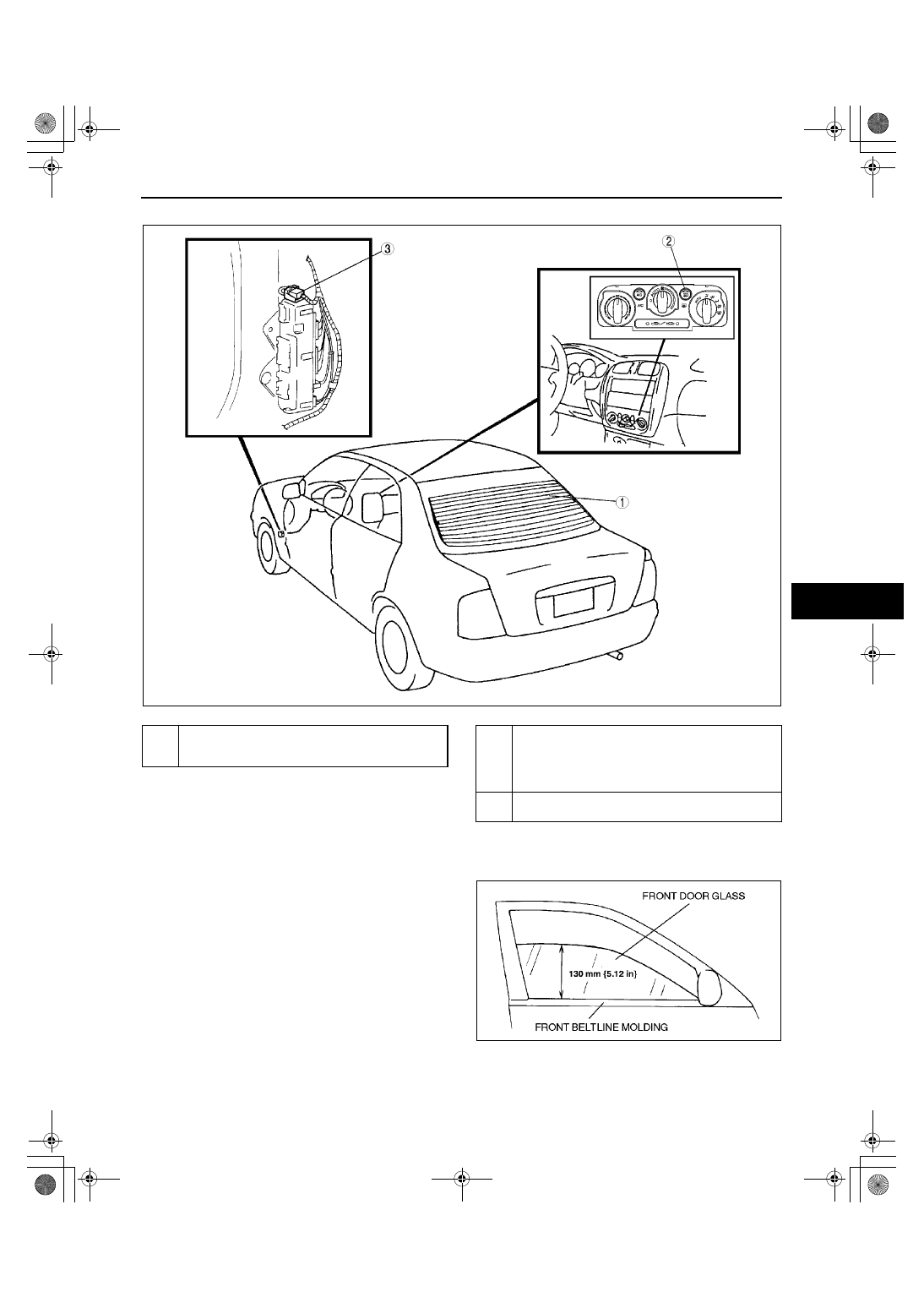

Rear Window Defroster

End Of Sie

FRONT DOOR GLASS AND GUIDE REMOVAL/INSTALLATION

A3U091258510W01

1. Lower or raise the front door glass so that the

distance from the top of the front door glass at the
rear end to the upper part of the front beltline
molding is 130 mm {5.12 in}.

2. Disconnect the negative battery cable.
3. Remove the front door trim. (See 09–17–9

FRONT DOOR TRIM REMOVAL/
INSTALLATION.)

4. Remove the inner handle.

Z3U0912W016

1

Filament
(See 09–12–27 FILAMENT INSPECTION)
(See 09–12–28 FILAMENT REPAIR)

2

Rear window defroster switch
(See 07–40–10 CLIMATE CONTROL UNIT
DISASSEMBLY/ASSEMBLY)
(See 07–40–11 CLIMATE CONTROL UNIT
INSPECTION)

3

Rear window defroster relay
(See 09–21–5 RELAY INSPECTION)

Y3U912WAJ

1712-1U-01G(09-12).fm  3 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–4

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

End Of Sie

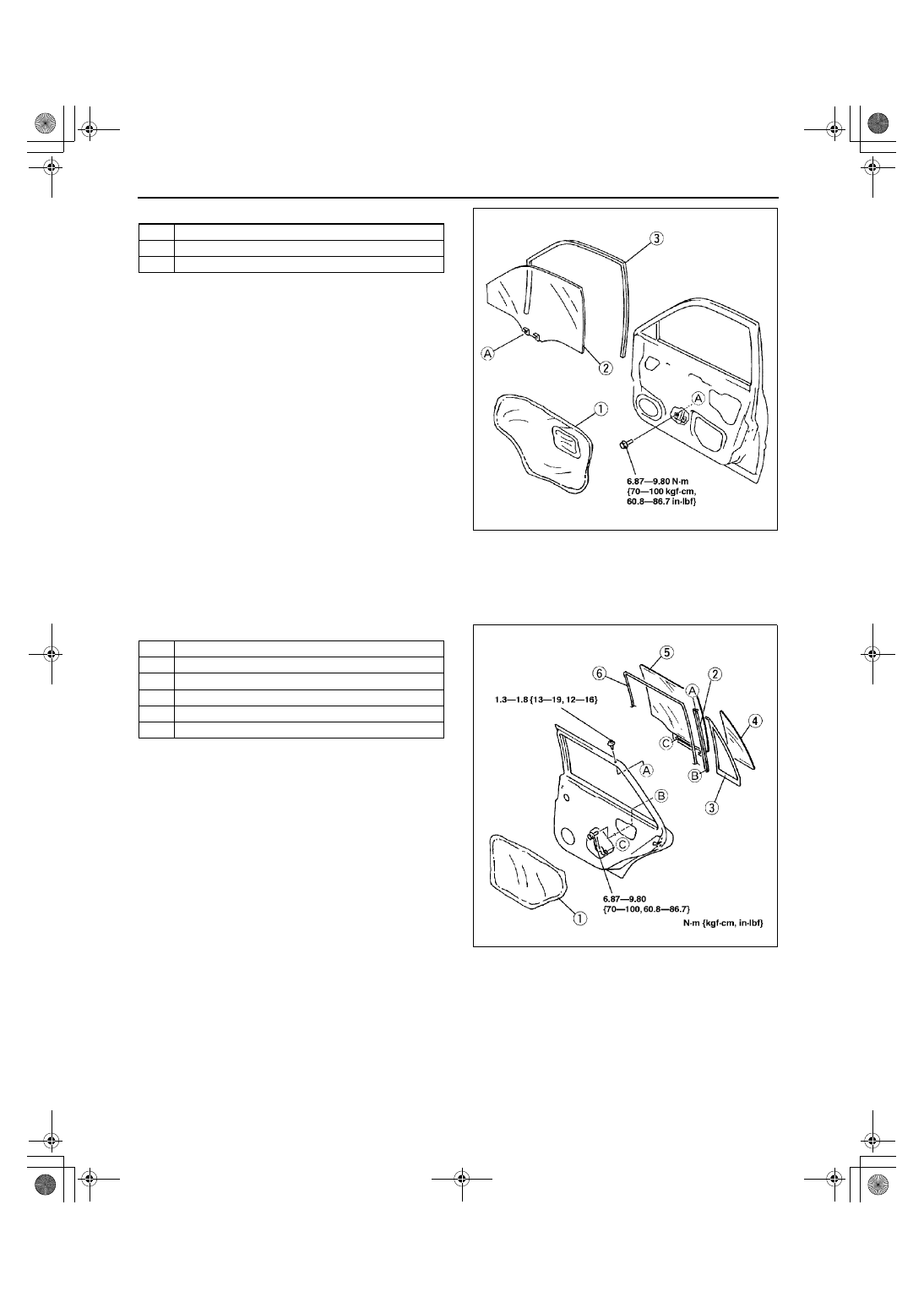

REAR DOOR GLASS AND GUIDE REMOVAL/INSTALLATION

A3U091272510W01

1. Open the rear door glass completely.
2. Disconnect the negative battery cable.
3. Remove the rear door trim. (See 09–17–9 REAR DOOR TRIM REMOVAL/INSTALLATION.)
4. Remove the inner handle.
5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

End Of Sie

1

Door screen

2

Front door glass

3

Glass run channel

X3U912WB7

1

Door screen

2

Glass guide

3

Door quarter window glass weatherstrip

4

Door quarter window glass

5

Rear door glass

6

Glass run channel

X3U912WB8

1712-1U-01G(09-12).fm  4 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–5

09–12

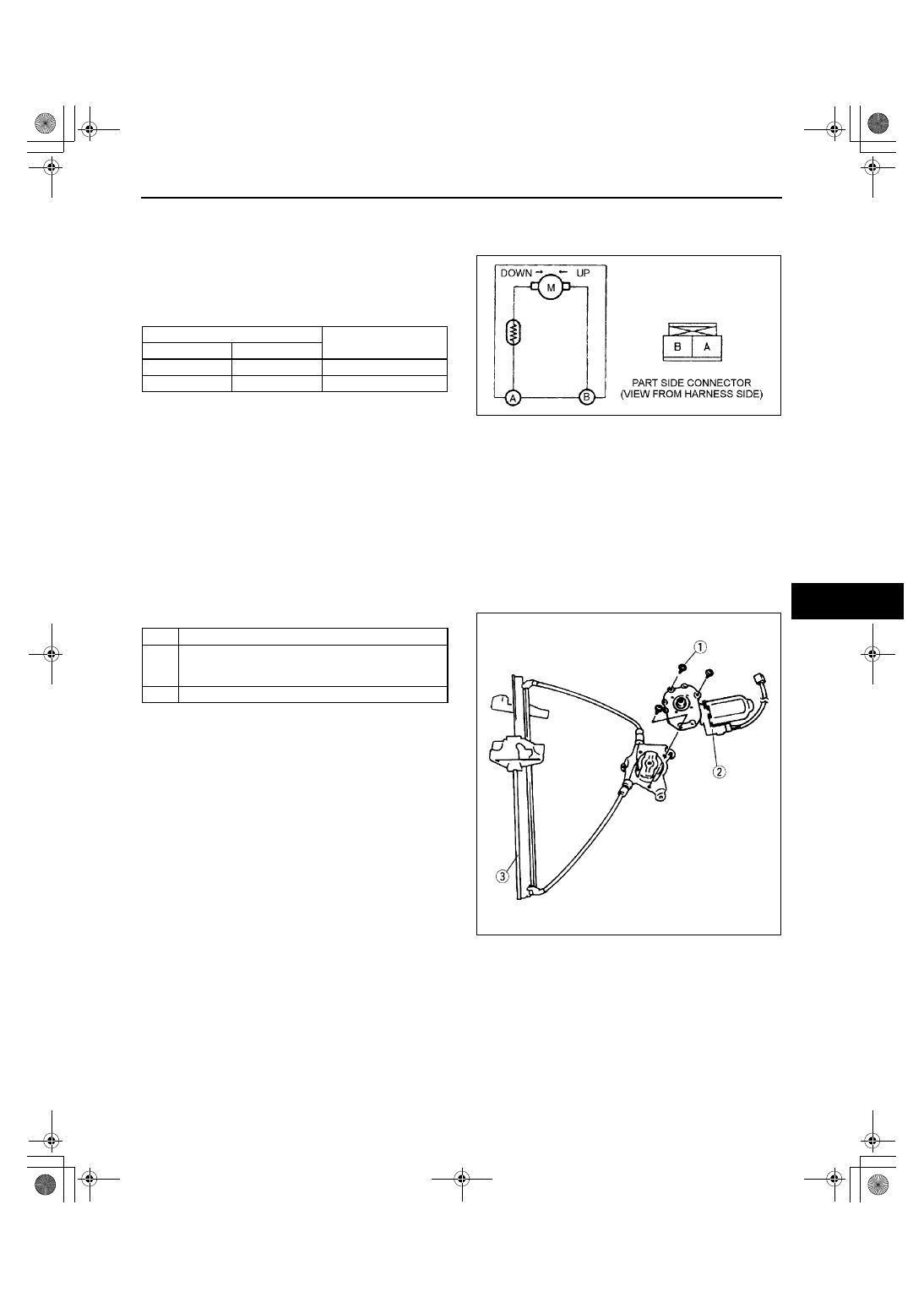

POWER WINDOW MOTOR INSPECTION

A3U091258581W01

1. Remove the power window motor. (See 09–12–5 FRONT POWER WINDOW REGULATOR DISASSEMBLY/

ASSEMBLY.) (See 09–12–6 REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY.)

2. Apply battery positive voltage to the power

window motor terminals and inspect the operation
of the power window motor.

•

If not as specified, replace the power window
motor.

End Of Sie

FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

A3U091258560W01

1. Disconnect the negative battery cable.
2. Remove the front door glass. (See 09–12–3 FRONT DOOR GLASS AND GUIDE REMOVAL/INSTALLATION.)
3. Disconnect the front power window regulator connector.
4. Remove the bolts and the nuts, then remove the front power window regulator.

Tightening torque

6.87—9.80 N·m {70—100 kgf·cm, 60.8—86.7 in·lbf}

5. Install in the reverse order of removal.

End Of Sie

FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY

A3U091258560W02

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Terminal

Motor operation

A

B

GND

B+

UP

B+

GND

DOWN

Y3U912WA0

1

Screw

2

Power window motor
(See 09–12–6 Power Window Motor Disassembly
Note)

3

Frame

X3U912WC0

1712-1U-01G(09-12).fm  5 ページ  ２００１年６月２９日 金曜日 午前１０時３０分

GLASS/WINDOWS/MIRRORS

09–12–6

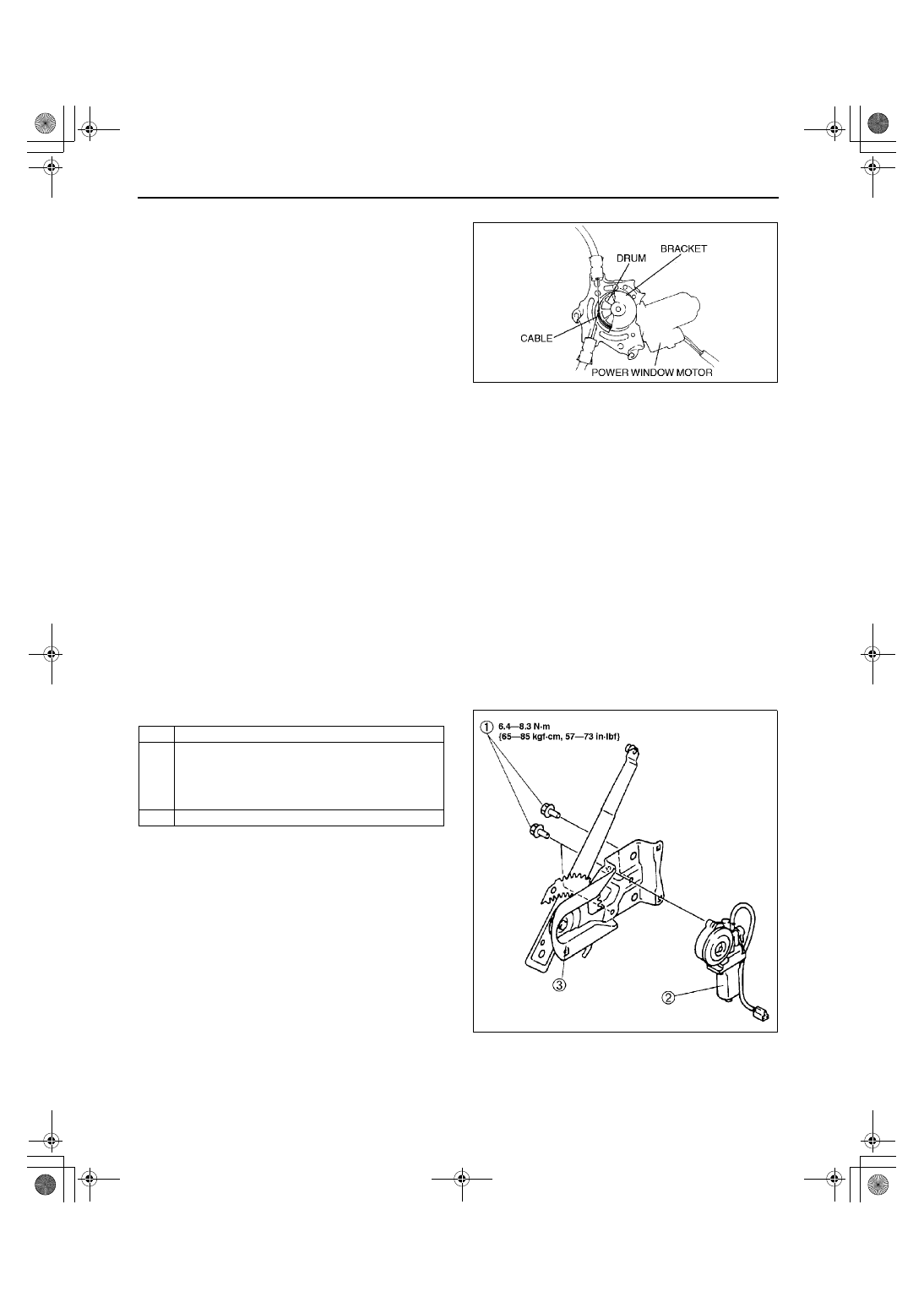

Power Window Motor Disassembly Note

1. Hold the drum and the cable with the bracket to

prevent them from being pulled out with the
power window motor.

End Of Sie

FRONT MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION

A3U091258561W01

1. Remove the front door glass. (See 09–12–3 FRONT DOOR GLASS AND GUIDE REMOVAL/INSTALLATION.)
2. Remove the bolts and the nuts, then remove the front manual window regulator.

Tightening torque

6.87—9.80 N·m {70—100 kgf·cm, 60.8—86.7 in·lbf}

3. Install in the reverse order of removal.

End Of Sie

REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

A3U091272560W01

1. Disconnect the negative battery cable.
2. Remove the rear door glass. (See 09–12–4 REAR DOOR GLASS AND GUIDE REMOVAL/INSTALLATION.)
3. Disconnect the rear power window regulator.
4. Remove the bolts, then remove the rear power window regulator.

Tightening torque

6.87—9.80 N·m {70—100 kgf·cm, 60.8—86.7 in·lbf}

5. Install in the reverse order of removal.

End Of Sie

REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY

A3U091272560W02

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

X3U912WC1

1

Bolt

2

Power window motor
(See 09–12–7 Power Window Motor Disassembly
Note)
(See 09–12–7 Power Window Motor Assembly
Note)

3

Frame

Y3U912WA1
