AIR BAG SYSTEM

08–10–18

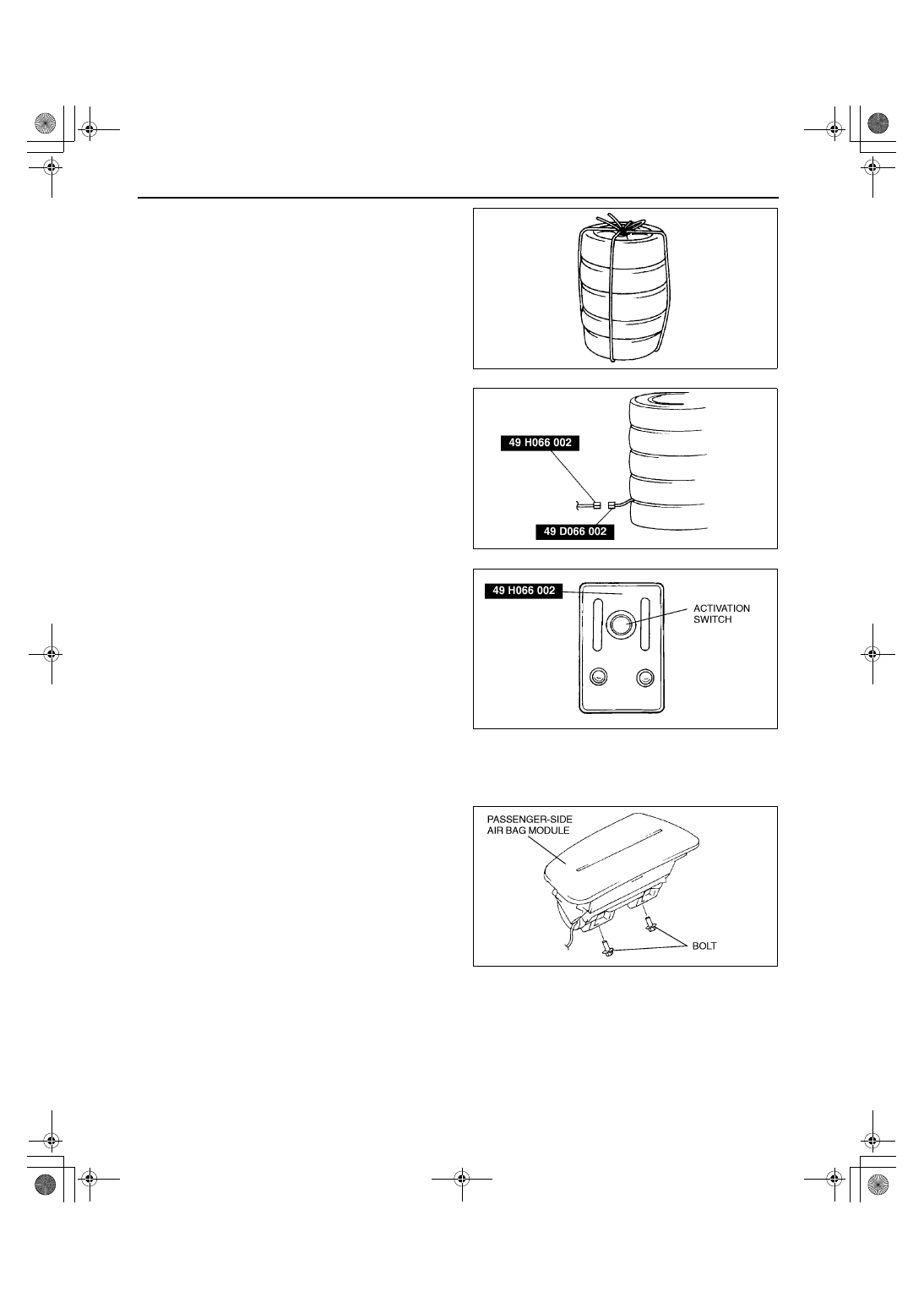

5. Tie all tires together with wire.

6. Connect the SST (Deployment tool) to the SST

(Adapter harness).

7. Connect the red clip of the SST (Deployment tool)

to the positive battery terminal and the black clip
to the negative battery terminal.

8. Verify that the red light on the SST (Deployment

tool) is illuminated.

9. Make sure all persons are standing at least 6 m

{20 ft} away from the tires.

10. Press the activation switch on the SST

(Deployment tool) to deploy the driver-side air
bag module.

Passenger-side air bag module

1. Remove the passenger-side air bag module. (See 08–10–6 PASSENGER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION.)

2. Install the bolts to the passenger-side air bag

module.

Warning

••••

If the air bag module is not properly
installed to the tire, serious injury may
occur when the module is deployed.
When installing the air bag module to the
tire, make sure the module is facing the
center of the tire.

X3U810WAX

X3U810WAY

X3U810WAZ

X3U810WB0

1712-1U-01G(08-10).fm  18 ページ  ２００１年６月２９日 金曜日 午前１０時２４分

AIR BAG SYSTEM

08–10–19

08–10

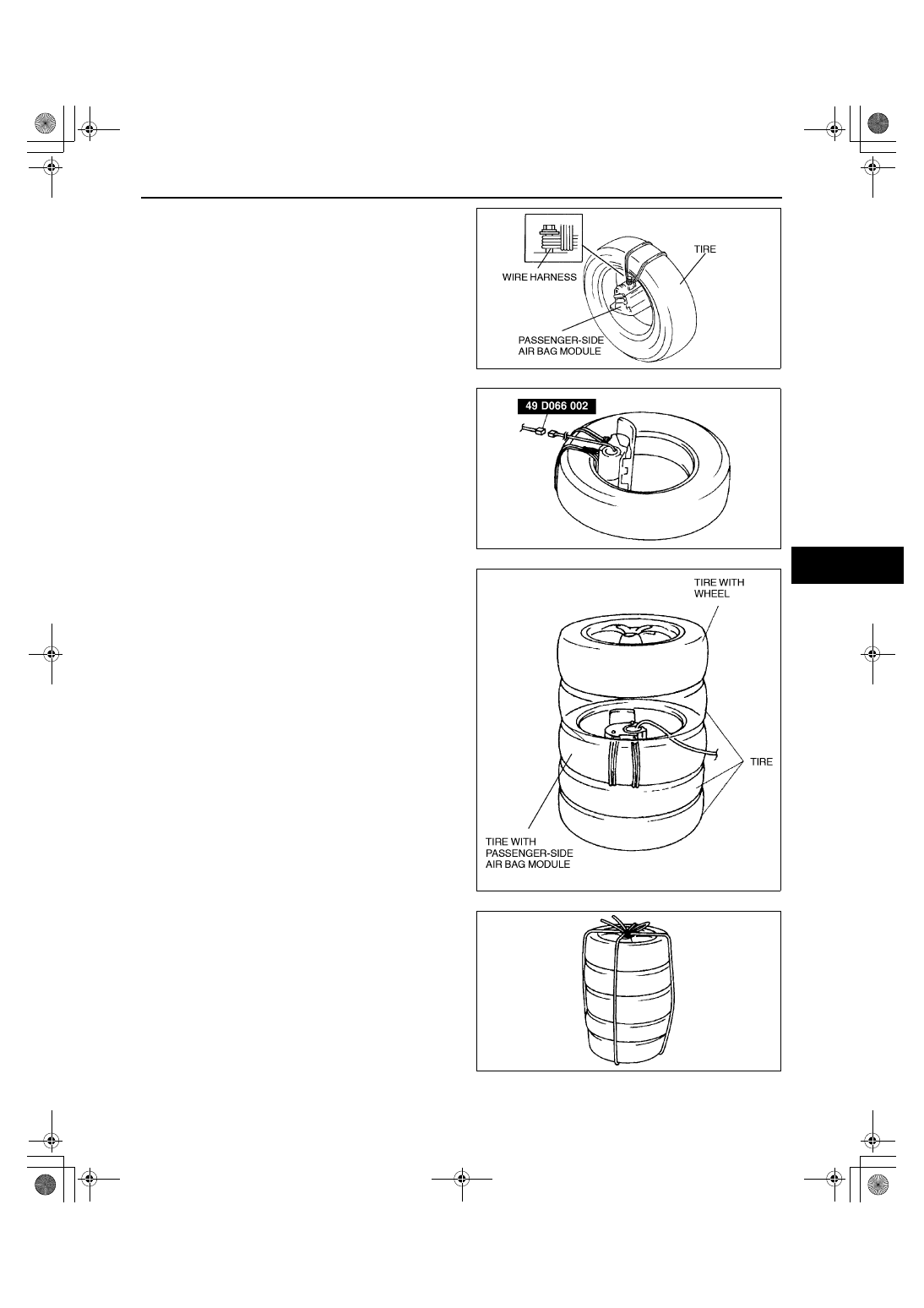

3. Tie the passenger-side air bag module to a tire

with the module facing the center of the tire. Wrap
the wire harness through the tire and around the
bolts at least four times.

4. Connect the SST (Adapter harness) to the

passenger-side air bag module as shown in the
figure.

5. Stack the tire with the passenger-side air bag

module on top of 2 tires. Stack a tire on top of the
3 tires. Stack another tire that has a wheel on top
of the 4 tires.

6. Tie all tires together with wire.

X3U810WB1

X3U810WB2

X3U810WB3

X3U810WB4

1712-1U-01G(08-10).fm  19 ページ  ２００１年６月２９日 金曜日 午前１０時２４分

AIR BAG SYSTEM

08–10–20

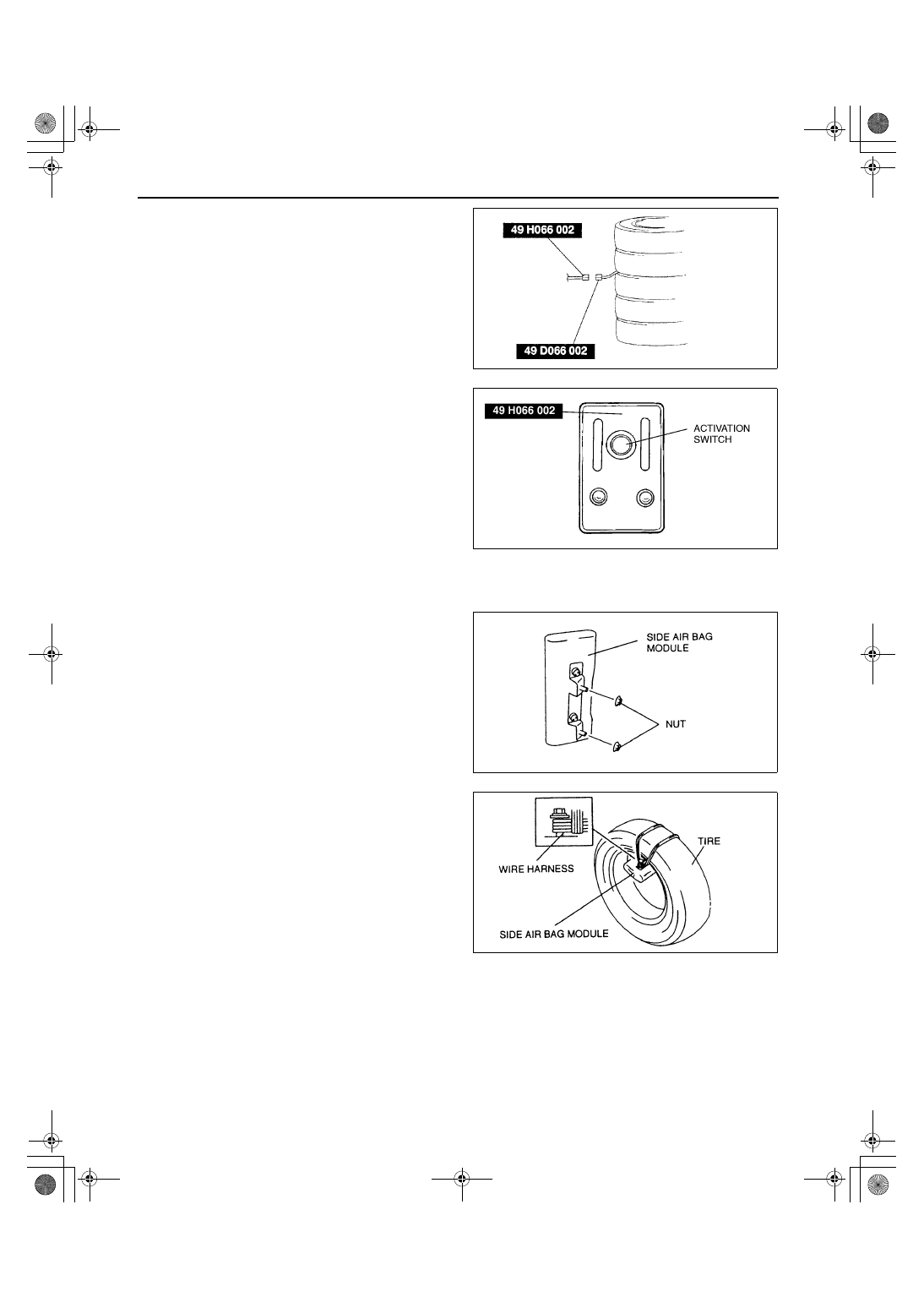

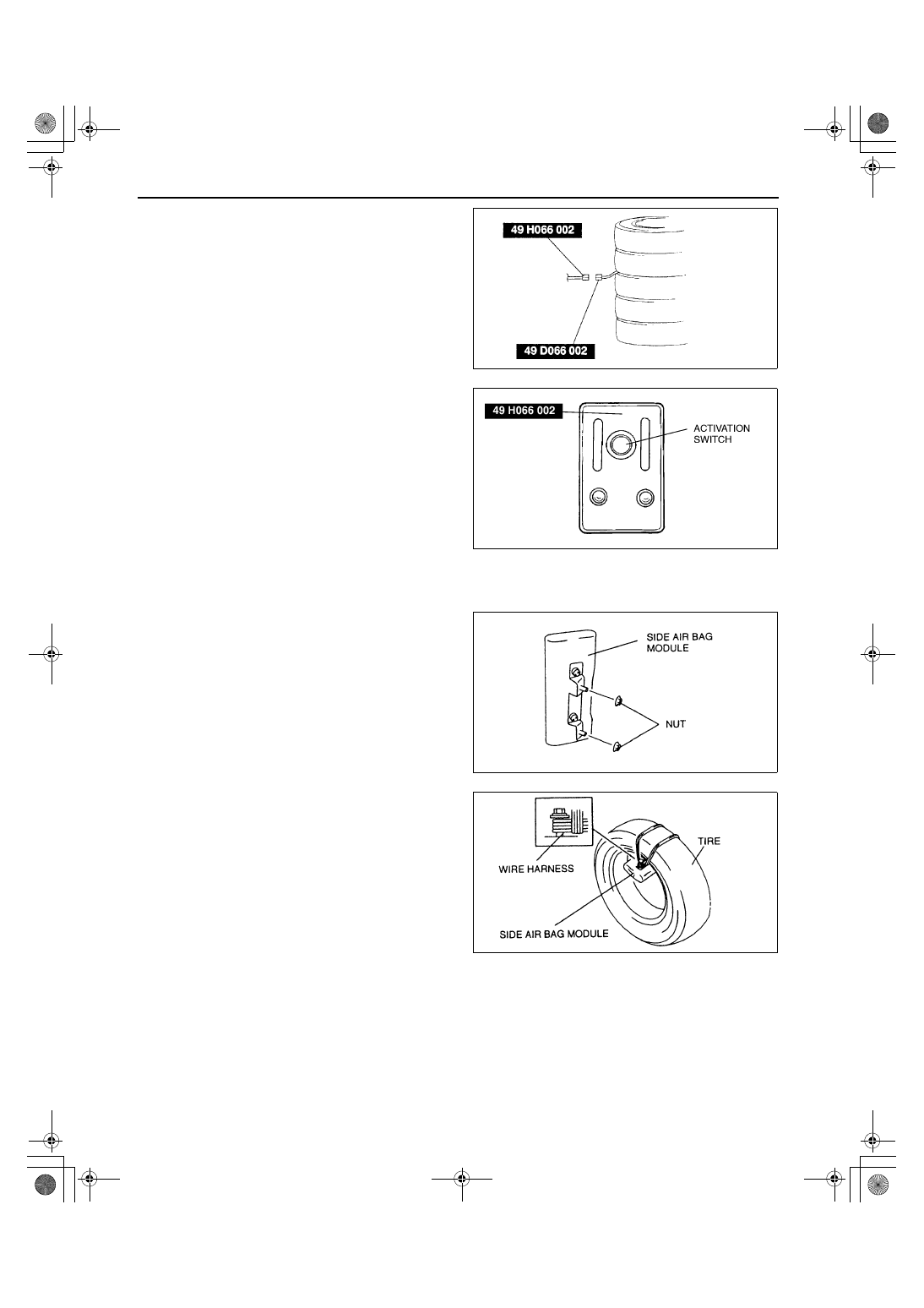

7. Connect the SST (Deployment tool) to the SST

(Adapter harness).

8. Connect the red clip of the SST (Deployment tool)

to the positive battery terminal and the black clip
to the negative battery terminal.

9. Verify that the red light on the SST (Deployment

tool) is illuminated.

10. Make sure all persons are standing at least 6 m

{20 ft} away from the tires.

11. Press the activation switch on the SST

(Deployment tool) to deploy the passenger-side
air bag module.

Side air bag module

1. Remove the side air bag module. (See 08–10–7 SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2. Install the nuts to the side air bag module.

Warning

••••

If the air bag module is not properly
installed to the tire, serious injury may
occur when the module is deployed.
When installing the air bag module to the
tire, make sure the module is facing the
center of the tire.

3. Tie the side air bag module to the tire with the

module facing the center of the tire. Wrap the wire
harness through the tire and around the nuts at
least 4 times.

X3U810WB5

X3U810WB6

Y3U810WAF

Y3U810WAG

1712-1U-01G(08-10).fm  20 ページ  ２００１年６月２９日 金曜日 午前１０時２４分

AIR BAG SYSTEM

08–10–21

08–10

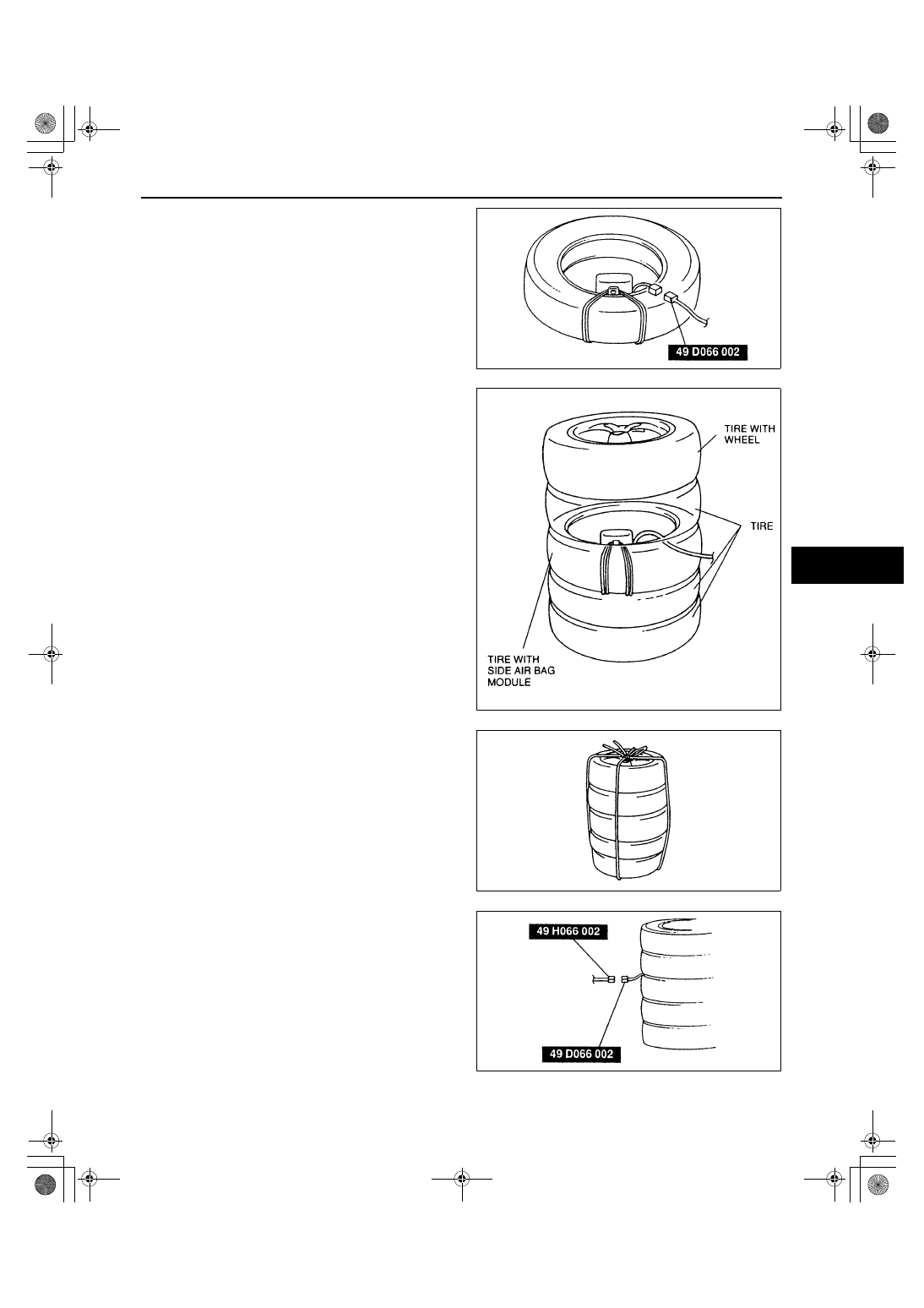

4. Connect the SST (Adapter harness) to the side

air bag module as shown in the figure.

5. Stack the tire with the side air bag module on top

of 2 tires. Stack a tire on top of 3 tires. Stack
another tire that has a wheel on top of the 4 tires.

6. Tie all tires together with wire.

7. Connect the SST (Deployment tool) to the SST

(Adapter harness).

8. Connect the red clip of the SST (Deployment tool)

to the positive battery terminal and the black clip
to the negative battery terminal.

9. Verify that the red light on the SST (Deployment

tool) is illuminated.

10. Make sure all persons are standing at least 6 m

{20ft} from the tires.

Y3U810WAH

Y3U810WAJ

Y3U810WAK

Y3U810WAL
